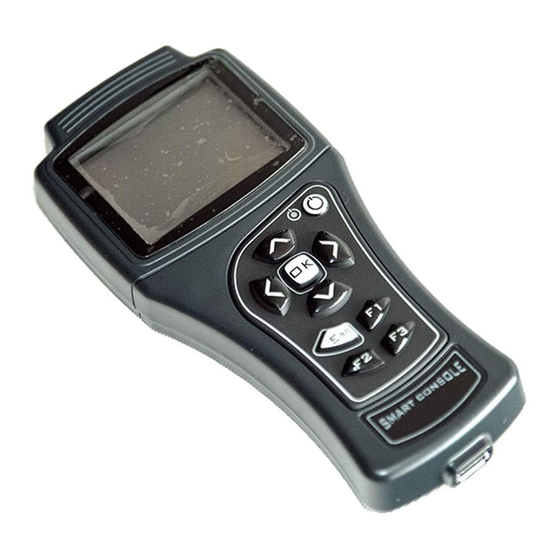

ZAPI SMART CONSOLE
Introduction for J1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART CONSOLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zapi SMART CONSOLE

Summary of Contents for Zapi SMART CONSOLE

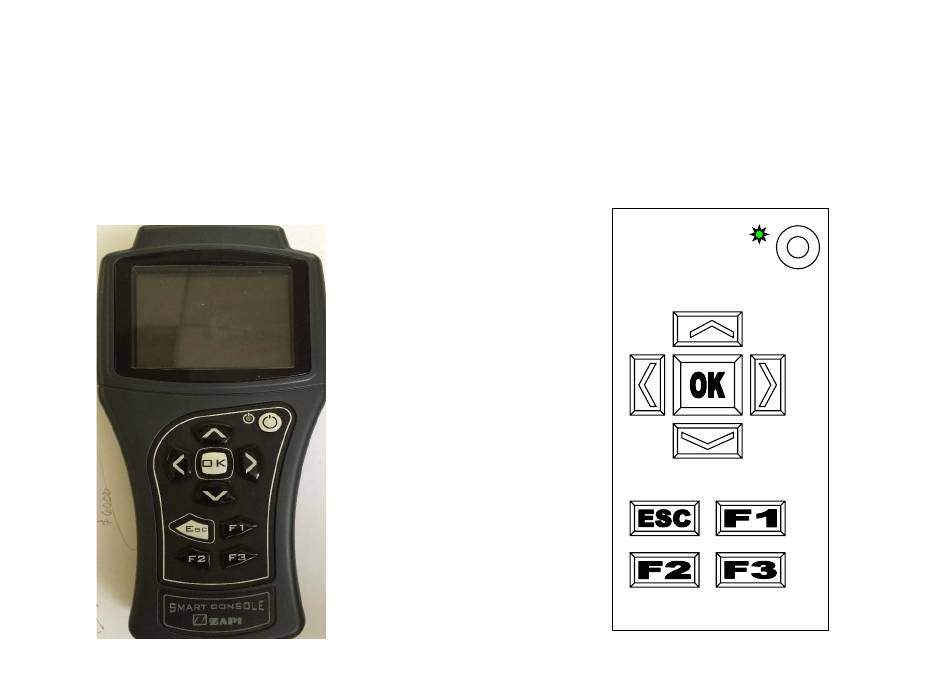

  • Page 1 ZAPI SMART CONSOLE Introduction for J1...
  • Page 2 Location of CAN Connection...
  • Page 3 Traction VACC Turn on ZAPI Handset Push and hold the power button for 3s The Display will show: Cons AFG ZP021* Press button until CAN CONSOLE shows on the display Cons AFG ZP021* The Display will show : CAN CONSOLE...
  • Page 4 CANCONSOLE The Display will show: SELECT NODE Push , or To select Node 2 SELECT NODE The Display will show: NODE 2 Press OK to go into the Traction controller ACOT2BESK EP0.45 The Display will show: 24V 150A 0H Press OK to go into the Main Menu...
  • Page 5 The Display will show: Main Menu Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press OK to go into the PROGRAM VACC function The Display will show the minimum and VACC SETTING maximum throttle voltage values.
  • Page 6 The display will show: FORWARD x.xV x.xV BACKWARD x.xV x.xV Press pedal, Slowly depress the accelerator forward to its maximum value. The new minimum and maximum voltages will be displayed on the Console plus an arrow indicating the direction. Repeat step for reverse direction When finished , press ESC...
  • Page 7 The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK NO=ESC Press OK for yes When finished, the Console shows : Main Menu Press and hold power button for 3s to turn off the Console...

  • Page 8: Steering Calibration

    Steering Calibration Turn on ZAPI Handset Push and hold the power button for 3s The Display will show: Cons AFG ZP021* Press button until CAN CONSOLE shows on the display Cons AFG ZP021* The Display will show : CAN CONSOLE...
  • Page 9 CANCONSOLE The Display will show: SELECT NODE Push , or To select Node 6 SELECT NODE The Display will show: NODE 6 Press OK to go into the Steer controller EPSAC0C2A EP161C The Display will show: 24V 50A 0H Press OK to go into the Main Menu...
  • Page 10 The Display will show: Main Menu Press button until HARDWARE SETTING shows on the display MAIN MENU The Display will show: HARDWARE SETTING Press OK to go into the HARDWARE SETTING function HARDWARE SETTING The Display will show: Press button until AUTOTEACHING shows on the display HARDWARE SETTING...
  • Page 11 HARDWARE SETTING The Display will show: AUTOTEACHER ON When finished , press ESC The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK NO=ESC Press OK for yes When finished, the Console shows : Main Menu Push and hold the power button for 3s to turn off the Console.
