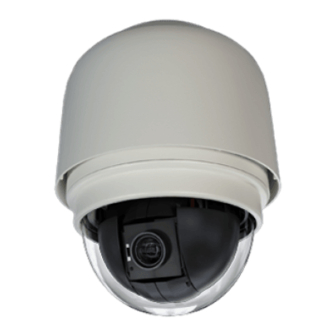

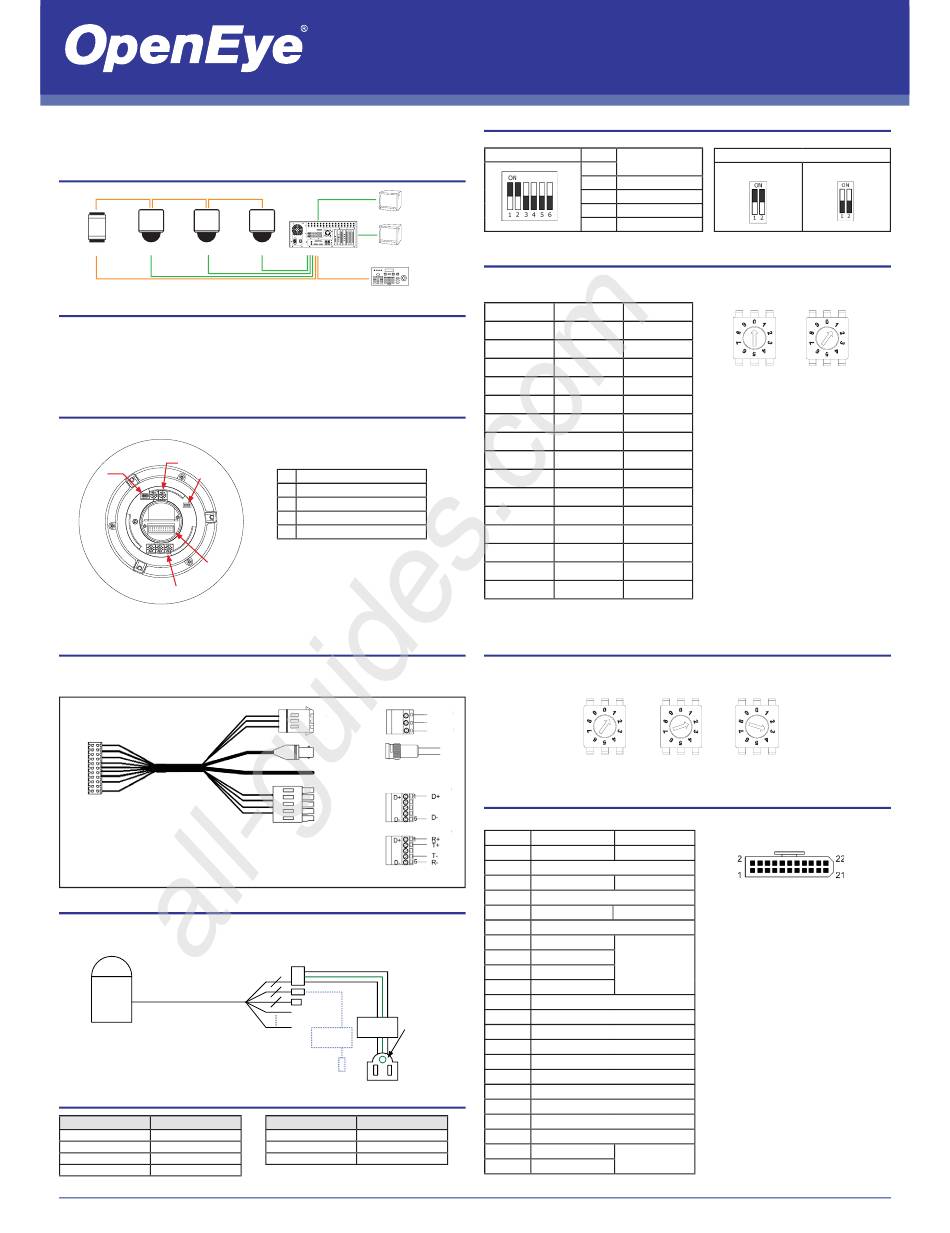

OpenEye CM-511 Quick Manual

This quick operation guide is a quick reference for users to install and operate the dome camera and only provides
basic information on the camera's settings and operation. Before attempting to connect, confi gure and operate the
dome camera, please read the installation guide and the user manual thoroughly.
System Confi guration
RS-485 RS-485 RS-485
Repeater Dome Camera Dome Camera
Video
Video
RS-485
Box Contents
• Dome Camera
• Optical Cover
• Data Cable (AC24V)
• Screws
• Lubricant
• Quick Guide
• Installation & User Manuals
Dome Switch Defi nition
C
A
E
D
B
Data Cable and Connector Defi nition
The data cable supplied with the dome camera is an AC 24V.
Refer to the fi gures below for the defi nition of each connector before wiring.
AC 24V Data/Alarm Cable
Note The CM-511 outdoor dome camera only supports AC 24V
Note OpenEye recommends Category 5 or 6 Twisted Pair Cable
for the RS-485 wire.
Grounding Recommendation
The GND (ground) wire must be directly connected to the middle pin of the AC24V power connector. Failure to connect
the ground can cause damage and failure of the camera.
If the connection of the GND wire causes video noise, use a video isolator. This is only necessary in some situations.
AC 24V
Power Wire Length Specifi cations
Wire Gauge Maximum Distance
22 27 feet
20 44 feet
18 69 feet
16 110 feet
All manuals and user guides at all-guides.com
Video
Main Monitor
ON
OFF 1 C AMERA 75 TERM 16 Video
Call Monitor
Dome Camera Switch/Quad/MUX/DVR
Video
RS-485
Control Keyboard
A Communication Switch
B Dome ID Switch
C Dome Control Protocol Switch
D 22-Pin Connector
E ISP Connector (for FW upgrade)
Power Input
Video Output
Alarm Cable
DVR/Keyboard (2-wire)
RS-485
DVR/Keyboard (4-wire)
3 pins terminal block
3
2
VIDEO OUT
Must be
4
connected
RS-485
to ground
(GND)
Alarm I/O AC 24V
Adapter
Video
Optional
Isolator
VIDEO OUT
Wire Gauge Maximum Distance
14 175 feet
12 279 feet
10 444 feet
CM-511 | High Speed Dome Camera Quick Guide
Communication Switch Setting
The table below shows the function of each switch within the Communication Switch on the dome back plate.
Communication Switch SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
Dome Control Protocol Setting
Refer to the table below and select a protocol and baud rate appropriate for your installation, based on the control
device. Adjust the Protocol Switch on the dome camera back plate. For example, the protocol switch should be set as
below if you are using the Pelco D protocol, with the switch number of 01 and a baud rate of 2400.
Switch No. Protocol
00 VCL
01 Pelco D
02 Pelco P
04 Chiper
05 Philips
07 OPTIX 3*
08 AD422
09 DM P
11 Pelco D
12 Pelco D
13 Pelco P
14 Pelco P
15 JVC
21 Kalatel-485
22 Kalatel-422
Dome ID Setting
Change the dome ID if there is more than one dome on the same installation. To change the dome camera ID, turn
each arrow of the ID switch to the desired number respectively. For example, if the dome ID is 123, the ID switch
should be set as below. The default dome ID is 001.
AC 24V
GND
AC 24V
Centesimal Digit
22-Pin Connector Defi nition
When cabling, refer to the fi gure and table below for information about the defi nition of each pin on the data cable.
Pin Defi nition
1 AC 24-1/DC (+)
2 ALM NC
3 AC 24-2/DC (-)
4 ALM NO
5 FG
6 ALM COM
7 T+
8 R-
9 T-
10 R+
11 ISOG
12 ALM-1
13 ALM-3
14 ALM-2
15 ALM-4
16 ALM-5
17 ALM-6
18 ALM-7
19 ALM-8
20 ALM GND
21 VGND
22 Video
RS-485 Setting
RS-485 Setting
Half-duplex
Termination
Line Lock
System Initialization
Reserved
Baud Rate
9600
2400
4800
Decimal Digit
9600
9600
9600
4800
9600
4800
9600
2600
9600
9600
9600
4800
* Default Protocol Setting
Decimal Digit Single Digit
22-Pin Connection
Cable
20AWG/18AWG
20AWG/18AWG
20AWG/18AWG
24AWG
20AWG
www.openeye.net
Full-duplex
Single Digit
