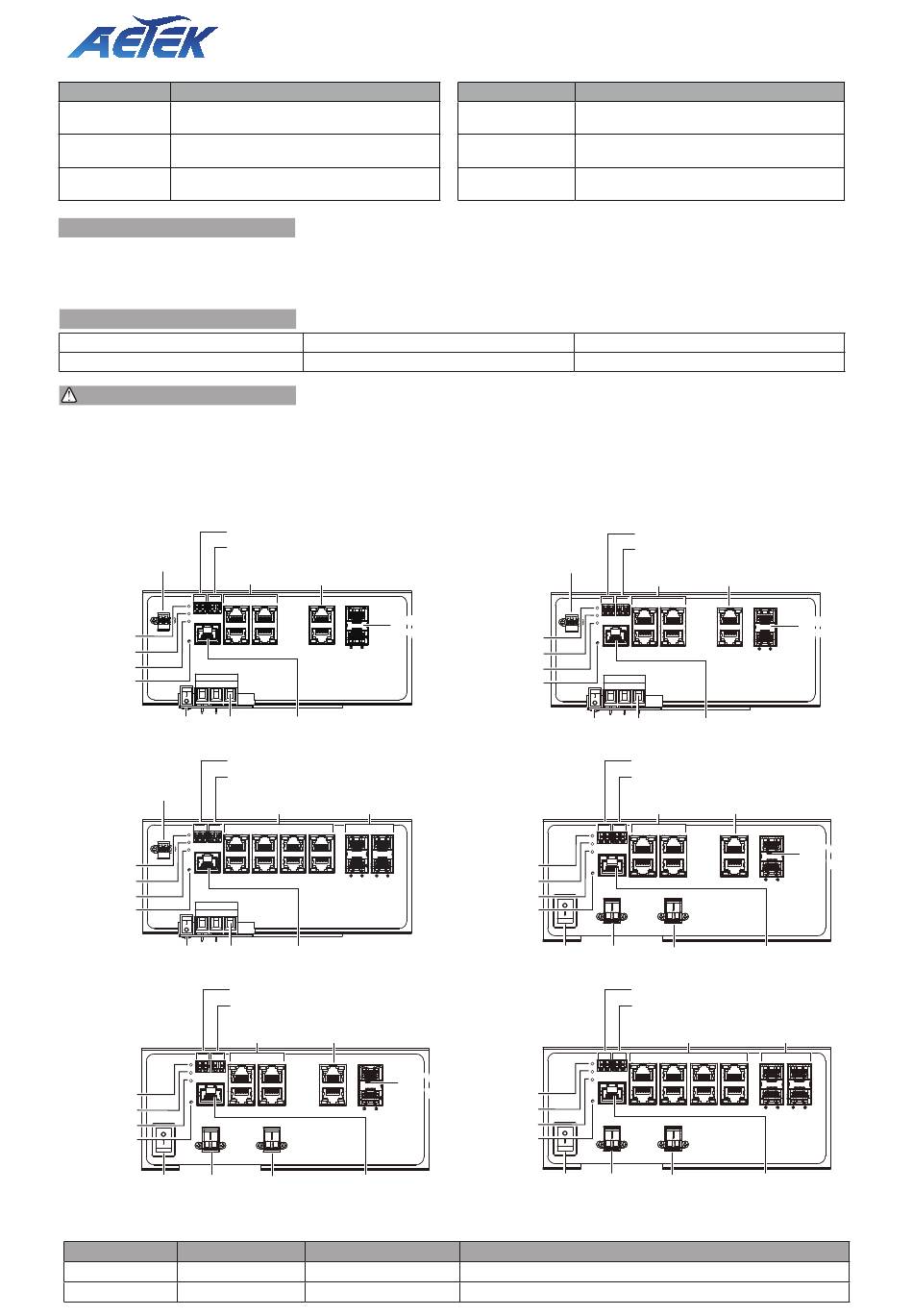

AETEK H60 Series Quick Installation Manual

Model Description
4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
H60-044-30-150
100-240 VAC Input
4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
H60-044-90-250
100-240 VAC Input
8xGbE 30W PoE+4xGbE SFP
H60-084-30-250
100-240 VAC Input

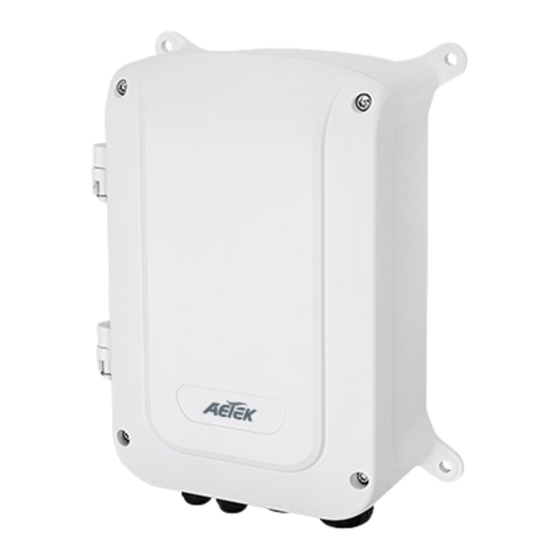

INTRODUCTION
The H60 series is a 4/8 port 10/100/1000BaseT at PoE or PoH/bt switch capable of feeding 15.4/30W or 15.4/30//60/90W
(54V max. per port) power to Power over Ethernet (PoE) devices. It comes with another 2x GbE TP port + 2xGbE SFP port
or 4xGbE SFP port. The switch is capable of a total of 120W/240 Watts PoE power budget.
PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench, 4x wall anchors
IMPORTANT :
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 150W/250W.
5. Digital output (relay): ON/OFF, support 24VDC/1A. Digital input: level 0(Low), level 1(High).
H60-044-30-150
Digital input
Digital output relay
48~56VDC Input
10/100/1000
PoE RJ45 ports
Power1 LED
Power2 LED
DO LED
Reset button
AC on/off switch 100~240VAC
H60-084-30-250
Digital input
Digital output relay
48~56VDC Input
Power1 LED
Power2 LED
DO LED
Reset button
AC on/off switch 100~240VAC
H60-044-90-DC
Power1 LED
Power2 LED
DO LED
Reset button
DC on/off switch 12~56VDC
Input
Reset button
Task Method
Reset Press 2 ~ 7 seconds Blinking Green
Restore Defaults Press 7 ~ 12 seconds Blinking Green
Outdoor L2 PRO Gigabit PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
10/100/1000
RJ45 ports
100/1000 100/1000
SFP ports SFP ports
Console port
10/100/1000 100/1000
PoE RJ45 ports
SFP ports
Console port
Digital input
Digital output relay
10/100/1000
10/100/1000
PoE RJ45 ports RJ45 ports
100/1000 100/1000
SFP ports SFP ports
12~56VDC Console port
Output
SYS LED Behavior
Model Description
4xGbE 30W PoE+2xGbE SFP+2xGbE RJ45
H60-044-30-DC
12-56 VDC Input
4xGbE 90W bt PoE+2xGbE SFP+2xGbE RJ45
H60-044-90-DC
12-56 VDC Input
8xGbE 30W PoE+4xGbE SFP
H60-084-30-DC
12-56 VDC Input
* 1x Console cable
H60-044-90-250
48~56VDC Input
10/100/1000
PoE RJ45 ports
Power1 LED
Power2 LED
DO LED
Reset button
AC on/off switch 100~240VAC
H60-044-30-DC
Digital input
Digital output relay
10/100/1000
PoE RJ45 ports
Power1 LED
Power2 LED
DO LED
Reset button
DC on/off switch 12~56VDC
Input
H60-084-30-DC
Power1 LED
Power2 LED
DO LED
Reset button
DC on/off switch 12~56VDC
Input
Port Status LED Behavior
All LEDs Off.
All LEDS On.
P/N:A625013900G
Digital input
Digital output relay
10/100/1000
RJ45 ports
100/1000 100/1000
SFP ports SFP ports
Console port
10/100/1000
RJ45 ports
100/1000 100/1000
SFP ports SFP ports
12~56VDC Console port
Output
Digital input
Digital output relay
100/1000
10/100/1000
PoE RJ45 ports
SFP ports
12~56VDC Console port
Output
