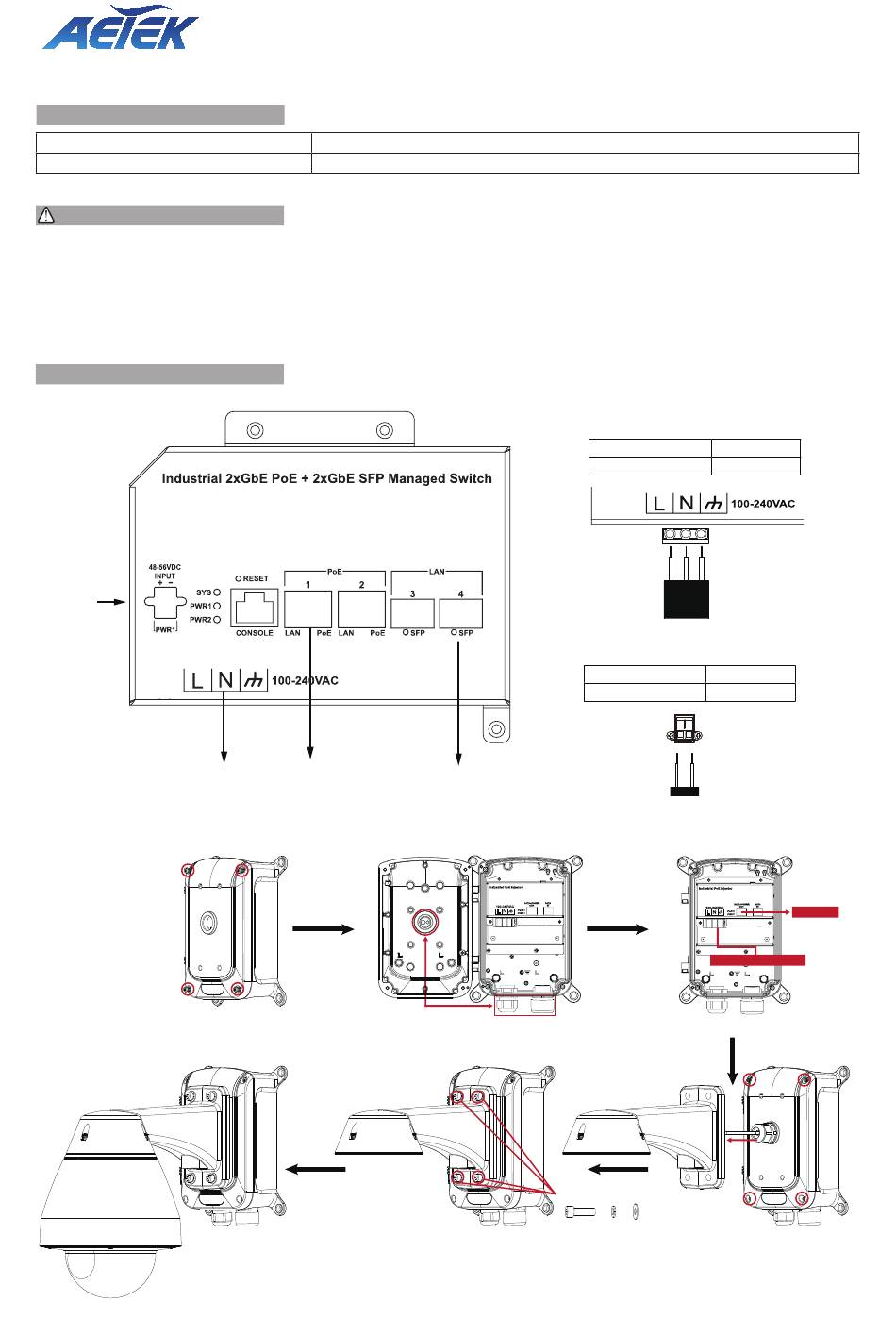

AETEK H60-022-90-120-A Quick Installation Manual

PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench
IMPORTANT:
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60HZ) for a max. consumption of 120W.
5. IP67 rated housing.
6. Although housing is IP67 rating , this is not suitable for water jets.
CONNECTION
DC
Input
100~240VAC
Power Input
1. Loosen the screws

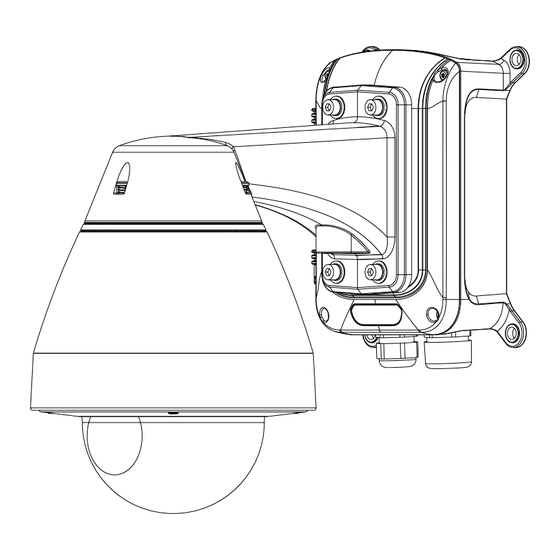

6. Install dome camera
H60-022-90-120-A
Quick Installation Guide
* 1x Quick Installation Guide
* 1x Console Cable
GbE RJ45
PoE Ports
Outdoor L2 PRO PoE Switch
GbE SFP Ports
2. Install the cable glands
(M8x27mm+Spring Washer
+Flat Washer screws) x4pcs
5. Fixed pendant wall mount
P/N: 5019049900
AC Power Cable Spec.
Wire Size 10~18AWG
Wire Strip Length 8mm
8mm
AC Power Cable
DC Power Cable Spec.
Wire Size 10~18AWG
Wire Strip Length 8mm
8mm
DC Power Cable
Power cord & Lan cable
3. Connect the cables
+ +
4. Tighten the screws
LAN Cable
