AETEK H60-022-91-120 Quick Installation Manual

Outdoor pro l2 poe switch

Advertisement

Quick Links

Model
Description
H60-022-91-120
2xGbE 90W bt PoE+2xGbE SFP 100-240 VAC Input
PACKAGE CONTENTS
* 1x PoE switch
* 1x T25 L-wrench, 4x wall anchors
IMPORTANT :
1. Install the PoE switch in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the switch are not blocked.
3. Use CAT5 or 5e UTP/STP cables.
4. AC input (100~240V/AC, 50~60Hz), for a max. consumption of 120W.
Reset button
Task
Method
Reset
Press 2 ~ 7 seconds Blinking Green
Restore Defaults
Press 7 ~ 12 seconds Blinking Green
SYS LED
LED
Color
State Description
System
Yellow On
System ON
Off
System OFF
DEFAULTS
IP Address
192.168.1.1
Subnet Mask
255.255.255.0
admin
User Name
Password
admin
Console Port Defaults
Baud rate
115200
Stop bits
1
Data bits
8
Parity
N
Flow control
none
Port Status LEDs
LED
Color
State
RJ45 Ports
Amber On
Up (PoE)
-
Off
RJ45 Ports
Green On
Down (LAN)
Green Blinking
-
Off
SFP Ports
Green On
Green Blinking
-
Off

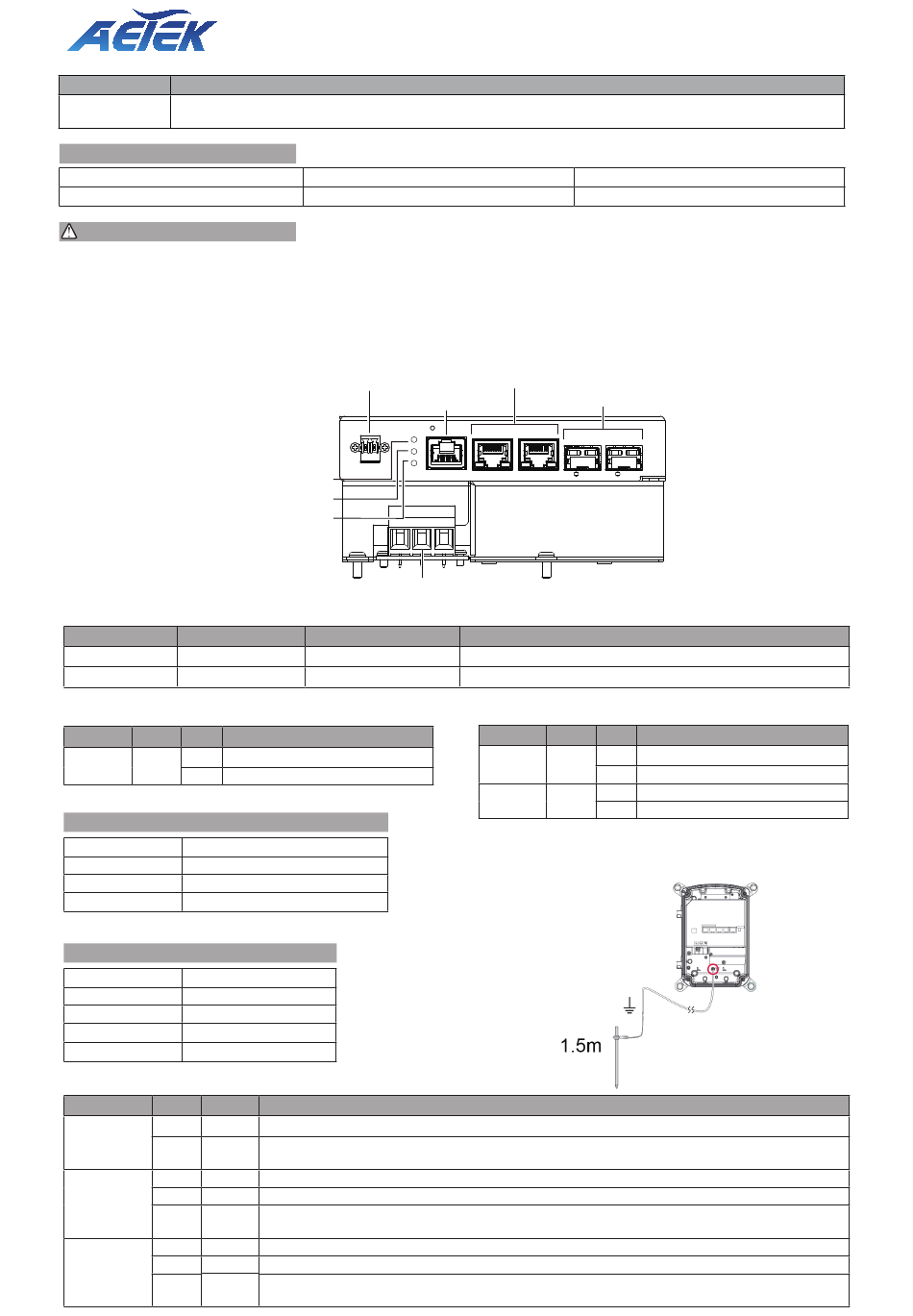

H60-022-91-120 Outdoor PRO L2 PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
H60-022-91-120
48~56VDC Input
Console port
Power1 LED
Power2 LED
SYS LED
100~240VAC
SYS LED Behavior
Description
The port is enabled and supplying power to connected device.
The port has no active connection, or it is not connected to a PoE PD device. Otherwise, the port may
have been disabled through the switch user interface.
The port is enabled and established a link to connected device.
The port is transmitting/receiving packets.
The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
The port is enabled and established a link to connected device,
The port is transmitting/receiving packets.
The port has no active network connection, or it has no established link to connected device.
Otherwise, the port may have been disabled through the switch user interface.
* 1x Console cable
GbE RJ45
100/1000
PoE Ports
SFP ports
Port Status LED Behavior
All LEDs Off.
All LEDS On.
Power LEDs
LED
Color
State Description
Power1
Green On
Off
Power2
Green On
Off
The cabinet must be grounded using a
ground wire between the ground screw
and earth ground.
Powered on correctly.
Not receiving power from power1.
Powered on correctly.
Not receiving power from power1.
