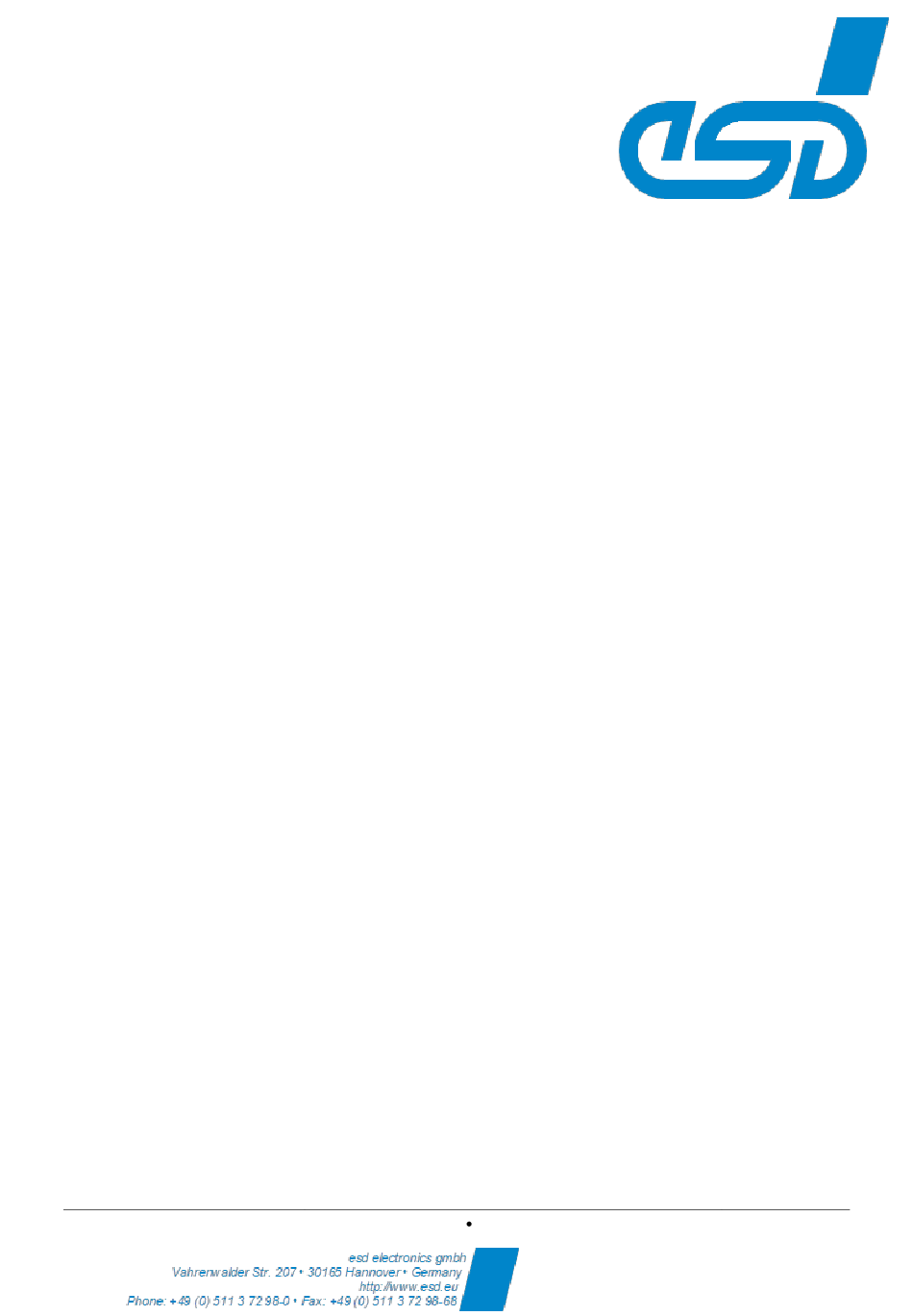

- Page 1 VME-DIO32-C VME-DIO32-F Digital IO VMEbus Board Hardware Manual to Products V.1607.06 K.0508.68 VME-DIO32-C / VME-DIO32 -F Hardware Manual Doc. Nr.: M.1607.26 / Rev 1.0 Page 1 of 24...
- Page 2 design.
- Page 3 Rev. Chapter Changes versus previous version Date First English manual for VME-DIO32-C and VME-DIO32-F 2021-08-03 Technical details are subject to change without further notice. VME-DIO32-C / VME-DIO32-F Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0...
- Page 4 This NOTICE statement contains the general mandatory sign and gives information that must be heeded and complied with for a safe use. INFORMATION INFORMATION Notes to point out something important or useful. Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 Page 4 of 24 VME-DIO32-C / VME-DIO32-F...
-
Page 5: Safety Instructions
The VME-DIO32 is a sub-assembly intended for incorporation into an apparatus by a manufacturer and NOT by the end user. The manufacturer of the final system must decide whether additional EMC or EMI protection requirements are necessary. VME-DIO32-C / VME-DIO32-F Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 Page 5 of 24... - Page 6 The intended use of the VME-DIO32 is the operation as VME board with digital I/Os. The guarantee given by esd does not cover damages which result from improper use, usage not in accordance with regulations or disregard of safety instructions and warnings.
-
Page 7: Table Of Contents
Table of Contents Safety Instructions .......................... 5 1 Overview ............................. 9 1.1 About this Manual ......................... 9 1.2 Description of VME-DIO32-C ....................9 1.3 Description of VME-DIO32-F....................10 1.4 Abbreviations ........................10 2 Hardware ..........................11 2.1 PCB View VME-DIO32-C ....................11 2.2 PCB View VME-DIO32-F .................... - Page 8 Table 12: Order information hardware ..................24 Table 13: Available Manuals ......................24 List of Figures Figure 1: Block circuit diagram of VME-DIO32-C ................9 Figure 2: Block circuit diagram of VME-DIO32-F ................10 Figure 3: PCB top view of VME-DIO32-C ..................11 Figure 4: PCB top view of VME-DIO32-F ..................
-
Page 9: Overview
The VME-DIO32-C comes with a green and a red LED in the front panel for each of the 32 I/O- channels. The green LEDs indicate the input status, and the red LEDs indicate the output short- circuit. -
Page 10: Description Of Vme-Dio32-F
Register Electrical isolation 8 x Input data bus driver Figure 2: Block circuit diagram of VME-DIO32-F The VME-DIO32-F is designed as the VME-DIO32-C but only 16 output drivers are equipped. 1.4 Abbreviations Abbreviation Term Central Processing Unit Hardware Input/Output Least Significant Bit Most Significant Bit n.a. -
Page 11: Hardware
Hardware 2 Hardware 2.1 PCB View VME-DIO32-C Figure 3: PCB top view of VME-DIO32-C NOTICE Read chapter “Hardware Installation” on page 16, before you start with the installation of the hardware! Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 12: Pcb View Vme-Dio32-F
2.2 PCB View VME-DIO32-F Figure 4: PCB top view of VME-DIO32-F NOTICE Read chapter “Hardware Installation” on page 16, before you start with the installation of the hardware! Page 12 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 13: Leds
Output signal of channel “ON” (active input) Green Input signal of channel = 0 - 31 Figure 5: Front panel with LEDs and ADDR switch Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F Page 13 of 24... -
Page 14: Coding Switches
Non-inverted => Digital Inputs DIN18 and DIN19 are not inverted Inverted => Digital inputs DIN18 and DIN19 are inverted Table 2: Description of INV_IN Page 14 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 15: Lower Vmebus Base Address (Sw112)
The lower VMEbus address can be adjusted from 0 – 15 (0 Switch ADDR SW112 Position Rotary switch Lower VMEbus base address Table 3: Description of the switches Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F Page 15 of 24... -
Page 16: Hardware Installation
Fix the module. Connect the system to mains again (mains connector or safety fuse). Switch on the system and the peripheral devices. - End of hardware installation. Page 16 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 17: Technical Data
Eurocard Double-height (6U), 1 slot width Dimensions /160 mm x 233,35 mm x 20,1 mm (length, width, hight) Weight Ca. 470 g Table 4: General Data of the module Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F Page 17 of 24... -
Page 18: Vme Interface
4.3 Connectors accessible from Outside Function, Name Type Interfaces VMEbus DIN41612, type C, 96-pin., Harting: 09033966921 Inputs/Outputs DIN41612, type C, 64-pin.,Harting: 09033646921 Table 6: Connectors, accessible from outside Page 18 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 19: Digital Inputs/Outputs
VME-DIO32-F: 16, arranged in 2 groups with 8 channels I/O-configuration Ports are configurable as inputs or outputs, digital outputs, VME-DIO32-C only: The status of the outputs (DERR) can be read. Type of the outputs Plus switching (High Side Driver) Power supply External power supply 18 V ... -
Page 20: Description Of The Hardware Registers
5 Description of the Hardware Registers The following registers are supported: “Status Register” “Transparent Input-Data”, 32-Bit, read_only “Output-Data-Register”, 32-Bit, VME-DIO32-C: read/write, VME-DIO32-F: write only On read access to the other addresses‚ ‘1’ will be returned. A write access will be ignored. 5.1 VME-DIO32-C 5.1.1 INPUT-Register (read only) -
Page 21: Vme-Dio32-F
5.2.2 OUTPUT-Register (write only) Local Address DOUT07 DOUT06 DOUT05 DOUT04 DOUT03 DOUT02 DOUT01 DOUT00 DOUT15 DOUT14 DOUT13 DOUT12 DOUT11 DOUT10 DOUT09 DOUT08 Table 11: Output Register VME-DIO32-F Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F Page 21 of 24... -
Page 22: Connector Assignments
Current rating: max 1.0 A per pin - ..pin is not connected on the PCB ┐ ┘ ..signals are connected on the PCB Page 22 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F... -
Page 23: I/O-Connector P2
(y = 1, 2, ..., 4) I/Ox ... I/O channels of VME-DIO32 (x = 0, 1, 2, ..., 31) Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0 VME-DIO32-C / VME-DIO32-F Page 23 of 24... -
Page 24: Order Information
VME-DIO32-F Table 13: Available Manuals Printed Manuals If you need a printout of the manual additionally, please contact our sales team (sales@esd.eu) for a quotation. Printed manuals may be ordered for a fee. Page 24 of 24 Hardware Manual Doc. Nr.: M.1607.26 / Rev. 1.0...
