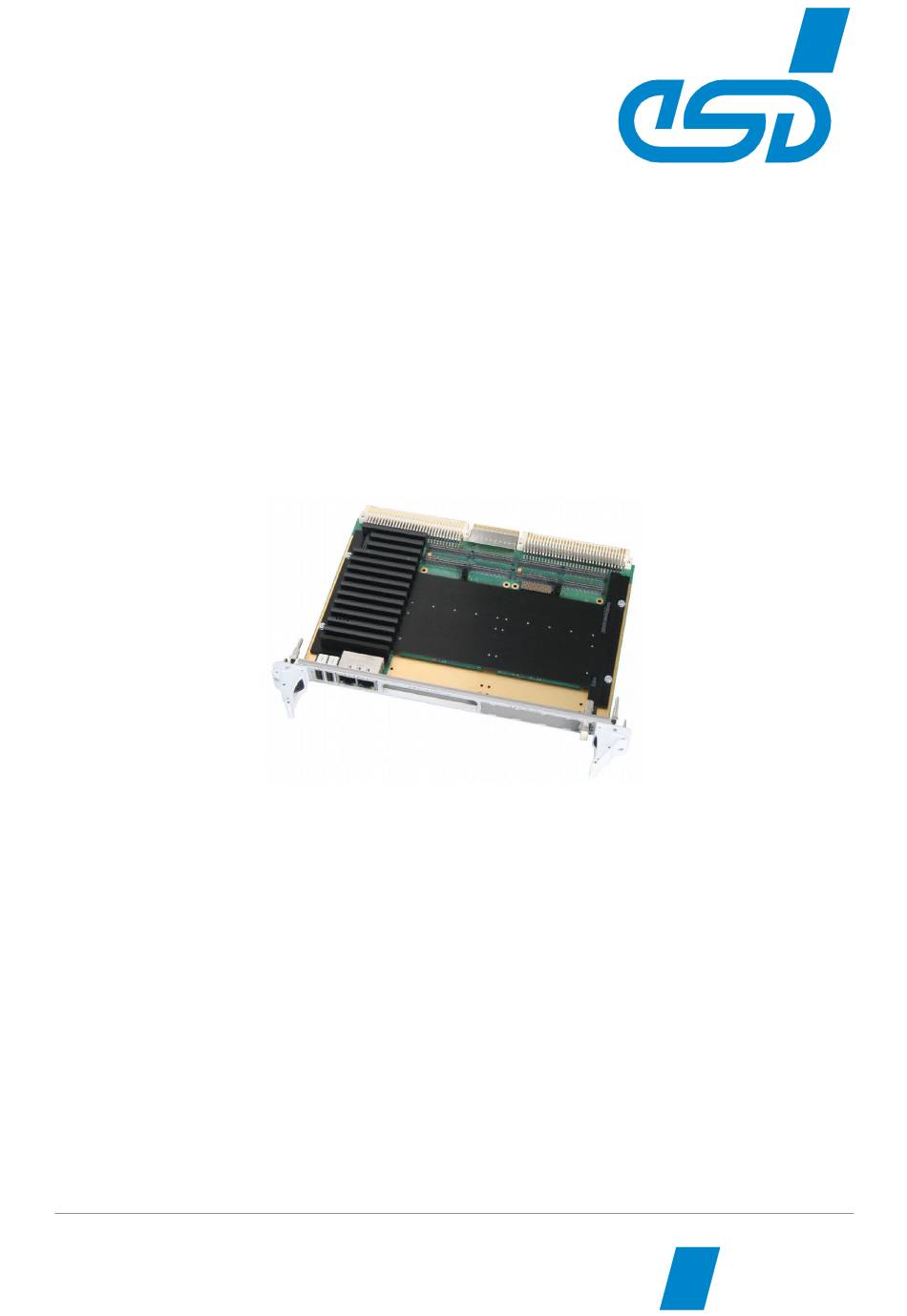

VME-PMC-CPU/2
Processor Board with 2 PMC Slots
VME-PMC-CPU/2
Hardware Manual
to Products:
V.1917.01
V.1917.02
V.1917.03
Hardware Manual • Doc.-No.: V.1917.21 / Rev.1.2
Vahrenwalder Str. 207 • 30165 Hannover • Germany
Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68
V.1917.11
V.1917.12
V.1917.13
V.1917.14
esd electronic system design gmbh
http://www.esd.eu
Page 1 of 49
Advertisement
Table of Contents
Related Manuals for ESD VME-PMC-CPU/2
Summary of Contents for ESD VME-PMC-CPU/2
- Page 1 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev.1.2 Page 1 of 49 esd electronic system design gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 The information in this document has been carefully checked and is believed to be entirely reliable. esd makes no warranty of any kind with regard to the material in this document, and assumes no responsibility for any errors that may appear in this document. In particular descriptions and technical data specified in this document may not be constituted to be guaranteed product features in any legal sense.
- Page 3 Revision Chapter Changes versus previous version Date Updated chapter 'Order Information' (new order no. for VME-PMC-CPU/2-CC CC + 32P2 → V.1917.14, removed VME-PMC-CPU/2 QNX BSP software 2012-11-08 driver) Safety Instructions and Informations revised 1.3.3, Figures of -CC version new (coding switches are equipped on the bottom...
- Page 4 It is the responsibility of the device's user to take care that necessary safety precautions for the device's network interface are in place.
-
Page 5: Table Of Contents
USB Host Interfaces....................12 1.4.7 PMC Slots ........................13 1.4.8 Slots........................14 1.4.9 Software........................14 Front Panel and LEDs........................ 15 2.1 VME-PMC-CPU/2........................ 15 2.2 VME-PMC-CPU/2-CC......................16 Declaration of the LEDs.......................17 2.3.1 Front panel LEDs......................17 2.3.1.1 VMEbus LEDs (only for VME-PMC-CPU/2)............17 2.3.1.2... - Page 6 Assignment of P2 at Special Assembly with RC800, RC801, ...RC811....44 5.10.2 Assignment I/O Connector J24 at Assembly with RC800, RC801, ...RC811....45 5.11 XMC Socket J15........................ 46 6. References..........................48 Order Information........................49 Page 6 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2...
-
Page 7: Overview
The VME-PMC-CPU/2 is equipped with 2 USB-host interfaces (USB2.0) and 2 Ethernet interfaces (IEEE802.3), which are accessible via front panel. The front panel of the VME-PMC-CPU/2 has two cutouts for the front panels of the PMC modules. A blank cover for unused slots is included in the scope of delivery. -
Page 8: Characteristics Of The Available Hardware Options
I/O-pins of the PMC slot 2 (J24) is connected with exactly one I/O-pin of the VMEbus connector P0 (according to VITA 35 (P4V0-64)). In the VME-PMC-CPU/2 with the option '-32P2' the pins are assigned according to IEEE •... -
Page 9: Option: "-Cc": Conduction Cooled
Overview 1.3.3 Option: “-CC”: Conduction Cooled The VME-PMC-CPU/2-CC is designed with covering heat sinks for heat dissipation in conduction cooled systems. The slots of the PMC modules are designed to carry conduction cooled PMC modules. As a result of the heat sinks the front panel and with it the 10-pin har-link-connector with the serial interfaces are not equipped. -
Page 10: Technical Data
X2700 - socket connector 1x7: JTAG-FPGA Dimensions 160 mm x 233 mm Slot format 6 U high / 4 HP wide Weight VME-PMC-CPU/2 (order no.: V.1917.01/.02/.11/.13): ca. 610 g VME-PMC-CPU/2-CC (order no.: V.1917.03): ca. 650 g Power supply voltage VMEbus P1, P2: 5 V ±5% / ca. -
Page 11: Microprocessor And Memory
300 bit/s ... 115.200 bit/s Physical interface RS-232 Connector X1940 (10-pin har-link) and VMEbus P0, Adapter cable 10-pol har-link to 9-pin DSUB available Table 4: Serial interfaces VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 11 of 49... -
Page 12: Ethernet-Interfaces
2 (not available in CC-version) Interface USB 2.0, host, high speed, 480 Mbit/s Controller Integrated in MPC8349 USB1: X1620, 4-pin USB-A-socket Connector USB2: X1720, 4-pin USB-A-socket Table 6: USB host interfaces Page 12 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 13: Pmc Slots
1.0 A current consumption per PMC slot * At the moment this hardware option has no specific order no.. If you would like to order the VME-PMC-CPU/2 with this option, please contact our sales team (sales@esd.eu) before ordering. Note: The maximum permissible power consumption of one PMC module of 15 W for double-sided modules is defined in the IEEE Std. -
Page 14: Xmc Slots
* At the moment this hardware option has no specific order no.. If you would like to order the VME-PMC-CPU/2 with this option, please contact our sales team (sales@esd.eu) before ordering. Table 8: XMC Slots 1.4.9 Software Board Support Packages (BSPs) are available for VxWorks 5.5 and VxWorks 6.7. Moreover esd offers BSPs for Linux ® and QNX ®... -
Page 15: Front Panel And Leds
Front Panel and LEDs 2. Front Panel and LEDs 2.1 VME-PMC-CPU/2 Fig. 4: Front of the VME-PMC-CPU/2 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 15 of 49... -
Page 16: Vme-Pmc-Cpu/2-Cc
Front Panel and LEDs 2.2 VME-PMC-CPU/2-CC Fig. 5: Front of the conduction cooled version VME-PMC-CPU/2-CC Page 16 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 17: Declaration Of The Leds
Colour front panel BUSY green Access from VMEbus to VME-PMC-CPU/2 green VME-PMC-CPU/2 triggers an interrupt on the VMEbus FAIL VME-PMC-CPU/2 triggers FAIL on VMEbus BERR VME-PMC-CPU/2 triggers Bus-Error on VMEbus Table 9: Indication of the VMEbus LEDs 2.3.1.2 USB LEDs (only for VME-PMC-CPU/2) -
Page 18: Ethernet Leds
This LED is not located in the front panel. The position of the LED is described at Fig. 6 on page 20, resp. Fig. 7 on page 22 (conduction cooled version). Page 18 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 19: Reset Button
The reset can be enabled by pushing with a non-conducting bar-shaped object (<1.5 mm diameter). A local reset at the VME-PMC-CPU/2 and consequently at on the PMC modules is triggered. If the CPU is configured as system controller, a reset is triggered at the VMEbus, too. -
Page 20: Pcb View With Coding Switches And Connectors
PCB View with Coding Switches and Connectors 3. PCB View with Coding Switches and Connectors 3.1 VME-PMC-CPU/2 Fig. 6: Top layer view of VME-PMC-CPU/2 Page 20 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... - Page 21 PCB View with Coding Switches and Connectors Fig. 7: Bottom layer view with coding switches of VME-PMC-CPU/2 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 21 of 49...
-
Page 22: Vme-Pmc-Cpu/2-Cc
Fig. 8: Position of the connectors at VME-PMC-CPU/2-CC Note: The position of the coding switches SW800, SW600, SW100 of the VME-PMC- CPU/2-CC is the same as described for the of the VME-PMC-CPU/2, see Figure 7 on page 21. Page 22 of 49 Hardware Manual •... -
Page 23: Default Setting Of The Coding Switches
The default settings of the board are shown in the following table. The coding switches are equipped on the bottom layer of the VME-PMC-CPU/2. The position of the coding switch is shown in Fig. 7 on page 21. In the following descriptions the coding switches are shown as if the board is viewed with the VMEbus connectors on the left (view from PMC slot side). -
Page 24: Vmebus Configuration (Sw600)
SCONEN# VMEbus System Controller setup SCONDIS# Table 14: Assignment of the coding switch SW600 Value of the parameter bits: ON: Bit = ‘0’ OFF: Bit = ‘1’ Page 24 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 25: Vmebus System Controller Setup
PCB View with Coding Switches and Connectors 3.4.2 VMEbus System Controller Setup These bits define how and whether the VME-PMC-CPU/2 is configured as VMEbus System Controller. Coding switch Coding switch contact 2 contact 1 Function SCONEN# SCONDIS# Auto SCON: automatic enabling of the System... -
Page 26: Vmebus Power-Up Options
Table 16: VMEbus-Power-Up option bits Note: Please, refer to chapter '5.4.2 VMEbus Power-up Options' in the manual of the Tundra PCI/X-to-VMEbus-Bridge TS148 [1] for details about the comprehensive VMEbus Power-Up options. Page 26 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 27: Pmc Slot Configuration (Sw800)
Clock rate of the PCI-Bus of the PMC modules: OFF: 66 MHz 33 MHz P-PUPEN reserved for future applications; always set to 'OFF' Table 17: PMC slot configuration via SW800 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 27 of 49... -
Page 28: Address Assignment Of The Vme-Pmc-Cpu/2
Address Assignment of the VME-PMC-CPU/2 4. Address Assignment of the VME-PMC-CPU/2 Address range Assignment 0x00000000 ... 0x1fffffff DDR2 RAM (72 bit data width) 0x80000000 ... 0x8fffffff PCI Memory Space (prefetchable) 0x90000000 ... 0x9fffffff PCI Memory Space 0xe0000000 ... 0xe00fffff CPU IMMR 0xe2000000 ... -
Page 29: Connector Assignment
+5V of the VMEbus, max. allowed charge I < 100 mA Load Shield contact to enclosure shield of the har-link-socket: Shield is connected to the front panel of the VME-PMC-CPU/2 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 29 of 49... -
Page 30: Adapter Cable 'Vme-Pmc-Cpu/Cable
→ RTSS1# ← Shield Shield * The signal direction is described as seen from the VME-PMC-CPU/2. -... This pin is not connected. See page 30 for signal description. Page 30 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2... -
Page 31: Adapter Cable 'Vme-Pmc-Cpu/Cable-Y
← Shield Shield Shield Shield * The signal direction is described as seen from the VME-PMC-CPU/2. -... This pin is not connected. See page 30 for signal description. VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 31 of 49... -
Page 32: Usb (X1620, X1720)
The Ethernet interfaces are equipped with 8-pin RJ45-sockets (8P8C) according to TIA-568A/B. 5.5.2 VME-PMC-CPU/2-CC (P0) The signals of the Ethernet interface 1 of the VME-PMC-CPU/2-CC (Conduction Cooled) are accessible via VMEbus connector P0 (see page 41). An adapter is required. The adapter is optionally equipped with a transmitter. -
Page 33: Vmebus P1
+12 V +5 V +5 V +5 V 160-pin VG-connector according to DIN41612 per pin : 1.0 A - ... Signal is not connected on the board VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 33 of 49... -
Page 34: Standard Assignment Of I/O-Signals
I/O160 I/O159 I/O162 I/O161 I/O164 +5 V I/O163 160-pin VG-connector according to DIN41612 per pin : 1.0 A - ... Signal is not connected on the board Page 34 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 35: Standard Assignment Of Transfer Module With P2 Row A And C Signals
I/O137 I/O140 I/O139 I/O142 I/O141 I/O144 I/O143 I/O146 I/O145 I/O148 I/O147 I/O150 I/O149 I/O152 I/O151 I/O154 I/O153 I/O156 I/O155 I/O158 I/O157 I/O160 I/O159 I/O162 I/O161 I/O164 I/O163 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 35 of 49... -
Page 36: Standard Assignment Vmebus P0
Description of the signals of P0: (ETH1_MDIx_P), ... Ethernet interface 1 (IEEE802.3) (x = 0, 1, 2, 3) (ETH1_MDIx_N) (only at VME-PMC-CPU/2-CC, otherwise these pins are not connected) RXSy, TXSy ... Serial interfaces 1 and 2 (y = 1, 2), physical layer RS-232 (These signals are bridged to signals of the same name of connector X1940 in the front panel. -
Page 37: Standard Assignment Of The I/O Connector J14 At Pmc Slot 1
I/O141 I/O142 I/O143 I/O144 I/O145 I/O146 I/O147 I/O148 I/O149 I/O150 I/O151 I/O152 I/O153 I/O154 I/O155 I/O156 I/O157 I/O158 I/O159 I/O160 I/O161 I/O162 I/O163 I/O164 Socket connector 2x32 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 37 of 49... -
Page 38: Standard Assignment Of The I/O Connector J24 At Pmc Slot 2
I/O241 I/O242 I/O243 I/O244 I/O245 I/O246 I/O247 I/O248 I/O249 I/O250 I/O251 I/O252 I/O253 I/O254 I/O255 I/O256 I/O257 I/O258 I/O249 I/O260 I/O261 I/O262 I/O263 I/O264 Socket connector 2x32 Page 38 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 39: Assignment Of The I/O-Signals Using The'-32P2' Option
I/O160 I/O159 I/O162 I/O161 I/O164 +5 V I/O163 160-pin VG-connector according to DIN41612 per pin : 1.0 A - ... Signal is not connected on the board VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 39 of 49... -
Page 40: Assignment Of A Transfer Module At '-32P2' Option
I/O137 I/O140 I/O139 I/O142 I/O141 I/O144 I/O143 I/O146 I/O145 I/O148 I/O147 I/O150 I/O149 I/O152 I/O151 I/O154 I/O153 I/O156 I/O155 I/O158 I/O157 I/O160 I/O159 I/O162 I/O161 I/O164 I/O163 Page 40 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 41: Assignment Vmebus P0 At '-32P2' Option
I/O-signals directly to FPGA, only 3.3V-tolerant (not available at the FPGA-XI/O47... moment; do not connect) do not connect... Do not connect this pin. -... This pins is not connected on the board. VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 41 of 49... -
Page 42: Assignment Of The Pmc Connector J14 At '-32P2' Option
VMEbus connector P2. In the schematic diagram the signal names I/O109 and I/O241 are used for this net. Page 42 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 43: Assignment Of The Pmc Connector J24 At '-32P2' Option
I/O253 I/O121 I/O254 I/O122 I/O255 I/O123 I/O256 I/O124 I/O257 I/O125 I/O258 I/O126 I/O249 I/O127 I/O260 I/O128 I/O261 I/O129 I/O262 I/O130 I/O263 I/O131 I/O264 I/O132 Socket connector 2x32 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 43 of 49... -
Page 44: Special Assembly: J24-I/O-Signals To D+Z Of P2
In this special assembly the I/O signals of the PMC slot 2 (J24) are not only connected to P0 but in parallel to this also to the rows d+z of P2. For this assembly there is currently no ordering option specified. Please contact our sales team (sales@esd.eu) if you are interested in this special option. Row z Row a... -
Page 45: Assignment I/O Connector J24 At Assembly With Rc800, Rc801
I/O241 I/O242 I/O243 I/O244 I/O245 I/O246 I/O247 I/O248 I/O249 I/O250 I/O251 I/O252 I/O253 I/O254 I/O255 I/O256 I/O257 I/O258 I/O249 I/O260 I/O261 I/O262 I/O263 I/O264 Socket connector 2x32 VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 45 of 49... -
Page 46: Xmc Socket J15
+12V 3,3V VPWR PCI-TD2 -12V VPWR PCI-TDO PET_0_P PET_0_N XMC_BIST# PET_1_P PET_1_N VPWR XMC_PRSNT# PET_2_P PET_2_N 3,3VAUX PET_3_P PET_3_N VPWR 3,3V IIC2_SDA VPWR IIC2_SCL 19 REFCLK_1_P REF_CLK_1_N Page 46 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... - Page 47 Power supply voltage +3.3V 3.3VAUX... 3.3V AUX generated of +5V STBY supplied by VMEbus +12V/-12V... Power supply voltage +12V and -12V -... These pins are not connected on the board. VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 Page 47 of 49...
-
Page 48: References
80A3020_MA001_10, April 2008 document source: http://www.idt.com/ MPC8349E PowerQUICC™ II Pro, Integrated Host Processor, Family Reference Manual, Freescale Semiconductor, Rev. 1, 8/2005, document source: http://www.freescale.com Page 48 of 49 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2 VME-PMC-CPU/2... -
Page 49: Order Information
V.1917.21 Table 20: Available manuals Printed Manuals If you need a printout of the manual additionally, please contact our sales team: sales@esd.eu for a quotation. Printed manuals may be ordered for a fee. VME-PMC-CPU/2 Hardware Manual • Doc.-No.: V.1917.21 / Rev. 1.2...
