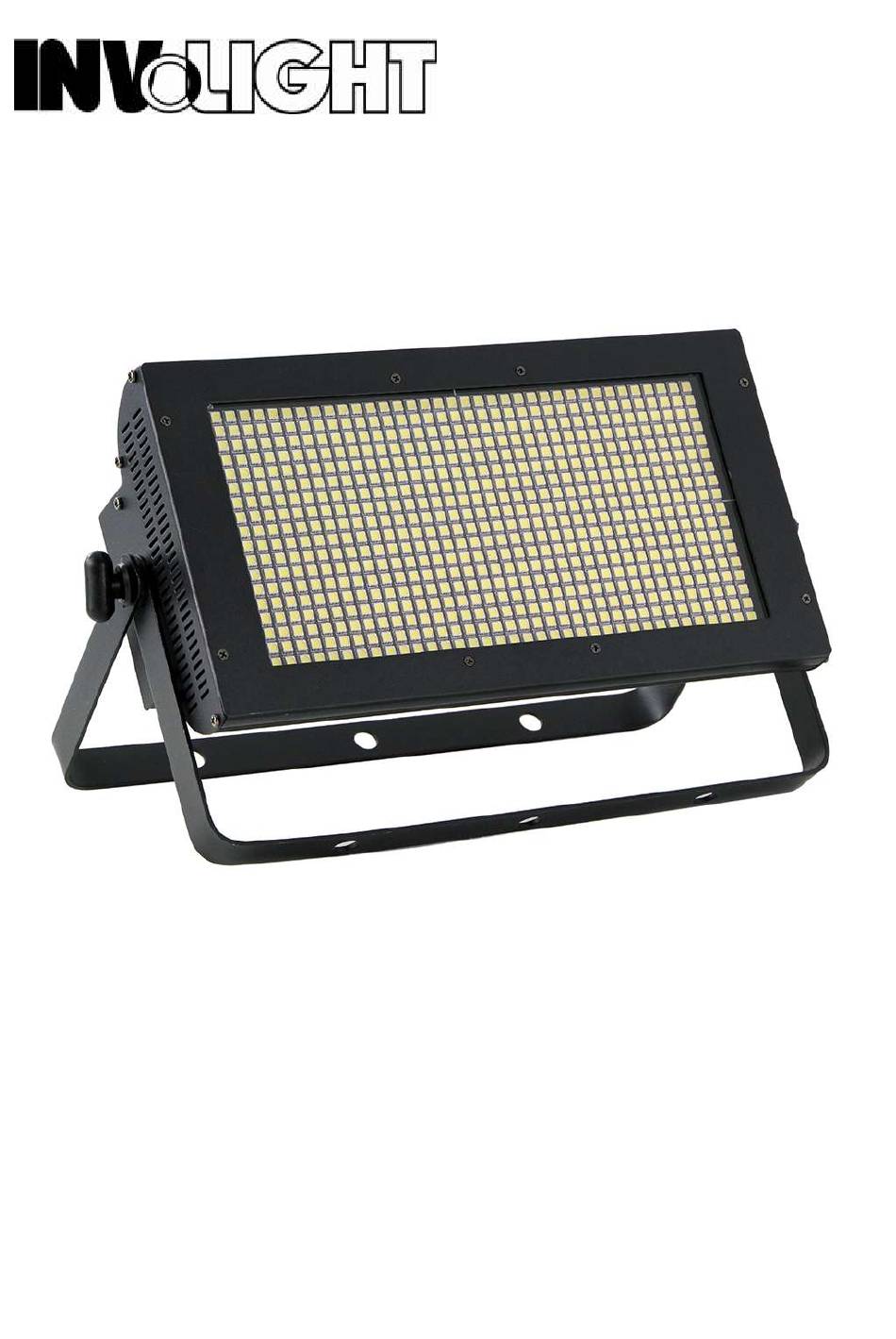

- Page 1 INVOLIGHT LED STROB500 USER MANUAL...
-
Page 2: Specification

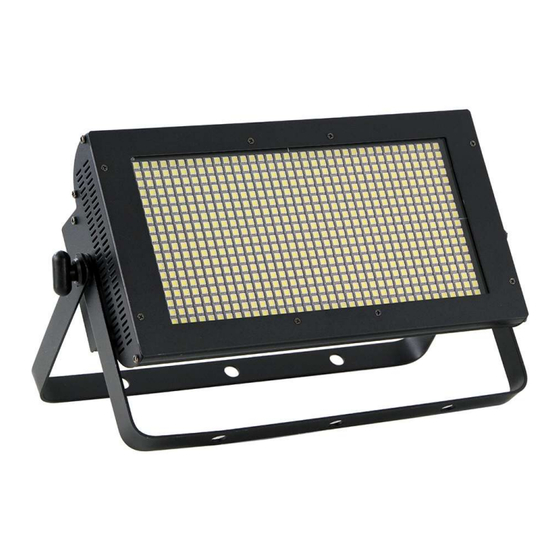

LED strobe panel, 448*SMD5050 User Manual Our LED strobe panel offers many possibilities to achieve the effects which you want. It is suitable for DJs, bands, nightclubs and other performers who want LED stage light. Please read the manual before operation. A. - Page 3 1. Built-in Programs Mode Press the “MODE”, enter built-in programs mode menu, press the “UP” or “DOWN”, select the built-in programs Sheet 2 Built-in programs description Built-in programs Description Strobe programs 1 Strobe programs 2 Auto running effect Lightly press the “SETUP” to set the built-in program. Sheet 3 Built-in programs settings Built-in Setting options...
- Page 4 4. DMX Mode Press the “MODE”, the LED display will show as below, enter to LED DMX mode main interface. Lightly press the “SETUP”, enter into DMX address, DMX working mode setting. Sheet 6 DMX mode settings Setting options Operation instruction DMX address setting (1 -512), through UP or DOWN set the address Through UP or DOWN select CH1, CH4, CH6, CH7 mode Working mode 1:...
- Page 5 5. Master/slave Mode Press the “MODE”, the LED display will show as below, enter LED slave mode. C. System Options In any state, long press the “SETUP”, enter the main interface of the system options: Lightly press the “SETUP”, select the temperature protection switch options, PCB temperature inquires, LED biggest gray, restore factory settings.
- Page 6 ООО «ИНВАСК» Адрес: 143406, Московская область, Красногорск, ул. Ленина, дом 3-Б Тел. (495) 565-0161 (многоканальный) Факс (495) 565-0161, доб. 105 http://www.invask.ru e-mail: invask@invask.ru Сервис-центр «ИНВАСК» Адрес: 143400, Московская область, Красногорск, Коммунальный квартал, дом. 20 Тел. (495) 563-8420, (495) 564-5228 e-mail: service@invask.ru...
