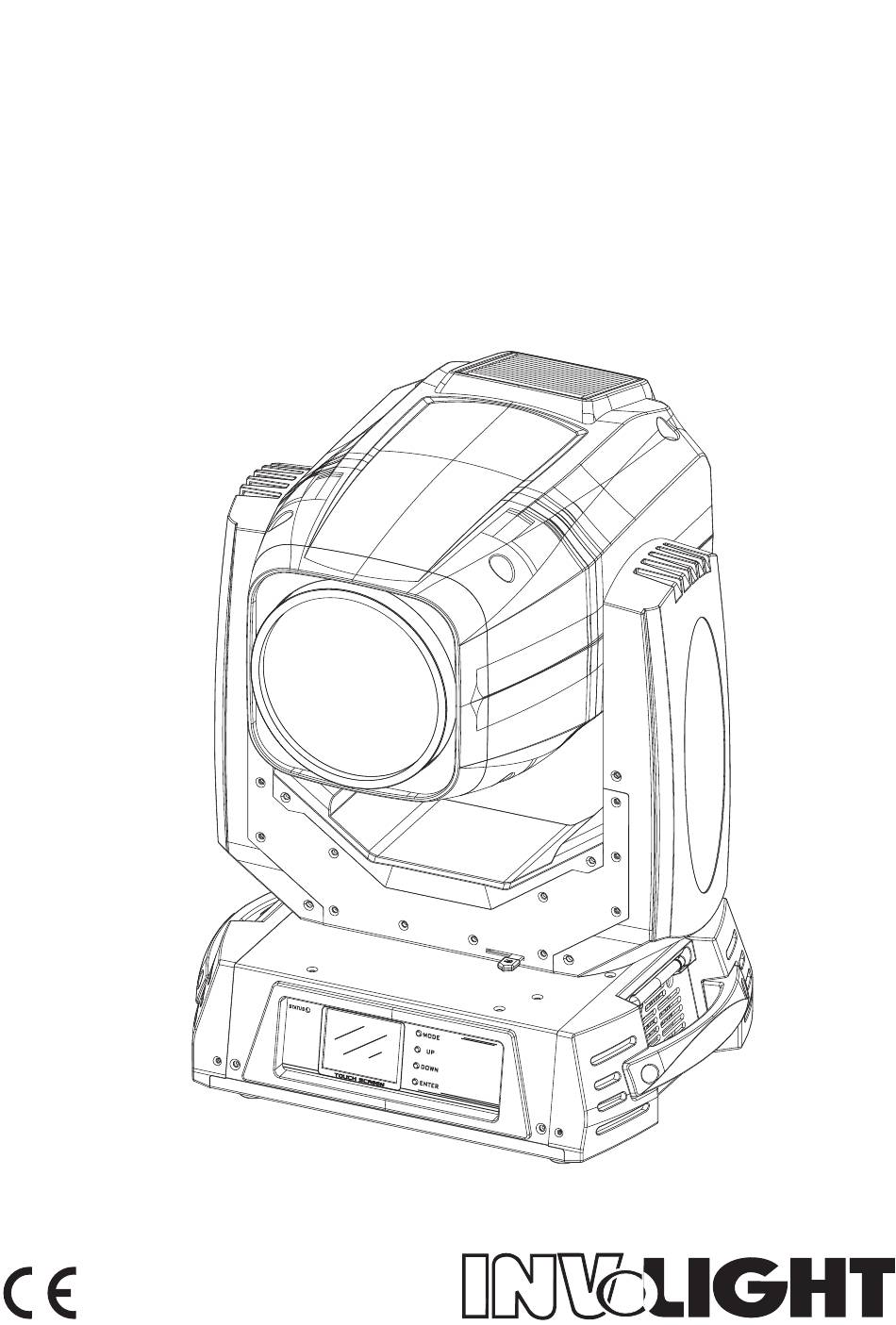

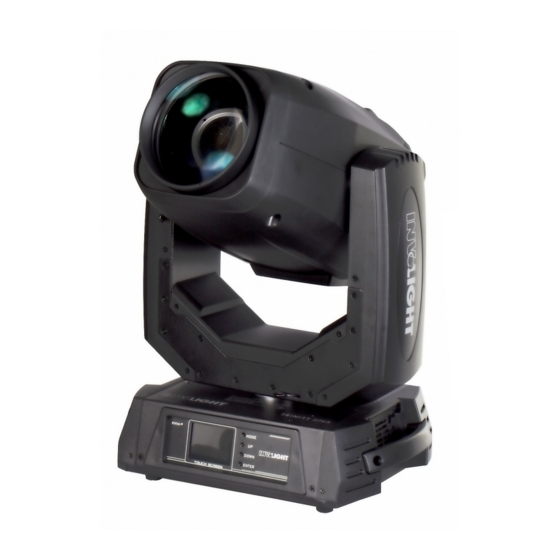

  • Page 1 TRINITY PLUS USER MANUAL...

  • Page 3: Table Of Contents

    Table of content 1.Open-Package guidelines............... １.１Package....................1 2.Safety instructions..................1 3.Operating determinations...............3 4.Rigging the fixture...................4 4.1 Mounting.....................4 4.2Installing the Clamps................4 4.3 Power supply connection and cut off...........5 4.4 Power Connection................6 4.5 DMX-512 connection/connection between fixtures......6 Description of the device............
  • Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.

  • Page 5: Open-Package Guidelines

    1.Open-Package guidelines This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac teris- tic with teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation standard of DMX 512 agreement.
  • Page 6 Never let the power-cord come into contact with other cables! Handle the power cord and all connections with particular caution! Make sure that the available voltage is not higher than stated on the rearpanel. Always plug in the power plug least. Make suer that the power-switch is set to off-position before you con ections with themains with particular caution! Make sure that the power-cord is never crimped or damaged by sharp edges.Check the decice and the p- ower-cord from time to time.

  • Page 7: Operating Determinations

    lines of the projectors from indirect contact and/orshorting to earth by using appropriately sized residual current devices. Disposing This product is supplied in compliance with European Directive 2012/19/EU-Waste Electrical and Electronic Equipment (WEEE). To preserve the environment please dispose/recycde this product at the end of its life according to the local regulation.

  • Page 8: Rigging The Fixture

    4.Rigging the fixture 4.1 Mounting Pay attention to the regulations of CE. Installation by qualified staff to complete. For the various mounting positions of the FIXTURE(standing on the floor, sideways or hanging different accessories kits are available. Through this a safe and firm installation is assured. You’ll find special connectors on the bottom side of the system which are put to use here.

  • Page 9: Power Supply Connection And Cut Off

    The projector can be placed directly on the stage floor or rigged in any orientation on atruss without alte- ring its operation characteristics. For overhead use,always install a safety-rope that can hold at least 10 times the weight of the fixture.You must only use safety-ropes with screw on carabines.Pull the safety-rope through the two apertures on the bottom of the base and over the trussing system etc.

  • Page 10: Power Connection

    4.4 Power Connection If you wish to change the power supply settings, see the chapter appendix Connect the fixture to the mains with the enclosed power cable and plug. Warning: please verify the power of the power supply equipment prior to the connection! Earth wire must be grounded! CABLE(EU) CABLE(US)

  • Page 11: Description Of The Device

    DMX Terminator Diagram -For installations where the DMX cable has to run a long distance or is In an electrically noisy environment it is recommended to use a DMX terminator. This help in preventing corruption of the signal by electrical noise. The DMX terminato r is simply an XLR plug witha Ω...

  • Page 12: Dimension

    6.Dimension (15.67") (19.92") (11.30") (15.39") (9.84") (14.69") (23.58") (17.20") - 8 -...

  • Page 13: Display Control

    7.Display control 7.1 Navigation in the Menu Using the buttons or touch screen, and this can be simply and easily set the address code and functions code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface.
  • Page 14 Click on the main interface of the icon, numerical to view view Settings related information of lamps and lanterns.Symbols such as the main interface appear “ “,the following error message indicates that there might be a lamps and lanterns,can click to view and control information content to modify the lamps and lanterns.

  • Page 15: Menu Maps

    7.3 Menu Maps Dmx Address 001~XXX Dmx Address Mode1 1~24 Channel Mode default Mode1 Mode2 1~24 Mode3 1~16 Fixture Id 0001~XXXX Lamps address Fixture Times XXXXX h XX m Total working hours Lamp On Times XXXXh XXm Lamp On working hours Lamp Times Lamp Strike XXXX Lamp Strike...

  • Page 16: Dmx Protocol

    8.DMX protocol Mode1 Mode2 Mode3 Name Function DMX Value PAN 8BIT 0-255 Pan Fine PAN 16BIT 0-255 Tilt TILT 8BIT 0-255 Tilt fine TILT 16BIT 0-255 Pan/Tilt speed Speed from max. to min. 2-255 Pan/Tilt time Continual positioning Open/white Deep Red 3-11 Deep Blue 12-20...
  • Page 17 Mode1 Mode2 Mode3 Name Function DMX Value Gobo 7 40-45 Gobo 8 46-51 Gobo 9 52-57 Gobo 10 58-63 Beam reducer 1 64-69 Beam reducer 2 70-75 Beam reducer 3 76-81 Beam reducer 4 82-87 Shaking gobos from slow to fast Gobo 1 88-95 Gobo 2...
  • Page 18 Mode1 Mode2 Mode3 Name Function DMX Value Gobo 9 56-59 Shaking gobos from slow to fast Index - set indexing on channel 10/12/7 Gobo 1 60-67 Gobo 2 68-75 Gobo 3 76-83 Gobo 4 84-91 Gobo 5 92-99 Gobo 6 100-107 Gobo 7 108-115...
  • Page 19 Mode1 Mode2 Mode3 Name Function DMX Value Macro 10 200-207 Macro 11 208-215 Macro 12 216-223 Prism Macro 13 224-231 Macro 14 232-239 Macro 15 240-247 Macro 16 248-255 Prism indexing - set position on channel 12/14/8 Prism indexing 0-255 Prism rotation - set position on channel 12/14/8 Prism1 rotation No rotation...

  • Page 20: Maintance And Cleaning

    Mode1 Mode2 Mode3 Name Function DMX Value Blackout while gobo wheel moving step 110-119 Disabled blackout while gobo wheel moving 120-129 To activate following functions, stop in DMX value for at least 3 seconds: Lamp On,reset(total reset except pan/tilt reset) 130-139 Pan/Tilt reset 140-149...

  • Page 21: Electric Equipment Specification

    10.Electric equipment specification 10.1 Electrical paramters Osram sirius hri 370W SOURCE: POWER:600W VOLTAGE:AC100-240V 50/60HZ Color temperature：8000K 10.2 Weight and dimensions Dimensions： 391X398X506 NET WEIGHT:22Kg （ ）:710X505X415mm Dimensions Carton package ):27.5Kg WEIGHT Carton package （Air boxes -2 lights):1000X490X725mm Dimensions (Air boxes -2 lights):37Kg/84Kg NET WEIGHT/WEIGHT 10.3 Channel Characteristics 1．Ch annel:24、24、16DMX -512.

  • Page 22: Light Table

    10.5 light table Beam pattern light spot Lux 0 89300 22600 10200 5990 4300 2° Projection distance(m) 0.61 1.22 1.83 2.45 3.08 Flare diameter(m) Spot mode maximum spot Lux 0 1018 60° Projection distance(m) Flare diameter(m) 10.6 15.9 21.2 26.5 - 18 -...

  • Page 23: Color Wheel

    10.6 Color disk 10.7 Gobo wheel RGOBO WHEEL - 19 -...
  • Page 24 GOBOR WHEEL Effective diameter 8mm - 20 -...

  • Page 25: Electronic Drawing

    11.Electronic drawing Shutter Colour Static strobe Wheel Gobo Two Phase Wheel Two Phase Motor Driver Motor Driver Board 2 80Fan Board 1 60Fan 50Fan 90Fan TITL Encode PAN Encode PAN&TITL TITL Sensor Motor Driver PAN Sensor Board TITL Motor Motor Lamp FAN1 FAN2...
