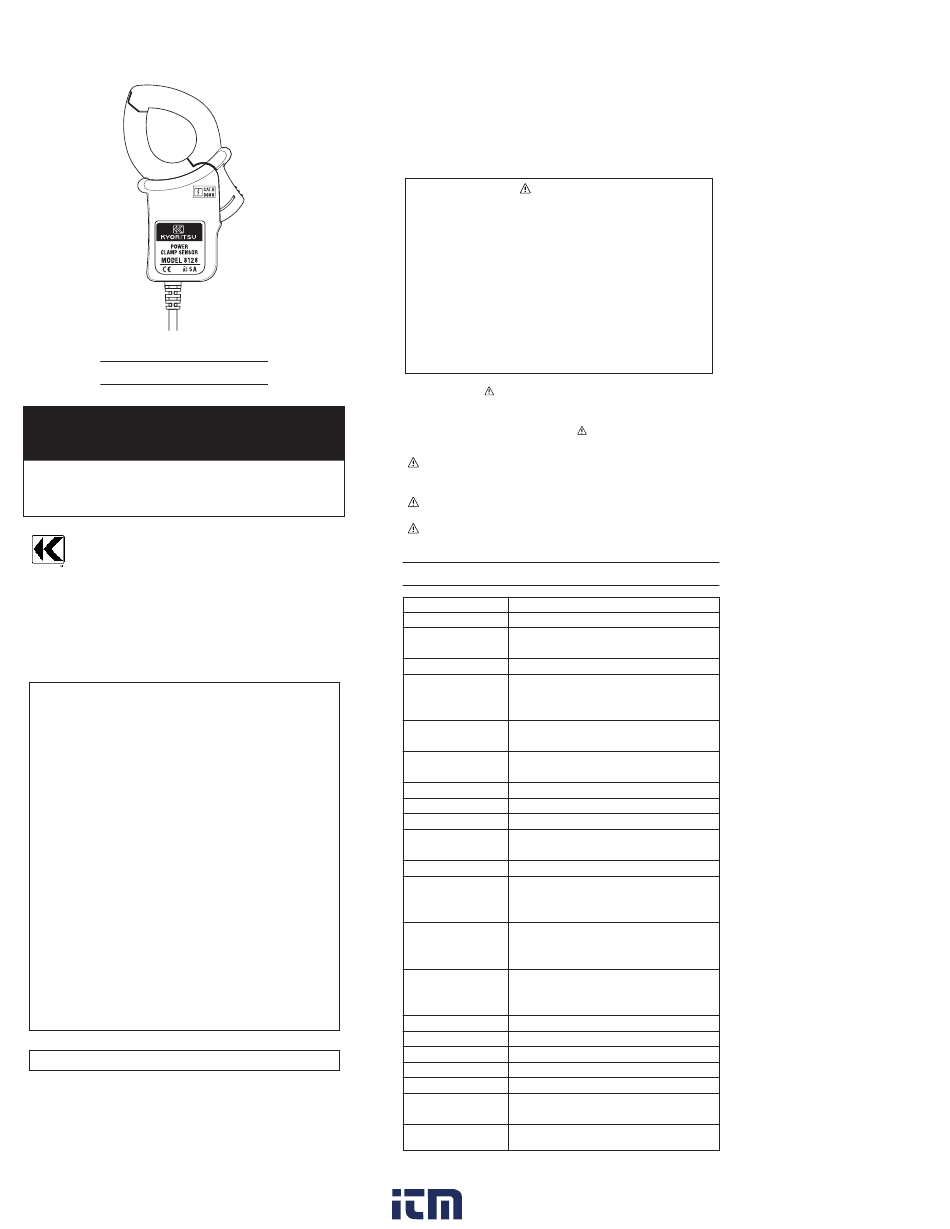

INSTRUCTION MANUAL
POWER CLAMP SENSOR
POWER CLAMP SENSOR
MODEL  8128
KYORITSU ELECTRICAL INSTRUMENTS
WORKS, LTD.
DISTRIBUTOR
Kyoritsu  reserves  the  rights  to  change  specifications  or  designs
described in this manual without notice and without obligations.
1.800.561.8187
1. Safety warnings
○This  instrument  has  been  designed,  manufactured  and
tested  according  to  IEC  61010:  Safety  requirements  for
Electronic  Measuring  apparatus,  and  delivered  in  the
best  condition  after  passing  quality  control  tests.  This
instruction  manual  contains  warnings  and  safety  rules
which  have  to  be  observed  by  the  user  to  ensure  safe
operation  of  the  instrument  and  to  maintain  it  in  safe
condition.  Therefore,  read  through  these  operating
instructions before using the instrument.
●Read through and understand instructions contained
in this manual before using the instrument.
●Keep  the  manual  at  hand  to  enable  quick  reference
whenever necessary.
●The  instrument  is  to  be  used  only  in  its  intended
applications.
The  operating  instructions  described  in  the  manual
must be observed.
●Understand  and  follow  all  the  safety  instructions
contained in the manual. It is essential that the above
instructions  are  adhered  to.  Failure  to  follow  the
above  instructions  may  cause  injury  and  or
instrument damage.
○The  symbol
the user must refer to the related parts in the manual for
safe  operation  of  the  instrument.  It  is  essential  to  read
the  instructions  wherever  the
Series
manual.
DANGER
WARNING is  reserved  for  conditions  and  actions
CAUTION
5. Specifications
Model
Rated voltage
Output voltage
Measuring range
Accuracy
(Input: sine wave)
Phase
characteristics
Temperature & humidity range
(Guaranteed accuracy)
Operating temperature range
Storage temperature range
Maximum permissible input
Output
impedance
Location for use
Applicable
standards
Withstand
voltage
Insulation
resistance
Conductor Size
Dimension
Cable length
Output terminal
Weight
Accessories
Accessories
www.
WARNING
indicated  on  the  instrument,  means  that
symbol  appears  in  the
is  reserved  for  conditions  and  actions
that are likely to cause serious or fatal
injury.
that can cause serious or fatal Injury.
is  reserved  for  conditions  and  actions
that  can  cause  minor  injury  or
instrument damage.
8128
AC5A
10mV/A   (AC 50mV/AC 5A)
(AC500mV/AC50A)
AC0〜50Arms(70.7Apeak)
±0.5%rdg±0.1mV
(50/60Hz)
±1.0%rdg±0.2mV
(40〜1kHz)
±2deg within(at 0.5〜50A / 45〜65Hz)
23±5 ℃ , relative humidity: 85% or less (no condensation)
0〜50℃, relative humidity: 85% or less (no condensation)
-20〜60℃, relative humidity: 85% or less (no condensation)
AC50Arms continuous(50/60Hz)
Approx. 19 Ω
Altitude up to 2000m, Indoors
IEC 61010-1, IEC 61010-2-032
Measurement CAT. III (300Vrms)
Pollution degree 2
IEC 61326
AC3540Vrms (50/60Hz) for 5 sec.
between Jaw and enclosure
between enclosure and output terminal
between Jaw and output terminal
50MΩ or greater at 1000V
between Jaw and enclosure
between enclosure and output terminal
between Jaw and output terminal
Approx.24mm in diameter (max.)
100 x 60 x 26mm
Approx. 3m
MINI DIN 6PIN
Approx. 160g
Cable marker
Instruction manual
MODEL 7146 (Banana F4 adjuster plug)
MODEL 7185 (Extension cable)
information@itm.com
.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KYORITSU 8128

  • Page 1 Insulation  50MΩ or greater at 1000V between Jaw and enclosure  resistance between enclosure and output terminal between Jaw and output terminal Approx.24mm in diameter (max.) Conductor Size Dimension 100 x 60 x 26mm Approx. 3m Cable length Kyoritsu  reserves  the  rights  to  change  specifications  or  designs described in this manual without notice and without obligations. Output terminal MINI DIN 6PIN Weight Approx. 160g Accessories Cable marker Instruction manual MODEL 7146 (Banana F4 adjuster plug) Accessories MODEL 7185 (Extension cable) 1.800.561.8187 information@itm.com www. .com...
  • Page 2 6. Operating instructions  DANGER ●Never  make  measurement  on  a  circuit  in  which  the electrical potential exceeds AC300V. DANGER ●Do not make measurement when thunder rumbling. If ●Never  make  measurement  on  a  circuit  in  which  the the  instrument  is  in  use,  stop  the  measurement immediately  and  remove  the  instrument  from  the electrical  potential  exceeds  AC300V  in  order  to  avoid measured object.
  • Page 3 Safety symbols 2. Features Refer to the instructions in the manual. ●This is a clamp sensor for our Power meter. Indicates  a  Instrument  with  double  or  reinforced ●Designed to international safety standard IEC 61010-2-032 insulation CAT.Ⅲ 300V (Pollution Degree 2) Indicates that this instrument can clamp on bare  conductors. 3. Instrument layout 〜 Indicates AC Barrier ○Measurement  categories(Over-voltage  categories) Transform Jaws Trigger Output connector To ensure safe operation of measuring instruments, IEC Cable 61010 establishes safety standards for various electrical environments,  categorized  as  CATⅠto  CATⅣ,  and called measurement categories. Higher-numbered  categories  correspond  to  electrical environments ...
