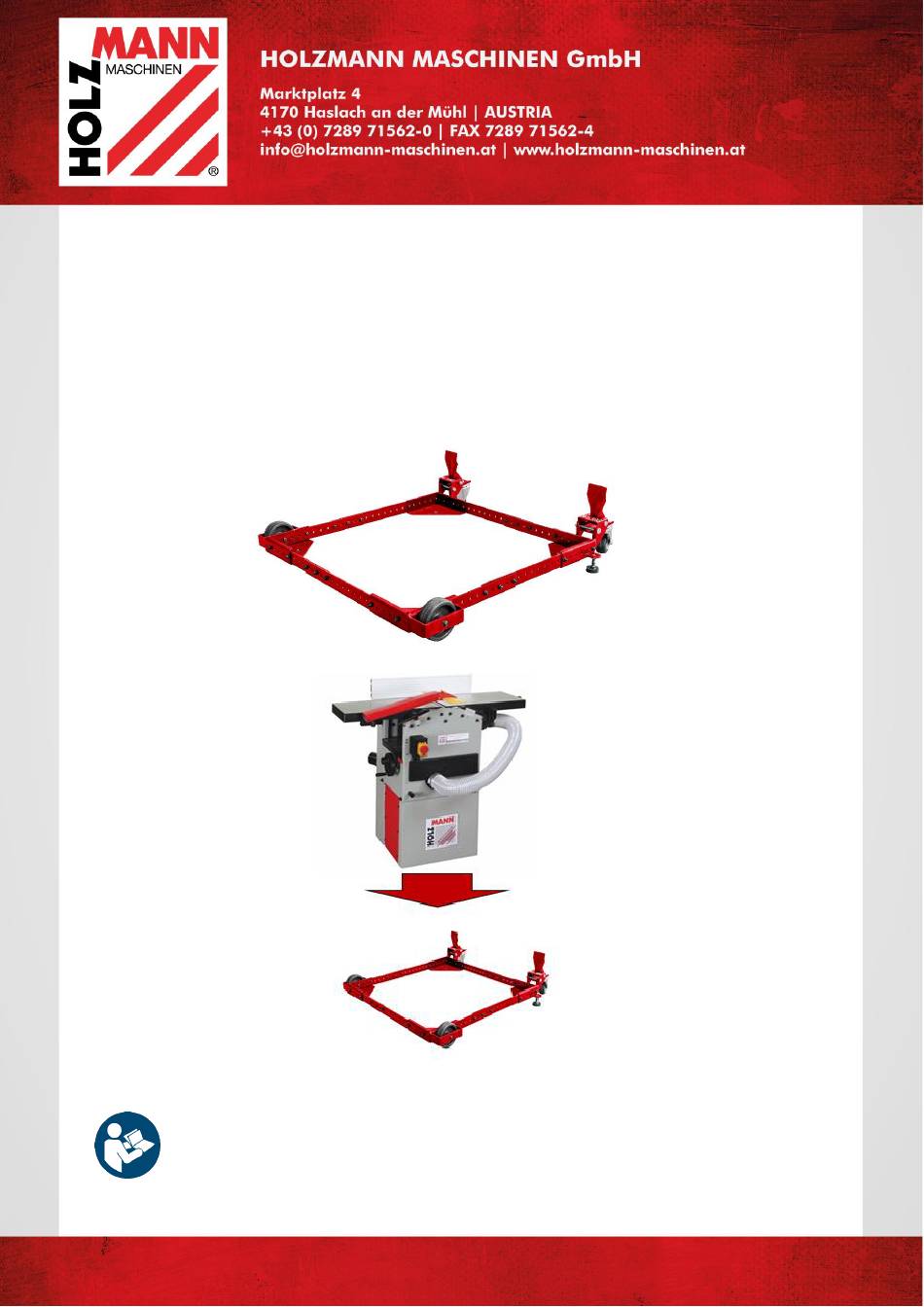

  • Page 1 Originalfassung BETRIEBSANLEITUNG UNIVERSELLE FAHREINRICHTUNG Übersetzung / Translation USER MANUAL UNIVERSAL MOVING DEVICE UFE410FLEX Edition: 10.12.2019 – Revision - 00 – RaR - DE/EN...
  • Page 2: Table Of Contents

    Assembly ....................10 OPERATION CLEANING AND MAINTENACE STORAGE DISPOSAL ERSATZTEILE / SPARE PARTS 18.1 Ersatzteilbestellung / Spare Parts Order ............12 18.2 Explosionszeichnung / Explosion Drawing ............ 13 GARANTIEERKLÄRUNG (DE) GUARANTEE TERMS (EN) PRODUKTBEOBACHTUNG | PRODUCT MONITORING HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 3: Sicherheitszeichen / Safety Signs

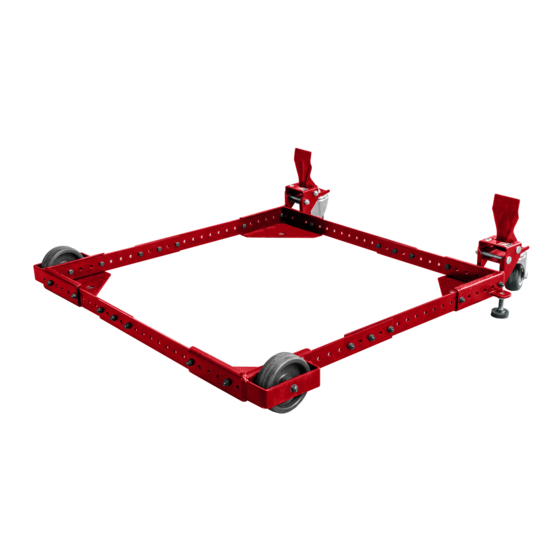

    Fixed castors Technische Daten / Technical Data Max. Belastbarkeit 410 kg Max. load capacity 335 x 335 – 680 x 680 Rahmengröße / frame size 335 – 990 mm Netto-Gewicht / net weight 8,5 kg HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 4: Vorwort (De)

    VORWORT (DE) Sehr geehrter Kunde! Diese Betriebsanleitung enthält Informationen und wichtige Hinweise zur Inbetriebnahme und Handhabung der universellen Fahreinrichtung UFE410FLEX, nachfolgend vereinfachend als Produkt bezeichnet. Die Betriebsanleitung ist Bestandteil des Produkts und darf nicht entfernt werden. Bewahren Sie sie für spätere Zwecke auf und legen Sie diese Anleitung der Maschine bei,...
  • Page 5: Sicherheit

    Die nicht bestimmungsgemäße Verwendung bzw. die Missachtung der in dieser Anleitung dargelegten Ausführungen und Hinweise hat das Erlöschen sämtlicher Gewährleistungs- und Schadenersatzansprüche gegenüber der Holzmann Maschinen GmbH zur Folge. Sicherheitshinweise Zur Vermeidung von Fehlfunktionen, Schäden und gesundheitlichen Beeinträchtigungen sind bei Arbeiten mit dem Produkt neben den allgemeinen Regeln für sicheres Arbeiten folgende Punkte zu...
  • Page 6: Vorbereitung

    Die Eckverbindungen mit fixen Rädern sollen dabei immer an einer Seite und jene mit den schwenkbaren Rädern auf der gegenüberliegenden Seite (siehe Abbildung) angebracht werden. Die Maschine auf Fahreinrichtung aufsetzen und mittels Schrauben an dieser befestigen HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 7: Reinigung Und Wartung

    Restmüll. Kontaktieren Sie gegebenenfalls Ihre lokalen Behörden für Informationen bezüglich der verfügbaren Entsorgungsmöglichkeiten. Wenn Sie bei Ihrem Fachhändler eine neue Maschine oder ein gleichwertiges Gerät kaufen, ist dieser in bestimmten Ländern verpflichtet, Ihre alte Maschine fachgerecht zu entsorgen. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 8: Preface (En)

    These operating instructions contain information and important notes on the start-up and handling of the universal moving device UFE410FLEX, hereinafter referred to simply as the product. The operating instructions are an integral part of the product and must not be removed.
  • Page 9: Safety

    Moving the product during operation of the machine to be transported. The improper use or disregard of the versions and instructions presented in this manual will result in the voiding of all warranty and damage claims against Holzmann Maschinen GmbH. 12.2 Safety Devices...
  • Page 10: Preparations

    The corner joints with fixed wheels should always be fitted on one side and those with swivelling wheels on the opposite side (see figure). Place the machine on the universal moving device and fasten it with screws HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 11: Cleaning And Maintenace

    If you buy a new product or an equivalent device from your specialist dealer, he is obliged in certain countries to dispose of your old product properly. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 12: Ersatzteile / Spare Parts

    You find the order address in the preface of this operation manual. HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 13: Explosionszeichnung / Explosion Drawing

    ERSATZTEILE / SPARE PARTS 18.2 Explosionszeichnung / Explosion Drawing HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 14 Seite. Stellen Sie in diesem Fall eine unverbindliche Kostenanfrage, unter Angabe der Informationen siehe C) an unseren Kundendienst oder senden Sie uns Ihre Anfrage einfach per umseitig beiliegendem Formular ein. Mail: info@holzmann-maschinen.at oder Nutzen sie das Online Reklamations.- bzw. Ersatzteilbestellformular zur Verfügung gestellt auf unserer Homepage: www.holzmann-maschinen.at unter der Kategorie Service/News HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
  • Page 15: Guarantee Terms (En)

    1.) Warranty: For mechanical and electrical components Company Holzmann Maschinen GmbH garants a warranty period of 2 years for DIY use and a warranty period of 1 year for professional/industrial use - starting with the purchase of the final consumer (invoice date).
  • Page 16: Produktbeobachtung | Product Monitoring

    V i e l e n D a n k f ü r I h r e M i t a r b e i t ! / T h a n k y o u f o r y o u r c o o p e r a t i o n ! KONTAKTADRESSE / CONTACT: HOLZMANN MASCHINEN GmbH 4170 Haslach, Marktplatz 4 AUSTRIA...
  • Page 17 PRODUKTBEOBACHTUNG | PRODUCT MONITORING HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at UFE410FLEX...
