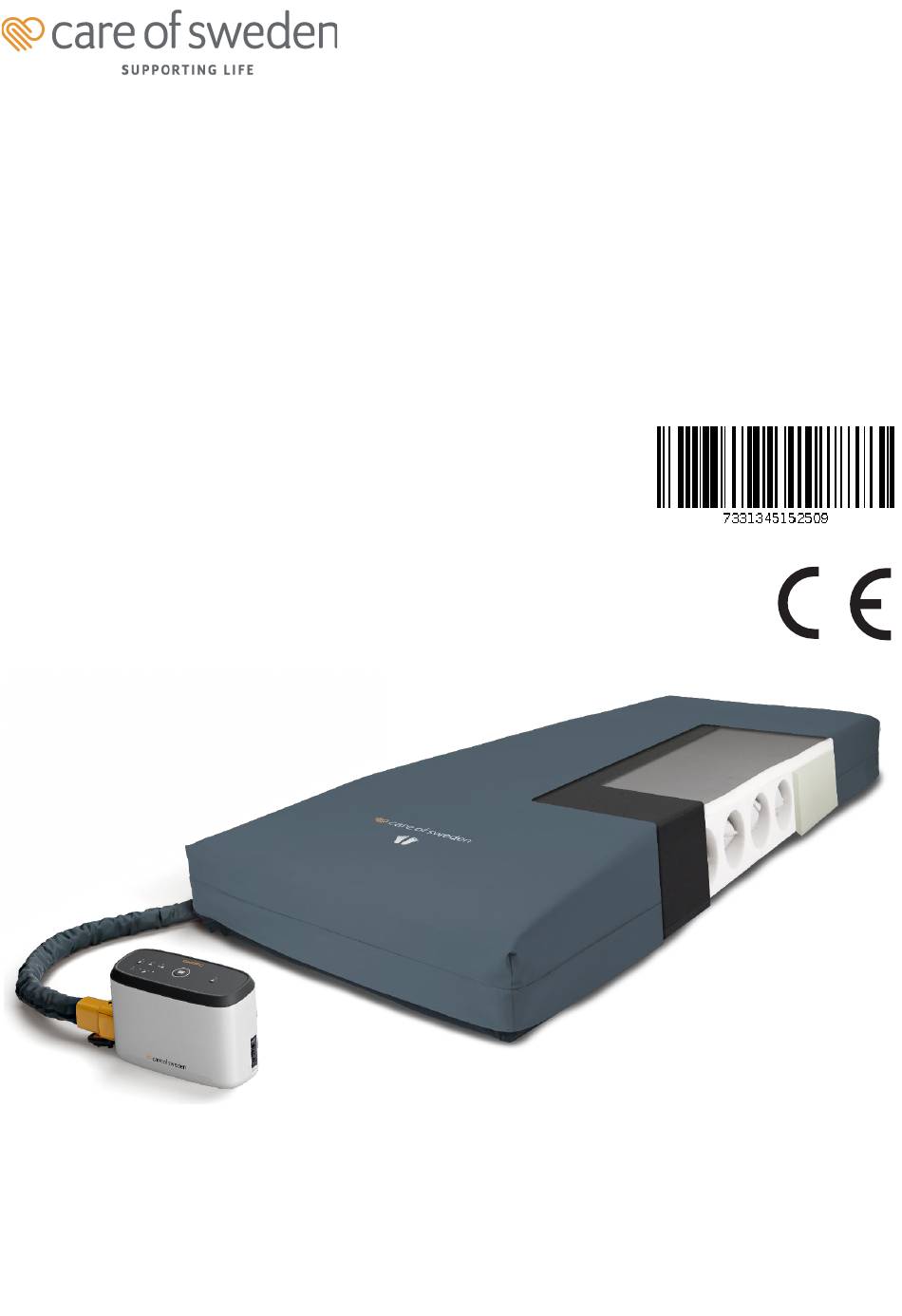

- Page 1 Instructions for use 2020-08-14 ® CuroCell IQ Cirrus Automatic active airflow controlled mattress system Instructions for use item number: 95-001450-EN0000...
-
Page 2: Table Of Contents
Table of contents WARNINGS AND SAFETY PRECAUTIONS ......3 1. Introduction ............... 4 2. Assembly/installation ..........6 3. Operation ..............7 4. Product description ..........12 5. Reuse, cleaning and reconditioning ......14 6. Storage ............... 14 7. Maintenance ............... 15 8. -
Page 3: Warnings And Safety Precautions
The product must only be installed and used for its intended purpose according to the instructions in this manual and/ or other documentation from Care of Sweden. The product must not be combined, assembled or repaired with parts (e.g. control unit and mattress), accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. -
Page 4: Introduction
Prescription shall be made by persons authorized for For further questions regarding installation, use or prescriptions and with clinical education. Note that the maintenance please contact Care of Sweden or your local user also may be the operator. distributor. NOTE: General information For certain users, e.g. - Page 5 1.7 Evacuation instructions Down the stairs Evac is a mattress cover with a built-in function for • Walk backwards until the main part of the mattress has slide pass evacuation of bed-bound users. In case of fire or other the top stair. emergency, there is no time to think about what to do next.
-
Page 6: Assembly/Installation
2. Assembly/installation When unpacking, check that no parts are damaged. If any damage is found, contact Care of Sweden or your local distributor before using the product. 5. A click is heard and felt when correctly connected. Secure that both sides of 1. -
Page 7: Operation
3. Operation 3.1 Start Set the On/Off switch on the side of the control unit to position 1 (On). Air will start to be pumped into the mattress. During the inflation period, the mute diode and the notification diode to the right will remain orange. - Page 8 3.2 Control unit functions Button Function Mute the information signal Pack & Go. Automatic deflation of the system Maximum pressure (caring mode) Information signal Incorrect connection of the air connector (CPR) System is ready to use Notification diodes...
- Page 9 3.2.1 Automatic Setting 3.4 Sitting positioning in bed The control unit is equipped with a function that When raising the head end of the bed into a sitting position, automatically sets the pressure based on the user’s weight, always secure the user´s position. To ensure the product posture and position.
- Page 10 3.6.1 Table of notifications The mattress control parameters have been changed during the use. Information about each notification is shown in the Restart the system. If the notification table: problem remains, contact the support. • Notifications from 1-10 are both audible and visual. Leakage in one of the cell The error code will be displayed until the error has been sections.
- Page 11 3.8 Pack&Go® function (deflation) 3.9 Restart After use, the product can easily be packed as follows: If a restart is required, set the Ensure that no-one is lying on the • On/Off switch on mattress. the side of the • Press the Pack&Go®...
-
Page 12: Product Description

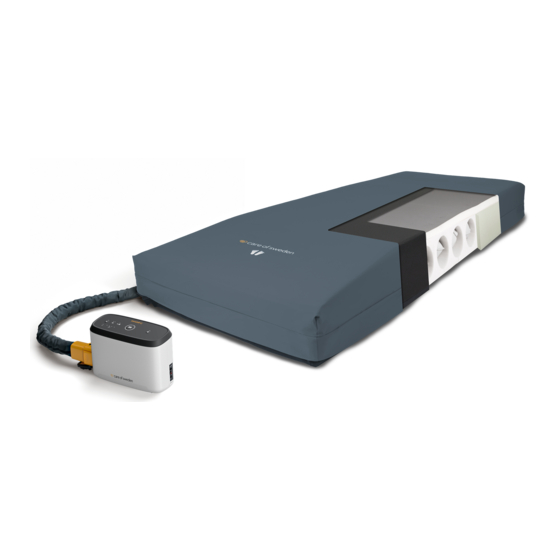

4. Product description 4.1 Control unit 1. Control panel 2. Tube/CPR connection 3. Power switch, On/Off 4. 3,5 mm plug input (only for use by manufacturer) 5. Connection power cable 6. Air filter 7. Hangers 8. Power supply 4.2 Mattress Heel function Cover Stone/Evac –... - Page 13 CuroCell® IQ Cirrus 1. Mattress 2. Tube connection & CPR (quick deflation) 3. Control unit 1 2 3 CuroCell® IQ Cirrus with cover Stone Hygiene cover Cells Foam core Inner cover Tubing set Bottom part...
-
Page 14: Reuse, Cleaning And Reconditioning
Consult your MATTRESS hygiene manager or Care of Sweden for help and instructions if you are unsure. Disconnect the tube connector from the control unit and remove the air from the mattress. -
Page 15: Maintenance
Cirrus service manual. Faults and defects regarded as warranty faults are fixed free of charge. A warranty claim must be submitted to Care of Sweden be- fore the product is returned After the product is used, check that: The power cable and power supply are undamaged. -
Page 16: Troubleshooting
If the problem keeps occurring, contact Care of Sweden or your local distributor. If the above information does not answer your questions, please contact Care of Sweden or your local distributor. -
Page 17: Technical Description
9. Technical description Technical specification NB: Care of Sweden reserves the right to modify the product specification at any time. CONTROL UNIT SPECIFICATION Model CuroCell® IQ Cirrus Input voltage 100-240 V / 50-60 Hz Power consumption 1.5 A Mode of operation... - Page 18 Marking THE CONTROL UNIT The control unit is marked as shown below (example). For an explanation, see section 9.4 Explanation of symbols. POWER SUPPLY The power supply is part of the control unit and is marked as shown below (example). For an explanation, see section 9.4 Explanation of symbols.
- Page 19 THE MATTRESS The mattress, cover and inner cover are marked as shown below (example). For an explanation, see section 9.4 Explanation of symbols.
- Page 20 Symbol key XXXX-XX-XX Item number Manufacturer Year-Month-Day Foot placement Read the instructions for use Type BF Recycling Do not dispose of with Recommended user CE-marked in accordance household waste; fol- weight with Medical Device low recycling instruc- Regulation MDR (2017/745) tions User information Placed directly on the...
-
Page 21: Spare Parts
10. Spare parts CuroCell® IQ Cirrus Complete mattress Item no. Description QS201-YYYYYY-XX0000 Complete mattress with cover Stone/Evac Cover Stone/Evac Size Item no. Top part Stone Item no. Bottom part Evac Item no. Complete Stone/Evac 80x200 cm CT150-080200-EN0000 CB150-080200-EN0000 CC150-080200-EN0000 80x210 cm CT150-080210-EN0000 CB150-080210-EN0000 CC150-080210-EN0000... -
Page 22: Options And Accessories
To ensure the best level of comfort, we recommend use of Helps to keep the sheet in place. A clip for attaching to the accessories from Care of Sweden since our products are cover; six per mattress. designed to work well together. -
Page 23: Other Information
The return postage will be paid by and is sorted as “plastic waste”. The other parts of the Care of Sweden where the fault is covered by the product control unit must not be disassembled and are sorted as warranty;... - Page 24 SWEDEN Address for visitors: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Cargo address: Byns väg 4A SE-514 33 Tranemo SWEDEN Distributed by: ® Care of Sweden and CuroCell are trademarks of Care of Sweden AB. © Care of Sweden AB, 2020...
