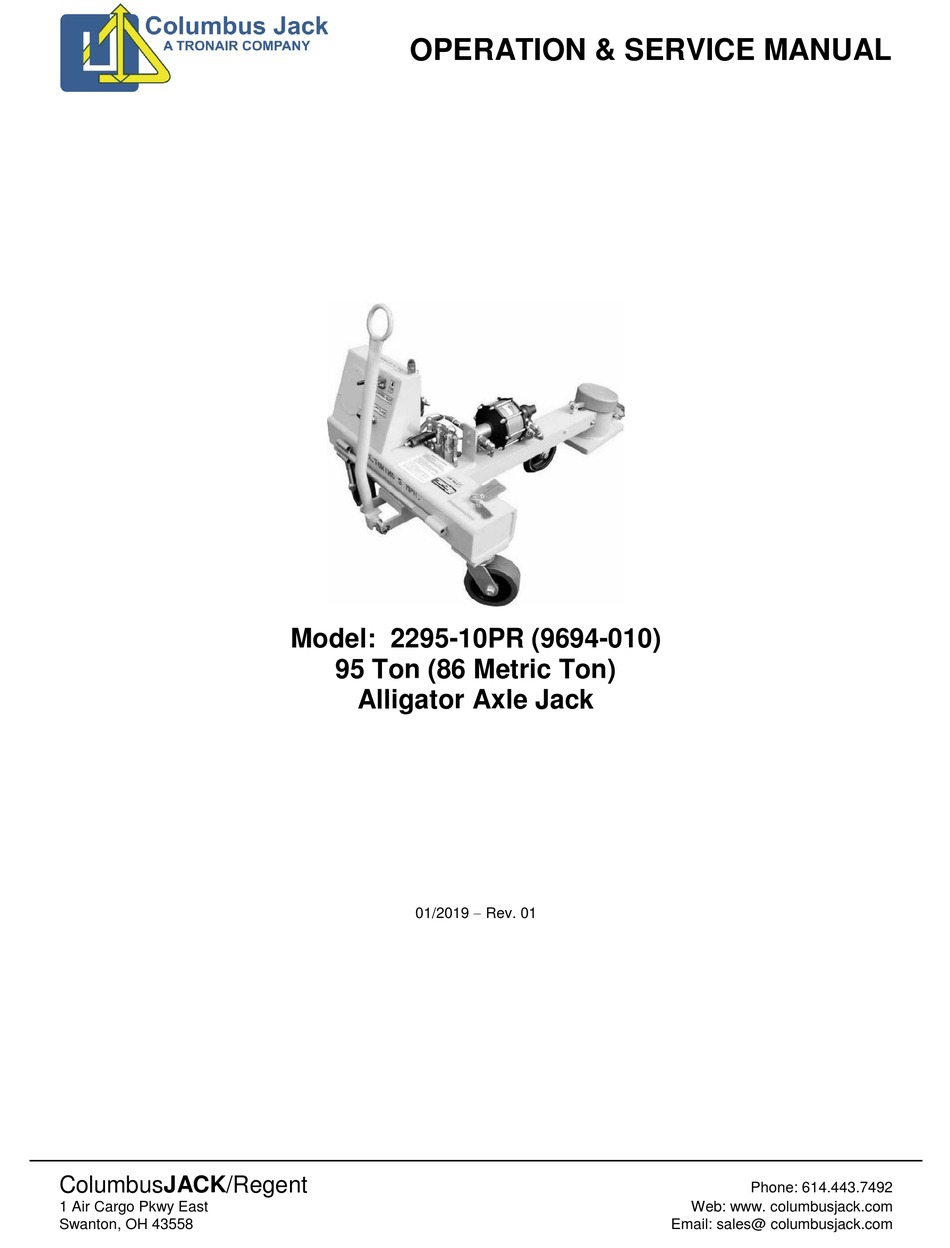

- Page 1 OPERATION & SERVICE MANUAL Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack 01/2019 Rev. 01 ColumbusJACK/Regent Phone: 614.443.7492 1 Air Cargo Pkwy East Web: www. columbusjack.com Swanton, OH 43558 Email: sales@ columbusjack.com...
- Page 2 REVISION DATE TEXT AFFECTED 01/2019 Original release...
-
Page 3: Table Of Contents
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 PRODUCT SAFETY ............................ -
Page 4: Product Information
95 Ton (86 Metric Ton) Alligator Axle Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Preparation Prior To First Use
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack PREPARATION PRIOR TO FIRST USE GENERAL INSPECTION If the jack is crated, uncrate and remove shipping straps or packing material. Inspect for physical damage and missing parts. BLEED PROCEDURE Loosen hydraulic line at base of cylinder. -
Page 6: Operation
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack OPERATION PRE-OPERATION PROCEDURE The accumulator is shipped uncharged and must be charged before use. (See Section 7.1.1 Verify or Recharge Nitrogen Pressure in Accumulator for charging instructions). WARNING! DO NOT ATTEMPT to dis-assemble the accumulator. Perform visual inspection, by checking for oil leakage. -
Page 7: Trouble Shooting
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack TROUBLE SHOOTING If operational troubles are encountered, refer to the Trouble Shooting Chart which lists the most commonly occurring problems and gives information which will facilitate location of trouble source and determination of remedial action. TROUBLE PROBABLE CAUSE REMEDY... -
Page 8: Maintenance
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack MAINTENANCE SPECIAL MAINTENANCE INSTRUCTIONS 7.1.1 Verify or Recharge Nitrogen Pressure in Accumulator Open release valve and ensure rams are fully collapsed. Open accumulator flow control valve (Figure 3, Item 69) located under frame. Connect Nitrogen Charging Kit (P/N 9649-N or equal) to top of accumulator and charge accumulator to 225 psi maximum. -
Page 9: Guarantees/Limitation Of Liability
Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack 10.0 GUARANTEES/LIMITATION OF LIABILITY ColumbusJACK Corporation, (Seller) warrants each new product of its manufacture to be free from defects in material or workmanship, under proper, reasonable and normal use and service, and for a period of twelve (12) months after date of shipment from Seller’s Swanton, OH. - Page 10 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Hydraulic Schematic 01/2019 | Rev. 01 Page | 1...
- Page 11 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack This page left blank intentionally. 01/2019 | Rev. 01 Page | 1...
- Page 12 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 2...
- Page 13 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9694-C Cylinder Assembly 9649-AF-1 Frame Assembly 9694-J Gauge Assembly, (Optional) 9649-38 Springed Wheel 9138-K...
- Page 14 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 4...
- Page 15 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9694-C Cylinder Assembly; consists of: 9694-1 Cylinder and Base Weldment 9377-2 Ram, First Stage 9385-3...
- Page 16 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 6...
- Page 17 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 7...
- Page 18 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 8...
- Page 19 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 9...
- Page 20 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9649-AF-1 Frame Assembly; consists of: 9649-L Air Pump Assembly 9649-19 Towbar 9649-120...
- Page 21 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 456-10806-A Male Elbow 450A5752 Female Connector 372-20080 Hex Head Cap Screw 346-10032 Lockwasher 450A6021...
- Page 22 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 01/2019 | Rev. 01 Page | 12...
- Page 23 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9649-L Air Pump Assembly; consists of: 450A5950 Air Pump 450A5500 Muffler 485-51608...
- Page 24 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9649-38 Springed Wheel Assembly; consists of: 9649-36 Wheel Support 9649-37 Wheel Holder 450A5936...
- Page 25 Model: 2295-10PR (9694-010) 95 Ton (86 Metric Ton) Alligator Axle Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 9694-J Gauge Assembly; consists of: 9649-9 Screen Cover 9694-K Gauge 450A5513 Snubber...
- Page 27 APPENDIX I Routine Jack Maintenance Bulletins...
- Page 29 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 102 – PROCEDURE FOR WINTERIZATION OF HYDRAULIC AIRCRAFT JACKS The following procedures should be utilized for optimum operational characteristics when using jacks at various temperature extremes: Above 0ºF (-18ºC) Use MIL-PRF-5606, or equal, with no further additive required.
- Page 30 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 116 – SCREW EXTENSION USAGE When using a jack that has a screw extension, it is advisable that the screw extension be extended as far as possible, and still have the jack roll under the jacking point.
- Page 31 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 147 – RECOMMENDED ANNUAL JACK CERTICIFATION PROCEDURE The following Recommended Annual Jack Certification Procedure is provided as a guide to insure that hydraulic aircraft jacks are always certified for operation.
- Page 32 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 149 – TEFLON BACKUP RING INSTALLATION PROCEDURE When installing new Teflon backup rings on a ram or piston of any jack model, the following procedure should be observed to ensure correct installation of the ring.
- Page 33 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 170 – SUGGESTED PREVENTATIVE MAINTENANCE FOR JACKS The following Preventative Maintenance Schedule is provided as a guide to insure that hydraulic aircraft jacks are always ready for operation.
- Page 34 Routine Jack Maintenance Bulletin TO PROVIDE COMPLETE INFORMATION ON SERVICING ColumbusJACK/REGENT QUALITY GROUND HANDLING EQUIPMENT BULLETIN RJM 171 – RECOMMENDED HYDRAULIC OILS The following hydraulic oils are recommended for use in all ColumbusJACK/Regent products, though any oil compatible with Buna-N seals may be used. Proper oil level should be .5 to 1 inch below the fill port when all rams are collapsed. Exxon/Mobil Aero HF (MIL-PRF-5606) Exxon/Mobil DTE-11, -15 NATO Code No.
