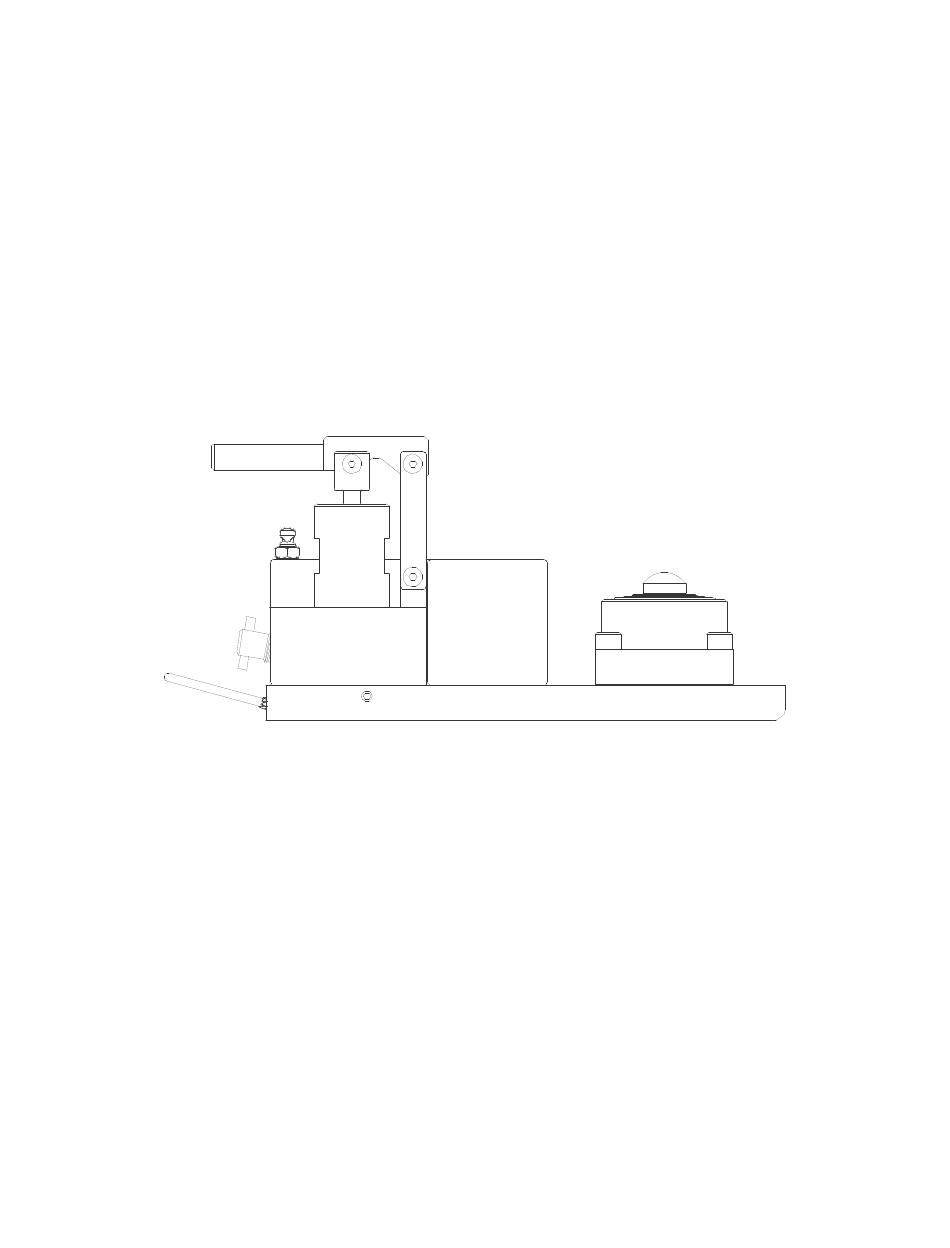

- Page 1 Model: 02-7832-0100 12 TON AXLE JACK March 1999 Rev.-02...
-
Page 2: Table Of Contents
02-7832-0100 12 TON AXLE JACK TABLE OF CONTENTS PAGE 1.0 DESCRIPTION1 2.0 USAGE ..........................1 3.0 SPECIFICATIONS....................... 1 4.0 ASSEMBLY INSTRUCTIONS ................... 1 4.1 General Information..................... 1 4.2 Pre-Use Checks......................1 5.0 OPERATING INSTRUCTIONS ..................2 5.1 Jack Instructions......................2 To Raise Aircraft...................... -
Page 3: Description1
02-7832-0100 12 TON AXLE JACK DESCRIPTION The Tronair Model 02-7832-0100 Hydraulic Axle Jack incorporates the following quality features: Steel construction Single-stage telescoping ram Quick action mechanical extension Single speed, manually operated pump Uses standard MIL-H-5606 hydraulic fluid Preset relief/release valve USAGE The purpose of this jack is to lift aircraft for maintenance. -
Page 4: Operating Instructions
02-7832-0100 12 TON AXLE JACK OPERATING INSTRUCTIONS The user should be familiar with the following statements prior to using the jack(s). CAUTION Aircraft jacking adaptors must rest in jack pad. Never put hands between aircraft and jack pad. Always open reservoir vent screw before operating. -
Page 5: Maintenance
02-7832-0100 12 TON AXLE JACK MAINTENANCE GENERAL All maintenance and/or repair work should be done using good workmanship practices and proper tools. The work area should be clean and free of dirt. When O-rings and backup rings are removed, every effort should be made to avoid the contact of tools with the critical surfaces of parts. -
Page 6: Removing And Servicing Pump
02-7832-0100 12 TON AXLE JACK MAINTENANCE, Continued . . . REMOVING AND SERVICING PUMP NOTE: If pump is found faulty, call the factory for replacement or replace seals as follows: Review Illustrated parts breakdown - Pump. Drain all fluid from reservoir. -
Page 7: Trouble Shooting
02-7832-0100 12 TON AXLE JACK TROUBLE SHOOTING TROUBLE PROBABLE CAUSE REMEDY Ram will not rise or High pressure leaks (at joint, plugs or Re-tighten or repair rises erratically tubing) Leaky discharge check valve Open release valve, pump rapidly to dislodge or repair... -
Page 8: Parts/Kits Lists & Illustration
02-7832-0100 12 TON AXLE JACK Parts List REPLACEMENT PARTS ITEM PART NUMBER DESCRIPTION Z-2878 Assembly, Vent TR-1541 Cylinder, Main TR-1540 Cylinder, Stage 1 TR-1538 Cylinder, Stage 2 R-1644 Pad, Jack TR-1539 Cylinder, Stage 3 R-1628-02 Extension, Mechanical G-1151-109716 Screw, Socket Head Cap 1/2-20 x 3/4" long G-1300-13040 Pin, Roll 1/4 "... - Page 9 02-7832-0100 12 TON AXLE JACK REPLACEMENT KITS PART NUMBER DESCRIPTION K-2498 Kit, Pump Replacement; consists of: - Item Z-3063 Assembly, Hydraulic Hand Pump (7500 psi) - Item HC-2008-109 O-ring, Series 2 - Item G-1151-107213 Screw, Hex Socket Head Cap, 3/8-16 x 1-3/8" long K-2607 Kit, Reservoir Replacement;...
- Page 10 02-7832-0100 12 TON AXLE JACK...
