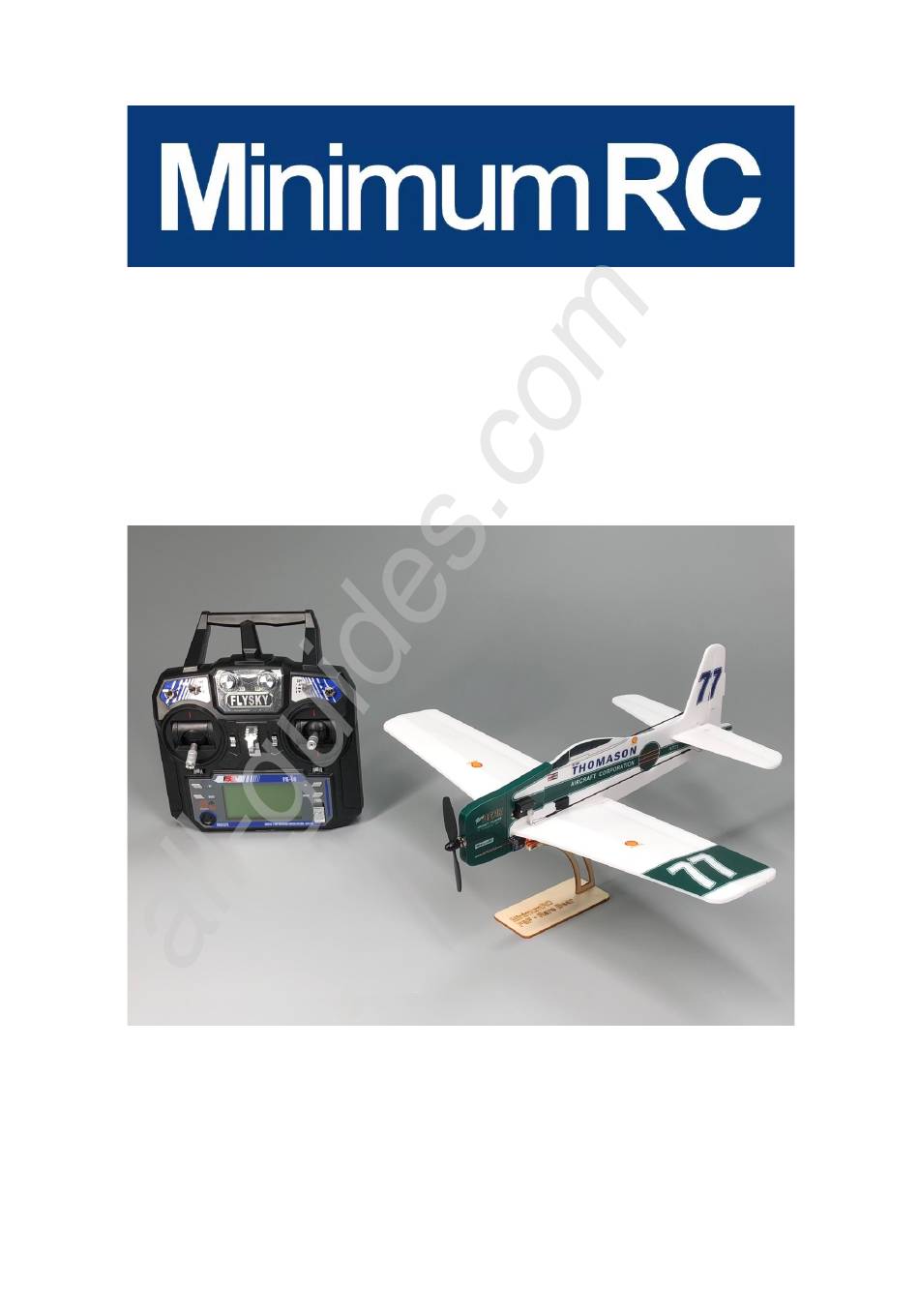

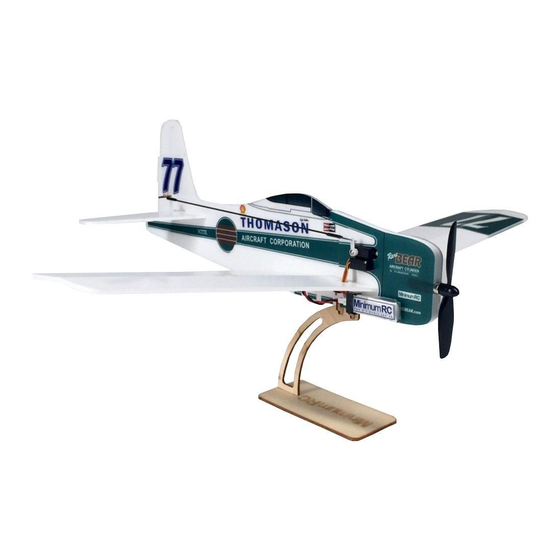

- Page 1 All manuals and user guides at all-guides.com F8F-RareBear Pro Assembly Instructions...
- Page 2 All manuals and user guides at all-guides.com 1.Assemble the base. 2.Fold hinge for many times to make the rudder surface move freely (also can be cut off and connected with transparent tape).
- Page 3 All manuals and user guides at all-guides.com 3. Cut off this part. When the fuselage is combined, the screwdriver can be extended into the adjusting steering arm.
- Page 4 All manuals and user guides at all-guides.com 4. Bond the fuselage, pay attention to the difference between the left and right sides of the fuselage.
- Page 5 All manuals and user guides at all-guides.com 6. Install aileron servo. The steering gear wire extends from the right side of the fuselage. 7.Insert wing support, pay attention to both sides symmetrical.
- Page 6 All manuals and user guides at all-guides.com 8. Insert horizontal tail, pay attention to the symmetry of left and right sides, glue bonding 9. Glue the motor to the nose. The coating sticker can be pasted on the fuselage at this time.
- Page 7 All manuals and user guides at all-guides.com 10. Reference to coated stickers.
- Page 8 All manuals and user guides at all-guides.com 11. Fold the aileron back and forth many times to make the rudder surface move freely. (It can also be cut off directly and connected with transparent tape.) Sticking transparent tape on both sides to enhance the torsional rigidity of aileron...
- Page 9 All manuals and user guides at all-guides.com Bend the wing along the notch. Installation of the wing.
- Page 10 All manuals and user guides at all-guides.com Installation of the control horns. Connect the pushrod clips with heat shrinkable tube and fix them with glue.
- Page 11 All manuals and user guides at all-guides.com Installation of the pushrods. Installation of the control horns.
- Page 12 All manuals and user guides at all-guides.com Installation of the servos.
- Page 13 All manuals and user guides at all-guides.com Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue. Installation of the pushrods.
- Page 14 All manuals and user guides at all-guides.com Attach the receiver to the fuselage with Velcro.
- Page 15 ·The amount of elevator, rudder and aileron is 5 mm for each side. Please adjust the rudder surface to the level before flight test. Explore the ultimate possibility of airplane kits MinimumRC.COM...
