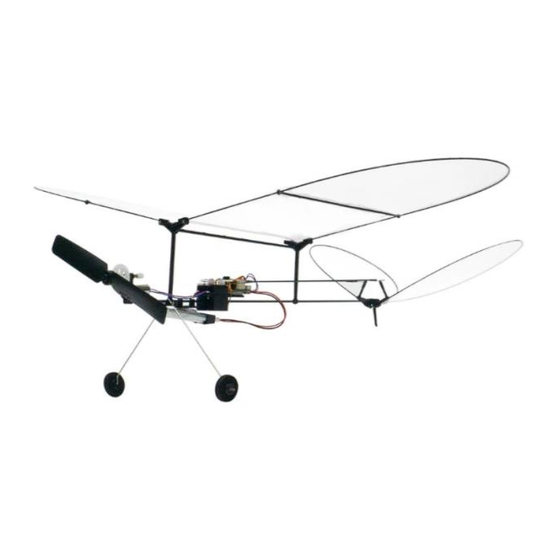

Butterfly V1-2024
Assembly Instructions
Important Instructions
1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding
wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.
2.Please wait for the glue to dry and solidify in each installation step before the next installation.
3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be used
for heating.
4.Please use razor blade to remove the parts from the plate. Do not tear the parts by forc e.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Butterfly V1-2024 and is the answer not in the manual?

Questions and answers

Related Manuals for MinimumRC Butterfly V1-2024

Summary of Contents for MinimumRC Butterfly V1-2024

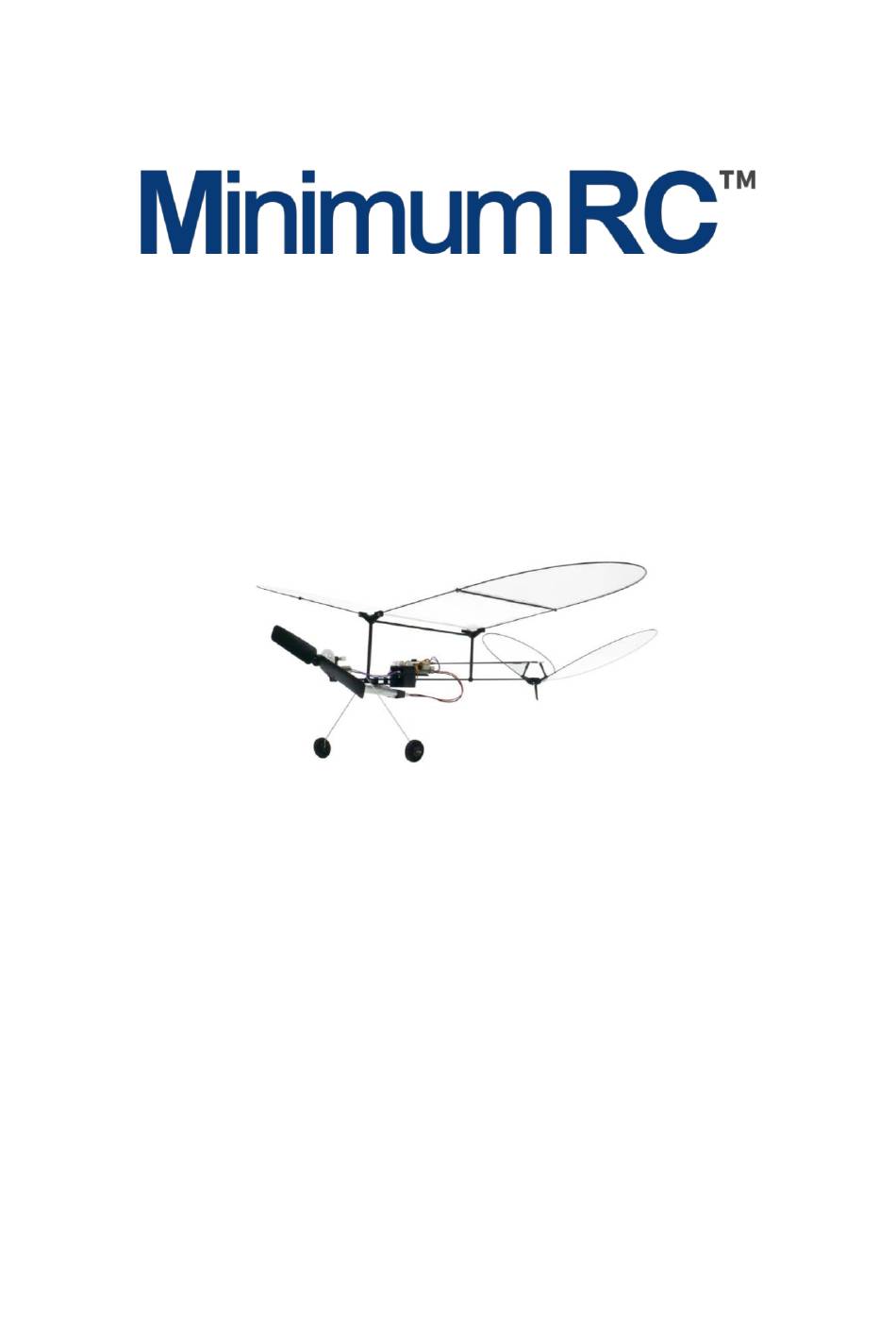

  • Page 1 Butterfly V1-2024 Assembly Instructions Important Instructions 1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.
  • Page 2 Assembly techniques Cut off the connectors shown in the diagram and remove the parts. · Roll back and forth TO cut the carbon rod. ·...
  • Page 3 1. Fuselage component B C D and 1.5mm x250mm carbon rod. 2. Combination fuselage components B C D and 1.5mm x250mm carbon rod. Note that the higher part B is located at the front end of the fuselage, 25mm away from the end of the carbon rod.
  • Page 4 4. Screw in 2 m1x3 screws at the front end of component B to secure the landing gear steel wire. 5. Component N installation at tail. Pay attention to the side with grooves facing backwards. 6. Detail: Component N has a groove facing backwards. Place the parts on a horizontal surface to check their flatness and ensure that there is no distortion during assembly before bonding.
  • Page 5 7. Component P and gear components. 8. Note that the installation hole at the lower end of component P is inclined, and it will be installed on the body in a tilted downward manner, forming a tension line pull angle. Combine the powertrain components and use glue to secure the motor and brass shaft sleeve to ensure proper engagement between the motor gear and the main gear.
  • Page 6 10. Wheel assembly J K and sponge tire. 11. Combination wheels. 12. Install the wheels at the end of the landing gear wire.
  • Page 7 13. Cut a 3mm length heat shrink tube, place it at the end of the steel wire, heat shrink and fix it with adhesive to prevent the wheel from falling off. 14. Install the equipment base in the middle section of the fuselage. 15.
  • Page 8 16. Take two 0.8mm x 300mm carbon fiber rods for making the tail s. Tail parts E G. 17. As shown in the diagram, fix the ends of the carbon fiber rod to component G separately and bond them with glue. Please pay attention to the shape of the components shown in the diagram and mirror the assembly of the tails on both sides to avoid confusion.
  • Page 9 18. Bend the carbon rod and secure the other end to component G to form the tail frame s. 19. Flip the tails over. (Component G with no groove facing upwards) 20. Fix component E vertically with glue.
  • Page 10 21. Component I. 22. Fix component I at the end of the tail carbon rod, and note that there should be a 5mm distance between component I and component G. 23. Tail cover parts F H.
  • Page 11 24. Combination tail cover plate assembly F H. 25. Screw in two m1 x3 screws on the tail cover assembly. 26. Insert the carbon fiber rod at the bottom of the tail into the groove of the tail component N, and then fix the tail cover assembly to component N with screws, allowing the tails to rotate freely within it.
  • Page 12 27. Details: The tails can rotate freely. 28. Take two 0.8 x425mm carbon fiber rods for making wings. Wing component A. 29. Insert both ends of the carbon fiber rod into the holes on both ends of component A, forming a wing shape. Note that the end of the carbon fiber rod should be 80mm away from component A.
  • Page 13 30. Cut two 8mm length heat shrink tubes, connect the ends of the carbon fiber rods on both sides of the wings together, heat shrink and fix with adhesive. 31. Details: Use heat shrink tubing to connect the carbon rods on both sides of the wings. 32.
  • Page 14 33. Screw in two m1x3 screws on the wing fixing piece L. 34. Use wing fasteners to secure the center of the wing to the fuselage frame. 35. Wing Fixed. The installation of the wing here is only for demonstration of the installation method, and the subsequent steps need to be removed for covering operation.
  • Page 15 36. Install two servos. 37. Use Velcro to secure the receiver to the base, connect the servo, motor, and receiver, test whether all equipment is working properly, whether the motor rotation direction is correct, and use zip ties to secure the cables. The wire connection method can be found at the end of this article.
  • Page 16 39. Cut 4 pieces of 0.5mm length heat shrink tubing to connect the pu sh rod to the steel wire clamp. Use 1 x250mm carbon fiber rod for the push rod. 40. Use a heat shrink tubing to secure the steel wire clamp to the end of the push rod and apply adhesive to secure it.
  • Page 17 42. Cut the end of the pull rod to the appropriate length. (In the horizontal state of the tail, the end of the pull rod should be about 10mm away from the tail) 43. Install a connecting hook on the tail, use a heat shrink tubing to connect the pu sh rod to the connecting hook , and fix it with adhesive.
  • Page 18 45. Fix the propeller onto the motor spindle using the propeller adapter M and propeller shaft sleeve, and apply an appropriate amount of glue. 46. The battery is fixed to the battery holder using Velcro. 47. Covering method: Lay the film on a flat surface.
  • Page 19 48. Apply glue to the skeleton and press it onto the film. (Alcohol glue is used here. 3M 77 spray glue will bring a better result.) 49. Cut the film along the edges after the glue has solidified. Assembly complete!

  • Page 20: Maiden Flight

    Maiden flight ·The center of gravity of the aircraft is located 20mm behind the front edge of the wing. ·The active range of the tails are 8mm on both sides. ·Adjust your transmitter to V -Tail mode. ·Choose grass land for maiden flight...
