Summary of Contents for Maxcess SE-46C

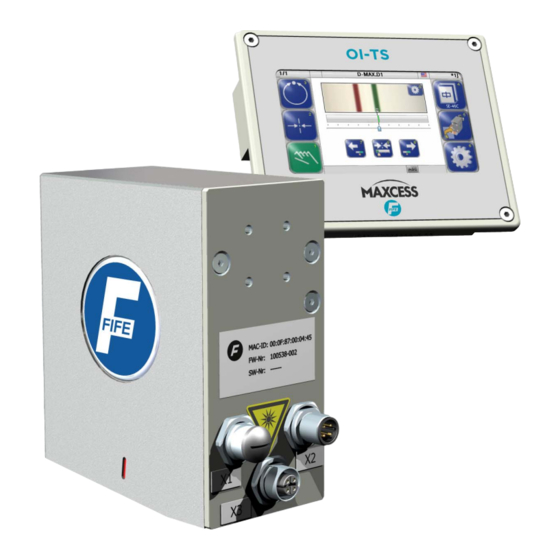

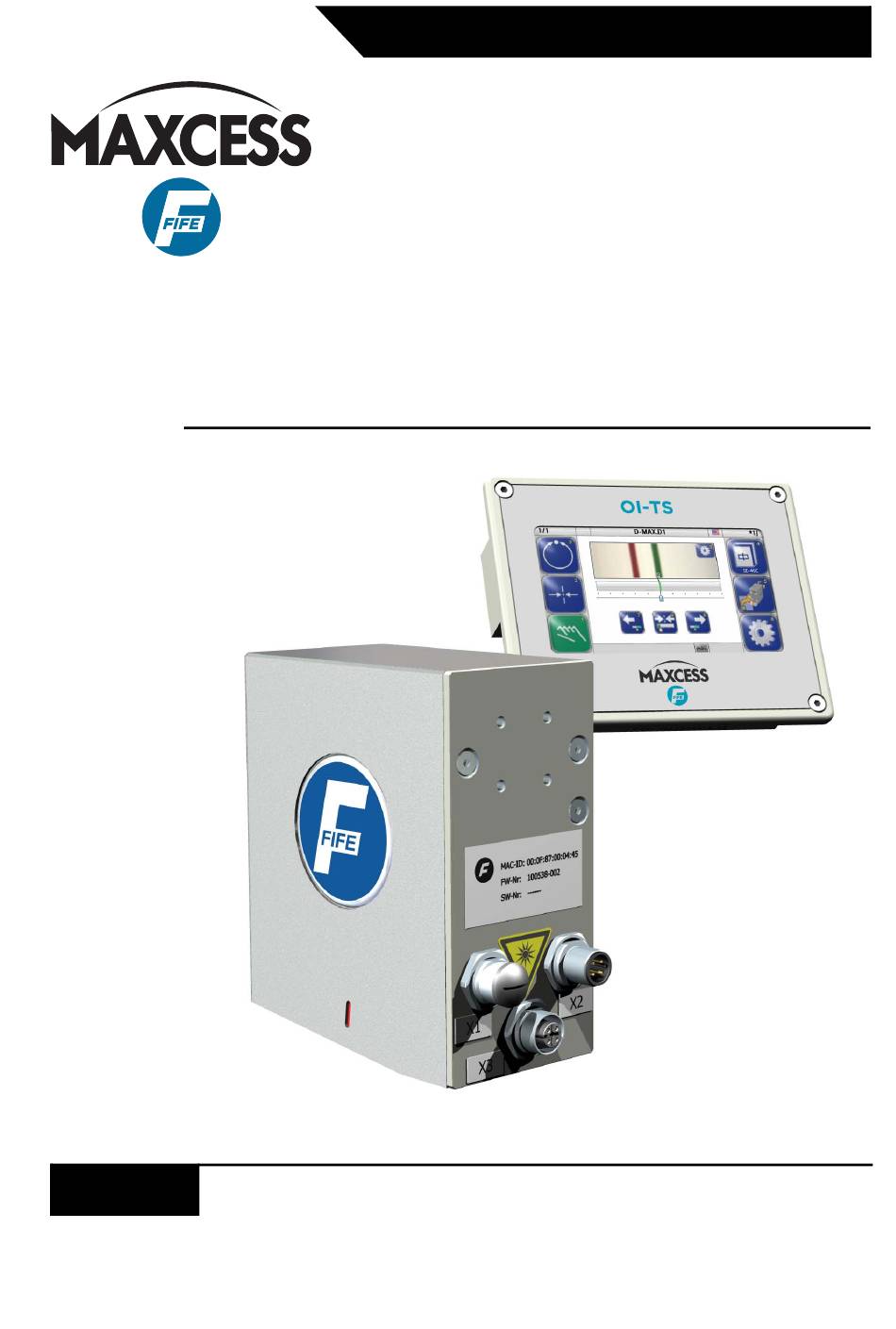

- Page 1 FIFE GUIDING SOLUTIONS FIFE SE-46C and Web Guide Controllers Commissioning Manual OI-TS firmware version 002 and later MI 1071 1 A...
-
Page 2: Table Of Contents
Operation ............4-5 SERVICE MI 1071 1 A SE-46C www.maxcess.eu Commissioning of the web guide controllers... -
Page 3: Introduction
SE-46C digital line sensor. Note: For further information and safety instructions regarding the web guide controller and sensor SE-46C, please consult the relevant operating instructions in the system documentation. Translation of the original Commissioning Manual: This Commissioning Manual is a translation. The original Commissioning Manual was composed in German. -
Page 4: Commissioning Of D-Max
D-MAX controller Note: Calibration for analog control signals must only be performed if the SE-46C sensor is not connected via an Ethernet cable with the D-MAX Controller. 1.1. Preparing the D-MAX controller for the calibration D-MAX OI-N operator interface: ∙... - Page 5 Depending on how the sensor is connected to the D-MAX controller, perform the calibration for: – S 01 - Locking signal (menu 1y.5.1.1) if the SE-46C sensor is connected to input X5 or for – S 03 - Locking signal (menu 1y.5.1.3) if the SE-46C sensor is connected to input X9.
- Page 6 X5 or for – S 04 - Position signal (menu 1y.5.1.4) if the SE-46 sensor is connected to input X9 OI-TS operator interface: ∙ Select signal assignment 0mA MI 1071 1 A SE-46C www.maxcess.eu Commissioning of the web guide controllers...
-
Page 7: Setting The Asc (Automatic Sensor Control)
∙ Press and hold the ESC key until you reach the user level of the D-MAX controller 1.5. Exit menu 1K.8.3 Simulate Analog Signals the SE-46C OI-TS operator interface: ∙ Press the CONFIRMATION button to exit menu 1K.8.3 ∙ Press the RETURN button twice to return to the operator level 2. -
Page 8: Setting The Polarity And Gain
∙ Set the 3.2. Setting the gain The gain must be set optimally. D-MAX OI-N operator interface: ∙ Select menu 1.y.3.y3 (Job Settings Gain) gain ∙ Set the MI 1071 1 A SE-46C www.maxcess.eu Commissioning of the web guide controllers... -
Page 9: Operation
Note: Depending on whether the sensor is connected to X5 or X9, operation on the D-MAX Controller in „Automatic” operating mode will proceed with job 'J' or 'K'. www.maxcess.eu SE-46C MI 1071 1 A Commissioning of the web guide controllers... -
Page 10: Commissioning Of
The DP-20 must be equipped with firmware version 1.05 or higher. Precondition: The SE-46C sensor is connected to the DP-20 web guide controller on input X4 or to the DP-30 web guide controller on input X5. The calibration described here only applies to this input. - Page 11 ∙ Continue pressing the Sensor key until sensor line centre - ý is selected (menu 3D) 1.2. Call menu 1K.8.3 Simulate Analog Signals the SE-46C The analog signals required for the calibration are simulated by sensor SE-46C. OI-TS operator interface: Simulate Analog Signals ∙...
- Page 12 ∙ Press the ENTER key OI-TS operator interface: ∙ Select signal assignment 0mA DP-20/DP-30 web guide controller: ∙ Determine the first reference value ∙ Press the ENTER key MI 1071 1 A SE-46C www.maxcess.eu Commissioning of the web guide controllers...
-
Page 13: Setting The Asc (Automatic Sensor Control)
The DP-20/DP-30 web guide controller returns to the user area if the calibration was successful. 1.5. Exit menu 1K.8.3 Simulate Analog Signals the SE-46C OI-TS operator interface: ∙ Press the CONFIRMATION button to exit menu 1K.8.3 ∙ Press the RETURN button twice to return to the operator level 2. -
Page 14: Setting The Polarity And Gain
(Manual Basic Gain) gain ∙ Set the Operation Note: The DP-20/DP-30 web guide controller must be operated in „Automatic“ mode with sensor mode D - Line centre ý. MI 1071 1 A SE-46C www.maxcess.eu Commissioning of the web guide controllers... -
Page 15: Commissioning Of Fife-500
Detailed information about sensor calibration is available in the „FIFE-500 Operating Instructions“. Precondition: The SE-46C sensor must be connected to the FIFE-500 web guide controller according to the system diagram in the system documentation. The SE-46C is operated from the OI-TS operator interface. - Page 16 ∙ Press the SENSOR button until sensor line centre - ý is selected (menu 1E) 1.2. Call menu 1K.8.3 Simulate Analog Signals the SE-46C The analog signals required for the calibration are simulated by sensor SE-46C. OI-TS operator interface: Simulate Analog Signals ∙...
- Page 17 § (S1) is selected ∙ Press the START CALIBRATION button OI-TS operator interface: ∙ Select signal assignment 0mA FIFE-500 operator interface: ∙ Press the button to determine the first reference value www.maxcess.eu SE-46C MI 1071 1 A Commissioning of the web guide controllers...
-
Page 18: Setting The Asc (Automatic Sensor Control)
∙ Press the RETURN button to return to the operator level 1.5. Exit menu 1K.8.3 Simulate Analog Signals the SE-46C OI-TS operator interface: ∙ Press the CONFIRMATION button to exit menu 1K.8.3 ∙ Press the RETURN button twice to return to the operator level 2. -
Page 19: Setting The Polarity And Gain
∙ Press the ACCEPT button to exit menu Operation Note: The FIFE-500 web guide controller must be operated in „Automatic“ mode with sensor mode E - Line centre ý (S2). www.maxcess.eu SE-46C MI 1071 1 A Commissioning of the web guide controllers... -
Page 20: Service
E-Mail: service@maxcessintl.com Web: www.maxcessintl.com EUROPE, MIDDLE EAST NORTH, CENTRAL CHINA JAPAN INDIA AND AFRICA AND SOUTH AMERICA Tel +49.6195.7002.0 Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +81.43.421.1622 Tel +91.22.27602633 sales@maxcess.eu sales@maxcessintl.com info@maxcessintl.com.cn japan@maxcessintl.com india@maxcessintl.com www.maxcess.eu www.maxcessintl.com www.maxcessintl.com.cn www.maxcess.jp www.maxcess.in © 2020 Maxcess...
