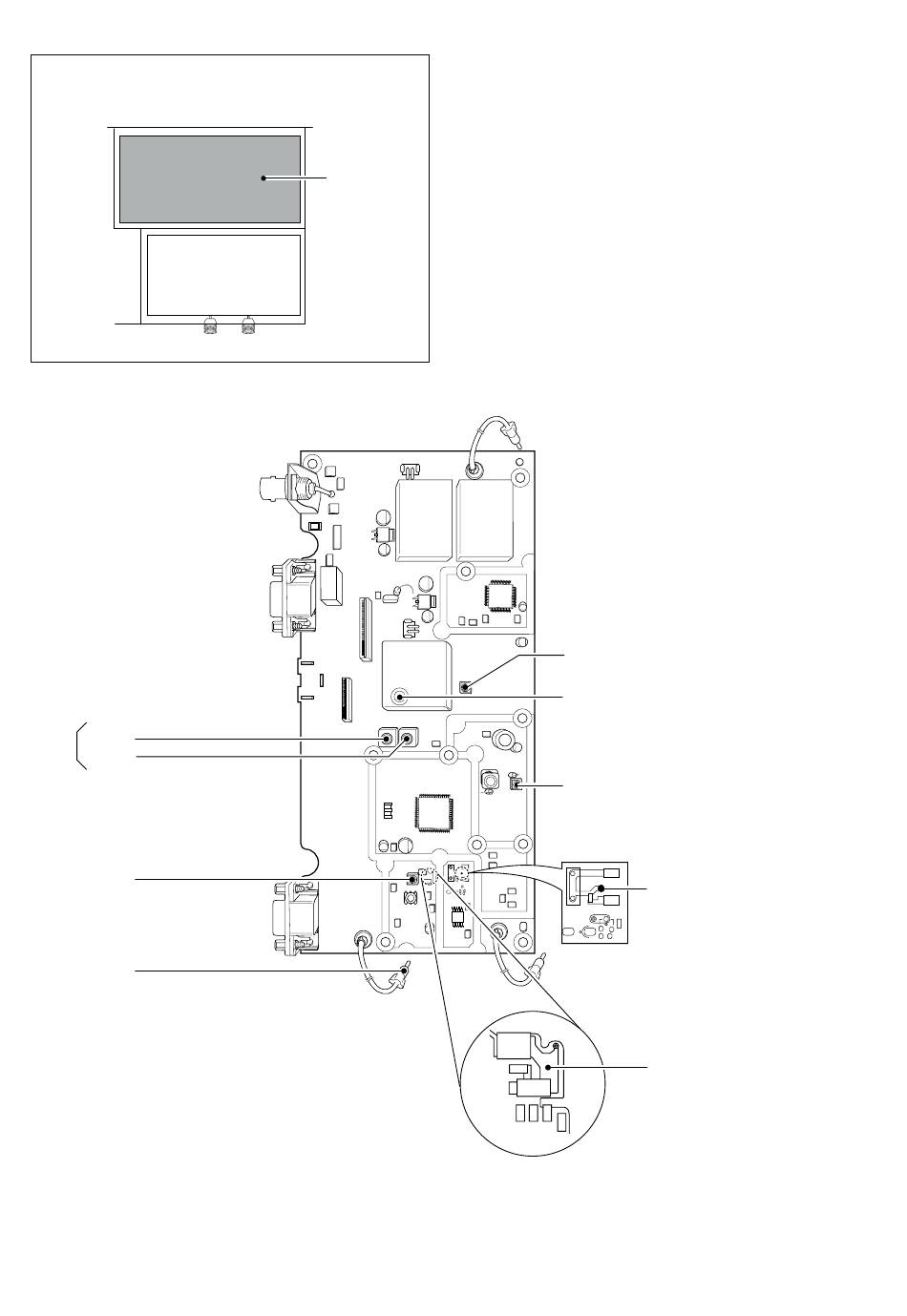

• IC-M802 BOTTOM VIEW
• PLL UNIT TOP VIEW
L5204
L5203
LPL lock voltage adjustment
C5305
LPL lock voltage adjustment
P5201
Reference frequency check point
PLL unit
4 - 4
C5394
Reference frequency adjustment (OTH)
X5251
Reference frequency adjustment (USA, CAN)
C5521
HPL lock voltage adjustment
CP5401
HPL lock voltage check point
CP5301
LPL lock voltage check point
