Summary of Contents for Spirit XG200

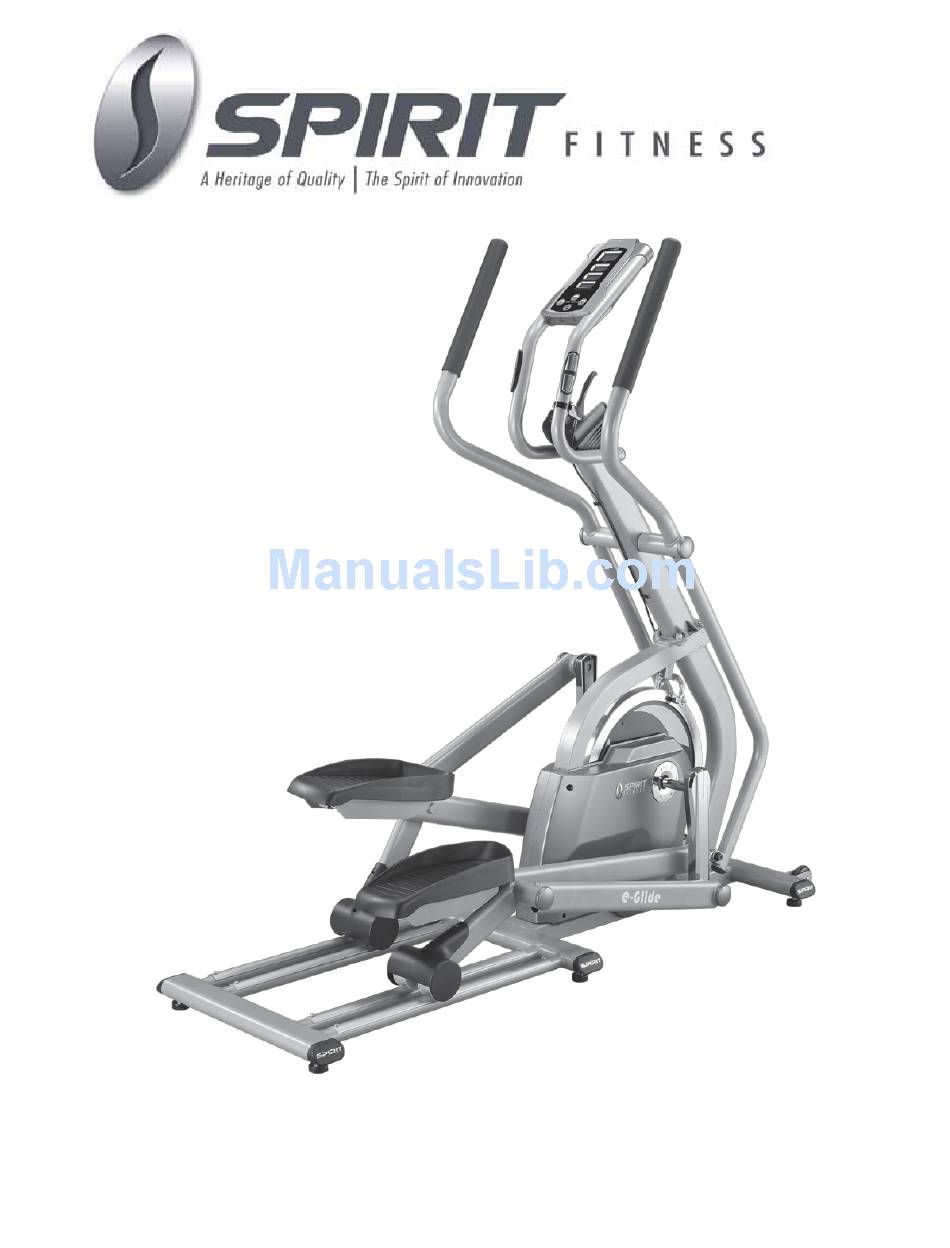

- Page 1 XG200 Elliptical OWNER’S MANUAL Please carefully read this entire manual before operating your new elliptical...
-
Page 2: Table Of Contents
Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions Features XG200 Assembly Instructions Console Operation General Maintenance Manufacturer’s Limited Warranty ATTENTION This elliptical is intended for residential use only and is warranted for this application. Any other application voids this warranty in its entirety. -
Page 3: Product Registration
Through your dealer, Spirit will do all we can to make your ownership experience as pleasant as possible for many years to come. If not purchased direct from Spirit, the local dealership where you purchased this elliptical is your administrator for all Spirit warranty and service needs. -
Page 4: Important Safety Instructions
WARNING - Read all instructions before using this appliance. If using the optional power supply: DANGER - To reduce the risk of electric shock disconnect your Spirit elliptical from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the elliptical on a flat level surface with access to a 110-volt, 15-amp grounded outlet with only the elliptical plugged into the circuit. -
Page 5: Important Electrical Instructions
The operating temperature specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing (no water drops forming on surfaces). POWER CONNECTOR - Middle of unit XG200 Elliptical... -
Page 6: Important Operation Instructions
ƒ Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. FEATURES Here are the top reasons why we believe this Spirit elliptical trainer is among the best elliptical machines available for everyone: ƒ State of the Art patent-pending, industry-leading, super-smooth, super-fast... -
Page 7: Xg200 Assembly Instructions
The numbers in the instructions that are in parenthesis (#) are the item number from the assembly drawing for reference. ASSEMBLY TOOLS #107. Phillips Head Screwdriver #110. 5mm Allen Wrench #108. 8mm Allen #109. 17mm Wrench #111. 14mm #116. 6mm Allen Wrench Wrench Wrench XG200 Elliptical... - Page 8 (107) just enough to allow the cable to nest behind them. Retighten the screws after placing the cable behind them. HARDWARE #42. M10 x 20mm Stainless Steel Bolt (4 pcs) XG200 Elliptical #50. M10 Split Washer (4 pcs)
- Page 9 Phillips head screw driver (107). The pedals are identified with an L or R on the bottom. HARDWARE #24. Cup Washer (2 pcs) Stainless Steel Bolt #40. M8 x 15mm #45. M5 x 10mm Phillips Screw (2 pcs) (8 pcs) XG200 Elliptical...
- Page 10 2. Remove the cover on the back of the console and install the 4 C batteries. 3. Snap the four end caps (67) onto the cup washers on the left & right pedal arm assemblies. HARDWARE #44. 5/16” x 1-3/4” Bolt (2 pcs) XG200 Elliptical #34. 5/16” (2 pcs)
- Page 11 1. Assemble the brackets at the bottom of the swing arms to the pedal arms using a shoulder bolt (55) and a nut (56) on each side. Tighten securely with the wrenches provided (109 & 116). HARDWARE #55. M10 x 20mm #56. M10 Shoulder Bolt (2 pcs) (2 pcs) XG200 Elliptical...
- Page 12 3. Unlock the black lever located near the flywheel at the end of the brake cable (90). This is locked for shipping purposes, but also serves as a safety lock mechanism to prevent unauthor- ized use of this machine. XG200 Elliptical...
-
Page 13: Console Operation
If the console does not detect a speed signal, or key activations, it will go to sleep to protect battery Life or save electricity. To wake the console up you can press any key. XG200 Elliptical... - Page 14 ƒ Press the START/STOP key to Pause the timer and also to resume the timer when it is in Pause mode. ƒ Press and hold the START/STOP key for three seconds to reset all the data. ƒ For Heart Rate readings you must grasp both sensors. XG200 Elliptical...
-
Page 15: General Maintenance
6. If set to metric the number will be displayed in METERS; the default is 1.83. To adjust the desired settings, use the +/- keys ƒ To clear odometer, press + and - at the same time. ƒ Press DISPLAY to exit. XG200 Elliptical... -
Page 16: Manufacturer's Limited Warranty
ELLIPTICAL WARRANTY - Effective September 15, 2010 Spirit Fitness Inc. warrants all its elliptical parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit’s responsibilities include providing new or remanufactured parts, at Spirit’s option, and technical support to our independent dealers and servicing organizations.
