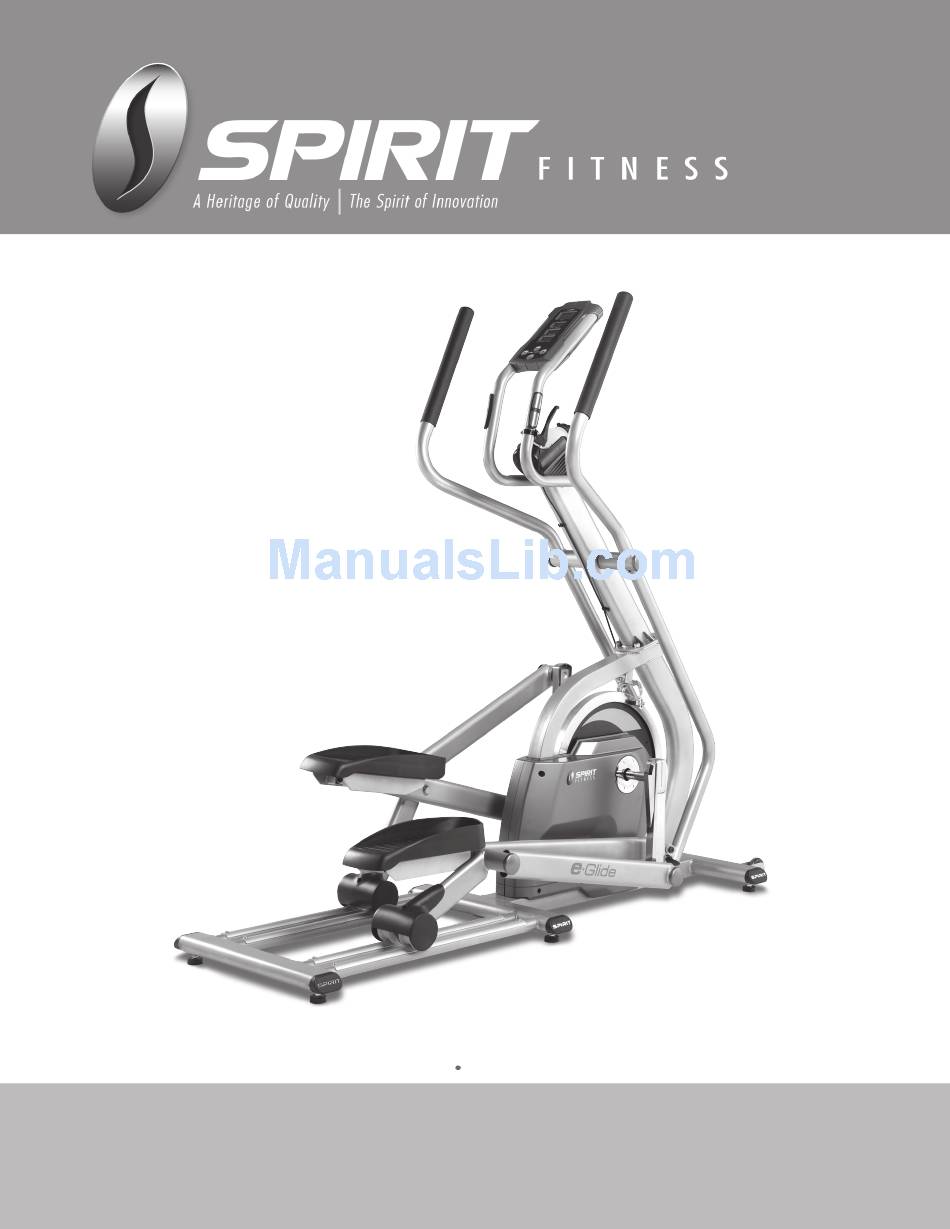

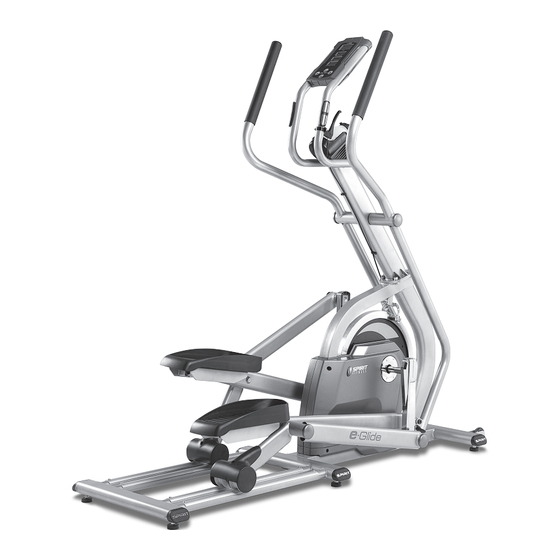

- Page 1 XG200 Glide Trainer OWNER’S MANUAL Please carefully read this entire manual before operating your new e•Glide Trainer...
-
Page 3: Product Registration
Product Registration Important Safety Instructions Important Electrical Instructions XG200 Assembly Instructions Operation of Y our Console General Maintenance Manufacturer’s Limited Warranty ATTENTION This e•Glide Trainer is intended for residential use only and is warranted for this application. Any other application voids this warranty in its entirety. - Page 4 XG200 Glide Trainer...
- Page 5 Congratulations on your new e•Glide Trainer and welcome to the Spirit Fitness family! Thank you for your purchase of this quality group e•Glide Trainer from Spirit Fitness. Your new e•Glide Trainer was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
- Page 6 WARNING - Read all instructions before using this appliance. If using the optional power supply: DANGER - To reduce the risk of electric shock disconnect your Spirit e•Glide Trainer from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the e•Glide Trainer on a flat level surface with access to a 110-volt, 15-amp grounded outlet with only the e•Glide Trainer plugged into the circuit.
-
Page 7: Important Operation Instructions
WARNING! NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your e•Glide Trainer may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing. -
Page 8: Pre-Assembly
Assembly Video To assist you in assembling your new Spirit Fitness e•Glide Trainer, we have posted an assembly video at the following link: http://www.spiritfitness.com/customerservice/video/eglidevideos.html Pre-Assembly Using a razor knife (Box Cutter), cut the banding straps that wrap around the carton. Reach under the bottom edge of the carton and pull it away from the cardboard underneath, separating the staples that join the two together. -
Page 9: Step 1: Console Mast
STEP 1: Console Mast The computer cable is pre-installed to the console mast and main frame so be careful not to pull too hard on the console mast during assembly to avoid damaging them. Connect cable (100) to (101). Place the console mast onto the mating plate of the main frame; Be careful not to pinch the speed sensor wire between the console mast and the main frame plates during assembly. - Page 10 STEP 2: Swing Arms & Pedals Remove the foam from the console mast axles and the plastic ties from the tubes that slide onto the console mast axles. Slide the two swing arms (8 Right & 9 Left) onto the console mast axle. There is a left and right swing arm (marked with an “R”...
- Page 11 STEP 3: Wheels & Caps Attach the transport wheels (77) to each bracket with the two bolts (44) and nuts (34). Partially tighten with the wrenches provided (110 & 111). Over tightening the hardware won’t allow the wheels to rotate. Remove the cover on the back of the console and install the 4 C batteries.
- Page 12 STEP 4: Arm Connection Assemble the brackets at the bottom of the swing arms to the pedal arms using a shoulder bolt (55) and a nut (56) on each side. Tighten securely with the wrenches provided (109 & 116). HARDWARE #55.
- Page 13 STEP 5: Levelers & End Caps Tilt the e•Glide Trainer to one side and put something under the unit for support and install the three levelers (83) for that side. Tilt the unit to the other side and install those three levelers (83). Level the e•Glide Trainer once it is positioned where it will be used.
- Page 14 XG200 Console 4 Individual LCD Windows Easy-T ouch Control Buttons Power The power for the console is provided by 4 C alkaline batteries (provided) and will operate on rechargeable NiCd C batteries. There is an AC electrical power supply that will override the batteries when used.
-
Page 15: Operation
Displays TIME: Displays workout time two ways; either count up (accumulated time) or count down (remaining time), depending on your preference. RPM/SPEED: Displays the current pedaling speed as revolutions per minute or miles per hour. LEVEL/DISTANCE: Displays resistance Level or virtual distance traveled in miles or kilometers (units selected through management mode, see page 13 for details). -
Page 16: Management Mode
The e•Glide Trainer is practically maintenance free. Just keep it clean by wiping down the unit with a damp cloth after each use. Do not use harsh detergents. Every month check that all the hardware is securely tightened. Do not use the e•Glide Trainer if any parts are loose or broken. The wheels and aluminum tracks will need to be kept clean to prevent noise and maintain smoothness. - Page 17 T rainer Warranty - Effective September 15, 2010 Spirit Fitness, Inc. (Spirit Fitness) warrants all its e•Glide Trainer parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
- Page 18 2601 Commerce Drive Jonesboro, AR 72401 - Phone: 800-258-4555 - Fax: 870-935- 7 611 © 2011 All Rights Reserved. www.spiritfitness.com XG200 Owner’s Manual 1. 1 Rev . 1...
