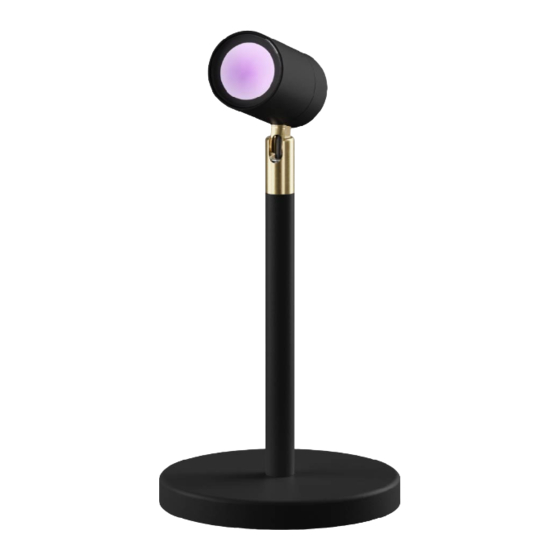

Half Moon
Code / Codice
Power consumption
Consumo di energia
Remote Power supply
Alimentatore Remoto
Foward voltage
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK

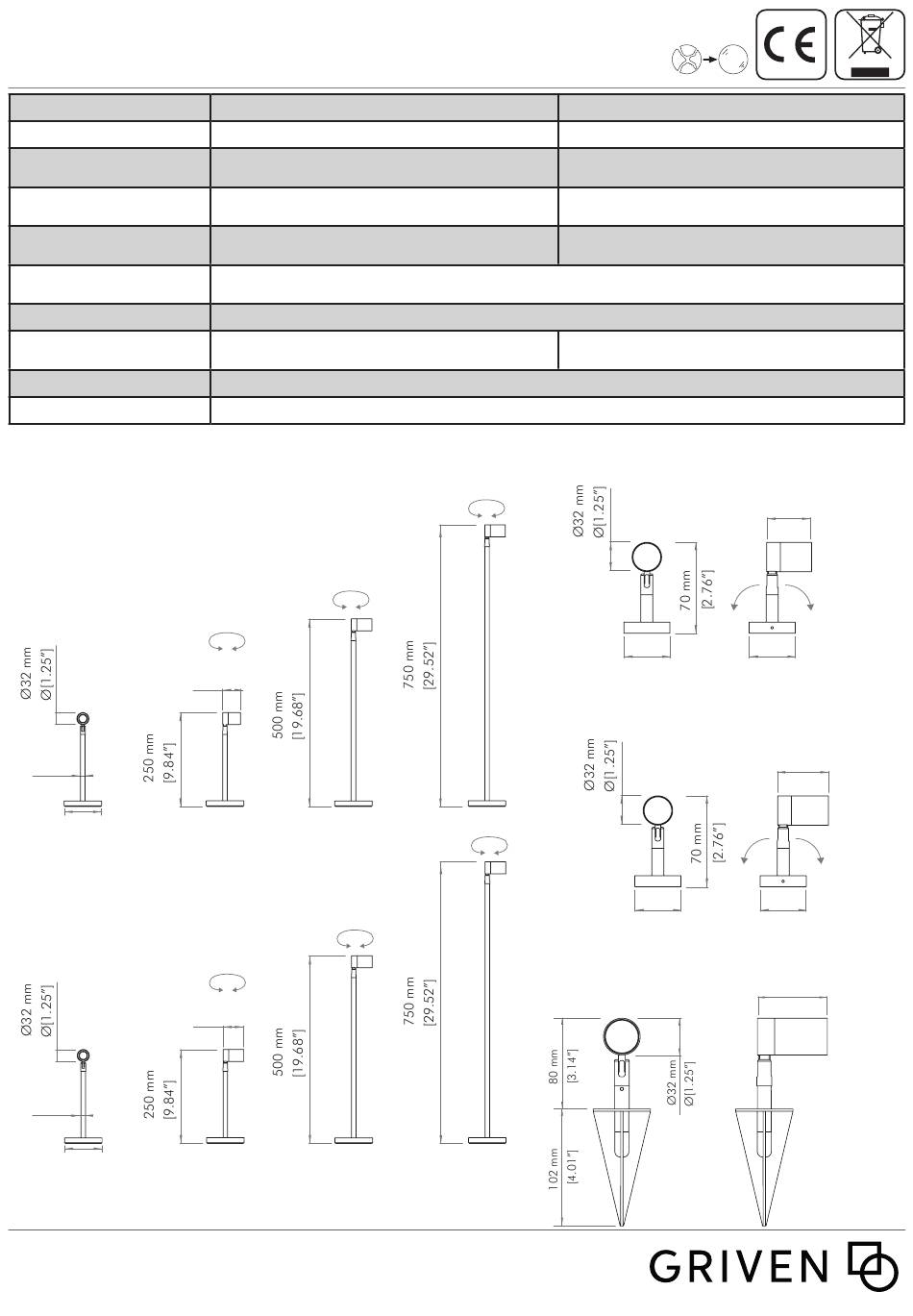

Size / Dimensioni
Half Moon Bollard - White
13 mm
[0.51"]
100 mm
[3.93"]
13 mm
[0.51"]
100 mm
[3.93"]
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User's Manual
Rev. 1.0
Date:23/08/2021
Half Moon W
AL5315 / AL5316 / AL5318
Constant Current: 900mA
Half Moon wall: 0.2 Kg / 0.4 lb \ Half Moon Spike: 0.44 Kg 0.88 lb
-40°C to 50°C / (-40°F to 122°F)
355°
355°
50 mm
[1.97"]
355°
355°
55 mm
[2.17"]
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
3W
3.2 V
355°
355°
.
551130
Half Moon RGBW /DW
AL5315 / AL5316 / AL5318
3.5W MAX
Constant Current: 300mA
III
-40°C to 40°C / (-40°F to 104°F)
IP67
IK07
Half Moon Wall - White
50 mm
[1.97"]
Half Moon Wall - RGBW
50 mm
[1.97"]
Half Moon Spike
50 mm
[1.97"]
-90°
+90°
50 mm
[1.97"]
55 mm
[2.17"]
-90°
+90°
50 mm
[1.97"]
55 mm
[2.17"]
page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Griven Half Moon W
Summary of Contents for Griven Half Moon W
- Page 1 [3.93”] page 1 of 7 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
- Page 3 Fixing / Fissaggio WARNING ! fixing and connecting operations must mandatorily be carried out by qualified personnel only ! ATTENZIONE ! le operazioni di installazione e connessione devono obbligatoriamente essere eseguite solo da personale specializzato ! WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori!
- Page 4 DRAINAGE MATERIAL MATERIALE DI DRENAGGIO HALF MOON WALL ø 5 mm Cable Length ø 5 mm ø 5 mm Cable M3 Hex Length Cable Length page 4 of 7 Half Moon Rev. 1.0 551130...
- Page 5 Connection / Connessione Cable type ( Power in ) - 2x0,25 mm^2 - L= 1 m Tipo di cavo ( Power in ) - 2x0,25 mm^2 - L= 1 m POWER IN MARRONE= + BROWN= + BLU= - BLUE= - 120-277 Vac AL4324/900 POWER SUPPLY UNIT 50- 60 Hz...
- Page 6 Alimentatore Cable type ( Power in ) - 8x0,25 mm^2 - L= 1 m Tipo di cavo ( Power in ) - 8x0,25 mm^2 - L= 1 m AL5296 AL5296 AL5296 MARRONE = LED ROSSO + BROWN = RED LED + 3 WAY JUNCTION BOX 3 WAY JUNCTION BOX 3 WAY JUNCTION BOX...
- Page 7 Note: Allowed operation only between sunset and sunrise Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba page 7 of 7 Half Moon Rev. 1.0 551130...
