CY3273 QUICK START GUIDE

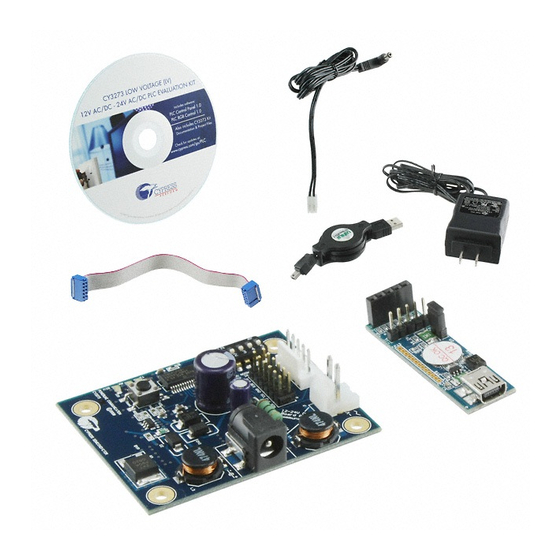

Using the CY3273 Low Voltage 12-24V AC/DC PLC Evaluation Kit with the PLC
To evaluate this kit, a second PLC low voltage kit is required (CY3273, CY3275, or CY3277). This guide assumes
that two CY3273 kits are available. If a CY3275 or CY3277 kit is used as the second kit, refer to the Appendix
of the PLC Control Panel GUI User's Guide for making the kit act as a CY3273. More information on the GUI is
described in step 4 on page 2.
Five Position
DIP Switches
(S2)
CY8CPLC10
(28-Pin SSOP)
Reset Button
(S1)
Control Panel Software Application
CAUTION: High Voltage (Risk of Electric Shock)
All work in powerline communications must be done with extreme care.
Caution must be exercised when using power supplies or power related equipment.
CY3273 Top View
2
I C Male Header (J8)
Connector to Daisy Chain
Cable (J1)
Power Supply and
Coupling Circuit
Power Adapter Header (J4)
Power Amplifier
