Operating Manual
Gravity Feed Slicers
HANSEAT Series 250 / 300
Hanseat-210617-Rev008-UM-en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HANSEAT 250 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ADE HANSEAT 250 Series

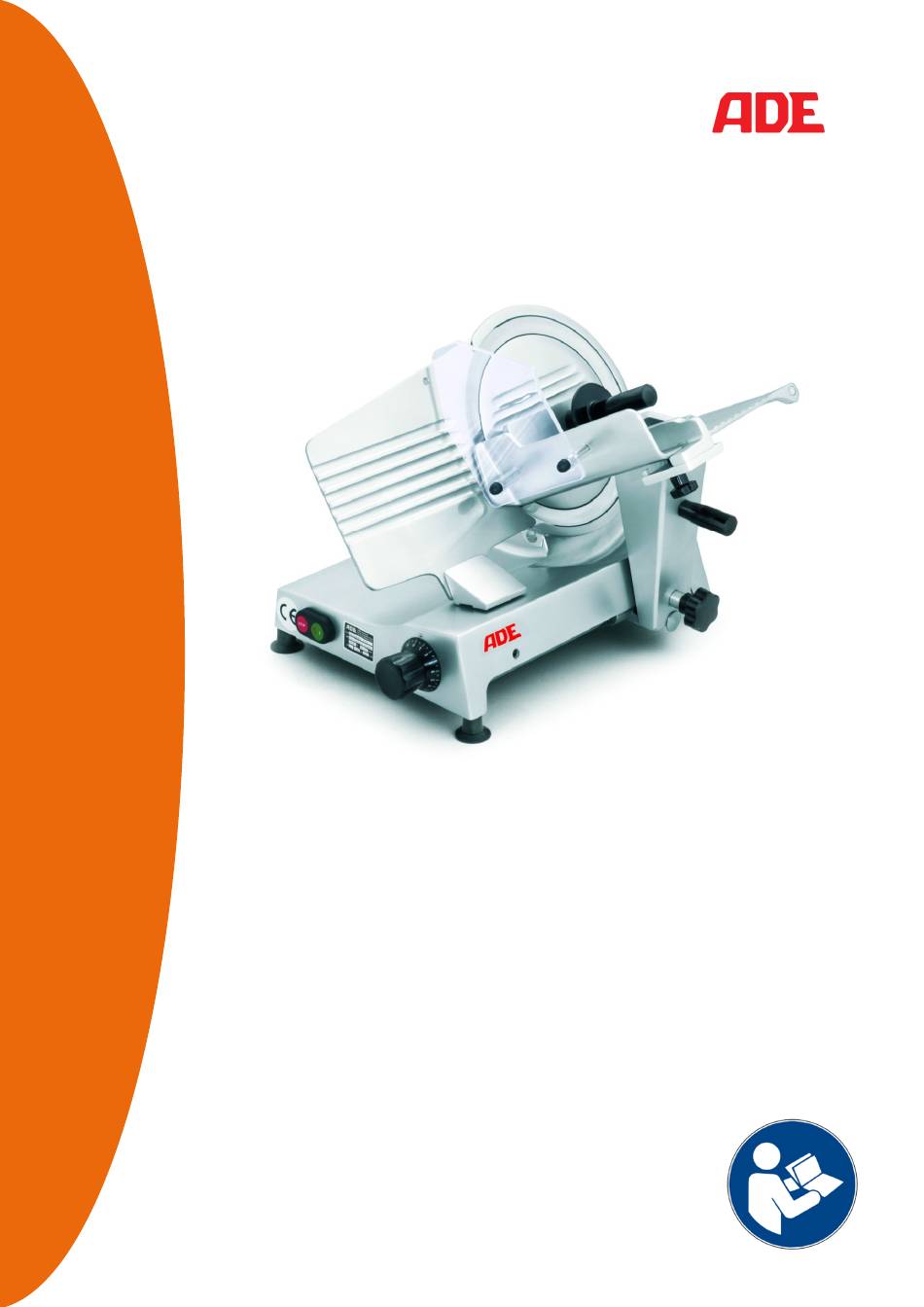

  • Page 1 Operating Manual Gravity Feed Slicers HANSEAT Series 250 / 300 Hanseat-210617-Rev008-UM-en...
  • Page 2: Table Of Contents

    Table of Contents FOREWORD ......................... 2 1.1 Introduction ..........................2 1.2 Use ............................2 PREPARATION AND OPERATION ..................3 2.1 Opening the packaging ......................3 2.2 Installation ..........................3 2.3 Electrical connection ......................3 2.4 Functional principle ........................ 3 OPERATING FEATURES AND SAFETY PRECAUTIONS ............ 4 3.1 Operating features .........................
  • Page 3: Foreword

    The machine may only be used in its original condition and with original parts. Disassembling the protective equipment is not allowed. In case of damage to protective equipment, the machine must be immediately put out of operation and ADE must be informed for the purpose of renewal or replacement.
  • Page 4: Preparation And Operation

    2. PREPARATION AND OPERATION Upon receiving the package containing the slicing machine, make sure that it does not show any damage incurred during transport. 2.1 Opening the packaging  Open the box and remove the machine;  Check the package contents and check that it matches the specifications on the delivery note. Packaging materials are valuable materials and must not be disposed of in household waste.
  • Page 5: Operating Features And Safety Precautions

    3. OPERATING FEATURES AND SAFETY PRECAUTIONS 3.1 Operating features The slicing machines are electrically operated by means of two buttons: a green operating button I and a red stop button O. In addition, the machine has a yellow control lamp within the green operating button to display "cutting blade in operation".
  • Page 6: Using The Slicer

    4. USING THE SLICER 4.1 Operating procedure 1) Set the knob "A" with scale division to "0" (zero). 2) Pull the food carriage on the carriage arm "B" as far as possible in the direction of the operator. 3) Lift the remnant holder "C" using the handle "D" provided for this purpose. Place the product on the food carriage with the machine switched off and lower the remnant holder on or behind the food.
  • Page 7: Maintenance And Care Of The Slicer

    5. MAINTENANCE AND CARE OF THE SLICER For hygienic reasons, the slicing machine must always be kept clean. It must be dismantled and cleaned every time the type of food is changed (for example, from fresh meat to roasted meat) and at the end of each working day.
  • Page 8: Sharpening Operations

    6. SHARPENING OPERATIONS To ensure trouble-free operation of the slicing machine, the cutting blade must be always well- sharpened. It should be taken into account that regular short sharpening of the cutting blade is preferable over an extensive sharpening process. Before starting such work, make sure that the knob with scale division is set to "0".
  • Page 9: Training

    11. WARRANTY ADE will repair or replace this product if it has failed within 2 years from the date of purchase (proof of purchase is required) due to lack of workmanship or defective material. All moving parts, such as blades, grinders, food carriages, etc., are excluded from this warranty.
  • Page 10: Technical Data

    12. TECHNICAL DATA Model Hanseat 250-230 Hanseat 300-230 Blade Ø 250 mm 300 mm Slice thickness selector 0-15 mm 0-15 mm Cutting area 185 x 175 mm 210 x 195 mm Dimensions approx. 380 x 475 x 370 mm 410 x 500 x 400 mm Power 0.21 kW 0.21 kW...
  • Page 11: Ce Marking And Declaration Of Conformity

     RoHS Directive 2011/65/EU in the currently valid versions. This declaration loses its validity if modifications are made to the product without our approval. Hamburg, June 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH...
  • Page 12: Wiring Diagrams

    14. WIRING DIAGRAMS Hanseat-210617-Rev008-UM-en...
  • Page 13: Exploded Views

    15. EXPLODED VIEWS HANSEAT 250 SOCKET Hanseat 250 CARRIAGE MOUNTING Hanseat 250 Hanseat-210617-Rev008-UM-en...
  • Page 14 CARRIAGE Hanseat 250 ADJUSTMENT UNIT Hanseat 250 MOTOR UNIT Hanseat 250 Hanseat-210617-Rev008-UM-en...
  • Page 15 HANSEAT 300 SOCKET Hanseat 300 Hanseat-210617-Rev008-UM-en...
  • Page 16 CARRIAGE MOUNTING Hanseat 300 CARRIAGE Hanseat 300 Hanseat-210617-Rev008-UM-en...
  • Page 17 ADJUSTMENT UNIT Hanseat 300 MOTOR UNIT Hanseat 300 Hanseat-210617-Rev008-UM-en...
  • Page 18: Spare Parts List

    16. SPARE PARTS LIST Hanseat 250 Hanseat 300 DESCRIPTION QUANTITY ART-NR. ART-NR. SOCKET Drive belts H4097-022 H4097-022 Round blade, smooth H4090-014 H4097-005 Round blade, smooth/Teflon- coated H4090-0141 H4097-0051 Round blade, long-toothed H4090-021 H4097-008 Round blade, long- toothed/Teflon-coated H4090-0211 H4097-0081 Blade cover plate H4097-019 H4097-023 Wiper...
  • Page 19 Hanseat-210617-Rev008-UM-en...
  • Page 20 Distributor: Hanseat-210617-Rev008-UM-en...
