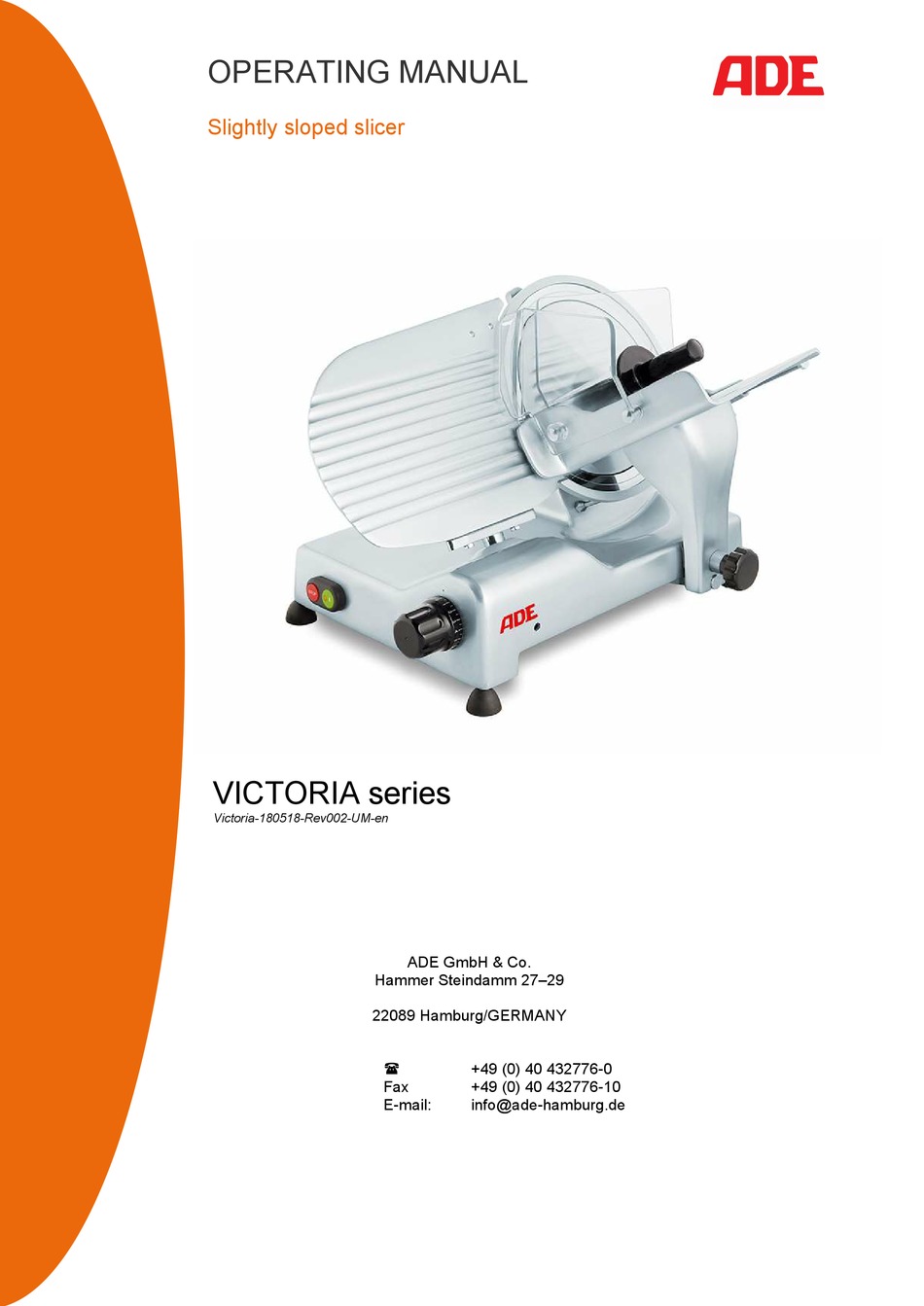

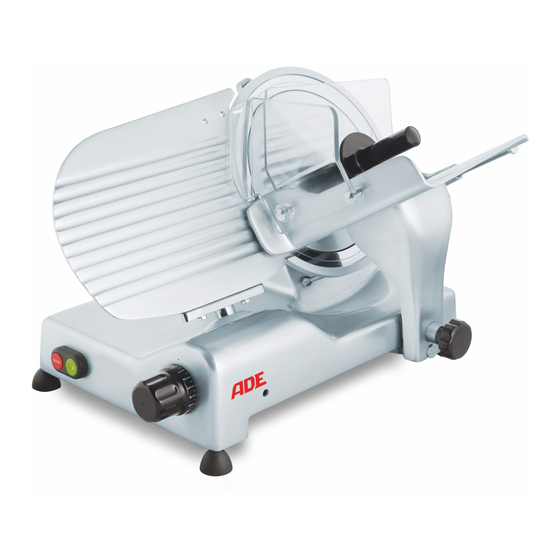

- Page 1 OPERATING MANUAL Slightly sloped slicer VICTORIA series Victoria-180518-Rev002-UM-en ADE GmbH & Co. Hammer Steindamm 27–29 22089 Hamburg/GERMANY +49 (0) 40 432776-0 +49 (0) 40 432776-10 E-mail: info@ade-hamburg.de...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Residual risks Installation Electrical connection Mechanical fuses Electrical fuses Inspection test Precautions Functional principle Structure of the machine Operating features Switching on Inserting the product Adjusting the cutting thickness Sharpening the blade Cleaning Lubrication Victoria-180518-Rev002-UM-en... -
Page 3: Introduction
The machine may only be used in its original condition and with original parts. Disassembling the protective equipment is not allowed. In case of damage to protective equipment, the machine must be immediately put out of operation and ADE must be informed for the purpose of renewal or replacement. 1.3 Residual risks Despite extensive safety precautions on the machine, residual risks remain for the operator in the daily work with the machine. -
Page 4: Installation
START-UP The slicing machine comes as a complete product. Please remove the packaging material, remove the machine from the box and ensure that the contents of the packaging correspond to the information on the delivery note. In addition, make sure that the machine does not show any damage occurred during transport. If the slicing machine is damaged, this must be reported in writing to the transport company within three days from the date of the accompanying documents, detailing the damage found. -
Page 5: Mechanical Fuses
2.3 Mechanical fuses The cutting blade is completely protected by a rigidly attached cover, except for the area affected by the cutting process. The food carriage can only be removed if the cutting thickness selector covers the cutting blade and the graduated turning handle is set to “0”... -
Page 6: Functional Principle
Never use the machine with a damaged plug or cable. If a defect is found, stop the machine immediately and have it repaired by the manufacturer or one of its authorised service partners. The mains cable must only be replaced by authorised and trained persons. 2.7 Functional principle Use the slicing machine only for the purpose for which it was designed. -
Page 7: Operating Features
3.2 Operating features The slicing machine is operated electrically by means of two buttons: a green power button to switch on and a red stop button to switch off the machine. The machine also has a white control light between the two operating buttons to indicate “Cutting blade in operation”. -
Page 8: Cleaning
second hole of the stop plate in the grinder. The metal part on the grinder is positioned in front of the blade and faces down with the metal part bending towards the operator. It provides additional protection against injury. Only supplied grinders and grinders of same type may be used. Switch on the slicing machine. -
Page 9: Lubrication
If the blade is cleaned when it is removed or removed to clean the machine body, it must only be removed by trained personnel. Special precautions are necessary to prevent injury. Unless ordered, we recommend the purchase of a safety glove or a blade removal device. It is an accessory that allows a safe removal of the blade, as the blade and the dangerous blade edge are completely covered by a plastic disc and the blade must be touched during handling at any time and at any point by hand. - Page 10 WARRANTY ADE will repair or replace this product if it has failed within 2 years from the date of purchase (proof of purchase is required) due to lack of workmanship or defective material. All moving parts, such as blades, grinders, food carriages, etc., are excluded from this warranty. Warranty does not apply to normal appearance of usage or sign of wear or any damages caused by accidents or misuse.
- Page 11 - RoHS Directive 2011/65/EC in the currently valid versions. The declaration will be void if a change that was not agreed with us has been made on the machine. Hamburg, November 2015 ADE GmbH & Co. Hammer Steindamm 27–29 D-22089 Hamburg 11.
- Page 12 LINIE LINE NEUTRAL NEUTRAL RELAIS SCHAL TER SWITCH RELAY RELAIS SCHALTER KONTAKT CONTACT SWITCH RELAY WARMER RELAIS WARM RELAY WARMER RELAIS KONTAKT CONTACT WARM RELAY LED SCHALTER LED SWITCH MOTOR MOTOR EINSCHALTKNOPF ON SWITCH AUSSCHALTKNOPF OFF SWITCH KONDENSATOR CONDENSER VICTORIA 250/VICTORIA 275/VICTORIA 300-230 V/60 Hz Block diagram Circuit diagram LEGENDE...
- Page 13 NULLLEITER NEUTRAL SCHALTERRELAIS SWITCHING RELAY KONTAKT SCHALTRRELAIS CONTACT SWITCH RELAY WARMERELAIS WARM RELAY KONTAKT WARMERELAIS CONTACT WARM RELAY LED SCHALTER LED SWITCH MOTOR MOTOR EIN-SCHALTER ON SWITCH AUS-SCHALTER OFF SWITCH KONDENSATOR CONDENSER Victoria-180518-Rev002-UM-en...
- Page 14 12. EXPLOSION SIGNS VICTORIA 250 VICTORIA 275 Victoria-180518-Rev002-UM-en...
- Page 15 VICTORIA 300 Victoria-180518-Rev002-UM-en...
- Page 16 13. SPARE PARTS LIST VICTORIA 250 VICTORIA 250 DESCRIPTION QUANTITY ITEM NO. Slice thickness selector H4090-011 Suction foot H4090-005 Barrier for leftover holder Food carriage rear panel H4090-001 Switch Cap H4090-0231 Switch H4090-053 Relay H4090-066 Latch for leftover holder Protective plate for leftover holder H4090-002 Cross blades, smooth H4090-014...
- Page 17 VICTORIA 275 VICTORIA 275 DESCRIPTION QUANTITY ITEM NO. Slice thickness selector H4090-011 Suction foot H4090-005 Barrier for leftover holder Food carriage rear panel H4090-001 Switch Cap H4090-0231 Switch H4090-053 Relay H4090-066 Latch for leftover holder Protective plate for leftover holder H4090-002 Cross blades, smooth H4084-001...
- Page 18 VICTORIA 300 VICTORIA 300 DESCRIPTION QUANTITY ITEM NO. Slice thickness selector H4090-011 Suction foot H4090-005 Barrier for leftover holder Food carriage rear panel H4090-001 Switch Cap H4090-0231 Threaded bush on the leftover holder Switch H4090-053 Relay H4090-066 Latch for leftover holder Cross blades, smooth H4090-019 Eccentric screw...
- Page 19 Distributor: Victoria-180518-Rev002-UM-en...
