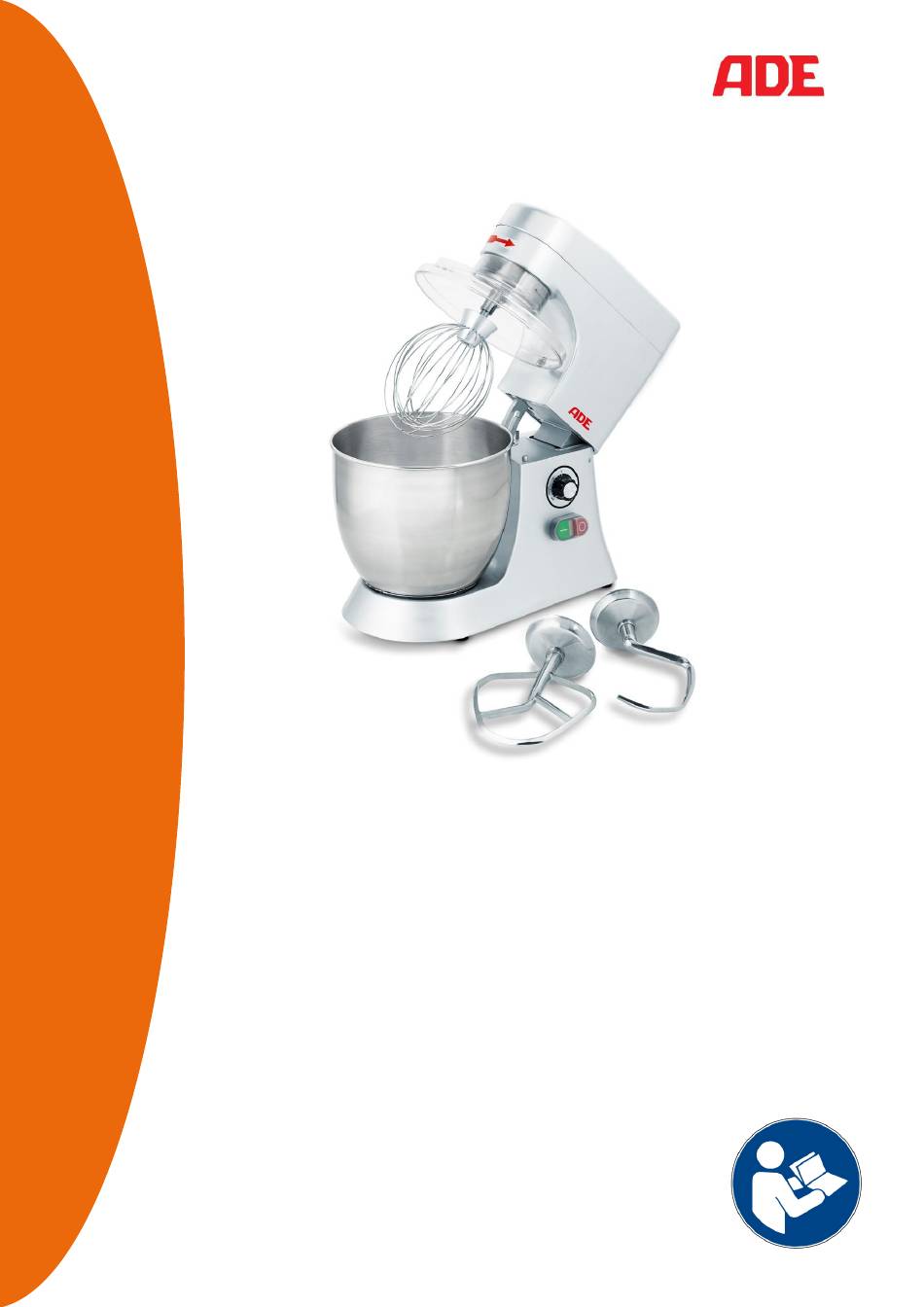

- Page 1 OPERATING INSTRUCTIONS Food Processing Machines TWISTER Series Planetary Mixer Twister-210607-Rev006-UM-en...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ........................... 1 FOREWORD ......................... 2 Introduction ........................2 Use ..........................2 START-UP..........................3 Opening the packaging ....................3 Installation ........................3 Wiring .......................... 3 OPERATING FUNCTIONS AND SAFETY PRECAUTIONS ..........4 Product Overview ......................4 Attachments: Whisk, Flat Beater, Dough Hook ............4 Opening and Closing the Top Part ................ -
Page 3: Foreword
Introduction The design of the Twister series planetary mixers complies with applicable safety standards. Consequently, all our appliances are fitted with a plate featuring the “CE” mark attesting to the product's conformity with said standards. -
Page 4: Start-Up
If you notice any signs of damage to the safety devices, defects, malfunctions, broken parts, incorrect operation, unusual noises, or similar, shut down the machine immediately and contact ADE for repair or replacement. -
Page 5: Operating Functions And Safety Precautions

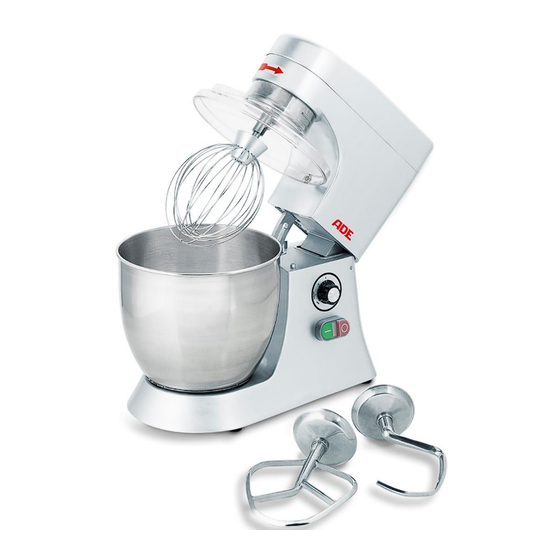

On/off switch Housing Attachments: Whisk, Flat Beater, Dough Hook The Twister series planetary mixers are normally supplied with three different attachments: whisk, flat beater, and dough hook. 4.2.1 Whisk The whisk is ideal for whisking until frothy, finely blending, or homogenizing liquid or semi-liquid ingredients and mixtures, such as egg whites, cream, cocktail sauces, etc. -
Page 6: Fitting And Removing The Mixing Bowl
It may happen from time to time that the gap between the tip of the attachment and the bottom of the mixing bowl becomes larger or smaller, making it necessary to readjust the attachment. This can be done by readjusting the nut on the attachment's shaft using an open-end or ring wrench (not included). -
Page 7: Mechanical And Electrical Safety Devices
Mechanical and Electrical Safety Devices The machine has the following mechanical safety device: Plastic protective cover with a filling opening that protects the bowl when the top part of the machine is lowered. The machine has the following electrical safety devices: Power on and power off push-buttons that require the operator to restart the machine in the event of power failure. -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Possible causes Remedy The machine is not Check that the machine is connected to the connected to the power power supply. supply. Set the speed controller to “0” and restart The speed controller was not at “0” when the machine was the machine. -
Page 9: Cleaning And Care
CLEANING AND CARE For the sake of hygiene, the planetary mixer must be kept clean at all times. The machine must be cleaned thoroughly at least once a day, or even more often if necessary. Remove all food residues from the machine. Scratch-resistant gloves must be worn at all times during cleaning. -
Page 10: Warranty
If this product is proven to have failed within 1 year from the date of purchase (proof of purchase is required) due to defects in material and workmanship, ADE will repair or replace this product. The warranty does not cover all moving parts, such as cables, whisks, flat beaters, dough hooks, mixing bowls, etc. -
Page 11: Ce Marking And Declaration Of Conformity
− RoHS Directive 2011/65/EU in their current version. This declaration becomes invalid if the machine is modified in any way that has not been approved by us. Hamburg, June 2021 ADE Germany GmbH Neuer Höltigbaum 15 D-22143 Hamburg Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15... -
Page 12: Circuit Diagram
11 CIRCUIT DIAGRAM 12 SPARE PARTS LISTS DESCRIPTION QUANTITY ARTICLE NUMBER Motor Handle Cable connection Rubber foot Potentiometer Speed controller Flat beater Circuit board Rubber pad Mixing bowl Whisk V-belt Dough hook Plastic protective cover Twister-210607-Rev006-UM-en... -
Page 13: Exploded Views
13 EXPLODED VIEWS Twister-210607-Rev006-UM-en... - Page 14 Twister-210607-Rev006-UM-en...
- Page 15 Twister-210607-Rev006-UM-en...
- Page 16 Distributor: Twister-210607-Rev006-UM-en...
