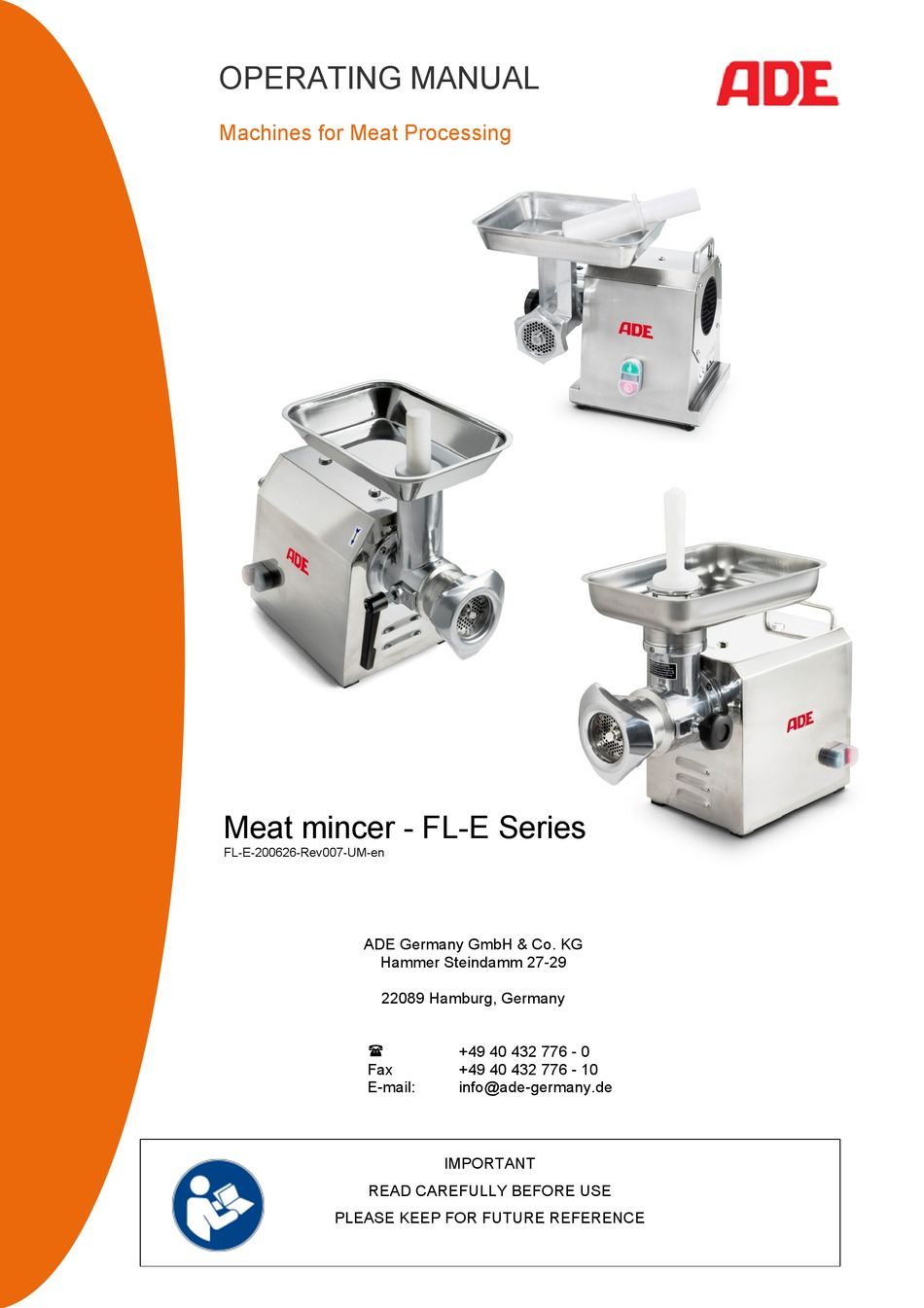

OPERATING MANUAL
Machines for Meat Processing
Meat mincer - FL-E Series
FL-E-200626-Rev007-UM-en
ADE Germany GmbH & Co. KG
Hammer Steindamm 27-29
22089 Hamburg, Germany
Fax
E-mail:
READ CAREFULLY BEFORE USE
PLEASE KEEP FOR FUTURE REFERENCE
+49 40 432 776 - 0
+49 40 432 776 - 10
info@ade-germany.de
IMPORTANT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL-E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ADE FL-E Series

  • Page 1 OPERATING MANUAL Machines for Meat Processing Meat mincer - FL-E Series FL-E-200626-Rev007-UM-en ADE Germany GmbH & Co. KG Hammer Steindamm 27-29 22089 Hamburg, Germany  +49 40 432 776 - 0 +49 40 432 776 - 10 E-mail: info@ade-germany.de IMPORTANT...
  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS............................ 1 INTRODUCTION .............................. 2 SAFETY INSTRUCTIONS ..........................3 General safety instructions ......................3 Personal safety ..........................3 Safety of the device ........................3 Work area safety ..........................4 Safety during maintenance ......................4 SET-UP AND FIRST OPERATION ........................5 Checking the box contents ......................
  • Page 3: Introduction

    Your ADE meat mincer is a quality product designed for use in the catering and hotel industry, commercial kitchens, meat-producing plants and large households.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS General safety instructions - Read this operation and maintenance manual carefully before operating the meat mincer. - Carefully read the labels with the safety information attached to the device and follow the instructions. - Only properly trained persons may use the meat mincer. - The user training must include all information regarding the hazards associated with the use of the device and the precautions to be observed.
  • Page 5: Work Area Safety

    - NEVER process large pieces of meat, i.e. those exceeding the device capacity. - DO NOT process pieces of meat with bones. - Do not press in the meat with your hands during processing. - The protective covers must be attached when the meat mincer is turned off. - ALWAYS unplug the power cord from the mains outlet before assembling or disassembling any device parts.
  • Page 6: Set-Up And First Operation

    Always keep the packaging box vertical, see also arrows on the packaging.  Open the box and remove the machine;  Check the box contents for completeness: o 1 meat mincer of the FL-E series o For FL-E-800: Two-piece cutting set, consisting of: 1 cross blade 1 perforated disc (standard 4.5 mm hole diameter)
  • Page 7: Device Identification

    Device identification All device identification details are indicated on the nameplate that is located either on the side or on the back of the meat mincer: Type Device model Serial number Power supply Motor power Electrical frequency in Hertz % ED Time-based duty cycle.
  • Page 8: Electrical Connection

    Electrical connection Before carrying out the connection, be sure to check whether the power grid ratings comply with the ratings indicated on the machine nameplate. Insert the plug into the socket and check whether the existing mains supply is equipped with a suitable circuit breaker.
  • Page 9: Operating Features And Safety Precautions

    The size of the processed meat (granulation) is determined by the hole diameter of the perforated disc: the smaller the holes, the finer the mince granulation. Do not install and/or use perforated discs with a hole diameter exceeding 7,8 mm for meat mincers of the FL-E series. FL-E-200626-Rev007-UM-en...
  • Page 10: Assembling And Disassembling The Cutting Set

    Assembling and disassembling the cutting set Unplug the power cord from the mains outlet before assembling the cutting set. Use utmost care when assembling and disassembling the blade. It can cause cuts on the hands! To assemble the cutting system, proceed as follows: 1.
  • Page 11: Operating Time

    Operating time Depending on the model, the machines are suitable for approx. 60 catering persons (FL-E-800), approx. 100 catering persons (FL-E-1200) or even above (FL-E-2200). These values are merely recommendations that are based on empirical values and can differ depending on the application. The maximum switch-on duration is 40% (based on 1 hour = 24 minutes).
  • Page 12: Maintenance

    Maintenance Lubricating the gear units Gearing and driving elements are lubricated during manufacture at the factory. If necessary, add oil, e.g. in the event of oil leak. Oil must be changed every 5-6 years. For this purpose, please contact your service partner or the manufacturer.
  • Page 13: Troubleshooting

    Troubleshooting The table below shows the main problems that may occur during operation. FAULT CAUSES REMEDY The motor does not rotate and Check whether the machine is Connect it to the mains.  the worm shaft has stopped. connected to the mains. Check that the connection of Ensure proper connection.
  • Page 14: Safety Inspection

    Further residual risks: Electric shock due to touching live parts of the device. Danger due to improper working position of the user. Safety inspection Safe operation is no longer guaranteed: If the mains plug or the mains cable is visibly damaged. If the mains plug is no longer working.
  • Page 15: Warranty

    WARRANTY Warranty ADE will repair or replace this product if it has failed within 1 year from the date of purchase (proof of purchase is required) due to poor workmanship or defective material. All moving parts, such as cables, cross blades, perforated discs, etc., are excluded from this warranty.
  • Page 16: Technical Data

    TECHNICAL DATA Model FL-E-800 FL-E-1200 FL-E-2200 Perforated disc Ø: 62 mm 70 mm 82 mm Capacity/hour approx.: 8 kg 120 kg 220 kg Dimensions (WxDxH): 325x270x330 mm 230x400x385 mm 240x450x390 mm Power: 0.4 kW 0.8 kW 1.1 kW (short operation) Type of current: 230 V 230 V and 400 V...
  • Page 17 FL-E-200626-Rev007-UM-en...
  • Page 18: Explosion Signs

    EXPLOSION SIGNS FL-E-200626-Rev007-UM-en...
  • Page 19 FL-E-200626-Rev007-UM-en...
  • Page 20 FL-E-200626-Rev007-UM-en...
  • Page 21: Spare Parts List

    SPARE PARTS LIST Model FL-E-800-230V Number Description ADE Item No. Hand wheel H4318-007 Worm housing H4318-008 Locking screw H4318-009 Perforated disc 3 mm, stainless steel H4318-002 Perforated disc 4.5 mm, stainless steel H4318-004 Perforated disc 6 mm, stainless steel H4318-003...
  • Page 22 Model FL-E-1200-230V + FL-E-1200-400V Number Description ADE Item No. Filling tray H4319-016 Feet H4319-014 Filling tray H4319-015 Pusher H4319-011 Worm shaft H4319-004 Hand wheel H4319-006 Worm housing H4319-005 Pre-cutter H4319-009 Cross blade H4319-007 Perforated disc 3.5 mm H4319-0011 Perforated disc 3 mm, stainless steel H4319-001 Perforated disc 4.5 mm, stainless steel...
  • Page 23 Model FL-E-2200-400V Number Description ADE Item No. Housing, solo H4320-011 Switch board, complete H4320-010 Worm shaft H4320-003 Hand wheel H4320-005 Worm housing H4320-004 Pre-cutter H4320-008 Cross blade H4320-007 Perforated disc 3 mm, stainless steel H4320-001 Perforated disc 4.5 mm, stainless steel...
  • Page 24: Distributor

    Distributor FL-E-200626-Rev007-UM-en...

This manual is also suitable for:

Fl-e-800Fl-e-1200Fl-e-2200
