Summary of Contents for ADE GRAVIS 250 Series

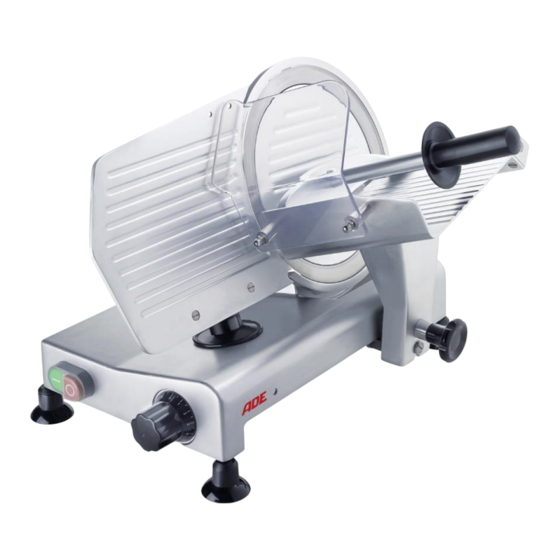

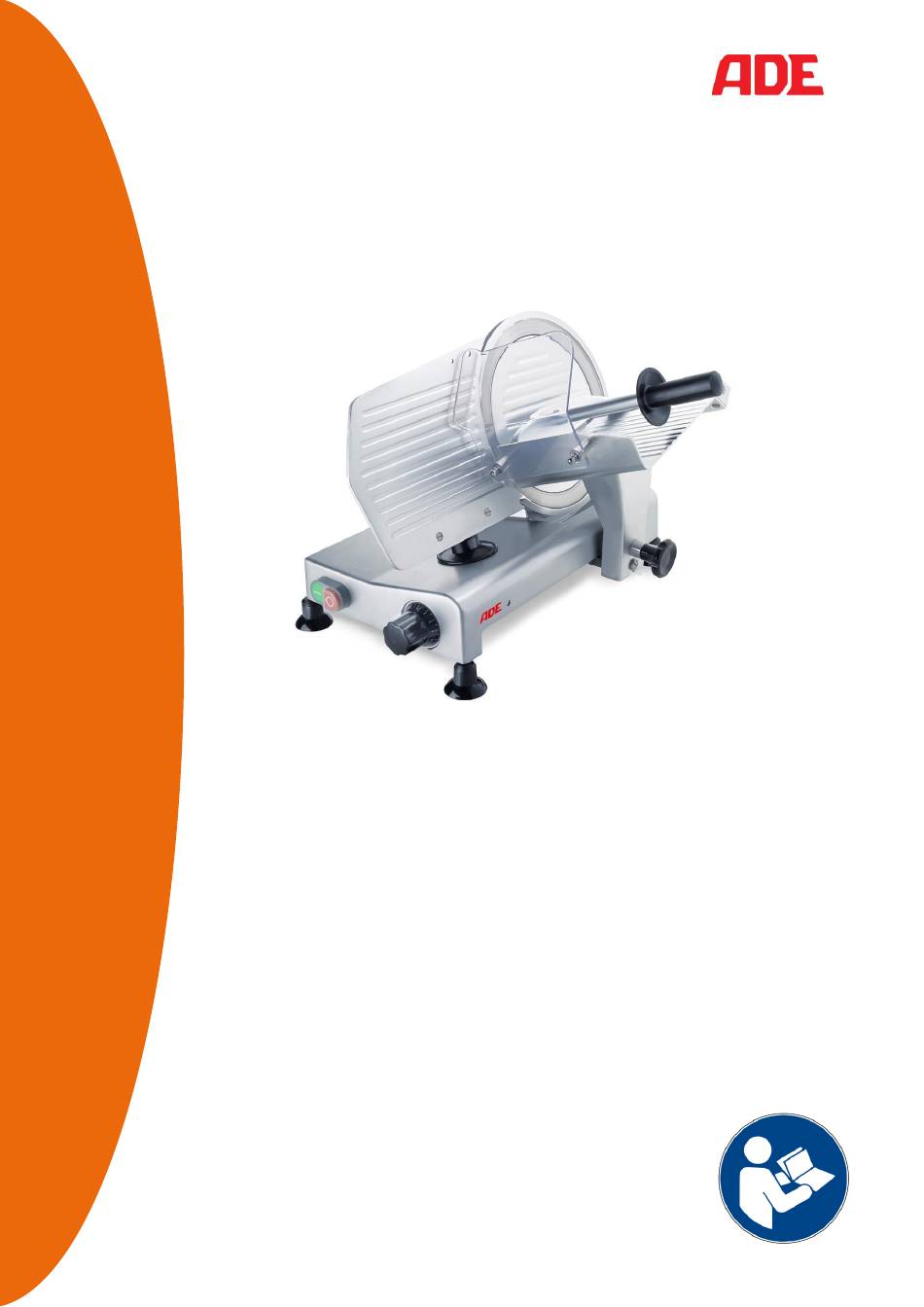

- Page 1 OPERATING INSTRUCTIONS Gravity Slicer Model GRAVIS 250 Gravis-210504-Rev004-UM-en...
-
Page 2: Table Of Contents
CONTENTS FOREWORD ......................... 2 Introduction ..........................2 Use ............................2 Residual risks ........................3 START-UP..........................3 Installation ..........................3 Wiring ............................ 3 Mechanical safety devices ..................... 4 Electrical safety devices......................4 Acceptance testing ........................ 4 Safety precautions ......................... 4 Operation ..........................5 USING THE MACHINE ...................... -
Page 3: Foreword
The machine may only be used in its original condition and with original parts. It is strictly forbidden to dismantle the safety devices. If you notice any signs of damage to the safety devices or if any safety devices are not in place, shut down the machine immediately and contact ADE for repair or replacement. -
Page 4: Residual Risks
1.3 Residual risks Even though extensive safety precautions have been taken on the machine, there are still residual risks for the operator in his daily work with the machine. They occur, in particular, when the operator attempts to push the product against the blade with their hand. Always use the leftover holder provided to feed the food to be sliced. -
Page 5: Mechanical Safety Devices
2.3 Mechanical safety devices The blade is completely protected by a rigidly fixed guard, excluding the food slicing area. The product carriage can only be removed if the slice assembly covers the blade, and the graduated knob is set to “0” (zero) or beyond that up to the stop. The slice assembly can only be opened (using the graduated knob) if the product carriage is secured in its normal operating position. -
Page 6: Operation
- Never leave the machine unattended while it is running. - Before carrying out any maintenance work (except for blade sharpening), unplug the machine from the power outlet. - Never clean the machine under running water or in a water basin. - Should you notice any unusual noises or unpleasant odors coming from the machine, shut it down immediately, disconnect it from the power supply, and contact customer service. -
Page 7: Operating Functions
3.2 Operating functions Two buttons are used to operate the slicer: the green button switches the machine on, and the red button switches it off. Between the two power buttons is a white power lamp that indicates when the blade is rotating. Whenever machine operation is interrupted due to a voltage drop, the green start button must be pressed to restart the machine. -
Page 8: Sharpening Operations
Never clean the slicer or its parts (e.g., product carriage) in the dishwasher! Any operations involving the disassembly of the blade for cleaning the blade or the machine housing must be carried out by trained personnel only. In this case, special precautions must be taken to prevent the risk of injury. -
Page 9: Lubricating
Sharpening the Blade: 1) Clean the blade thoroughly before sharpening and ensure there are no traces of grease left on 2) Switch the machine off and unplug it from the power supply. 3) Turn slice thickness adjustment knob A to the left as far as it will go (fully open position). Attach the separate sharpening device to the stop plate through the two holes. -
Page 10: Training
If the product malfunctions within 2 years from the date of purchase (receipt required) due to defects in material and workmanship, ADE will repair or replace the product. The warranty does not cover moving parts such as blades, sharpening devices, product carriages, etc. -
Page 11: Ce Marking And Declaration Of Conformity
− EU Food Contact Materials Framework Regulations 1935/2004 and 10/2011, as amended. This declaration becomes invalid if the machine is modified in any way that has not been approved by us. Hamburg, May 2021 ADE Germany GmbH Neuer Höltigbaum 15 22143 Hamburg Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15... -
Page 12: Circuit Diagram
CIRCUIT DIAGRAM Gravis-210504-Rev004-UM-en... -
Page 13: Exploded View
10. EXPLODED VIEW Gravis-210504-Rev004-UM-en... -
Page 14: Spare Parts Lists
11. SPARE PARTS LISTS GRAVIS 250 Gravis 250 DESCRIPTION QUANTITY ARTICLE NUMBER Stop plate Blade guard Circular blade, smooth H4090-014 Circular blade, smooth, with Teflon coating H4090-0141 Circular blade, serrated lengthwise H4090-021 Circular blade, serrated lengthwise, with Teflon coating H4090-0211 Sickle guard Leftover holder handle Electric motor 230 V/50 Hz... - Page 15 Gravis-210504-Rev004-UM-en...
- Page 16 Distributor: Gravis-210504-Rev004-UM-en...
