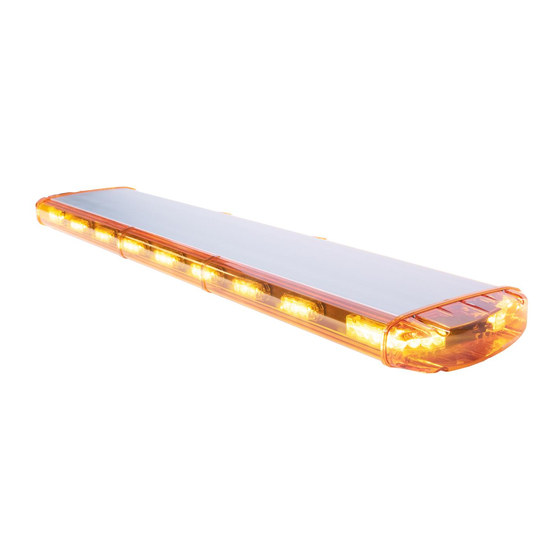

Vega Lightbar Amber White
Thank you for choosing a product from Standby.
Technical Data
Description
Dimensions
Lens
Color, lens
Color, LED, End modules
Color, LED, Inboard modules
Cable length
Nominal voltage
Operating voltage
Current consumption
Interface
Operating temperature
Approvals
-
Warning light approval
-
EMC
Installation
1
3
6
Safety
Warning
This product contains high intensity LED devices. To prevent eye damage, do not look into the light beam at close
range.
AM8128WHA
Units
1280 x 67 x 267 mm
Polycarbonate
Clear lenses with coating
White and Amber
White
4,5 m
12 / 24 VDC
11,9 to 15 VDC / 16 to 30 VDC
13A at 13,8 VDC, 6,5A at 27,6 VDC (< 500μA at standby
mode)
Control panel and hardwire
-40°C – +85°C
ECE R65 I
ECE R10
4
7
2
5
8
Standby AB – standbygroup.se
