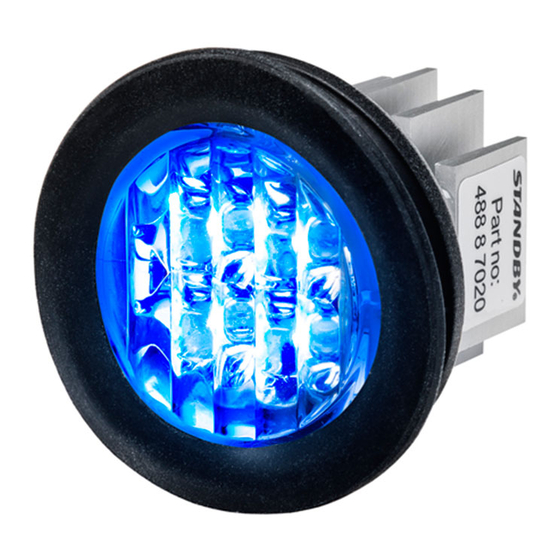

L88 Amber
Thank you for choosing a product from Standby.
Technical Data
Lens
Housing
Color
Diodes
Cable
Power
Ambient temperature
Size
Approvals
Included
Synchronizing
Input
Factory Settings
Flash pattern
Double
To change the flash pattern setting, see Flash Pattern. To change the sync mode setting, see Sync Mode.
WAM488AmberA
Polycarbonate
ABS, plastic (black)
Amber
4 high power LED
Single: 0.84 m (160 mm + 680 mm) + 2 m driver cable
Double: 2x 0.84 m (160 mm + 680 mm) + 2 m driver cable
10-30 V DC
-40ºC to +85ºC
Lamp: Ø29 x 24.1 mm
Driver (single): 80 x 14.3 x 18.6 mm
Driver (double): 80 x 14 x 27 mm
Warning light, class 2: ECE R65 (E5)
Indicator: ECE R6
EMC: ECE R10 (E5
Single:
1 x L88 Lamp Amber
1 x driver D13s
1 x grommet
1 x E5 label
Double:
2 x L88 Lamp Amber
1 x driver D13d
2 x grommets
2 x E5 labels
Up to 10 lamps (lamps and driver)
Active on low flank
Sync mode
Simultaneous
1
Standby AB – standbygroup.se
L88 Amber – Manual
Advertisement
Related Manuals for Standby L88 Amber
Summary of Contents for Standby L88 Amber
- Page 1 L88 Amber – Manual L88 Amber Thank you for choosing a product from Standby. Technical Data Lens Polycarbonate Housing ABS, plastic (black) Color Amber Diodes 4 high power LED Cable Single: 0.84 m (160 mm + 680 mm) + 2 m driver cable Double: 2x 0.84 m (160 mm + 680 mm) + 2 m driver cable...
-
Page 2: Setting The Flash Pattern
L88 Amber – Manual Flash Pattern Introduction The flash pattern setting controls the flash pattern. There are five versions of flash pattern: Double, Triple, Steady burn 1, Steady burn 2 and Indicator. Double and Triple are built-in flash patterns and no control system is needed. - Page 3 L88 Amber – Manual 4. Connect the black wire to ground. 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
-
Page 4: Setting The Sync Mode
L88 Amber – Manual Sync Mode Introduction The sync mode setting controls how the flashing of two or more lamps is synchronized. There are two versions of sync mode: Simultaneous and Alternate. Simultaneous means that the lamps are in sync, that is they come on and go off at the same time. - Page 5 L88 Amber – Manual 4. Connect the black wire to ground. 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
- Page 6 L88 Amber – Manual Factory Reset Introduction The settings can be changed back to the factory settings. The factory settings are the following: Flash pattern – Double Sync mode - Simultaneous Reset to Factory Settings WARNING Risk of eye damage. Do not look into the beam at close range.
- Page 7 L88 Amber – Manual 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
- Page 8 L88 Amber – Manual Connections The function of each wire and how to connect the wires depend on the chosen flash pattern setting. Table 1. Connections if flash pattern Double or Triple is selected. Wire Functions Connect to Black Power supply...
- Page 9 L88 Amber – Manual Table 2. Connections if flash pattern Steady burn 1 is selected. Wire Functions Connect to Black Power supply Good and suitable ground Power supply 10-30 V DC via a 5 A fuse White Lamp on/off Sinking output (-) of an I/O unit or external flasher.
- Page 10 L88 Amber – Manual Table 4. Connections if flash pattern Indicator is selected. Wire Functions Connect to Black Power supply Good and suitable ground Power supply 10-30 V DC via a 5 A fuse White Indicator lamp 2 on/off Sinking output (-) of an I/O unit or external flasher.
-
Page 11: Installation
L88 Amber – Manual Installation CAUTION To prevent moisture from entering the lamp through the cable end, make sure that the cable end is sealed or located in a dry part of the vehicle. When using a pressure washer, keep a minimum distance of 40 cm.
