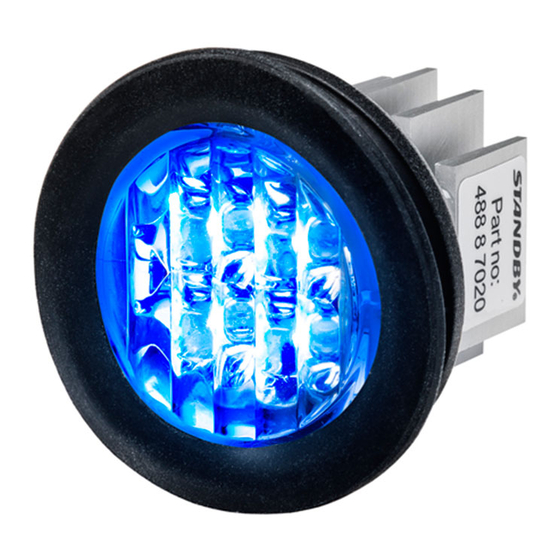

L88 Blue Tinted Lens
Thank you for choosing a product from Standby.
Technical Data
Lens
Housing
Color
Diodes
Cable
Power
Ambient temperature
Size
Approvals
Included
Synchronizing
Input
Factory Settings
Flash pattern
Double
To change the flash pattern setting, see Flash Pattern. To change the sync mode setting, see Sync Mode.
WAM488TintedA
L88 Blue Tinted Lens – Manual
Polycarbonate
ABS, plastic (black)
Blue
4 high power LED
Single: 0.84 m (160 mm + 680 mm) + 2 m driver cable
Double: 2x 0.84 m (160 mm + 680 mm) + 2 m driver cable
10-30 V DC
-40ºC to +85ºC
Lamp: Ø29 x 24.1 mm
Driver (single): 80 x 14.3 x 18.6 mm
Driver (double): 80 x 14 x 27 mm
Light: ECE R65 (E5)
EMC: ECE R10 (E5)
Single:
1 x L88 Lamp Blue
1 x driver D13s
1 x grommet
1 x E5 label
Double:
2 x L88 Lamp Blue
1 x driver D13d
2 x grommets
2 x E5 labels
Up to 10 lamps (lamps and driver)
Active on low flank
Sync mode
Simultaneous
1
Standby AB – standbygroup.se
Advertisement
Related Manuals for Standby L88 Blue Tinted Lens
Summary of Contents for Standby L88 Blue Tinted Lens
- Page 1 L88 Blue Tinted Lens – Manual L88 Blue Tinted Lens Thank you for choosing a product from Standby. Technical Data Lens Polycarbonate Housing ABS, plastic (black) Color Blue Diodes 4 high power LED Cable Single: 0.84 m (160 mm + 680 mm) + 2 m driver cable Double: 2x 0.84 m (160 mm + 680 mm) + 2 m driver cable...
- Page 2 L88 Blue Tinted Lens – Manual Flash Pattern Introduction The flash pattern setting controls the flash pattern. There are six versions of flash pattern: two versions of Double, two versions of Triple, Steady burn 1 and Steady burn 2. ...
- Page 3 L88 Blue Tinted Lens – Manual 4. Connect the black wire to ground. 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
-
Page 4: Setting The Sync Mode
L88 Blue Tinted Lens – Manual Sync Mode Introduction The sync mode setting controls how the flashing of two or more lamps is synchronized. There are two versions of sync mode: Simultaneous and Alternate. Simultaneous means that the lamps are in sync, that is they come on and go off at the same time. - Page 5 L88 Blue Tinted Lens – Manual 4. Connect the black wire to ground. 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
- Page 6 L88 Blue Tinted Lens – Manual Factory Reset Introduction The settings can be changed back to the factory settings. The factory settings are the following: Flash pattern – Double Sync mode - Simultaneous Reset to Factory Settings WARNING Risk of eye damage.
- Page 7 L88 Blue Tinted Lens – Manual 5. Within 1 to 6 sec: temporarily connect the white wire to ground and let it stay connected for at least 2 sec. The lamp enters configuration mode and a flash sequence indicating the current settings starts.
- Page 8 L88 Blue Tinted Lens – Manual Connections The function of each wire and how to connect the wires depend on the chosen flash pattern setting. Table 1. Connections if flash pattern Double or Triple is selected. Wire Functions Connect to...
- Page 9 L88 Blue Tinted Lens – Manual Table 3. Connections if flash pattern Steady burn 2 is selected. Wire Functions Connect to Black Power supply Good and suitable ground Power supply 10-30 V DC via a 5 A fuse Lamp on/off...
-
Page 10: Installation
L88 Blue Tinted Lens – Manual Installation CAUTION To prevent moisture from entering the lamp through the cable end, make sure that the cable end is sealed or located in a dry part of the vehicle. When using a pressure washer, keep a minimum distance of 40 cm.
