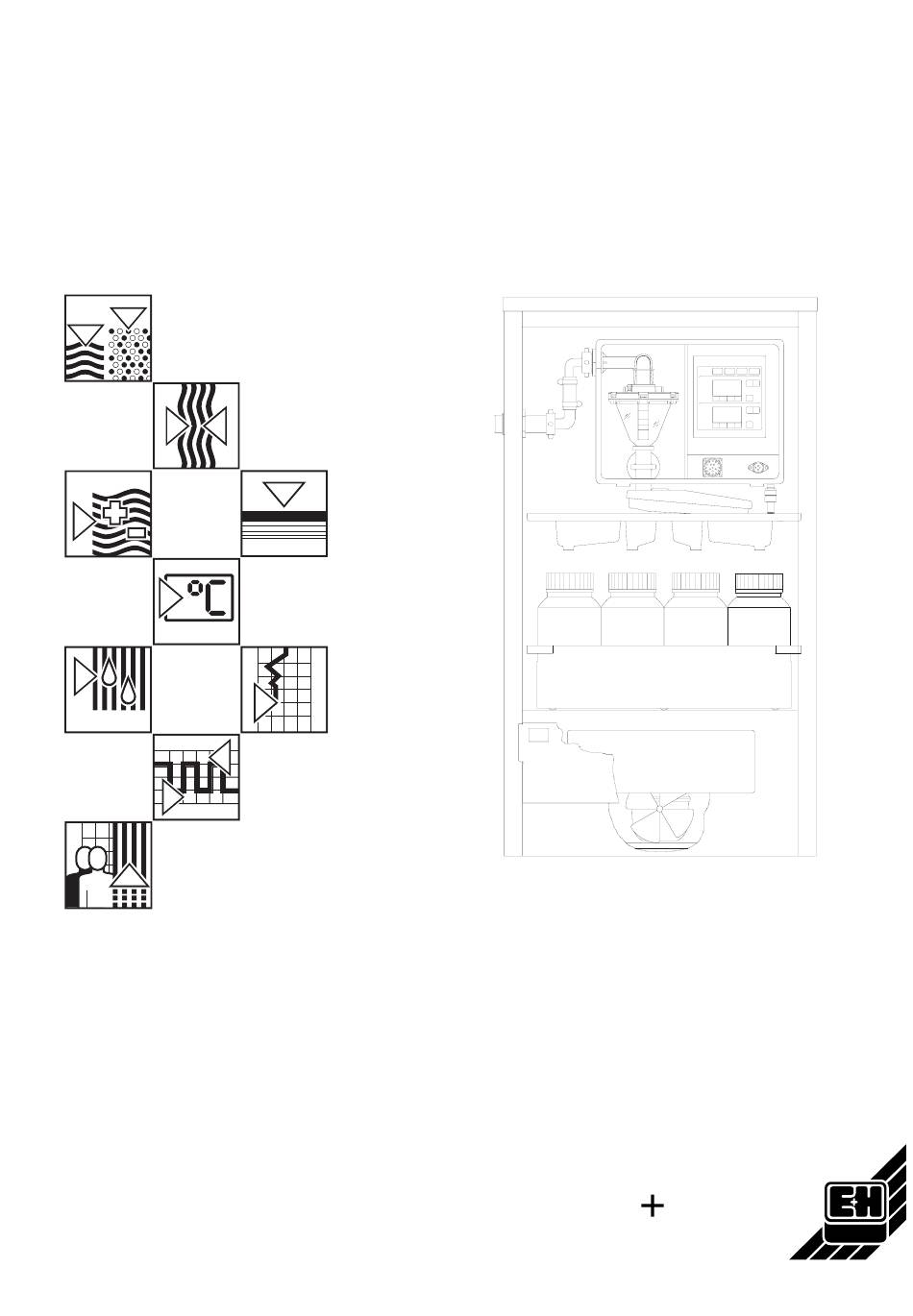

- Page 1 BA 020R/09/en/04.97 Water sampler Part No. 50051343 asp-station a 2 Installation and operating instructions Endress Hauser Nothing beats know-how...
- Page 3 Attention: Ignoring this note can lead to damage of the device or faulty operation. Danger: Ignoring this warning can lead to personal injury. Should the "asp-station a 2" be in storage for more than 6 months please take note of the storage details in chapter "Maintenance, general".
- Page 4 asp - station a 2 Dimensional drawing, complete unit Dimensional drawing, complete unit with all options (above). = Roof (option) = Suction hose (accessories) = Sampler asp - station a 2 = Power cable = Base (option) Note: All dimensions shown are for the "standard housing". For "wide housing"...
- Page 5 Component description "liqui-box a 2" construction Housing Display and operating components (controller) Power supply socket (connected to terminal box in lower part) Elbow connector (for suction hose) Signal in and output socket (connected to terminal box) Hose clamp Sample release hose (for connection to sample distribution system Wet compartment Dosing system...
- Page 6 Functional module construction Operating components and display...
-
Page 7: Table Of Contents
Contents Page Page asp-station a 2 Methods of sampling - Construction, - dimensional drawing - Manual sampling Please note: - Automatic sampling - If the delivery is complete - Time proportional - Transport insurance - Quantity proportional - Event controlled sampling... -
Page 8: Asp-Station A
General notes Safety This unit is constructed and tested according to EN 61010-1 / VDE 0411 Part 1 and left our works in perfect and safe condition. In order to maintain this condition and operate safely the user must take note of the following safety information and warnings contained in these instructions. -
Page 9: Mechanical Installation
Mechanical installation Remove the external protection film as soon as possible as this can General stick due to sun rays. The water sampler must be installed so that it stands higher than the sampling point. It can be installed outside and mounted on a concrete foundation or solid level ground. -
Page 10: Installation
Mechanical installation Recommendations and The suction hose must always be submerged in liquid at the sampling accessories point. Suitable measures for this are: Weight the end of the hose using a short length of V2A tubing or fixing the hose to the channel (tank) wall using a hose saddle or the submersion armature (can be ordered as an accessory). -
Page 11: Foundation Recommendation
Mechanical installation Foundation recommendation (For standard units) A = Fixing dimensions (There are four 10 mm dia holes in the base of the cabinet) B = Defrost water drain. C = Possible cable entries. -
Page 12: Electrical Installation
Electrical installation The sampler is delivered with a 3core mains cable (length approx. 1.4m) connected to a 2 pin plug with earth contact. This cable is fed through the sampler left side panel and is already connected to the mains terminals in the terminal box. Terminal box Open the cabinet door. -
Page 13: In / Outputs
Electrical installation KL 9/1 Auxiliary voltage 0 Volt Terminal connections KL 9/2 Auxiliary voltage +8...+18,5 Volt (max. 200 mA) KL 9/3 Impulse input (pos. quantity impulses) KL 9/4 Stop input (logic high stops sampling sequence) Sample sequence end output, potential free changeover contact: KL 6/1 Normally closed KL 6/2... -
Page 14: Connection Examples
Electrical installation Connection examples Alternatives: In example "Impulse input for flow input" a: Using external aux. voltage b: Using internal aux. voltage Output The outputs (KL6/KL7) are individual (potential free) changeover contacts and can be directly connected to either DC or AC sources. (KL9 terminals 5/6 are normally not to be connected = Transistor output max.20mA DC) What happens on power up ? a) The display shows “INIT”, unit does a self test (start up). - Page 15 Operating elements and operating principle See drawings at the front of these instructions ("Operating Operating elements components and display") Operating principle Push button “ON” (3) activates the "liqui-box a 2" controller "ON" push button The display shows the last operation sequence values.
-
Page 16: Sampling Principle
Sampling principle Sampling principle Vacuum principle 1 The dosing system is 2 A fresh sample is then pneumatically sealed at the sucked into the dosing beginning of each sample chamber until the cycle. The diaphragm pump conductivity level switch is then blows the suction hose activated (sensors in the free of obstructions via the... -
Page 17: Setting Up Sample Volume
Sampler operation Follow the next steps. Varying sample volume 1. Open controller door Operate the - OFF- (4) push button at the "liqui-box a 2". 2. Switch unit off Dosing system: = Elbow = Dosing tube = Dosing chamber = Piping clamp 3. - Page 18 Sampler operation 4. Remove dosing system Lift clamp from pipe elbow. Pull dosing system forwards and remove from controller. 5. Remove flange Release the bayonet fitting by turning the lower part of the flange as shown. Remove the flange from the dosing chamber. 6.
- Page 19 Sampler operation = Nipple 7. Dosing system = Suction pipe elbow = Hose clamp = Contacts = Spring contacts = Fixing clamp = Silicon hose Push silicon hose into the hose clamp Push suction pipe elbow onto the nipple . (Make sure that the spring contacts and flange contacts are made).
-
Page 20: Methods Of Sampling Manual Sampling
Sampler operation Methods of sampling Manual sampling Operate push button MAN. Starts an immediate sample cycle This can be done as often as required and can be repeated at any time. Automatic sampling One of three possible sampling methods can be selected a) Time proportional sampling b) Quantity proportional sampling c) Event controlled sampling... -
Page 21: Quantity Proportional
Sampler operation b) Quantity proportional sampling Q = Quantity (Flow) = Time ∆t = Time interval = Flow rate = Samples ∆ t Here an external flow meter with an impulse output must be connected to terminal strip KL 9/3. The flow meter transmits quantity proportional impulses to the sampler. -
Page 22: Setting Up Sample Sequence End
Sampler operation Set up sequence end The sampler can operate with or without a preset sample sequence end (continuous operation). Continuous operation = non stop distribution arm cycles. Operate push button ⇐ as often as required to bring the flashing ... -
Page 23: Setting Up Bottle Change (Distribution)
Sampler operation Filling a sample bottle tray starts by placing the first sample in the first Setting up bottle change bottle in the tray. Only used with sample distribution The number of samples per bottle or the filling time per bottle is and not with composite container. -
Page 24: Additional Functions
A voltage of +7...+27 Volt (terminal strip KL 9/4) has the following function: a) The asp-station a 2 function is stopped. The actual value display 15 (STATUS) in the sample field is reset to zero. The display indicates "hold". There are no further quantity proportional or event controlled samples taken and the time counter remains at zero. -
Page 25: Additional Information
Sampler operation The display field TEMP is automatically exited after approx. 30 seconds if no further changes are made. Either the temperature sensor (when using a composite container) or the distribution cable must be connected to the socket on the underside of the controller ! If not connected the refrigeration system will not operate ! The display will then indicate 54°... -
Page 26: Example
* Automatic bottle change every 2 hours, making over 1 day using the sure that the bottles are not totally filled. "asp-station a 2" 12 x 2,5l * Sample sequence ends after filling the last bottle. distribution. Quantity * Automatic time proportional sampling sequence. -
Page 27: Sample Distribution Conversion
Sample distribution conversion The sampler can operate using a composite container or can distribute Changing number of bottles the samples into a number of discrete bottles using a sample distribution system. Changing from one form of distribution to another can be done by simply exchanging one form for another. -
Page 28: Maintenance
This switch can be found on the CPU board next to the "data security accumulator" behind the controller front keypad and display plate. Repairs Should you need to return an asp-station a 2 or part of it to your Endress+Hauser service department for repair please take note of the following: Cleaning the asp-station a 2 Remove all deposits. -
Page 29: Problems And Solutions
(Possible cause: Distribution tray has not been connected to the liqui-box a 2 ) Distribution tap start position has not been found. Can only be repaired by Endress+Hauser Service personnel. E 0 7 TAP0 Distribution tap start postition message has occurred unexpectedly E 0 7 (eg. - Page 30 Check all hoses and pneumatic and water connections for leaks. This includes the complete dosing system (chamber, lid etc.) There is a fault in the controller. Call on the Endress+Hauser Service technician to repair the unit, or E O b replace it...
-
Page 31: Spare Parts
Spare parts Description Ordercode liqui-box a 2 control module... Complete control module (standard) RPF1A-2H1 Cabinet and external components: External elbow fitting 13 mm 50062334 + 50042066 External elbow fitting 15 mm 50042066 Jubilee clip 13 mm 50031883 Jubilee clip 15 mm 50031887 Suction hose 13 mm 50074496... -
Page 32: Technical Data
Technical data Cabinet: Stainless steel cavity wall insulated cabinet, materials: 1.4301 (V2A), 30mm Styropor insulation. Cabinet internal temperature thermostat controlled. H x W x D approx. 1072 x 601 x 637 mm (Wide cabinet) approx. 1072 x 868 x 665 mm) Weightapprox. - Page 33 Technical data Presettable time delay for automatic sample sequence start from Countdown: 0...9999 minutes Opto coupler input: Positively flanked, galvanically isolated, Impulse input: min. impulse length 10 ms Low: 0 ... 3 Volt High: 7 ... 27 Volt Opto coupler input: Galvanically isolated, stop when high Stop input: Low: 0 ...
- Page 34 Tel. (9 05) 6 81 92 92, Fax (9 05) 6 81 94 44 Belgium Poland Endress+Hauser S.A./N.V. South Korea Chile Endress+Hauser Polska Sp. z o.o. Brussels Hitrol Co. Ltd. DIN Instrumentos Ltda. Warsaw Tel. (02) 2 48 06 00, Fax (02) 2 48 05 53...
