KA01573C/07/EN/01.22-00
71571080
2022-05-13
Products

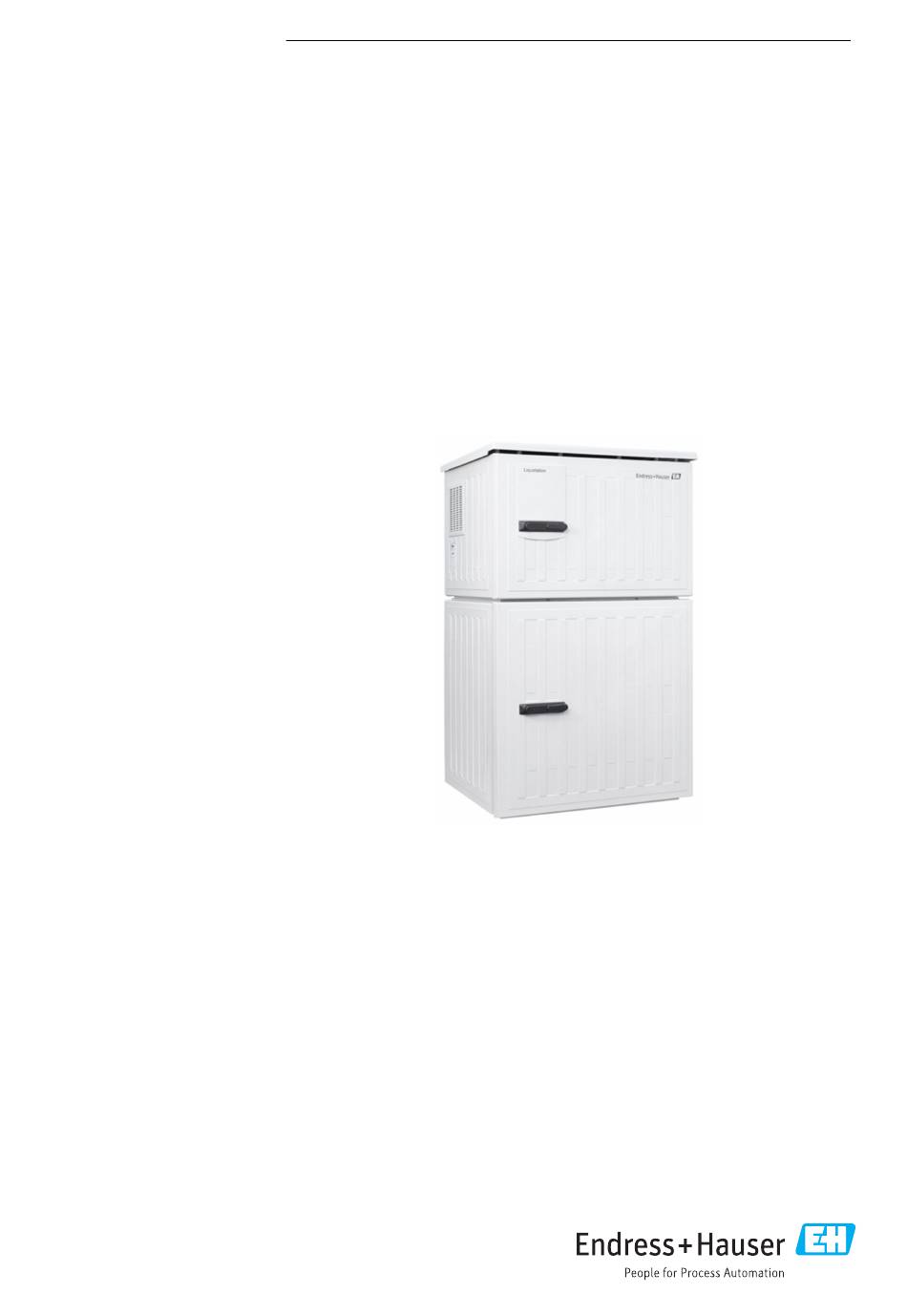

Brief Operating Instructions
Liquistation CSF28
Automatic sampler for liquid media
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information on the device can be found in the
Operating Instructions and in the other documentation
available at:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liquistation CSF28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endress+Hauser Liquistation CSF28

Summary of Contents for Endress+Hauser Liquistation CSF28

  • Page 1 These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information on the device can be found in the Operating Instructions and in the other documentation available at: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Liquistation CSF28 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0040778 Endress+Hauser...

  • Page 3: Table Of Contents

    Liquistation CSF28 Table of contents Table of contents About this document ............. . 4 Warnings .

  • Page 4: About This Document

    About this document Liquistation CSF28 About this document Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious injury. Causes (/consequences) If necessary, Consequences of non- compliance (if applicable) ‣...

  • Page 5: Documentation

    About this document Documentation The following manuals complement these Brief Operating Instructions and are available on the product pages on the Internet: • Operating Instructions Liquistation CSF28, BA02242C • Device description • Commissioning • Operation • Software description (excluding sensor menus; these are described in a separate manual - see below) •...

  • Page 6: Basic Safety Instructions

    Intended use Liquistation CSF28 is a stationary sampler for liquid media. The samples are taken discontinuously using a vacuum pump or peristaltic pump and are then distributed into sampling containers and refrigerated.

  • Page 7: Operational Safety

    Liquistation CSF28 Basic safety instructions Operational safety Before commissioning the entire measuring point: Verify that all connections are correct. Ensure that electrical cables and hose connections are undamaged. Do not operate damaged products, and protect them against unintentional operation. Label damaged products as defective.

  • Page 8: Product Safety

    Basic safety instructions Liquistation CSF28 Product safety 2.5.1 State-of-the-art technology The product is designed to meet state-of-the-art safety requirements, has been tested, and left the factory in a condition in which it is safe to operate. The relevant regulations and international standards have been observed.

  • Page 9: Product Description

    Liquistation CSF28 Product description Product description Product design Depending on the version, a complete sampling unit for open channels comprises: • Controller with display, soft keys and navigator • Vacuum or peristaltic pump for sampling • PE sample bottles for sample preservation •...
  • Page 10 Product description Liquistation CSF28 Controller Dosing compartment door Suction line connection Sampling chamber door Sample bottles, e.g. 2 x 12 bottles, PE, 1 liter Bottle trays (depending on sample bottles selected) Distribution plate (depending on sample bottles selected) Distribution arm...

  • Page 11: Incoming Acceptance And Product Identification

    Liquistation CSF28 Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance Verify that the packaging is undamaged.  Notify the supplier of any damage to the packaging. Keep the damaged packaging until the issue has been resolved.

  • Page 12: Storage And Transport

    Transport the sampler using a lifting truck or forklift. Do not lift the sampler by the roof. Lift it in the middle between the top and bottom sections. Scope of delivery The scope of delivery comprises: • 1 Liquistation CSF28 with: The ordered bottle configuration • Accessories kit For peristaltic or vacuum pump: Hose adapter for suction line with various angles (straight, 90°), Allen screw (for version...

  • Page 13: Mounting

    Liquistation CSF28 Mounting Mounting Mounting requirements 5.1.1 Dimensions 625 (24.6) 471 (18.5) 753 (29.7) 355 (14.0) 125 (4.9) 816 (32.1) A0014539  3 Dimensions of Liquistation, plastic version. Unit of measurement mm (in) Suction line connection Endress+Hauser...
  • Page 14 Mounting Liquistation CSF28 5.1.2 Installation site For version with sample pump A0024411  4 Liquistation mounting conditions Mounting conditions Route the suction line with a downward gradient to the sampling point. Never mount the sampler in a place where it is exposed to aggressive gases.
  • Page 15 Liquistation CSF28 Mounting 5.1.3 Mechanical connection Foundation plan 730 (28.7) 311 (12.2) 305 (12.0) 255 (10.0) 302 (11.9) 214 (8.43) 786 (30.9) A0024406  5 Foundation plan. Unit of measurement mm (in) Fasteners (4 x M10) Cable inlet Outlet for condensate and overflow > DN 50 Sample supply from below >...

  • Page 16: Setting Up The Device

    Mounting Liquistation CSF28 5.1.4 Connection for sample intake and for version with sample pump • Maximum suction height: • Vacuum pump: standard 6 m (20 ft) • Peristaltic pump: standard 8 m (26 ft) • Maximum hose length: 30 m (98 ft) •...
  • Page 17 Liquistation CSF28 Mounting Guide the suction line upwards and through the opening towards the front, as illustrated. A0013704  6 Sample supply from below Gland for the suction line Suction line Endress+Hauser...
  • Page 18 Mounting Liquistation CSF28 Connecting the suction line on version with vacuum pump A0013708 A0013707  8 Suction line connected from below  7 Connecting the suction line from the side (as- delivered state) Hose Fixing clip for hose gland Thread adapter nut...

  • Page 19: Post-Installation Check

    Liquistation CSF28 Mounting Connecting the suction line on version with peristaltic pump A0013705 A0013706  9 Connecting the suction line from the side (as-  10 Suction line connected from below delivered state) Small thread adapter nut Hose Thread adapter nut...

  • Page 20: Electrical Connection

    Electrical connection Liquistation CSF28 Electrical connection WARNING Device is live! Incorrect connection may result in injury or death! ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein.

  • Page 21: Connecting The Flowmeter

    Liquistation CSF28 Electrical connection Connecting the flowmeter 6.1.1 Wiring the current and binary input ‣ A0012843 To open the display cover, slacken the 6 cover screws with the Phillips head screwdriver.  The inputs can be found in the bottom section of the housing:...
  • Page 22 Electrical connection Liquistation CSF28 125 123 124 191192 A0048603  11 Interior of the controller housing Current input Binary input Connecting the plug-in terminals ‣ ‣ Insert the cable until the limit stop. ‣ Press the screwdriver against the Remove the screwdriver (closes the clip (opens the terminal).
  • Page 23 Liquistation CSF28 Electrical connection 6.1.2 current input ‣ Connect the current input as follows: A0048621  12 Assignment of the analog input Current input for passive devices (e.g. flowmeter), Out + In terminals (125/123) Current input for active devices (e.g. flowmeter), In + Gnd terminals (123/124) 6.1.3...

  • Page 24: Connecting The Signal Transmitter To The Alarm Relay

    Electrical connection Liquistation CSF28 ‣ When connecting to an internal voltage source, use the terminal connection on the rear of the dosing compartment. The connection is located on the lower terminal strip (on the far left, + and -), () Connecting the signal transmitter to the alarm relay The sampler allows you to connect signal transmitters, such as LED lights.

  • Page 25: Connecting The Communication

    Liquistation CSF28 Electrical connection Connecting the communication Communication is connected in the controller housing: A0012843 To open the display cover, slacken the 6 cover screws with the Phillips head screwdriver.  You can now see the base module SYS (1) in the housing.
  • Page 26 Electrical connection Liquistation CSF28 A0048616 Connect the communication to the web server to the Ethernet interface (2) in the base module SYS (1). The connection to the service interface is also located on the base module SYS. Endress+Hauser...

  • Page 27: Connecting The Supply Voltage

    Liquistation CSF28 Electrical connection 6.3.1 Description of base module SYS BASE2-SYS Status A0042245  17 Base module SYS (BASE2-SYS) SD card slot Slot for display cable Ethernet interface Connecting cable to sampler controller Voltage connection Service interface Internal device connection, do not disconnect the plug.
  • Page 28 Electrical connection Liquistation CSF28 The terminal connection is protected under an additional cover in the top rear section of the device. ‣ Therefore remove the rear panel of the device to connect the power supply before commissioning. 6.4.3 Removing the rear panel of the dosing compartment Open the dosing compartment door.
  • Page 29 Liquistation CSF28 Electrical connection 6.4.4 Removing the rear panel of the sampling compartment A0012825 Remove the bolt on the rear of the dosing compartment. A0012824 Remove the bolt on the rear panel. 6.4.5 Terminal assignment The voltage is supplied at the plug-in terminals on the rear of the sampler.

  • Page 30: Special Connection Instructions

    Electrical connection Liquistation CSF28 BN BU GNYE A0048602  19 Terminal assignment Assignment of plug-in terminal with 100 to 120 V/200 to 240 V AC ±10 % BN Brown cable BU Blue cable Ground cable Wire the supply voltage at the terminals provided.
  • Page 31 Liquistation CSF28 Electrical connection Individual types of protection permitted for this product (impermeability (IP), electrical safety, EMC interference immunity) can no longer be guaranteed if, for example : • Covers are left off • Different power units to the ones supplied are used •...

  • Page 32: Post-Connection Check

    Electrical connection Liquistation CSF28 Post-connection check WARNING Connection errors The safety of people and of the measuring point is at risk! The manufacturer does not accept any responsibility for errors that result from failure to comply with the instructions in this manual.

  • Page 33: Operation Options

    Liquistation CSF28 Operation options Operation options Overview of operation options 7.1.1 Display and operating elements Display (with red display background in alarm condition) Navigator (jog/shuttle and press/hold EH_CSF 09:11:05 31.03.2015 function) Soft keys (function depends on menu) MODE A0025501  20...
  • Page 34 Operation options Liquistation CSF28 7.2.2 Configuration options Display only • You can only read the values but cannot change them. • Typical read-only values are: sensor data and system information Picklists • You receive a list of options. In a few cases, these also appear in the form of multiple choice boxes.

  • Page 35: Access To The Operating Menu Via The Local Display

    Liquistation CSF28 Operation options Access to the operating menu via the local display 7.3.1 Operating concept The device is operated by: • Pressing the soft key: select the menu directly • Turning the navigator: move the cursor in the menu •...
  • Page 36 Operation options Liquistation CSF28 Example: MODE MODE Turn the navigator: move the cursor in the menu Press the soft key: select the menu directly Menu/Language MODE Turn the navigator: select a value (e.g. from a list) Press the navigator: launch a function...
  • Page 37 Liquistation CSF28 Operation options 7.3.2 Locking or unlocking operating keys Locking operating keys ‣ Press the navigator for longer than 2 seconds  A context menu for locking the operating keys is displayed. You have the choice of locking the keys with or without password protection. "With password"...

  • Page 38: System Integration

    System integration Liquistation CSF28 System integration Integrating the sampler in the system 8.1.1 Web server Connecting the web server ‣ Connect the communication cable of the computer to the Ethernet port of the SYS base module in the controller housing.
  • Page 39 • You can make your settings conveniently via the computer keyboard. Instead of using an Internet browser, you can also use FieldCare for configuration via Ethernet. The Ethernet DTM required for this is an integral part of the "Endress+Hauser Interface Device DTM Library".

  • Page 40: Commissioning

    Commissioning Liquistation CSF28 Commissioning Function check WARNING Incorrect connection, incorrect supply voltage Safety risks for staff and device malfunctions! ‣ Check that all connections have been established correctly in accordance with the wiring diagram. ‣ Ensure that the supply voltage matches the voltage indicated on the nameplate.
  • Page 41 Liquistation CSF28 Commissioning • MAN • MEAS • DIAG 9.3.2 Starting the Commissioning Wizard Initial commissioning is performed by a Commissioning Wizard. The Commissioning Wizard starts as soon as the device is connected to the electricity supply. At the start, it is executed repeatedly until the user has fully completed all the steps of the commissioning process in the Wizard.
  • Page 42 Commissioning Liquistation CSF28 9.3.4 Display behavior The screen can be adjusted to the working environment with the following settings: • Contrast • Backlight • Automatic The backlighting is switched off automatically after a short time if a button is not pressed.
  • Page 44 *71571080* 71571080 www.addresses.endress.com...
