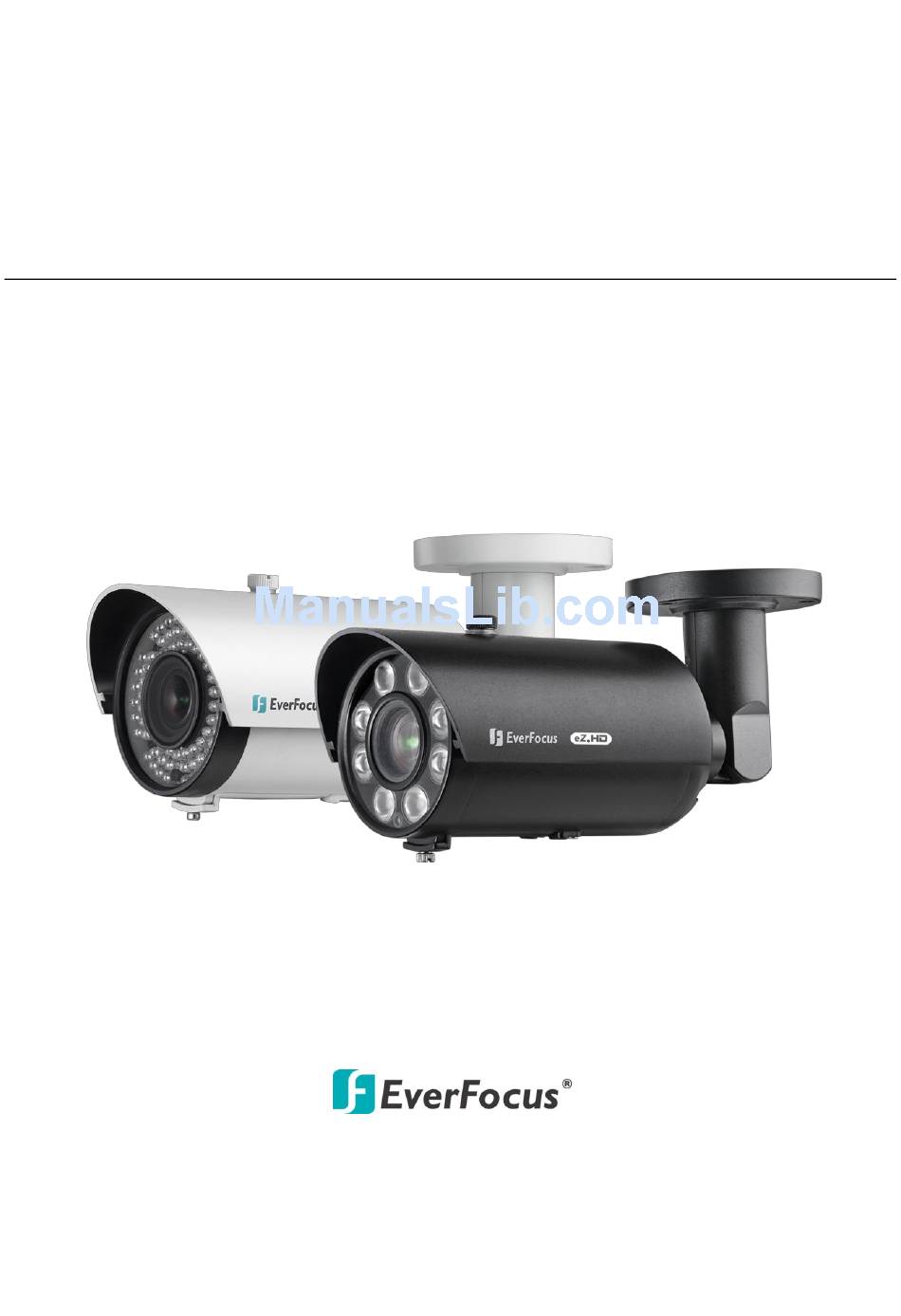

- Page 1 Series EZ930/950 720p Analog High Definition True Day/Night Outdoor IR Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: Nov., 2014...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 6 2. Cable Description ......................7 3. Installation ........................8 Installation and Adjustment ................... 8 4. Configuration in the OSD Menu ..................12 5. Specifications ........................16... -
Page 5: Introduction
To take full advantage of the amazing resolution available from this advanced imaging technology, the EverFocus eZ.HD Series EZ930/950 uses a vari-focal lens together with 1/2.8" SONY 1.37M pixels CMOS to deliver 720p high resolution. Combined with a useable native low light sensitivity of 0.08lux without using digital slow shutter. -
Page 6: Features
EZ930/950 eZ.HD Outdoor IR Bullet Camera 1.2 Features 720p with high flexibility and performance for astounding image 1/2.8" SONY 1.37M pixels CMOS, very low light sensitivity Vari-focal 2.8~12mm(EZ930)/ 5~50mm(EZ950) DC iris lens to captures the desired field of view 80 IR LEDs for 35m/115ft.range(EZ930);... -
Page 7: Cable Description
EZ930/950 eZ.HD Outdoor IR Bullet Camera 2. Cable Description Name Descriptions Power Cable Connect to a 12VDC or 24VAC power source. Dual Video Output 720p and 960H output, using a 75 Ohm BNC-type coaxial cable. Test Lead Connect to a monitor for setting image aim and focus. DC Power Pigtail Optional power pigtail cable. -
Page 8: Installation
EZ930/950 eZ.HD Outdoor IR Bullet Camera 3. Installation 3.1 Installation and Adjustment Overview for EZ930 Overview for EZ950 For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. - Page 9 EZ930/950 eZ.HD Outdoor IR Bullet Camera Drill three holes and insert the supplied Plastic Anchors into the holes, then attach the camera to the ceiling or wall by using the supplied Screws. Loosen the screw on the bracket with Hexagon Wrench, and adjust camera angles by tilting or rotating the camera.
- Page 10 EZ930/950 eZ.HD Outdoor IR Bullet Camera Connect the camera to a AHD DVR or a portable monitor with the 12VDC or 24VAC power source using the supplied DC Power Pigtail Cable or a power adapter. Loosen the screws on the bottom of housing, then pull out the OSD panel to configure camera settings using the OSD Menu Joystick, connect one end of the Test lead to the Test-out connector on the camera module and the other end to the portable monitor.
- Page 11 EZ930/950 eZ.HD Outdoor IR Bullet Camera Note: The function button is not only for direction control, also for switching Video format and Video output. Please follow the detailed instruction as below: Push the joystick "down" button key over 5 seconds to switch video format from PAL to NTSC.
-
Page 12: Configuration In The Osd Menu
EZ930/950 eZ.HD Outdoor IR Bullet Camera 4. Configuration in the OSD Menu You can use the Joystick on the bottom housing of the camera to configure camera settings in the OSD menu. The OSD menu structure is as below: No. Main Sub Menu / Function Menu Indoor... - Page 13 EZ930/950 eZ.HD Outdoor IR Bullet Camera Level Middle*, High, Low Area Position, Size,↑,↓,→,← Default Select Area1*, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black Mask On*/Off HSBLC Level 0-100(20*) All Day* Model Night AGC Level 0-255(48*) Default ATW* AWC→SET Indoor White Outdoor Balance Blue...
- Page 14 EZ930/950 eZ.HD Outdoor IR Bullet Camera Mirror Off*, Mirror, V-flip, Rotate Neg. Image Off*/On Off* Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitiv 0-100(64*) Color Green*, Blue, White, Red Motion 1.00*,0.75,0.50, Trans 0.25 View Type Off, Block, Outline, All* OSD View On*/Off Alarm Alarm Out On*/Off...
- Page 15 EZ930/950 eZ.HD Outdoor IR Bullet Camera 0-14(14*) x2*, x4, x6, x8,x10, x15, x20, Sens-up x25, x30 Off* Pos/Siz Position, Size,↑,↓,→,← Black DPC Start Press Enter DPC View Off*/On Level 0-255(255*) CAM ID 0-255(1*) RS485 ID Display Off*/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10(6*) Sharpness...
-
Page 16: Specifications
EZ930/950 eZ.HD Outdoor IR Bullet Camera 5. Specifications EZ930 EZ950 Pickup Device 1/2.8" SONY 1.37M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1280 (H)*720 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48 dB (AGC OFF) Electronic Shutter... - Page 17 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, Duarte, CA 91010, 415 Oser Avenue, Unit S, Hauppauge, NY 11788, USA TEL: +1 631 436 5070 TEL: +1 626 844 8888...
