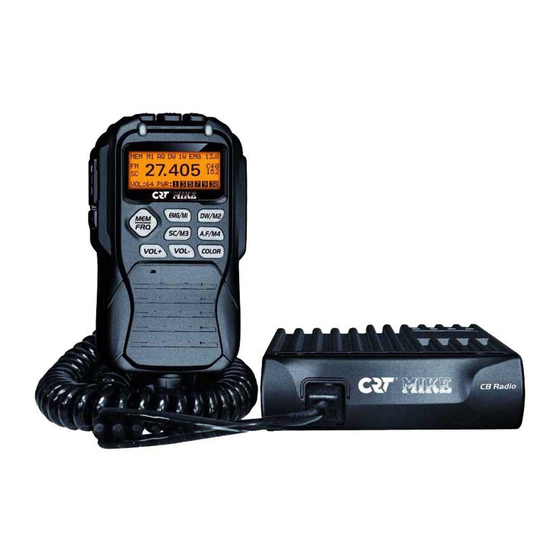

Summary of Contents for CRT Mike

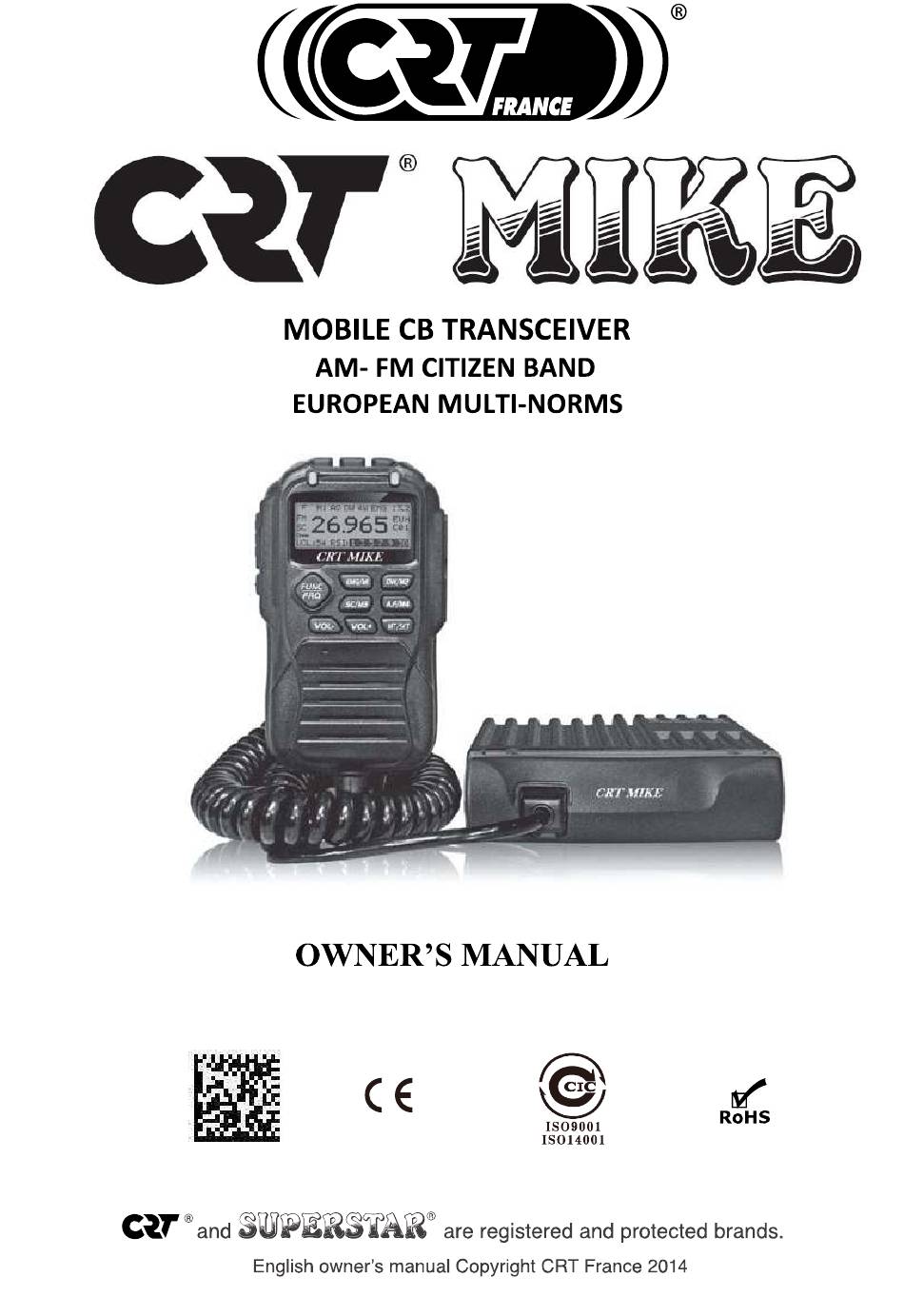

  • Page 1 Compliant...

  • Page 5: Table Of Contents

    CONTENTS FUNCTIONS AND CHARACTERS..............1 STANDARD ACCESSORIES................2 OPTIONAL ACCESSORIES ................2 INSTALLATION....................2 Microphone connection................2 Microphone connection Microphone connection Antenna connection ..................3 Antenna connection Antenna connection Power connection ..................3 Power connection Power connection Fuse replacement ..................3 Fuse replacement Fuse replacement Intall Microphone hanger ................

  • Page 6: Functions And Characters

    FUNCTIONS AND CHARACTERS Full Aluminum body offer best heat radiation Remote control microphone with Wide angle Dot matrix LCD Remote control microphone with Wide angle Dot matrix LCD Multiple norms: EU, EUH, CE, UK, PL, E1, I2, DE, DEH Multiple norms: EU, EUH, CE, UK, PL, E1, I2, DE, DEH Multiple norms: EU, EUH, CE, UK, PL, E1, I2, DE, DEH 3 color display: Blue, Purple, Orange 3 color display: Blue, Purple, Orange...

  • Page 7: Standard Accessories

    STANDARD ACCESSORIES Screws for bracket Screws for bracket Pads for bracket Adjusting knobs Fuse(2A,250V) Pads Hanger Hanger Hanger Self-tapping Screws Self-tapping Screws Self-tapping Screws OPTIONAL ACCESSORIES OPTIONAL ACCESSORIES OPTIONAL ACCESSORIES Remote PTT Control Cable Earphone Earphone Earphone EK01 HS03 HS03 HS03 INSTALLATION Choose a idea location to install the radio.

  • Page 8: Microphone Connection Antenna Connection

    Note: Never press PTT before install the antenna, it might burn the transistor. 1. Screw on the antenna into antenna jack. 2. To make full use of this radio, it is necessary to locate the antenna in a well 2. To make full use of this radio, it is necessary to locate the antenna in a well grounded place, and well adjust the SWR.

  • Page 9: Fuse Replacement Intall Microphone Hanger

    1. Choose idea location and mark for screw point. 2. Fix the hanger by the srews in accessory list. This radio adopt 4-8 ohm, 4W external speaker. This radio adopt 4-8 ohm, 4W external speaker. This radio adopt 4-8 ohm, 4W external speaker. 1.

  • Page 10: Know About This Radio

    Increase volume or Squelch level Increase volume or Squelch level MT/SET Mute, Menu, Lock key Transmitting SQ, ASQ SQ/ASQ switch Power key Channel UP Channel down TX indicator RX indicator Ext MIC/SP jack Ext remote PTT cable jack Mike Speaker...

  • Page 11: How To Use This Radio How To Use This Radio

    HOW TO USE THIS RADIO Power on radio Note:When the radio on, hold key until nothing appears on LCD and release key, the radio will power off. key, the radio will power off. 2. Adjust squelch level until you can hear background noise, refer to Page 7 about 2.

  • Page 12: Volume Control (1-56 Levels, Default Level 54)

    Volume control ( 1-56 levels, Default level 54 ) 1. Press SQ/VOL key repeatedly, until LCD display VOL: XX XX stands for volume level. 2. Short Press key to choose wanted volume level. volume level. 3. Hold 3. Hold 3. Hold can fast increase volume level, Hold Hold...

  • Page 13: Lcd Display

    LCD display Dot matrix LCD display for channel number, frequency and operations. Dual watch 1W/4W: Power level M1-M4: Storage location Storage location CH9/19 Current Voltage Func Func Func FM/AM Mode FM/AM Mode FM/AM Mode Working norm Scan Scan Scan Current channel Keypad lock icon Keypad lock icon Keypad lock icon...

  • Page 14: Time Out Timer

    Time Out Timer 1. Short Press 2. Short Press key to enter Menu. 3. Repeatly short press 3. Repeatly short press key until LCD displays key until LCD displays TOT: XXXX TOT: XXXX TOT: XXXX 4. Press 4. Press 4. Press to adjust the TOT time.

  • Page 15: Keypad Lock

    Keypad lock 1. To avoid wrong operation of keys, you can hold key to lock the keypad. 2. The LCD displays 3. Repeat the above function to unlock the keypad. 3. Repeat the above function to unlock the keypad. Frequency mode Frequency mode Frequency mode 1.

  • Page 16: Dw Channels

    DW channels 2 channels need be pre-stored for dual watch function. 1. Short Press 2. Short Press 2. Short Press key to enter Menu. 3. Repeatly short press 3. 3. Repea Repea key until LCD displays DW0: XX DW0: XX DW0: XX 4.

  • Page 17: Norms And Frequency

    Norms and Frequency Band ID Europe Europe CEPT Poland India Italy Germany Germany AM=1W AM=4W AM=4W AM=4W AM=4W AM=1W AM=4W Power Power FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W CH-01 CH-01 CH-01 26.965 26.965 26.965 26.965 26.965 26.965 26.965 27.60125 26.960 26.965 27.60125 26.960 26.965 27.60125 26.960...
  • Page 18 GENERAL Modulation Mode AM/FM Frequency Range 26.965-27.405Mhz Frequency Tolerance Frequency Tolerance ±5.0ppm Input Voltage Input Voltage Input Voltage 13.2V 112mm(L) x 143mm(W) X 30mm (H) Dimensions(in mm) Dimensions(in mm) Dimensions(in mm) Weight Weight 785g Ferquency Control Ferquency Control Ferquency Control PLL Synthesizer Operating Temperature Range Operating Temperature Range...
  • Page 19 compliant...
  • Page 20 CONDITIONS OF GUARANTEE Our transceivers CRT SUPERSTAR are guaranteed on 2 year. The other equipments: 6 months. Any abnormality of functioning must be indicated to your retailer, who will Any abnormality of functioning must be indicated to your retailer, who will...
