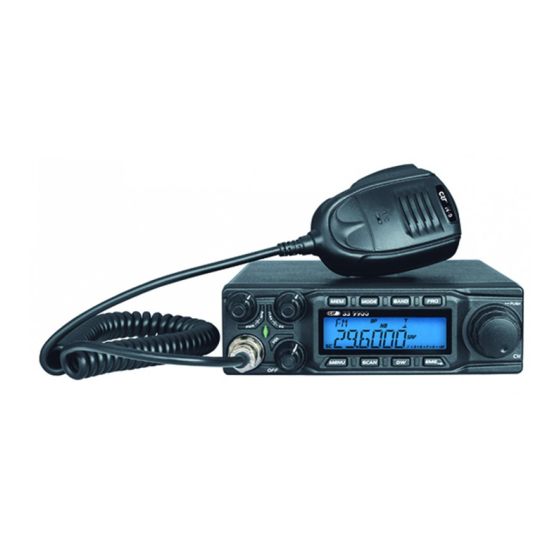

CRT SS 9900 User Manual

10 meter radio
Hide thumbs Also See for SS 9900:
Table of Contents

Advertisement

Quick Links

Copyright CRT France 2014
Downloaded from www.cbradio.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS 9900 and is the answer not in the manual?

Questions and answers

Related Manuals for CRT SS 9900

Summary of Contents for CRT SS 9900

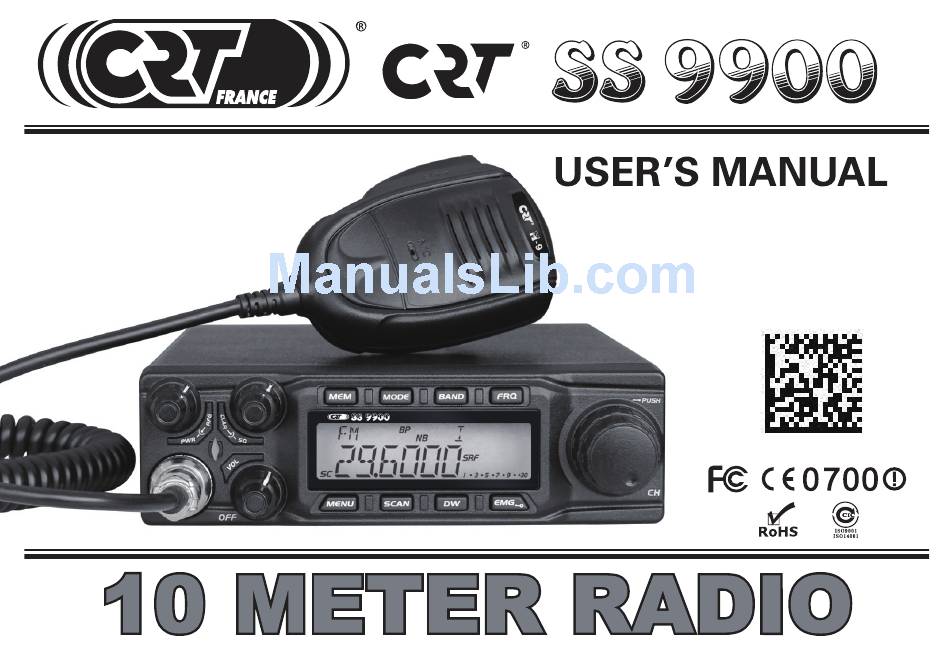

  • Page 1 Copyright CRT France 2014 Downloaded from www.cbradio.nl...
  • Page 4 and EN 62311.

  • Page 7: Table Of Contents

    CONTENTS FUNCTIONS & FEATURES................................1 STANDARD ACCESSORIES................................1 INSTALLATION....................................2 GETTING ACQU AINTED................................3 HOW TO USE YOUR RADIO ................................5 KEYPAD FUNCTION ..................................5 CHANNEL FUNCTION MENU OPERATOIN...........................7 PUBLIC DATA FUNCTION MENU OPERATION ...........................8 BACKGROUND FUNCTION MENU OPERATION..........................8 SPECIFICATIONS....................................9...

  • Page 8: Functions & Features

    FUNCTIONS & FEATURES STANDARD ACCESSORIES Big LCD displays frequency and all kinds of information 、AM、FM、USB、LSB mode Frequency Tuning Step can be 100Hz,1KHz,10KHz,100KHz,1MHz ± 1.5KHz Clarifier Flexiable menu function and PC programming software ECHO Function SQ, ASQ Function (FM and AM mode only) Radio Microphone Install bracket...

  • Page 9: Installation

    INSTALLLATON Choose the most appropriate setting from a simple and practical point of view. Your radio should not interfere with the driver or crash the driver's knee or leg when rush brake. Using the self-tapping screws and pads(2 sets) to fix the bracket. Put the Non-slip mat on the 2 ends of the bracket and put in the WARNING: radio.Then insert the adjusting screws and check carefull each...

  • Page 10: Getting Acquainted

    Replacing Fuse GETTING ACQUAINTED This radio adopt 10A, 250V fuse. Front Panel If the fuse blows, determine the reason, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your autho-rized dealer or an authorized servicecenter Pull the two fuse cover in difference direction and open it.
  • Page 11 Rear Panel LCD Display 10 12 15 14 17 EXT SP DATA PC Cable Jack Appears when press MENU key. External Speaker Jack Appears when adjust SSB clarifier frequency. Antenna Jack Appears when use ASQ. Appears during scan function. Indication of working mode. Microphone Appears when set with CTCSS code.

  • Page 12: How To Use Your Radio

    HOW TO USE YOUR RADIO Channel Selection When radio in channel mode, turn channel knob to select desired OFF/ON Radio channel. Clockwise to increase, anti-clockwishe to reduce channel. Turn VOL clockwise to switch on the radio, the radio emit a beep. Note: In channel display mode, each press PUSH key will increase When the LCD displays frequency or channel, the radio is on.
  • Page 13 Delete memory channel: When LCD displays " SC", present channel added to scan list. In channel mode, hold【MEM】for over 2 seconds, the memory When LCD does not displays " SC", present channel is not channel number flashes, turn the CH switch to choose the added to scan list.

  • Page 14: Channel Function Menu Operatoin

    Split function.(REP menu 3 page 11) REP+: Open offset direction to transmit and receive on different frequencies with a shift (+ or-). function, TX frequency> RX To adjust the shift value between frequencies, see menu 11 page 14. frequency; Offset REP-: Open offset direction function, Direction RX frequency>...

  • Page 15: Public Data Function Menu Operation

    PUBLIC DATA FUNCTION MENU OPERATION BACKGROUND FUNCTION MENU OPERATION Hold 【MENU】for 2 seconds to enter menu list; Hold 【PUSH】for 2 seconds to enter menu list; Turn Channel switch to find menu No.1 to No.12; Turn Channel switch to find menu No.1 to No.5; Press 【PUSH】to choose the menu;...

  • Page 16: Specifications

    SPECIFICATIONS OFF: Shut voltage protection function; Voltage GENERAL ON: Open voltage protection Protection Frequency Range 28.000-29.700MHz(Programmable) function; Default: ON Frequency Band A/B/C/D/E/F/G/H/I Channel 40channels(programmable)in each band SQ: SQ scan function; Frequency Control Phase-Locked-Loop Synthesizer Scan Type TI: Time scan function; Frequency Step 100Hz、1KHz、10KHz、100KHz、1MHz Default: SQ...
  • Page 17 RECEIVER PC programmation: Please use PC software CRT SS9900 and programming SSB: 0.25μV for 10dB(S+N)/N cable ref tx 000991. AM:1.0μV for 10dB(S+N)/N Sensitivity FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output) Adjacent-Channel AM/FM: 60dB...
  • Page 18 EN 60950-1+A1+A11+A12 EN 301 489-1 EN 301 489-15 EN 301 783-1 EN301 783-2 EN 62311 Notified body PHOENIX TESTLAB Gmbh Germany Date 04/16/2014...
  • Page 19 PROCEDURE ON RETURNING TO THE AFTER-SALES SERVICE CRT - If you send back a radio under guarantee for repair: You must pay the freight costs to go. CRT will pay the freight costs return. If the radio is not under guarantee postal charges are at your expense.
  • Page 20 Copyright CRT France 2014...
