CRT SS 6900 Manual

SYMBOLS DESCRIPTION

DC using
Keep dry
Shield symbol
Warning warning

STORAGE/TRANSPORT/USING

Storage: Class 1 -30/85% (° Humidity)
Transport: -30/85% (
° Humidity)
Operating temperature -30 + 50°
Using cycle TX10%/RX90%

This transceiver corresponds to the requirements of European directives R&TTE and answers the European standards of telecommunication EN 60950-1, EN 301 489-1/-15 et EN 301 783-1/-2.


This receiving transmitter works on not free frequencies in the use. The user has to possess a radio license amateur radio (certificate of radio operator HAM) to use it (in emission) and only on the frequencies authorized in radio amateurs.

Thank you for choosing this CRT vehicle transceiver CRT always provides high quality products. Though friendly design for user, this transceiver is technically complicated and some features may be new to you. Consider this manual to be a personal tutorial from the designers, allow the manual to guide you through the learning process now, then act as a reference in the coming years.

INTRODUCTION

Welcome to the world of new radios. With the use of SMT technology to guarantee the best stability, reliability and unprecedented quality, your multi-functional SS 6900 Radio 10-meter Radio is a new step in personal communication and is surely the best choice for professional users of radios. Moreover, with multiple connecting ports in the radio, SS 6900 Radio is ready for future upgrading and functions expanding. To ensure that you use the radio to the fullest, please read this manual carefully before installing and using your SS 6900 Radio.

FUNCTIONS & FEATURES

  1. Big LCD which displays frequency and all kinds of information
  2. DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY
  3. USE EL technology for backlight
  4. PA, CW. AM. FM, USB. LSB mode
  5. A, B, C, D, E, F, 6 bands in total, with 60 channels at rnost in each band to be programmed
  6. Frequency Tuning step can be 10HZ, 100HZ, 1KHZ or 10KHZ
  7. Multiple CLARIFIER Operating Modes
  8. Flexible menu functions and PC programming software to meet varied customer demands
  9. ECHO Function
  10. SQ ASQ Function (FM and AM mode Only)
  11. RF GAIN ADJUSTMENT
  12. RF PWR ADJUSTMENT
  13. SCAN FUNCTION
  14. RB FUNCTION
  15. NB/ANL FUNCTION
  16. DW DUAL-WATCH FUNCTION
  17. BEEP VOICE PROMPT
  18. +10KHZ Function
  19. SWR, S/RF, DC Voltage display function
  20. TOT function
  21. HI-CUT FUNCTION
  22. EMG CALL
  23. SWR PROTECTION
  24. POWER SUPPL ED VOLTAGE PROTECTION
  25. Key-Lock Function

RESET FUNCTION

(Resume Factory Default)
This Radio introduces RESET FUNCTION to prevent accidents and provide a solution for customers who changed some functions unconsciously and do not know how to resume normal settings. The Radio will resume factory default once this function is activated.

How to Operate

  1. Power off the radio.
  2. Press and hold FUNC and SCAN keys at the same time, followed by powering on the radio.
  3. Release the two keys when LCD displays "RES".
    All former settings would be replaced by Factory Default value when LCD displays "REND"


All former settings would be replaced by Factory Default value after operating the RESET FUNCTION.

INSTALLATON

WHERE AND HOW TO MOUNT YOUR DEVICE

WHERE AND HOW TO MOUNT YOUR DEVICE

  1. You should choose the most appropriate setting from a simple and practical point of view.
  2. Your radio should not interfere with the driver or the passengers.
  3. Remember to provide different wires for passing and protection. (e.g.: power, antenna, accessory cabling) so that they do not in any way interfere with the driving of vehicles.
  4. To install your equipment, use the cradle (1) and the self-tapping screws [2] provided (drilling diameter 5 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
  5. Do not forget to insert the rubber joints [3] between the TX and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set
  6. Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

ANTENNA INSTALLATION

  1. Choosing your antenna:
    For radios, the longer the antenna, the better its results. Your dealer will help you with your choice of antenna. b) Antena Movel.
  2. Mobile antenna:
    • Must be fixed to the vehicle where there is a maximum Of metallic surface(ground plane), away from windscreen mountings.
    • There are two types of antenna: Pre-Regulated Antenna which should be used on a good ground plane (e.g. car roof or lid of the boot), and Adjustable Antenna which offer a much larger frequency range and can be used on a smaller ground plane.
      For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed
    • Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short circuiting).
    • Connect the antenna to location (B).
  3. Fixed antenna:
    A fixed antenna should be installed in a space as clear as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All SS 6900 antennas and accessories are designed to give maximum efficiency to each radio within the range.

POWER CONNECTION

Your RADIO is protected against an inversion Of polarities. However before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.


Lorries generally have two batteries to supply a voltage Of 24 volts, in which case it will be necessary to insert a 24/12 volt converter into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

  1. Check whether the battery is of 12 volts.
  2. Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, please use the same or a superior type of cable,
  3. lt is necessary to connect your TX to a permanent and (-). We advise you to connect the power cable directly to the battery (as the connection of the TX cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the possibilities of interference).
  4. Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
  5. Connect the power cable to your radio.


Never replace the original fuse (10A) by one of a different value.

BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME

(without transmitting or using the <<Push-To-Talk>> switch on the microphone)

  1. Connect the microphone
  2. Check the antenna connections
  3. Turn the set on by turning the volume knob clockwise
  4. Tum the squelch knob to minimum
  5. Adjust the volume to a comfortable level
  6. Go to channel 20 D band by using either the UP or DN key on the microphone or the rotary knob,

ADJUSTMENT OF SWR

(standing wave ratio)


This must be carried out when you use your radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

Adjustment with a built-in SWR meter or external SWR meter

  1. To connect the SWR meter Connect the SWR meter between the radio and the antenna as close as possible to the radio (use a maximum of 40cm cable).
  2. To adjust the SWR meter
    • Set the TX to channel 20 D band in FM.
    • Put the switch on the SWR meter to position CAL or FWD.
    • Press the <<Push-To-Talk>> switch on the microphone to transmit.
    • Bring the index needle to by using the calibration key.
    • Change the switch to position SWR (reading of the SWR level).
      The reading on the meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1.(An SWR reading between 1 and 1.8 is acceptable).
    • It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

HOW TO USE INTERNAL SWR METER

  • Set TX to channel 20 D band in FM.
  • Press <<Push-to-talk>> button on the microphone to transmit.
  • At the moment, LCD would display SWR value which should be as close as possible to 1. If this is not the case, re-adjust your antenna to obtain a SWR value as close as possible to 1 (an SWR reading between 1 and 1.8 is acceptable).

HOW TO USE YOUR DEVICE

LCD DISPLAY

HOW TO USE YOUR DEVICE - LCD Display Description

7 digits: Display frequency and any other information.
Indicating bars: Indicate RX, RSSI, PA, PWR, SWR
The first decimal point: Appears when current channel is edited with SCAN DEL.
FUNC: Appears after pressing FUNC key
AQ: Appears when ASQ function is started (only for AM/FM).
RB: Appears when Roger beep function is started (enabled).
NB/ANL: Appears when NB/ANL function is started (enabled).
BP: Appears when BP function is started (enabled).
ECHO: Appears when ECHO function is started (enabled).
VOIC: Appears when VOIC function is started. It is disabled in this radio.
HI-CUT:Appears when HI-CUT function is started.
DW: Appears when DW function is started.
10K: Appears when 10KHZ function is started.
EMG: Appears when EMG channel is used.
SWR: Appears when SWR is used.
SRF: Appears when S/RF is used.
SC: Appears SCAN is used.
PA, CW. AM. FM. USB. LSB: Indicate different operating modes.

  1. Appears when CLARIFIER function is FINE operation.
  2. Appears when CLARIFIER FUNCTION is COARSE operation or RT operation.
  3. Appears when CLARIFIER FUNCTION is transmitting frequency regulated.

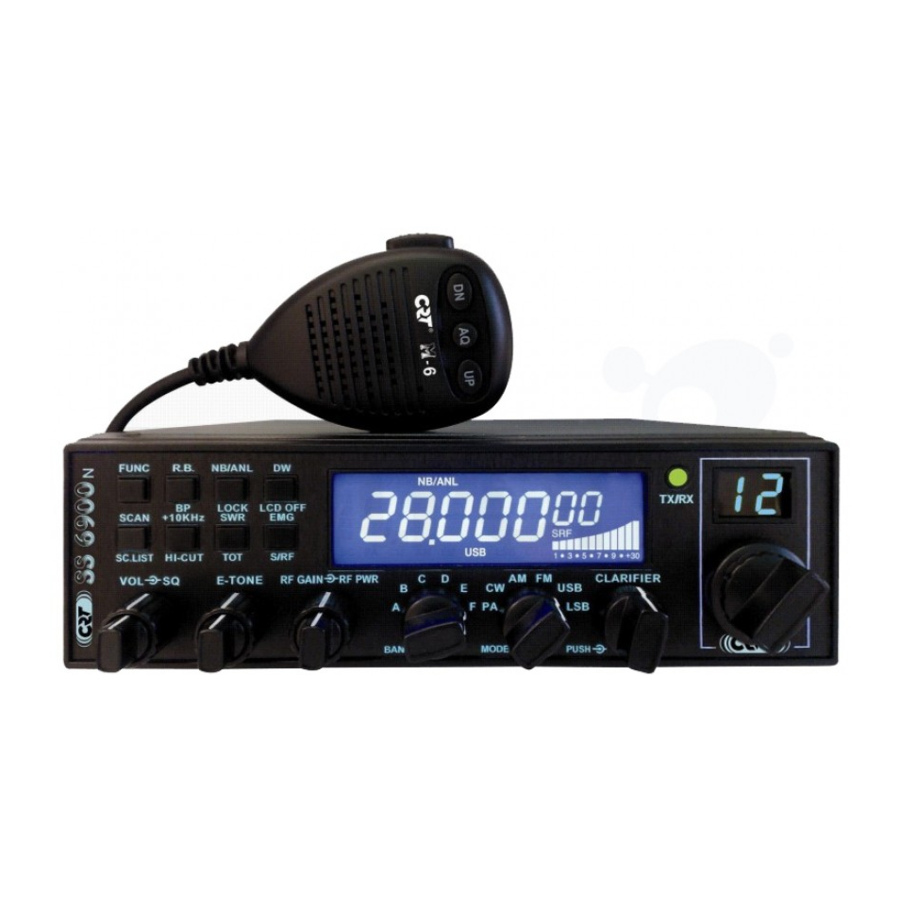

FRONT PANEL

HOW TO USE YOUR DEVICE - FRONT PANEL DESCRIPTION

  1. OFF/ON/VOLUME (lnner Dual Concentric)
    Turn clockwise to switch on the radio and set desired volume level. Under normal operating state, the VOLUME control is used to adjust the output volume obtained either by the transceiver speaker or the external speaker or the external PA speaker, if used.
  2. SQUELCH (Outer Dual Concentric)
    This control is used to cut off or eliminate receiver background noise in the absence of an incoming signal. For maximum receiver sensitivity, it is desired that the control be adjusted only to the point where the receiver background noise or ambient background noise is eliminated. Turn fully anticlockwise then slowly clockwise until the receiver noise disappears. Any signal to be received must now be slightly stronger than the average received noise. Further clockwise rotation will increase the threshold level which a signal must overcome in order to be heard. Only strong signals will be heard at a maximum clockwise setting.
  3. ECHO (lnner Dual Concentric)
    This switch is used to control echo effect.
  4. TONE (Outer Dual Concentric)
    This switch is used to control intervals of echo sound
  5. RG GAIN ( Inner Dual Concentric)
    This switch is for adjusting sensitivity during reception. For long distance communications RF GAIN should be set to maximum. RF GAIN can be reduced to avoid distortion, when your correspondent is close by and when he does not have RF POWER. The normal setting of this function is on maximum (fully clockwise).
  6. RF POWER (Outer Dual Concentric)
    Adjustment of the output power is for AM and FM rmde only. Reducing the power is allowed when communicating with a person who has no RF GAIN. The normal position of this function is set to maximum, fully clockwise.
  7. BAND SELECTOR
    Rotate this switch to select A, B, C, D, E, F band of operation
  8. MODE(PA/CW/AM/FM/USB/LSB)
    This switch allows selecting the modulation mode PA, CW, AM, FM, LSB or USB. Your modulation mode has to correspond with the one of your correspondent. The mode selector changes the mode of operation of both transmitter and receiver simultaneously.
    Frequency Modulation/FM: for nearby communications on a flat open field.
    Amplitude Modulation/AM: Communication on a field with relief and obstacles in middle distance (the most used).
    Upper and Lower Side Band/USB-LSB: Used for long distance communications (according to the propagation conditions).
  9. CLARIFIER
    This is frequency tuning knob which can be set as different modes (refer to CLA Specifications in Functions Menu for more details).
  10. PUSH
    This is PUSH Key which can be set as different modes (refer to PSH specifications under Functions Menu for more details).
  11. CHANNEL SELECTOR
    Rotate this switch to select any desired channel from forty citizens band channels. The selected channel appears on the LED directly above the channel selector knob.
  12. CHANNEL INDICATOR
    Numbered LED indicates the selected channel to operate on.
  13. RECEIVER,'TRANSMIT INDICATOR
    When it is receiving, the LED will be green. The LED will be red when it is transmitting.
  14. LCD DISPLAY
    Display frequency, all kinds of information and icons.
  15. FUNC
    This is functional key Press and hold this key for 2 seconds to enter into Functions Menu Setup (refer to Functions Menu for more details). Press FUNC key and other individual key to realize the second functions silk-screened under the button. For example, press FUNC key followed by pressing RB key to realize the BP function. Press FUNC key followed by DW to realize the LCD OFF function.
    Details operations are as below:
    Press FUNC key, "FUNC" icon will appear on LCD display. Release FUNC key, and then press other keys to realize the second functions silk-screened under the button. "FUNC+ Keypad name" is to be used in the following operating instruction.
  16. ROGER BEEP OR BEEP FUNCTION
    1. RB
      Press "RB" key to enable "ROGER BEEP" function with icon appearing on LCD display. Press the key repeatedly to switch on/off the function, When RB function is enabled, the radio will automatically transmit the audio signal at the end of your transmission. The listener can note easily that your transmission is over through the signal.
    2. FUNC+RB
      Press FUNC+RB to realize BP Function. It is a prompting function with "BP" icon appearing on LCD display. Speaker would emit a BEEP for prompting when press any key press FUNC+RB repeatedly to switch on/off the function.
  17. NB/ANL or LOCK
    1. Press NB/ANL key to enable NB/ANL function with "NB/ANL" icon appearing on the LCD display. Press the key repeatedly to switch on/ off the function Noise Blanker/Automatic Noise Limiter. These filters allow reducing back ground noises and some reception interferences.
    2. FUNC+NB/ANL Press FUNC+NB/ANL to realize the Keyboard Lock function. When this function is enabled, all keys are invalid except PTT, BAND SWITCH, and MODE SWITCH. When pressing any key except PTT, BAND SWITCH, MODE SWITCH, the LOCK icon will display on the LCD These situations indicate that the keyboard has been locked. Press FUNC*NB/ANL repeatedly to switch on/off the function.
  18. DW or LCD OFF
    1. The DW (dual watch) function allows automatic alternate monitoring of two channels. Refer to the following procedures to enable this function.
      To enable the DW function, firstly turn the SQ control clockwise until the background noise is cut out. Select the first channel to be monitored by using the CHANNEL SELECTOR knob or the channel selector keys on the microphone, press the DW key and the DW icon will flash on the LCD display. Secondly, follow the above procedures to select second channel to be monitored. Finally, press the DW key again and the two monitoring channels will be alternately indicated on the LCD. Radio will automatically start monitoring (scanning) the two channels. When a signal is detected on one of the channels, scanning stops and it is possible to listen the communications on that channel. Press PTT to transmit on this channel. If there is no transmission or detected signal on that channel within 5 seconds(time to resume scanning can be programmed by PC software), radio will resume scanning. When the DW function is enabled, the DW icon appears on the LCD. To exit the DW function, press the DW key or the PTT key.
      The scan Type above is the SQ mode under SCA Selection in Function Menu. If Ti mode is selected and valid signal is detected, the radio would still start scanning when it is time to resume scanning, whether there is signal or not in current channel.
    2. FUNC+DW
      When this function is enabled, LCD display would be switched OFF(LCD OFF).
      Repeat this operation to switch ON/ OFF the function.
  19. SCAN OR Scan.list
    1. SCAN
      Automatic Scanning of busy channels.
      Press the SCAN key to enable the SCAN function. Before enabling the SCAN function, firstly turn the SQ control clockwise till the background noise is cut out. Then press the SCAN key, radio will automatically scan all channels continuously in the scan list and the SC icon will appear on the LCD.
      When a signal is detected on a channel, scanning stops on this channel. You can receive the calling, and also, can transmit on this channel by pressing PTT key. If there is no transmission or detected signal on that channel within 5 seconds(time to resume scanning can be programmed by PC software), radio will start scanning again. To exit the SCAN function, press the SCAN key or the PTT key. The Scan Type above is the SQ mode under SCA Selection in Function Menu. If Tl mode is selected and valid signal is detected, the radio would still start scanning when it is time to resume scanning, whether there is signal or not in current channel.
    2. FUNC+SCAN
      SC.LIST (Scan ADD or Delete). Press FUNC+SCAN to delete current channel from scan list. The first digit on LCD would display. When Scan function is enabled, the radio would skip the deleted channel. Repeat this operation to Add or Delete channels from scan list.
  20. +10KHZ or HI-CUT
    1. +10KHZ
      Press this key to shift frequency up by 10khz.
      When pressing this key, 10KHZ would appear on LCD and frequency Of channels is shifted up by 10 KHZ Repeat this operation to switch ON/OFF this function.
    2. FUNC+ +10KHZ
      Press FUNC+10KHZ to realize HI-CUT function. Once this function is enabled, the radio would cut out high frequency interference. Its use depends on reception conditions.
      When this function is enabled, "HI-CUT" would appear on LCD Repeat this operation to switch ON/OFF the function
  21. SWR OR TOT
    1. SWR
      When pressing this key, "SWR" icon would appear on the LCD. When transmitting, SRF bars indicate SWR value other than PA or PWR value, One bar displaying on the LCD indicates that SWR value is 1.0. Each additional bar indicates every 0.1 added value. Repeat this operation to switch ON/OFF the function.
    2. FUNC+ SWR
      When pressing this key, TOT ON or TOT OFF would display on the LCD for 2 seconds. Repeat this operation to switch ON/OFF the function. When ON appears on the LCD, users can press PTT to transmit. Then, the radio would time the transmitting duration. Once the duration is beyond the set TOT time (programmable), the radio would emit voice prompt and stop transm'tting and back to receiving state automatically. This function aims to protect the radio against power tube damage from superheating caused by long transmission.
  22. EMG OR S/RF
    1. EMG realizes Emergency Channel Call. When emergent situation happens, the radio would switch to the channel set in advance to communicate immediately. Then the "EMG' icon would display on the LCD. Press EMG key again to return to previous channel.
    2. FUNC + S/RF
      S/RF is the switch of TX's or RX's S/RS indicating bar. When this function is enabled, "SRF" icon would display on the LCD. Repeat the this operation to switch ON/OFF the function.

REAR PANEL

HOW TO USE YOUR DEVICE - REAR PANEL DESCRIPTION

  1. POWER
    Accept 13.8V DC power cable with built-in fuse (10 Amp) to be connected.
  2. EXT SP or PA SP
    EXT SP
    Accept 4 to 8 ohm, 4 watt external speaker to be connected. When external speaker is connected to this jack, the built-in speaker is automatically disconnected.
    PA SP
    It is used to connect a PA speaker. Before operating PA, you must firstly connect a PA speaker to this jack.
  3. ATTENNA
    Accept 50 ohm coaxial cable with a type PL-259 plug to be connected.
  4. CW KEY
    This jack is for Morse code operation; To operate, connect a CW key to this jack and place the MODE switch in the CW position (LCD display icon "CW")

PRESS-TO-TALK-MICROPHONE

The receiver and transmitter are controlled by the Press-To-Talk switch on the microphone.
Press the switch to transmit and then release it to receive. When transmitting, hold the microphone two inches from the mouth and speak clearly in a normal "voice". The radios come complete with low-impedance (150 Ohm) dynamic microphone.
HOW TO USE YOUR DEVICE - PRESS-TO-TALK-MICROPHONE

  1. PTT
    Transmitting key, Press to speak and release to receive a message.
  2. UP/DN
    These key allow increasing or decreasing a channel number
  3. AQ
    1. When the radio is rece ving a call, press this key to enable ASQ (Automatic Squelch Control) function. Then, "AQ" would appear on the LCD. Press this key repeatedly to switch on/off the function.
    2. When the radio is receiving a call, press and hold this key for over 2 seconds to enable signal monitoring function. At the moment, whether the radio receive signal or not, the radio would detect current channel to check whether current channel has weak signal-Release AQ key to exit this function.
    3. Pressing PTT and AQ key at the same time, the radio would emit a single-tone. This tone is to help and remind two sides of communication to adjust frequency. The frequency of this tone is adjustable.
    4. ASQ (Automatic Squelch Control)
      ASQ control setting.lt has same function with AQ button on the microphone.
  4. MICROPHONE
    The radios come complete with low-impedance (150 Ohm) dynamic microphone.

FUNCTION MENU SETUP

The initial functions and parameter can be changed via the following settings and operations. Please read the following instruction before making any desired amendments.
To enter Function Menu: under ON state, press and hold FUNC key for more than 2seconds, and then release the FUNC key to enter into the Function Menu Setup. Under this condition, press FUNC key to select different functions menu, CHANNEL SELECTOR Switches to change the data of Function Menu.

  1. STP (Frequency Tuning Step)
    This menu is to set tuning step when adjusting frequency by CLARIFIER knob
    Options: 10HZ,.100HZ, 1KHZ, 10KHZ
    Default: 10HZ
  2. CLA (CLARIFIER knob functions setting)
    This menu is to set functions turned by CLAR FIER knob. Options are as follows:
    FIN: Fine regulation. When this option is selected, users can fine tuning the receiving frequency by rotating the CLARIFIER knob. In tuning process, the transmitting frequency can not be regulated by the knob and "1" icon will appear on the LCD.
    RT: When this option is selected, users can regulate the frequency of both transmitting and receiving. In tuning process, "2" icon will appear on the LCD.
    T: When this option is selected, users can only regulate the transmitting frequency. In tuning process, "3" icon will appear on the LCD.
    Default: RT
  3. PUS (PUSH Function setting)
    This menu is to set functions realized via PUSH knob. Options are as follows:
    COA: When this option is selected, press PUSH and turn CLARIFIER knob to realize COARSE function.
    When pressing this key, "2" icon will appear on far left of the LCD. Under this condition, rotate the CLARIFIER knob to change frequency of both transmitting and receiving.
    T: When this option is selected, press PUSH and turn CLARIFIER knob to change transmitting frequency. When pressing this key, "3" icon will display on the far left Of the LCD. Under this condition, rotate the CLARIFIER knob to change the transmitting frequency only.
    STP: When this option is selected, PUSH function will change Frequency Tuning Step of CLARIFIER knob. Press this key, then the corresponding frequency bit would blink.
    Default: STP
  4. ASQ (Automatic Squelch Control)
    ASQ control setting. It has same function with AQ button on the microphone.
    Default: OFF
  5. TOT (Transmitting Time-out-Timer)
    This menu is to set transmitting TOT time. When pressing PTT key at a single time longer than the due time setup in advance, thc radio would stop transmitting automatically and loudspeaker will emit voice prompt till PTT key is released. Then, the radio can transmit again.
    Options: 30-600s
    Step: 30s
    Default: 180s
  6. SC Scanning Type Selection
    This menu is to set Scan Type. Options are as follows:
    SQ: When SQ is selected, scan would stop when a valid signal is detected. The radio would resume scanning after signal disappears for 5s.
    Tl: When Tl is selected, scan would stop when a valid signal is detected, The radio would resume scanning 5 seconds later whether signal disappears or not.
    Default: SQ
  7. TSR (Transmitting SWR protection)
    This menu is to choose whether to enable Transmitting SWR Protection function or not.
    ON: When ON is selected, the radio will detect the SWR of antenna. Once the SWR is beyond the SWR set in advance, the radio would prohibit transmitting automatically and loudspeaker will emit voice prompt. Then, "HI S" icon will display on the LCD to remind you that the antenna SWR is too high or antenna do not connect well.
    OFF: When OFF is selected, SWR Protection function is disabled.
    NOTE: To protect the radio from long transmission under high SWR, the radio would automatically start SWR Protection once the SWR Value is higher than 20:1.
    Default: ON (SWR=<10:1)
  8. TDC (Power Supplied Voltage Protection)
    This menu is to choose whether to enable Power supplied Voltage Protection function or not.
    ON: When ON is selected, the radio will detect the supplied voltage. Once the voltage surpasses the voltage setup in advance, the radio would display "DC LO" or "DC HI" to remind you that the voltage is not in normal state. Meanwhile, the radio will prohibit transmitting and emit beep prompt.
    OFF: When OFF is selected, the Power Supplying Voltage is disabled.
    Default: ON (DC 10.5V-16V)
  9. TLD (Content displayed on the LCD when transmitting)
    This menu is to set the content displayed on the LCD when transmitting.
    TF: When TF is selected, LCD would display transmitting frequency when transmitting.
    SR: When SR is selected, LCD would display SWR value of antenna when transmitting, for example: "12" on the LCD.
    BAT: When BAT is selected, LCD would display Supplied Voltage when transmitting, for example: "13.8DC" on the LCD.
    TOT: When TOT is selected, LCD would display TOT remaining time when transmitting. And TOT would count down till remaining time is 0, for example: "170" displayed on the LCD display.
    Default: TF
  10. RBF (ROGER BEEP Frequency Setting)
    This menu is to select frequency of Roger Beep. The frequency range is 300KHZ-3KHZ The shift step is 10HZ.
    Default: 1050HZ
  11. RBT (ROGER BEEP Holding Time)
    This menu is to select Roger Beep Holding Tlme from 50ms-1000ms. The shift step is 50ms.
    Default: 500ms
  12. CFR (CW Side Tone Frequency)
    This menu is to select CW Side Tone Frequency from 300HZ-3KHZ, the shift step is 10HZ.
    Default: 1050HZ
  13. TON (Transmitting Single-Tone Frequency)
    This menu is to select Transmitting Single-Tone Frequency from 300HZ-3KHZ. The Shift step 10HZ.
    Default: 1050HZ TX MON
  14. This menu is to set Talkback Monitoring Volume for voice message sent.
    TES: Under transmitting state and ECHO effect is ON, users can hear their own voice in the radio they are using when TES is ON. You can switch on or off this function via CLARIFIER selector.
    Default: ON

TNS: Under transmitting state and the ECHO function is OFF, users can hear their own voice in the radio they are using when TNS is ON, You can switch on or off this function via CLARIFIER selector.
Default: OFF

OPERATING PROCEDURE TO RECEIVE

  1. Be sure that power supply, microphone and antenna are connected to the proper connectors before going to the next step.
  2. Turn the radio on by tuning VOLUME control clockwise.
  3. Rotate the VOLUME knob to seta comfortable listening level.
  4. SET the MODE switch to the desired mode.
  5. Set the CHANNEL selector switch to select the desired channel.
  6. Set the RF gain control full clockwise to maximum RF gain.
  7. Listen to the background noise from the speaker. Turn the SQUELCH control clockwise slowly until the noise disappears (no signal should be present). Leave the control at this setting. The Squelch is now properly adjusted. The receiver will remain quiet until a signal is actually received. Do not advance the control too far, or some of the weaker signals can not be heard.

OPERATING PROCEDURE TO TRANSMIT

  1. Select the desired channel of transmission.
  2. Press the Push-To-Talk switch on the microphone and speak in a normal voice.

PRECAUTIONS

burn hazard Please observe the following precautions to prevent fire, personal injury, or transceiver damage.
warning Do not attempt to configure your transceiver while driving, it is dangerous.
warning This transceiver is designed for a 13.8V DC power supply. Don't use a 24V battery to power on the transceiver.
warning Do not place the transceiver in excessively dusty, humid or wet areas, nor unstable surfaces.

burn hazardshock hazard
Do not connect the antenna while transmission, risk of burn or electric shock.
warning Please keep it away from interferential devices (such as TV, generator etc.) devices (such as TV, generator etc.)
warning For those fitted with pacemakers are advised to move away from the antenna during transmission, main y in high power, and especially do not touch it.
shock hazard Never allow metal objects or son electrical contact with the part or internal electrical connectlon to the risk of electric shock.

warning Avoid exposing the transceiver to temperatures below -30°C and above +60°C, the temperature of the dash board inside a vehicle can sometimes exceed 80°C, which can damage irreparable damage to your machine in case of prolonged exposure. Not exposed to prolonged direct sunlight or place it near heaters.
warning Do not place anything on top of the apparatus that would interfere with cooling
warning Check that your battery is sufficiently charged to avoid rapidly exhausting its resources.
warning It is important to turn off your device before starting the vehicle to avoid damage caused by spikes in the ignition.
burn hazard When replacing the fuse, you must use a fuse 10A 250V type F. In no case a higher value!. Otherwise a fire hazard.
warning If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an CRT service station or your dealer.
warning Do not transmit with high output power for extended periods; the transceiver may overheat.
warning Keep out from children.

WARNING

To use the radio, please connect the antenna to the location on the back panel of the equipment firstly and then set the SWR (Standing Wave Ratio) before transmitting. Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

Attention:

  • Before using your transceiver please connect an antenna on the connector PL on back side then check the SWR before emitting. A too important SWR can entail the destruction of the transistors of power which are not flatware by the guarantee

C.R.T. FRANCE INTERNATIONAL S.A.R.L.
Route de Pagny - 21250 SEURRE - FRANCE
capital de 762 500 euros
Tél. 03 80 26 91 91 - Fax: 03 80 26 91 00
E-mail: superstar@crtfrance.com
Web site: www.crtfrance.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download CRT SS 6900 Manual

Advertisement

Need help?

Need help?

Do you have a question about the SS 6900 and is the answer not in the manual?

Questions and answers

Table of Contents
