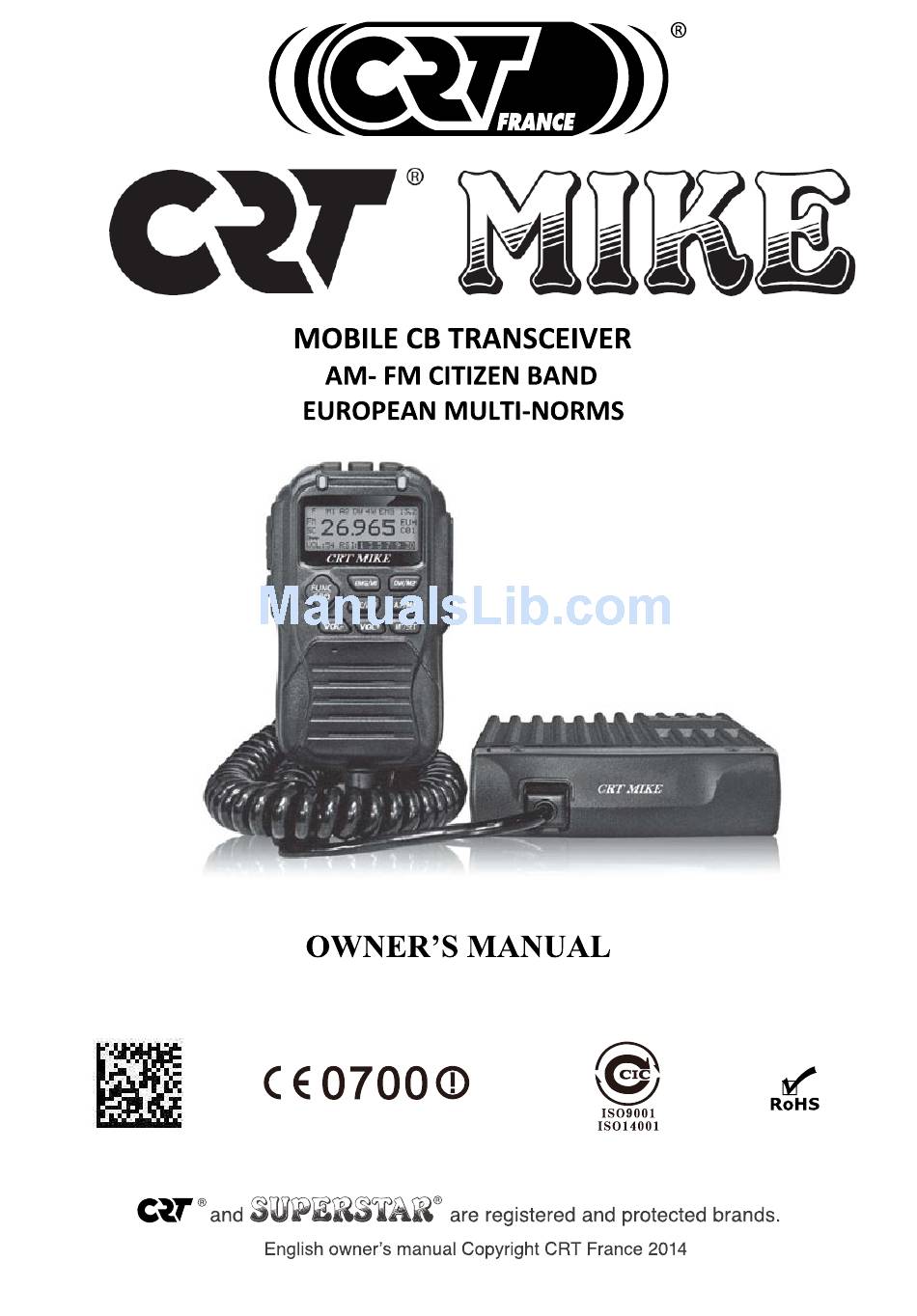

  • Page 1 Compliant Downloaded from www.cbradio.nl...

  • Page 5: Table Of Contents

    CONTENTS FUNCTIONS AND CHARACTERS ..............1 STANDARD ACCESSORIES ................2 OPTIONAL ACCESSORIES ................2 INSTALLATION ....................2 Microphone connection ................2 Antenna connection ..................3 Power connection ..................3 Fuse replacement ..................3 Intall Microphone hanger ................4 Intall external speaker .................. 4 Install earphone ...................

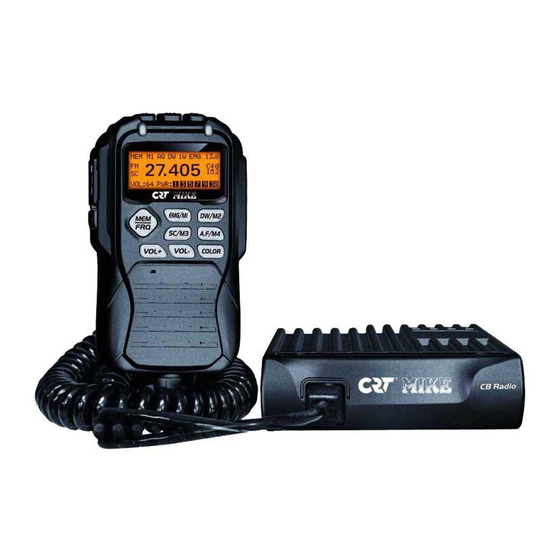

  • Page 6: Functions And Characters

    FUNCTIONS AND CHARACTERS Full Aluminum body offer best heat radiation Remote control microphone with Wide angle Dot matrix LCD Multiple norms: EU, EUH, CE, UK, PL, E1, I2, DE, DEH 3 color display: Blue, Purple, Orange Dual watch Full channel scan EMG Channel CH9/19 SQ and ASQ Control 4 Memory channels for each Norm...

  • Page 7: Standard Accessories

    STANDARD ACCESSORIES Screws for bracket Pads for bracket Adjusting knobs Fuse(2A,250V) Pads Hanger Self-tapping Screws OPTIONAL ACCESSORIES Remote PTT Control Cable Earphone EK01 HS03 INSTALLATION Choose a idea location to install the radio. 1. Mark the location for screws by intall racket. 2.

  • Page 8: Antenna Connection

    Antenna connection Note: Never press PTT before install the antenna, it might burn the transistor. 1. Screw on the antenna into antenna jack. 2. To make full use of this radio, it is necessary to locate the antenna in a well grounded place, and well adjust the SWR.

  • Page 9: Intall Microphone Hanger

    Intall Microphone hanger 1. Choose idea location and mark for screw point. 2. Fix the hanger by the srews in accessory list. Intall external speaker This radio adopt 4-8 ohm, 4W external speaker. 1. Install the external speaker in idea location. 2.

  • Page 10: Know About This Radio

    Decrease volume or Squelch level VOL+, Squelch level + Increase volume or Squelch level MT/SET Mute, Menu, Lock key Transmitting SQ, ASQ SQ/ASQ switch Power key Channel UP Channel down TX indicator RX indicator Ext MIC/SP jack Ext remote PTT cable jack Mike Speaker...

  • Page 11: How To Use This Radio

    HOW TO USE THIS RADIO Power on radio 1. Press key to turn on the radio. Note : When the radio on, hold key until nothing appears on LCD and release key, the radio will power off. 2. Adjust squelch level until you can hear background noise, refer to Page 7 about Squelch level setup.

  • Page 12: Volume Control (1-56 Levels, Default Level 54)

    Volume control ( 1-56 levels, Default level 54 ) 1. Press SQ/VOL key repeatedly, until LCD display VOL: XX XX stands for volume level. 2. Short Press key to choose wanted volume level. 3. Hold can fast increase volume level, Hold can fast decrease volume level.

  • Page 13: Lcd Display

    LCD display Dot matrix LCD display for channel number, frequency and operations. Dual watch 1W/4W: Power level M1-M4: Storage location CH9/19 Current Voltage Func FM/AM Mode Working norm Scan Current channel Keypad lock icon ASQ, SQ,VOL level RX signal strength, PWR: TX signal strength.

  • Page 14: Time Out Timer

    Time Out Timer 1. Short Press key, F Icon appear and flashes. 2. Short Press key to enter Menu. 3. Repeatly short press key until LCD displays TOT: XXXX 4. Press to adjust the TOT time. 5. Short press any other key to confirm and exit. LCD color 1.

  • Page 15: Keypad Lock

    Keypad lock 1. To avoid wrong operation of keys, you can hold key to lock the keypad. 2. The LCD displays 3. Repeat the above function to unlock the keypad. Frequency mode 1. Hold for over 5 seconds, the display will change to frequency mode.

  • Page 16: Dw Channels

    DW channels 2 channels need be pre-stored for dual watch function. 1. Short Press 2. Short Press key to enter Menu. 3. Repeatly short press key until LCD displays DW0: XX 4. Press to choose first DW channel 5. Repeatly short press key until LCD displays DW1: XX 6.

  • Page 17: Norms And Frequency

    Norms and Frequency Band ID Country Europe Europe CEPT Poland India Italy Germany Germany AM=1W AM=4W AM=4W AM=4W AM=4W AM=1W AM=4W Power FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W CH-01 26.965 26.965 26.965 27.60125 26.960 26.965 26.965 26.965 26.565 CH-02 26.975...

  • Page 18: Specification

    Specification GENERAL Modulation Mode AM/FM Frequency Range 26.965-27.405Mhz Frequency Tolerance ±5.0ppm Input Voltage 13.2V 112mm(L) x 143mm(W) X 30mm (H) Dimensions(in mm) Weight 785g Ferquency Control PLL Synthesizer Operating Temperature Range -20° C TO + 55° C Transmit 1.4A MAX Current Drain Receive Squelched 0.4A...
  • Page 19 compliant...
  • Page 20 CONDITIONS OF GUARANTEE Our transceivers CRT SUPERSTAR are guaranteed on 2 year. The other equipments: 6 months. Any abnormality of functioning must be indicated to your retailer, who will intervene or will send it to our technical service for control.
