- Page 2 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. . Do not block any ventilation openings. Install in accordance with the manufacturer`s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------------------------------------- 1 CONTENTS of PACKAGE & CAMERA CONNECTION ------------- ----------------------- 2 BASE INSTALLATION----------------------------------------------------------------------------------- 3 OSD MENU STRUCTURE -- -------------------------------------------------------------------------- 4 LENS ADJUSTMENT ---------------------------------------------------------------------------------- 12 EXTERNAL DIMENSIONS ------------ --------------------------------------------------------------- 13 SPECIFICATIONS -------------------------------------------------------------------------------------- 14... -
Page 5: Introduction
INTRODUCTION The camera provides high-quality images using SONY 1/3” CCD and Digital Signal Process LSIs. Features: ● 1/3" HAD CCD Ⅱ for an image of high sensitivity ● 2.8~12mm, 5~50mm Vari-focal Lens(DC AI) ● Digital Wide Dynamic Range (Adaptive Tone Reproduction) ●... -
Page 6: Contents Of Package & Camera Connection

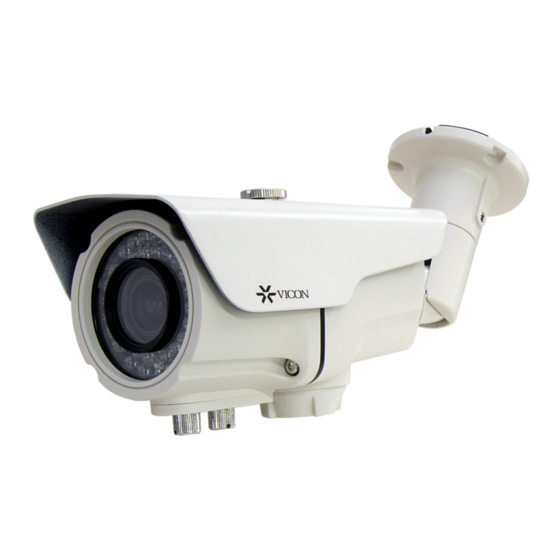

CONTENTS of PACKAGE CAMERA CONNECTION 1. Bullet Camera 2. Power : power source from a DC 12V or AC 24V +/- 10% 3. Video: BNC connector used to connect the camera to a monitor, switcher, etc. -
Page 7: Base Installation
BASE INSTALLATION... -
Page 8: Osd Menu Structure
OSD MENU STRUCTURE SETUP MENU (page 1) LENS SHUTTER/AGC LENS SHUTTER/AGC AUTO ↵ WHITE BAL AUTO↵ BACKLIGHT MANUAL MANUAL↵ PICT ADJUST MOTION DET NEXT (page2) EXIT SAVE ALL WHITE BALANCE BACKLIGHT ATW ↵ PUSH USER 1↵ USER 2↵ ANTI CR MANUAL↵... - Page 9 SETUP MENU (page 2) PRIVACY PRIVACY DAY/NIGHT DAY/NIGHT COLOR CAMERA ID ON↵ B/W↵ LANGUAGE CAMERA RESET BACK (page 1) EXIT SAVE ALL CAMERA ID NR↵ NR MODE Y LEVEL C LEVEL ON↵ RETURN LANGUAGE CAMERA RESET ENGLISH 日本語 (return the camera to factory defaults) DEUTSCH FRANCAIS...
- Page 10 Use the joystick to navigate the setup menus. Move it up or down to move the cursor to select the menu option, left or right to view setting options and press to select. LENS This adjusts the brightness of the screen. AUTO TYPE (DC / VIDEO) Sets the type of mechanical iris.
- Page 11 WHITE BAL This is used to adjust the color according to the lighting conditions of the scene. ATW (Auto Trace White balance) SPEED (0~255) Adjusts the pull-in speed of ATW. DELAY CNT (0~255) Sets the time-based hysteresis (time-based dependence of a system's output on present and past inputs) of ATW.
- Page 12 PICT ADJUST MIRROR (OFF / ON) Horizontally inverts image. BRIGHTNESS (0~255) Sets the screen brightness. CONTRAST (0~255) Sets the screen contrast. SHARPNESS (0~255) Sets the screen sharpness. (0~255) Adjusts the hue. GAIN (0~255) Adjusts the gain. ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist with widely contrasting scenes of view.
- Page 13 PRIVACY Allows hiding areas of the scene that the user does not want to display. AREA SEL (1~4) PRIVACY Selects the motion detection area. (Note: When setting the AREA SEL it is better AREA SEL to move first BOTTOM and RIGHT.) IIIIIIIIII000 TOP (NTSC:0~244 , PAL:0~288) BOTTOM...
- Page 14 NR (2D-DNR) This is used to remove noise from the image in low light conditions when AGC is applied. NR MODE (OFF, Y, C, Y/C) Sets the 2D NR filter mode. Y LEVEL (0-15) Sets the Y filter (Luminance) strength. C LEVEL (0-15) Sets the C filter (Chrominance) strength.
- Page 15 CAMERA ID Sets the camera ID to ON or OFF. A title of 52 characters per line can be applied. Use the joystick to navigate the cursor. Pushing centrally on the joystick will allow selection of that character. The arrows at the bottom allow you to move the cursor without changing the character.
-
Page 16: Lens Adjustment
AUTO WHITE DEFECT (Compensation for defective pixels on CCD) Push the left button for 5 seconds and enter Auto white defect menu. Cover the lens and Enter to start. If white defects are over 65pcs, the camera is faulty and auto defect is useless. -
Page 17: External Dimensions
EXTERNAL DIMENSION... -
Page 18: Specifications
SPECIFICATIONS MODEL NTSC Power source DC 12V / AC24V ±10% Power Power consumption 6 Watts (550mA) Image sensor 1/3″ SONY HAD CCD II Total pixels 1020(H) x 508(V) 1020(H) x 596(V) Effective pixels 976(H)x494(V) 976(H)x582(V) Scanning system 2:1 Interlace 15.734KHz(H) 15.625KHz(H) Scanning frequency x 59.94Hz(V) - Page 19 Weight...
- Page 20 Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
- Page 21 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
- Page 22 Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes to its software in any of its products at any time and without notice.
- Page 23 Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com 50303948A...
