Quick Guide

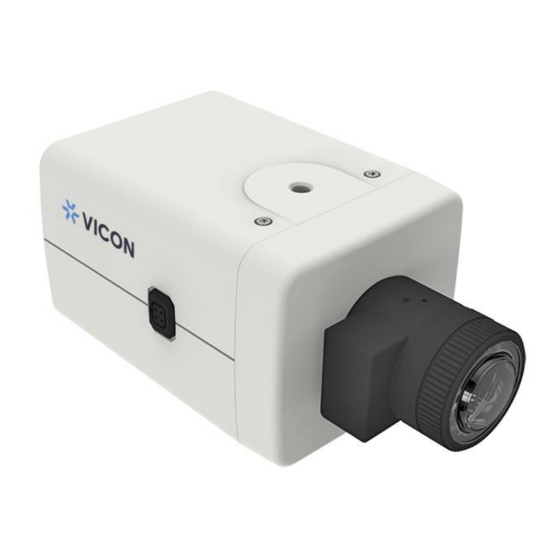

Roughneck Pro V2008-W-NL
Box Camera
XX318-80-04
Cybersecurity Notification:
accessing the device. To that end, these network cameras do not have a default password. A user defined
password with minimum password strength requirements must be set to access the device. See page 11 of
this Quick Guide for set-up instructions.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-80-04 Product specifications subject to change without notice.
Issued: 6/2021 Copyright © 2021 Vicon Industries Inc. All rights reserved.
All network connected devices should use best practices for
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck Pro V2008-W-NL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vicon Roughneck Pro V2008-W-NL

  • Page 1 Quick Guide for set-up instructions. Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.
  • Page 2: Table Of Contents

    V2008-W-NL Quick Guide Table of Content Product Overview Physical Characteristics Installation and Connection Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Installing the Lens 2.2.3 Mounting the Camera 2.2.4 Connecting the Cables Connection Network Topology System Requirements Connecting Process 3.3.1 Default IP address 3.3.2 Connecting from a Computer &...
  • Page 3 V2008-W-NL Quick Guide WARNING ⚫ This camera operates at 12 VDC/24 VAC/PoE (IEEE 802.3af Class 3). ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 V2008-W-NL Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5: Product Overview

    V2008-W-NL Quick Guide 1 Product Overview 1.1 Physical Characteristics Figure 1 - 1: Physical Dimension Unit: mm (in.) Figure 1 - 2: Parts Pictorial Index...
  • Page 6 V2008-W-NL Quick Guide Name Description Lens Lens (customer-supplied) is attachable to the camera’s lens mounting ring. Both top and bottom of the camera housing have one mount screw hole for mounting the camera. Mount Screw Hole Use a standard 1/4”-20 screw to mount the camera in the desired location.
  • Page 7: Installation And Connection

    V2008-W-NL Quick Guide 2 Installation and Connection Package Contents Check if all items listed below are included in the packing box. ABF Box camera * 1 Terminal Block * 1 Installation The following tools might help you complete the installation: ⚫...
  • Page 8: Installing The Lens

    V2008-W-NL Quick Guide 2.2.2 Installing the Lens Attach the customer-supplied lens onto the camera’s lens mounting ring. Screw the lens onto the lens mount. Be careful to prevent dust from entering the space between the lens and the imager. If necessary, use clean, compressed air to remove any foreign matter (refer to the instructions for the lens as needed).
  • Page 9 6. If P Iris is selected, select the lens from the Please select dropdown list. The P Iris Control will display for adjusment. Note that the full P Iris functionality is only available when one of the supported lenses is mounted to the camera Note: If using Vicon lens V4-13VF-P select TAMRON M118VP413IRCS_CS_Mount_P; if using V12-50VF-P select TAMRON M118VP1250IR_CS_Mount_P.
  • Page 10: Mounting The Camera

    V2008-W-NL Quick Guide 2.2.3 Mounting the Camera Select a mounting bracket or housing (sold separately) that has a standard thumbscrew matching the mount screw hole, as shown in the figure below; fasten the camera to the bracket/housing securely using the mounting screw hole.
  • Page 11: Connecting The Cables

    V2008-W-NL Quick Guide 2.2.4 Connecting the Cables 1. The I/O interfaces are on the rear panel of the box camera. Based on your needs, connect the power cable to the power port via one of the following 3 options: • 24 VAC: Connect a power cable that supplies 24 VAC power source to the terminal block and then insert the terminal block into the power port.
  • Page 12: Connection

    V2008-W-NL Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet manners. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirement to implement and operate the camera.
  • Page 13: Connecting Process

    V2008-W-NL Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 14 V2008-W-NL Quick Guide Viewing Preparation Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 15 V2008-W-NL Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 16 V2008-W-NL Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close the all browser windows and restart the browser. This will allow the new settings to take effect. ...
  • Page 17: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 18 V2008-W-NL Quick Guide input certain keywords into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. Press “Auto Set IP Address” button to automatically give each camera an IP address from predefined range and connected to predefined network internet controller.
  • Page 19 V2008-W-NL Quick Guide Follow the steps below to complete firmware upgrade: Click to add or remove camera to be upgraded (only verified cameras will be shown on ▪ this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
