Quick Guide

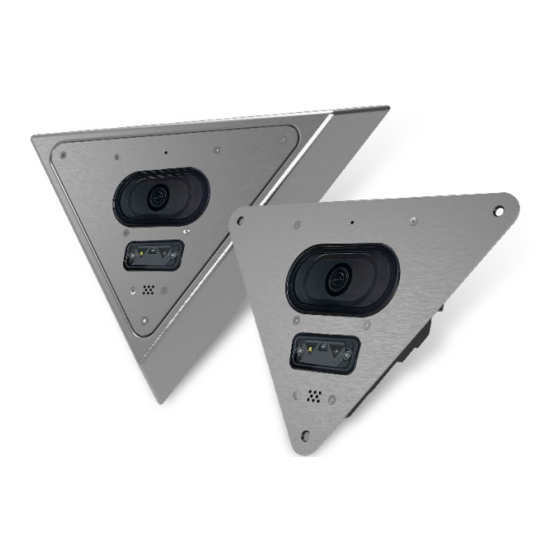

Roughneck AI V-CELL-HD-C and V-CELL-HD-CMOD
Corner Mount Camera and Replacement Camera Module
XX330-20-01
Cybersecurity Notification: All network connected devices should use best practices for accessing the
device. To that end, these network cameras do not have a default password. A user defined password with
minimum password strength requirements must be set to access the device. See page 12 of this Quick Guide
for set-up instructions.
Be sure to check Vicon's website to be see if you have the most up-to-date camera firmware.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8330-20-01 Rev: 1/23
Product specifications subject to change without notice
Copyright © 2023 Vicon Industries Inc. All rights reserved.
Tel: 631-952-2288) Fax: 631-951-2288
24-Hour Technical Support: 800-34-VICON
0
Vicon Industries Inc.
Toll Free: 800-645-9116
(800-348-4266)
UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon V-CELL-HD-C
Summary of Contents for Vicon V-CELL-HD-C
- Page 1 See page 12 of this Quick Guide for set-up instructions. Be sure to check Vicon’s website to be see if you have the most up-to-date camera firmware. Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as Vicon Industries Inc.
-
Page 2: Table Of Contents
V-CELL-HD-C | Quick Guide Table of Content Product Overview Physical Characteristics Installation and Mounting Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Inserting or Removing the SD Card 2.2.3 Replacing the Lens Module with Stainless Steel Plate Connection Network System Requirements Connecting Process 3.3.1... - Page 3 V-CELL-HD-C | Quick Guide WARNING This camera operates at 12 VDC/24 VAC/PoE (IEEE 802.3af Class 3). Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty.
- Page 4 V-CELL-HD-C | Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Product Overview
V-CELL-HD-C | Quick Guide 1 Product Overview 1.1 Physical Characteristics Figure1-1: Parts Pictorial Index Description Stainless Steel Plate Camera Module Table 1-1: Parts Pictorial Index Description... - Page 6 V-CELL-HD-C | Quick Guide Figure 1-2: Parts Pictorial Index Table 1-2: Internal Interface Index Description Name Description Default: Press the button for 5 seconds to restore the camera settings Default Button to factory default. Reset: Press the button for approximately 1 second to reboot the Reset Button camera.
-
Page 7: Installation And Mounting
2 Installation and Mounting 2.1 Package Contents Check if all the items listed below are included in the packing box. Camera Module *1 Top Cover for Speaker* 1 8-pin Terminal Connector for I/O function * 1 2-pin Terminal block * 1 T20 Torx Wrench * 1 Printed Quick Guide * 1 2.2 Installation... - Page 8 2.2.2 Quick Installation Below is an overview for installing the camera. 1. Use rear bracket as template to mark mounting and cable access holes; the rear bracket is required for UL/CUL compliance. If the rear bracket is not used, skip to step 4. 2.
-
Page 9: Inserting Or Removing The Sd Card
V-CELL-HD-C | Quick Guide 2.2.3 Inserting or Removing the SD Card Carefully pull open the micro SD card cover, and insert or remove the micro SD card into or from the camera. Note: It is advised that you reboot the camera after inserting the micro SD card. -
Page 10: Replacing The Lens Module With Stainless Steel Plate
2.2.4 Installing/Replacing the Camera Module with Stainless Steel Plate If replacing the camera in an existing unit, follow the steps below; for new units, jump to step 3. Loosen the 3 torx screws on the mounting frame, turning counterclockwise, using the torx wrench supplied. - Page 11 To flip the camera module, the I/O interfaces will be seen in front of camera module. Make the appropriate connections. Based on your needs, connect the power cable to the power port via one of the following 2 options. PoE (Class 3): Connect an Ethernet cable terminated with an RJ-45 connector to the PoE RJ-45 ...
-
Page 12: Connection
V-CELL-HD-C | Quick Guide 3 Connection Network The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet manners. System Requirements The table below lists the minimum requirements to implement and operate the camera. It is recommended not to use any hardware/software component below these requirements for proper performance. -
Page 13: Connecting Process
The camera can be accessed directly from its web page or using Vicon’s PRONTO Device Manager, which can be found on Vicon’s website. Note that when accessing the camera for the first time, a message will display to reset the password. -
Page 14: Pronto Device Manager
V-CELL-HD-C | Quick Guide PRONTO Device Manager PRONTO is Vicon’s device manager (Discovery tool) that can be used to discover all Vicon cameras on a system. The complete User Manual can be found on Vicon’s website. Figure 3 - 2: PRONTO Interface Upon startup of the PRONTO Device Manager, the tool’s auto-discovery function generates a list of...
