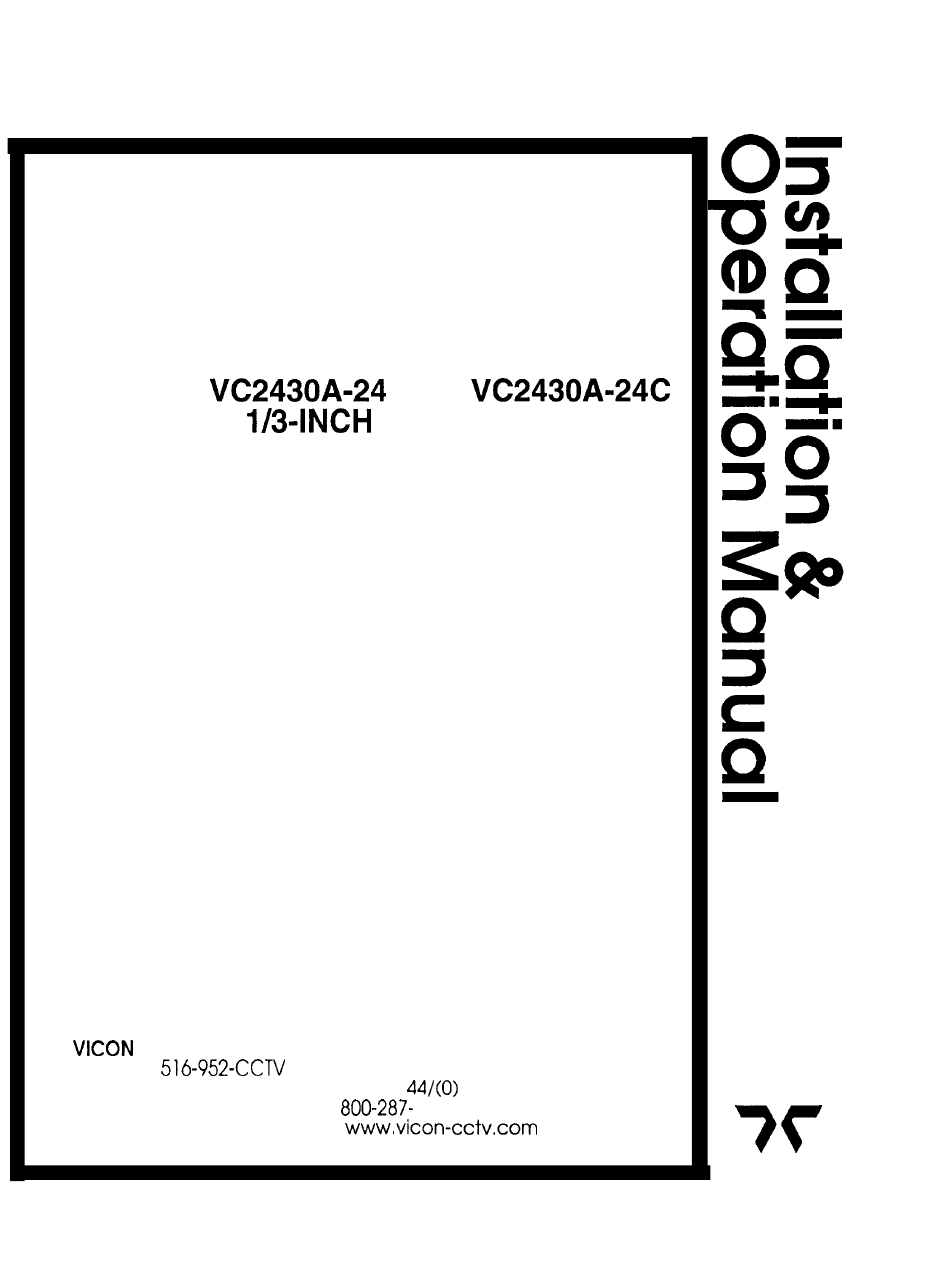

X894
MODEL VC2430A-24 AND VC2430A-24C
HIGH-RESOLUTION
MONOCHROME CAMERA
INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788
TEL: 516-952~CCTV
(2288) . FAX: 516-951 -CCTV (2288)
V
TOLL FREE: 800-645-9 116 UK: 44/(O) 1489-566300
INFOFAX: 800-287- 1207
WORLD WIDE WEB: www,vicon-cctvcom
Copyright0
1999
Vicon
Industries
Inc.
All
rights
reserved.
Product
specifications
subject
to
change
without
notice
VICON
Section 2 Rev 999
Vicon part number 8006-8894-01-00
Advertisement
Related Manuals for Vicon VC2430A-24
Summary of Contents for Vicon VC2430A-24
- Page 1 X894 MODEL VC2430A-24 AND VC2430A-24C HIGH-RESOLUTION MONOCHROME CAMERA INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788 TEL: 516-952~CCTV (2288) . FAX: 516-951 -CCTV (2288) TOLL FREE: 800-645-9 116 UK: 44/(O) 1489-566300 INFOFAX: 800-287- 1207 WORLD WIDE WEB: www,vicon-cctvcom Copyright0 1999...
- Page 2 To prevent fire or shock hazard, do not expose the unit to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 3 Do not attempt to disassemble the camera. In order to prevent electric shock, do not remove screws or cover. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel. Handle the camera with care. The camera could be damaged by improper handling or storage. Do not expose the camera to rain or moisture, or try to operate it in wet areas.
-
Page 4: Rear Panel
2. C-Mount lens adapter ring -1 pc 3. Dust protective cap - 1 pc 4. Standard camera mounting base - 1 pc 5. Screws for mounting base - 2 pcs REAR PANEL TOP VIEW WITH MOUNTING BASE... - Page 5 1 .OVp-p/75 Q composite video signal is provided at this connector. AC AC Back of camera This terminal accepts 24 VAC power source. Recommended Power Supply For B/W camera:300600mA AC Cautions: 1. Connect to a class 2 power supply only. 2.
- Page 6 CONNECTORS AND CONTROLS - @ @ It supplies the control signals to the DC-drive autoiris lens. or the plug cover does not fit properly, Back of camera cut this rib away Lens plug (supplied) If the subject you wish to view is too dim because of a bright background, set the BLC switch to ON to compensate for the bright background.
-
Page 7: Connectors And Controls
CONNECTORS AND CONTROLS - 8 This switch is used to select EE (electronic exposure or ELC- electronic light control) mode or Al (autoiris lens or ALC-automatic light control) mode. In the EE mode, a continuously variable electronic shutter is employed to automatically control the exposure time of the CCD image sensor according to the incoming light level. - Page 8 This switch is provided for the AGC circuit. The AGC circuit incorporated into the camera boosts the sensitivity automatically when the scene illumination is insufficient. This camera can operate independently, using its internal crystal- controlled sync generator, or it may be synchronized, usually known as line-locking.
- Page 9 Camera A’s VIDEO OUT Camera B’s VIDEO OUT If no oscilloscope is available, a less accurate adjustment can be made by observing the monitor and adjusting the V-phase potentiometer until no roll occurs on the monitor when switching back and forth between cameras A and B.
- Page 10 CONNECTORS AND CONTROLS - @ Q-J This potentiometer is used only if the camera is fitted with a DC- drive autoiris lens. It is used to control the amount of light striking the CCD image sensor. LENS-IRIS level control LEVEL Monitor screen LEVEL control direction To increase the brightness...
- Page 11 This screw is used to position the CCD image sensor at the precise point of focus of the lens. Backfocusing fixed-focal-length lenses supply as described elsewhere in this manual. 2. Open the iris completely. If an autoiris lens is used, reduce the room lighting to allow the lens to open completely.
- Page 12 The C-mount adapter ring is used if a C-mount lens is used on the camera. If a CS-mount lens is used, the adapter is not necessary. To install the adapter, first screw it into the lens mount opening on the camera. Then screw the C-mount lens into the adapter. CAMERA LENS MOUNT AD...
- Page 13 1. Simplest one monitor system with one camera. ACADAPTOR CAMERA COAXIALCABLE...
- Page 14 EXAMPLES OF CONNECTIONS - continued - - - 2. One monitor system with two or more cameras. AC ADAPTOR C A M E R A MONITOR SEQUENTIAL SWITCHER QUAD :iLITTER...
- Page 15 0.03 Iux at20 IRE ELECTRONIC IRIS BACKLIGHTCOMPENSATION BACKFOCUSADJUSTMENT CAMERAMOUNT LENSMOUNT CorCSMOUNT(CMOUNTADAPTERRlNGINCLUDED) VIDEO-DRIVETYPEWlTH3PTERMlNAL DC-DRIVETYPEWlTH4PSQUARECONNECTOR POWERREQUIREMENT 24VAC + 20% 150mAMAX. OPERATING CONDITION APPROX. 0.9 lb (400g) DIMENSIONS * Features and specifications are subject to change without prior notice. * Vicon part number 8006-8894-01-00...
- Page 16 Vicon Industries Inc. Vicon Industries Inc. Corporate Headquarters Corporate Headquarters 89 Arkay Drive 89 Arkay Drive Hauppauge, New York 11788 Hauppauge, New York 11788 (2288) 800-645-9116 (2288) 800-645-9116 Fax: 631-951 CCTV Fax: 631-951 CCTV (2288) (2288) Vicon Europe Vicon Europe...
