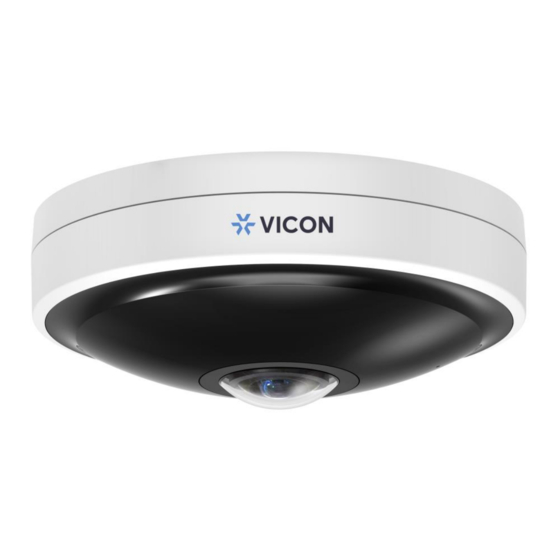

Outdoor panoramic camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Guide
Roughneck V2360W
Outdoor Panoramic Camera
XX318-70-03
Cybersecurity Notification:
accessing the device. To that end, these network cameras do not have a default password. A user
defined password with minimum password strength requirements must be set to access the device.
See page 13 of this Quick Guide for set-up instructions.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8318-70-03 Product specifications subject to change without notice.
Issued: 2/2021 Copyright © 2021 Vicon Industries Inc. All rights reserved.
All network connected devices should use best practices for
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roughneck V2360W and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon Roughneck V2360W

Summary of Contents for Vicon Roughneck V2360W

  • Page 1 See page 13 of this Quick Guide for set-up instructions. Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform precisely as Toll Free: 800-645-9116 described in the documentation.

  • Page 2: Table Of Contents

    V2360W Panoramic Fisheye | Quick Guide Table of ContentS Product Overview Physical Characteristics Installation and Connection Package Contents Installation 2.2.1 Checking Appearance 2.2.2 Mounting Camera Connection Network Topology System Requirements Connecting Process 3.3.1 Default IP address 3.3.2 Connecting from a Computer & Viewing Preparation IP Toolbox...
  • Page 3 V2360W Panoramic Fisheye Series | Quick Guide WARNING ⚫ This camera operates at 12 VDC/24 VAC/PoE+ (IEEE 802.3at Class 4). ⚫ Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. ⚫...
  • Page 4 V2360W Panoramic Fisheye | Quick Guide FCC Compliance Statement Information to the user: This unit has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Product Overview

    V2360W Panoramic Fisheye Series | Quick Guide 1 Product Overview 1.1 Physical Characteristics 56.99 (2.2) Ø150 (5) Figure 1 - 1: Physical Dimension Unit: mm (in.)
  • Page 6 V2360W Panoramic Fisheye | Quick Guide Outer View Figure 1 - 2: Outer View Pictorial Index Name Description Dome Cover The upper dome-shape cover provides protection Lens The proprietary fisheye lens provides wide hemispheric view Cabling Cutout The cutout hole for cables threading Microphone Vent The hole for built-in microphone to receive audio input Loosen the 2 screws to open the side cap to access inner...
  • Page 7 V2360W Panoramic Fisheye Series | Quick Guide Inner View Figure 1 - 3: Inner View Pictorial Index Interface Description Connect to several external devices for audio and alarm input/output DI/DO Terminal Ports functions, which can expand usability of camera for a variety of field applications.
  • Page 8 V2360W Panoramic Fisheye | Quick Guide Name Port AU/I AUDIO IN AU/O AUDIO OUT AL/I ALARM IN AL/O ALARM OUT AL/C Table 1 - 3: I/O Port Definitions Note Power supply terminal/adaptor for IO connectors and field wiring should comply with the Class 2 Circuit standard for ensuring safety from electrical fires and providing acceptable protection against electrical shock.

  • Page 9: Installation And Connection

    V2360W Panoramic Fisheye Series | Quick Guide 2 Installation and Connection Package Contents Check if all items listed below are included in the packing box. ⚫ Network Fisheye Camera * 1 ⚫ Flat Bracket * 1 ⚫ Safety Wire * 1 ⚫...

  • Page 10: Mounting Camera

    V2360W Panoramic Fisheye | Quick Guide 2.2.2 Mounting Camera Attach the Guide Pattern to the mounting surface. Drill 4 relative holes on a clean flat surface (ceiling or wall). Insert 4 plastic anchors into the drilled holes. Attach the flat bracket onto the surface by fixing it tightly with the 4 screws (TP4). Be sure to plug the drilled holes with the 4 plastic anchors prior to securing the bracket with the screws.
  • Page 11 V2360W Panoramic Fisheye Series | Quick Guide Attach the rear side of camera to the fixed flat bracket and align the 3 screws with the corresponding holes on the bracket as shown in figure below. Rotate the camera clockwise until it clicks into place so that camera will be firmly mounted onto the bracket.
  • Page 12 V2360W Panoramic Fisheye | Quick Guide Security Lock Settlement After mounting the camera onto the flat bracket, bolt the security lock by fastening the security screw counterclockwise, as the figure shown below, so that camera will be mounted to bracket securely. To disassemble camera from flat bracket, loosen the security screw clockwise first.

  • Page 13: Connection

    V2360W Panoramic Fisheye Series | Quick Guide 3 Connection Network Topology The camera, which is equipped with Ethernet RJ-45 network interface, can deliver live view image in real time via both Internet and Intranet manners. Review the topology drawings shown below. Figure 3 - 1: Network Topology System Requirements The table below lists the minimum requirement to implement and operate the camera.

  • Page 14: Connecting Process

    V2360W Panoramic Fisheye | Quick Guide Connecting Process 3.3.1 Default IP address Since this is a network-based camera, an IP address must be assigned. The camera’s default IP address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in "Network Settings."...
  • Page 15 V2360W Panoramic Fisheye Series | Quick Guide Viewing Preparation Images of the unit can be viewed through various browsers. Before viewing, follow these steps to enable the display. Enable Cookies per instructions below:  In Internet Explorer, click Internet Options on the Tools menu. ...
  • Page 16 V2360W Panoramic Fisheye | Quick Guide  Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows: 【Download signed ActiveX controls】➔ Prompt (recommended) 【Download unsigned ActiveX controls】➔ Prompt 【Initialize and script ActiveX not marked as safe for scripting】➔ Prompt Figure 3 - 4: Security Settings 2/4 【Automatic prompting for ActiveX controls】➔...
  • Page 17 V2360W Panoramic Fisheye Series | Quick Guide 【Run ActiveX controls and plug-ins】➔ Enable 【Script ActiveX controls marked safe for scripting*】➔ Enable Figure 3 - 6: Security Settings 4/4  Press OK to save the settings.  Close all browser windows and restart the browser. This will allow the new settings to take effect. ...

  • Page 18: Ip Toolbox

    Note that IP Toolbox works only in Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7 or above. Steps to get the utility program running are listed below. Download the IP Toolbox folder to local computer. The latest IP Toolbox can be found on Vicon’s website Camera Software Download page, vicon-security.com.
  • Page 19 V2360W Panoramic Fisheye Series | Quick Guide input certain keywords into the field and also narrow down the range by selecting the criteria from the dropdown menu for a target search on cameras connected. “Auto Set IP Address” button to automatically give each camera an IP address from Press predefined range and connected to predefined network internet controller.
  • Page 20 V2360W Panoramic Fisheye | Quick Guide Follow the steps below to complete firmware upgrade: ▪ Click to add or remove camera to be upgraded (only verified cameras will be shown on this list). ▪ Select a camera or click “Select All” button to select a camera or all the cameras on the firmware upgrade list, respectively.
