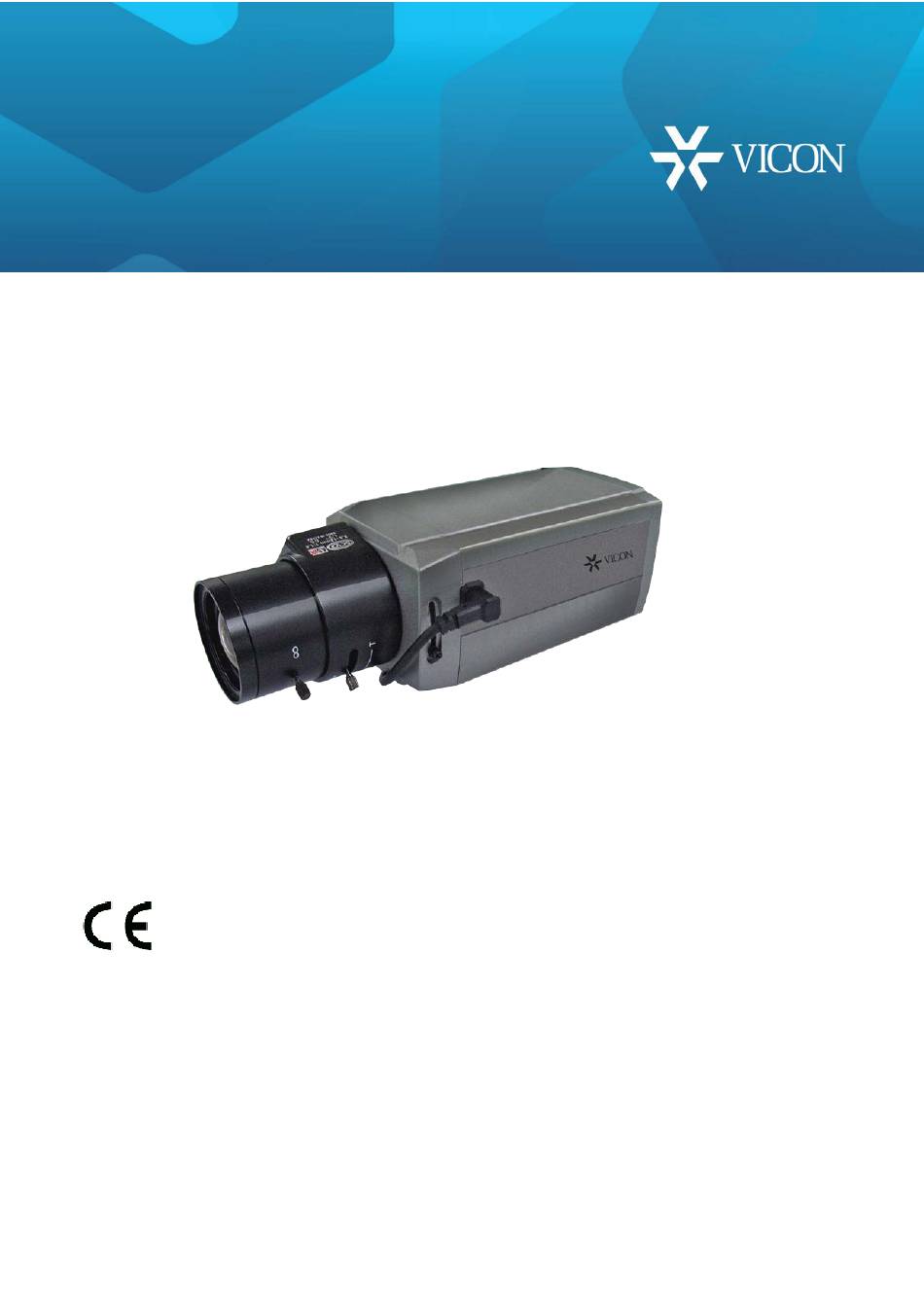

Installation and Operation Guide

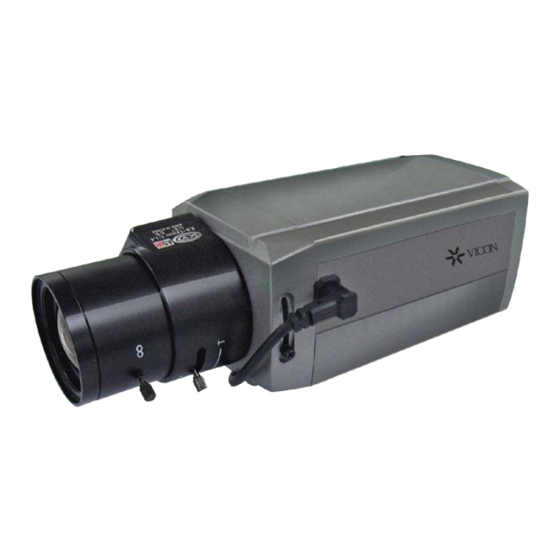

V672-W HD Analog Box Cameras
Vicon Industries Inc. does not warrant that the functions contained in this equipment
will meet your requirements or that the operation will be entirely error free or
perform precisely as described in the documentation. This system has not been
designed to be used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8299-20-00
Product specifications subject to change without notice.
Issued: 2/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XX299-20
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Related Manuals for Vicon V672-W
Summary of Contents for Vicon V672-W
- Page 1 V672-W HD Analog Box Cameras XX299-20 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment Tel: 631-952-2288) Fax: 631-951-2288 will meet your requirements or that the operation will be entirely error free or Toll Free: 800-645-9116 perform precisely as described in the documentation.
- Page 2 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 4 PRECAUTIONS Before installation, carefully read the manual to ensure correct operation and setup, heeding all warnings and instructions. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure manual is kept in good condition for future use. Do not install the device near any heat sources such as radiators, heat registers, stoves, or other equipment(including amplifiers) that produce heat.
- Page 5 TABLE OF CONTENTS INTRODUCTION ------------------------------------------------------------------------- 6 CONTENTS OF PACKAGE ----------------------------------------------------------- 7 CAMERA OVERVIEW ------------------------------------------------------------------ 7 STRUCTURE OF THE SETUP MENU ---------------------------------------------- 8 SPECIFICATIONS ----------------------------------------------------------------------- 14...
- Page 6 INSTRUCTION The V672-W-NL full HD analog box camera provides high-quality images using CMOS technology especially for closed circuit television CCTV and security surveillance application. Features: • High performance Sony 1/2.8” 2.1M Starvis CMOS • Min. illumination 0.03 lux (DSS off) •...
- Page 7 CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment.
- Page 8 STRUCTURE OF THE SETUP MENU <MENU> EXPOSURE BACKLIGHT DAY&NIGHT <EXPOSURE> IRIS IMAGE BRIGHTNESS SYSTEM SHUTTER EXIT SENS-UP RETURN <BACKLIGHT> <DAY&NIGHT> <AWB> AUTO AUTO COLOR AUTOext B&W PRESET EXTERN MANUAL <IMAGE> <SYSTEM> <DNR> COLOR GAIN OUTPUT SHARPNESS FRAME RATE GAMMA FREQ MIDDLE MIRROR LANGUAGE...
- Page 9 Use the joystick switch on the rear of the camera to navigate the setup menus. Use up or down to move the cursor to select the menu option, left or right to view setting options; press Enter to select. EXPOSURE The EXPOSURE menu is used to set the automatic light control method for the camera.
- Page 10 2) BLC: Compensates for a loss of detail on dark subjects due to backlighting by providing increased brightness on the overall scene. Adjust the position and size of Back Light Compensation area. Adjust the BLC area window horizontal position: ▶0 - 20 H-POS Adjust the BLC area window vertical position: ▶0 - 20 V-POS...
- Page 11 2) AUTO Adjust levels of anti-saturation: ▶0 - 20 ANTI-SAT. Adjust levels of transition: ▶0 - 20 AGC THRES Adjust levels of transition: ▶0 - 20 AGC MARGIN DELAY Adjust time of day to night mode transition: ▶ LOW, MIDDLE, HIGH DAY&NIGHT mode changes according to the brightness of the image.
- Page 12 <WHITE BALANCE> Mode MAIN MENU MANUAL EXPOSURE BACKLIGHT C-TEMP 5000K ┃-----┃ DAY&NIGHT R-GAIN EXTERN ▶ ┃-----┃ AUTO B-GAIN RETURN IMAGE SYSTEM EXIT The DNR menu provides the ability to adjust the DNR (Digital Noise Reduction) functions of the camera.
- Page 13 Select the privacy zone horizontal size: ▶0 - 60 H-SIZE Select the privacy zone vertical size: ▶0 - 34 V-SIZE Select the privacy zone darkness: ▶0 - 20 Y LEVEL CB LEVEL Select the privacy zone blue color: ▶0 - 20 CR LEVEL Select the privacy zone red color: ▶0 - 20 Select the privacy zone transparency: ▶0 - 3 TRANS...
- Page 14 SYSTEM The SYSTEM menu provides the ability to adjust the OUTPUT, FRAME RATE, FREQ, LANGUAGE, SETUP and RESET functions of the camera. 1) OUTPUT Select the output mode and control. MAIN OUTPUT: ANALOG HD, ANALOG OUT1 ANALOG HD: TVI, HD-A ANALOG OUT: CVBS Y GAIN...
- Page 15 SPECIFICATION MODEL V672-W-NL Box Camera Power Source 24 VAC ± 10%/12 VDC ± 10% Power Power Consumption Max 3.0 Watts (250mA) Image Sensor 1/2.8" 2.1M Sony CMOS Total Pixels 1945(H) x 1109(V) Active Pixels 1937(H) x 1097(V) Scanning System 16:9 Progressive Sync.
- Page 16 Transmission Distance Over 500m via 5C-2V coaxial cable Auto Iris Output 4-pin mini din jack (standard connection) Lens C/CS mount (selected through back focus) Operating temperature 14°F ~ 122°F (-10℃ ~ +50℃) Operating humidity 0 ~ 96% (non-condensing) External dimension (WxHxD) 2.6 x 2.2 x 4.7 in.
- Page 17 Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
- Page 18 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
- Page 19 Except as provided in this written warranty and to the extent permitted by law, neither Vicon nor any affiliated shall be liable for any loss, (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory.
- Page 20 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
