Lithonia Lighting ECBG LED M6 Manual

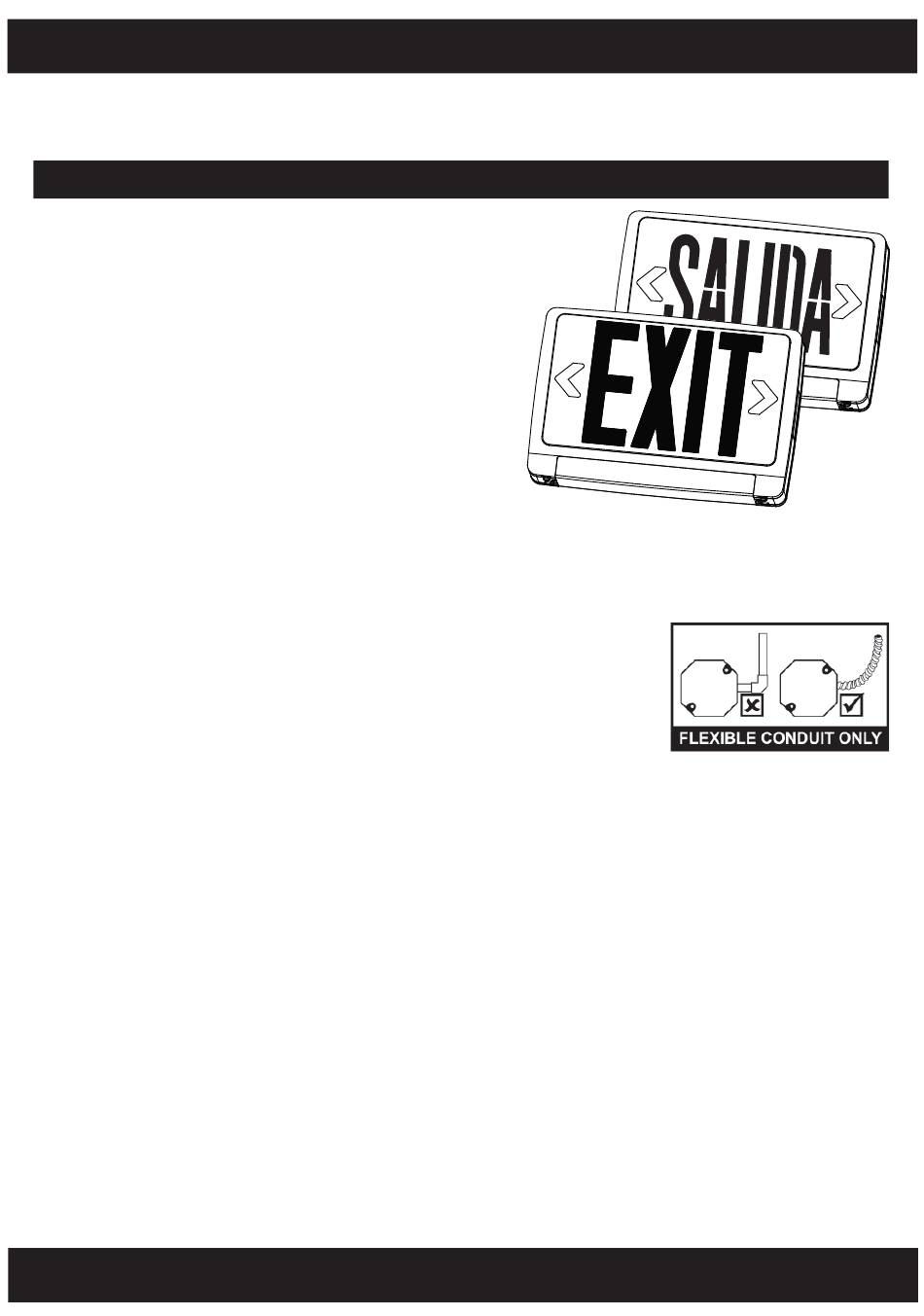

INTEGRATED LED EMERGENCY EXIT/UNIT COMBO
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS
MAY RESULT IN DEATH, SERIOUS INJURY OR SIGNIFICANT PROPERTY
DAMAGE. For your protection, read and follow these warnings and instructions
carefully before installing or maintaining this equipment. These instructions
do not attempt to cover all installation and maintenance situations. If you do
not understand these instructions or additional information is required, contact
LITHONIA LIGHTING or your local LITHONIA LIGHTING distributor.
WARNING: RISK OF ELECTRIC SHOCK - NEVER CONNECT TO,
DISCONNECT FROM, OR SERVICE WHILE EQUIPMENT IS ENERGIZED.
WARNING: RISK OF FIRE. Lamps are hot. Keep combustible material away
from hot parts. Observe lamp manufacturer's warnings, recommendations and
restrictions on lamp operation and maintenance. Make sure lamps are correctly
installed.
CAUTION: The battery in this unit may not be fully charged. After electricity is
connected to unit, let battery charge for at least 24 hours, then normal operation
of this unit should take effect. To check, press the TEST button. The lamps on the unit should turn on.
IMPORTANT SAFEGUARDS: When using electrical equipment, basic safety precautions should always be followed, including the following:
• Do not use outdoors.
• Consult local building code for approved wiring and installation.
• Disconnect AC power before servicing and installation.
• Do not mount near gas or electric heaters.
• Do not use this equipment for anything other than its intended use.
• The use of accessory equipment not recommended by the manufacturer will void product listing and
warranty and may cause an unsafe condition.
• Any service on this equipment should be performed by qualifi ed personnel only.
• Equipment should be mounted in locations and at heights where it will not be subject to tampering by unauthorized personnel.
• Use caution when servicing batteries.
• Cap unused wires with enclosed wire nuts or other approved method.
• Make sure wire terminations are secure and leads are properly tucked in appropriate wire channels.
INSTALLATION
NOTE: Max mounting height is 8 ft to achieve at least 1 ft-candle of illuminance in emergency mode.
BACK MOUNT INSTALLATION:
1. Remove lens on bottom of fi xture, set aside.
2. Remove EXIT stencil from housing, set aside.
3. Drill or knock out appropriate knockouts on back plate to fi t junction box mounting points.
4. Drill or knock out center hole in back plate for EXIT input wire leads.
5. Route EXIT input wires through center hole of the back plate and make wiring connection. For 120V, use black and white wires and for
277V, use red and white wires. WARNING: Properly insulate the unused lead with a wire nut (provided) or other approved means.
6. Secure back plate to junction box (hardware not included).
7. Remove proper chevron(s) as required. When removing chevrons it may be helpful to remove the color diffuser panel to allow easier
access to the chevrons. If removing color diffuser panel it is important to remember to reinstall the diffuser panel once chevron(s) have
been removed.
8. Connect battery only after continuous AC power can be provided to the unit.
9. Install lens removed in step 1 to bottom of fi xture.
10. Apply continuous AC power and press "TEST" button to check operation.(See operation (battery back-up) for testing procedures)
PAGE: 1 of 2
