MODEL ELT16, ELT16 N, ELT24, ELT24 N, ELT36
CAUTION: For safety and proper operation, read and follow instructions carefully before installation.

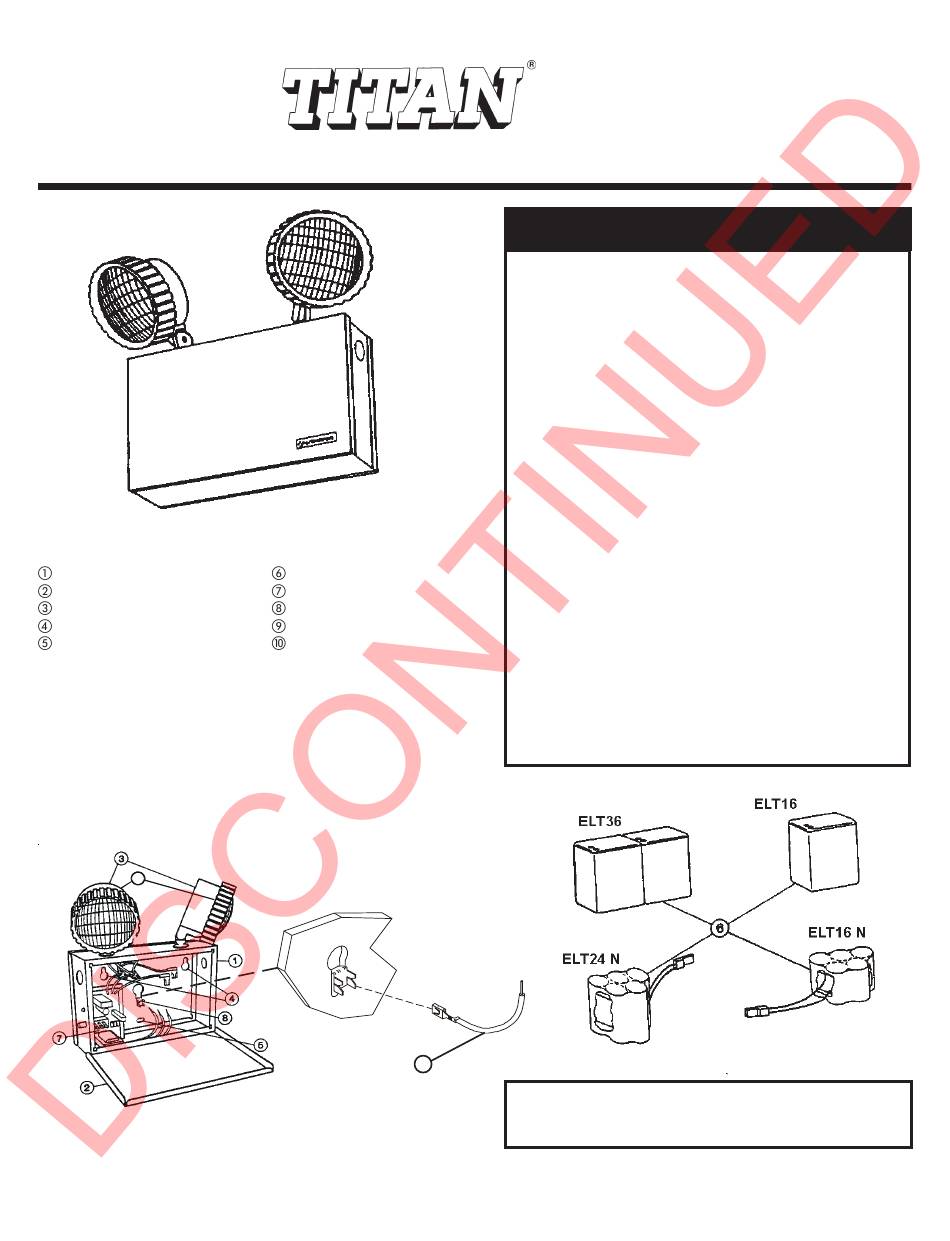

PARTS DESCRIPTION
Housing
Front cover
Lamp Head
Keyhole Mounting Slot
Oblong Mounting Slot
BEFORE INSTALLATION
Unit should be located to assure adequate clearance for front
cover and lampheads.
Do not position unit where it will be exposed to direct sunlight,
radiators, or other heat sources. Prolonged exposure to high
temperatures will shorten battery life and may void warranty.
10
NOTE: Some models may have the transformer mounted on
the housing rather than the charger board (See Fig. 5).
INSTALLATION INSTRUCTIONS
Battery
Charger Board
Ground Clip
Ground Lead
Retaining Cap
Figure 1
9
Page 1
SERIES
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL
1.
SAFETY INSTRUCTIONS
2.
Before wiring to power supply, turn off electricity at fuse or
circuit breaker.
3.
Disconnect A.C. power and unplug battery before servicing.
4.
All servicing should be performed by qualified personnel.
5.
Consult your local building code for approved wiring and
installation.
6.
Do not use outdoors.
7.
Do not let power supply cord touch hot surfaces.
8.
Do not mount near gas or electric heater.
9.
Use caution when servicing batteries. Battery acid can
cause burns to skin and eyes. If acid is spilled on skin or
in eyes, flush acid with fresh water and contact a physician
immediately.
10. Equipment should be mounted in location and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
11. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
12. Do not use this equipment for other than intended use.
13. Fixture must be grounded to avoid potential electric shock.
14. CAUTION: Halogen cycle lamp(s) may be used in this
fixture. To avoid shattering, do not operate lamp in excess
of rated voltage. Protect lamp against abrasions,
scratches and against liquids when lamp is operating.
Dispose of lamps with care. Halogen lamps operate at high
temperatures. Do not store or place flammable materials
near lamps.
SAVE THESE INSTRUCTIONS
CAUTION: Damage to battery will occur if battery is
connected to charger board for a prolonged period of time
without A.C. power provided.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lithonia Lighting TITAN Series
Summary of Contents for Lithonia Lighting TITAN Series
- Page 1 INSTALLATION INSTRUCTIONS SERIES MODEL ELT16, ELT16 N, ELT24, ELT24 N, ELT36 CAUTION: For safety and proper operation, read and follow instructions carefully before installation. IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS Before wiring to power supply, turn off electricity at fuse or circuit breaker.
- Page 2 MOUNTING TO WALL USING J-BOX TRANSFORMER REPLACEMENT: Transformer replacement requires that the rivets securing the transformer to the housing be drilled out. Disconnect trans Remove all knockouts from rear of housing . Locate former wiring and remove from housing. Install replacement center 7/8"...
- Page 3 Figure 3 Figure 2 Wiring Diagram Wiring Diagram ELT 16N, ELT 24N ELT 16, ELT 24 Gnd Clip Gnd Clip Gnd Clip Gnd Clip Figure 5 Figure 4 Wiring Diagram Wiring Diagram ELT 16 Series 13 ELT 36 ELT 24 Series 12 Page 3...
- Page 4 Important Battery Information: Batteries are perishable items. For best results, it is recommended that the battery receive an initial charge within the first 18 months of the manufacture date of the fixture. The mfg date can be found on the outside of the unit packaging and on the UL label as part of the Date Code/Series.
