CAUTION: For safety and proper operation, read and follow instructions carefully before installation.
PARTS DESCRIPTION
Housing
Front cover
Lamp Head
Keyhole Mounting Slot
Oblong Mounting Slot

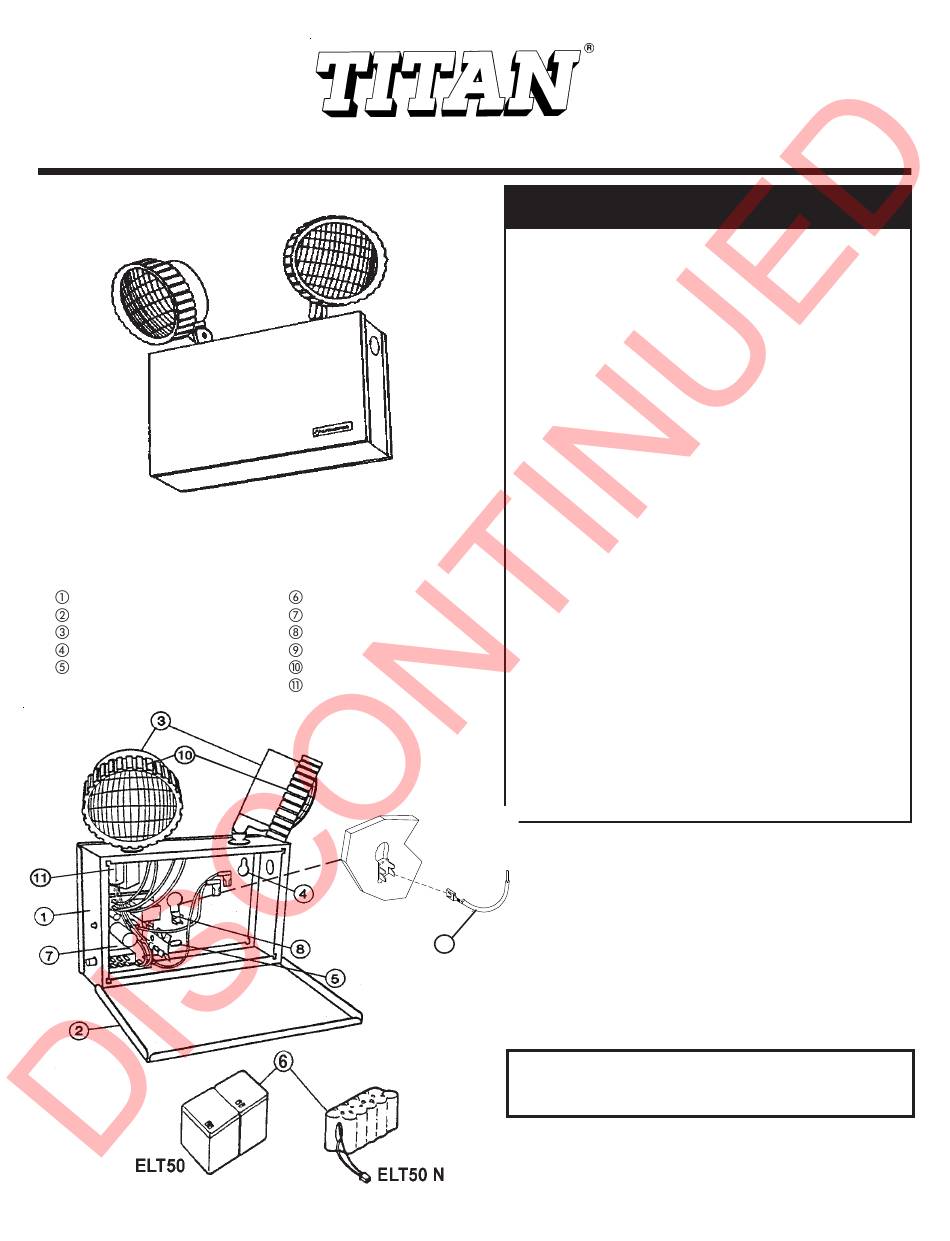

Figure 1
INSTALLATION INSTRUCTIONS
MODEL ELT50, ELT50 N
Battery
Charger Board
Ground Clip
Ground Lead
Retaining Cap
Transformer
9
Page 1
SERIES
IMPORTANT SAFEGUARDS
1. READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
2.
Do not use outdoors.
3.
Do not let power supply cord touch hot surfaces.
4.
Do not mount near gas or electric heater.
5.
Use caution when servicing batteries. Battery acid
can cause burns to skin and eyes. If acid is spilled on
skin or in eyes, flush acid with fresh water and contact
a physician immediately.
6.
Equipment should be mounted in location and at
heights where it will not readily be subjected to
tampering by unauthorized personnel.
7.
The use of accessory equipment not recommended
by the manufacturer may cause an unsafe condition.
8.
Do not use this equipment for other than intended
use.
9.
Before wiring to power supply, turn off electricity at
fuse or circuit breaker.
10. Consult your local building code for approved wiring.
11. Fixture must be grounded to avoid potential electric
shock
12. Disconnect A.C. power and unplug battery before
servicing.
13. All servicing should be performed by qualified
personnel.
14. CAUTION: Halogen cycle lamp(s) may be used in this
fixture to avoid shattering, do not operate lamp in
excess of rated voltage. Protect lamp against abra-
sions, scratches and against liquids when lamp is
operating. Dispose of
operate at high temperatures. Do not store or place
flammable materials near lamps.
SAVE THESE INSTRUCTIONS
BEFORE INSTALLATION
Unit should be located to assure adequate clearance for front
cover and lampheads.
Do not position unit where it will be exposed to direct sunlight,
radiators, or other heat sources. Prolonged exposure to high
temperatures will shorten battery life and may void warranty.
CAUTION: Damage to battery will occur if battery is
connected to charger board for a prolonged period of time
without A.C. power provided.
lamps with care. Halogen lamps
