CAUTION: For safety and proper operation, read and follow instructions carefully before installation.

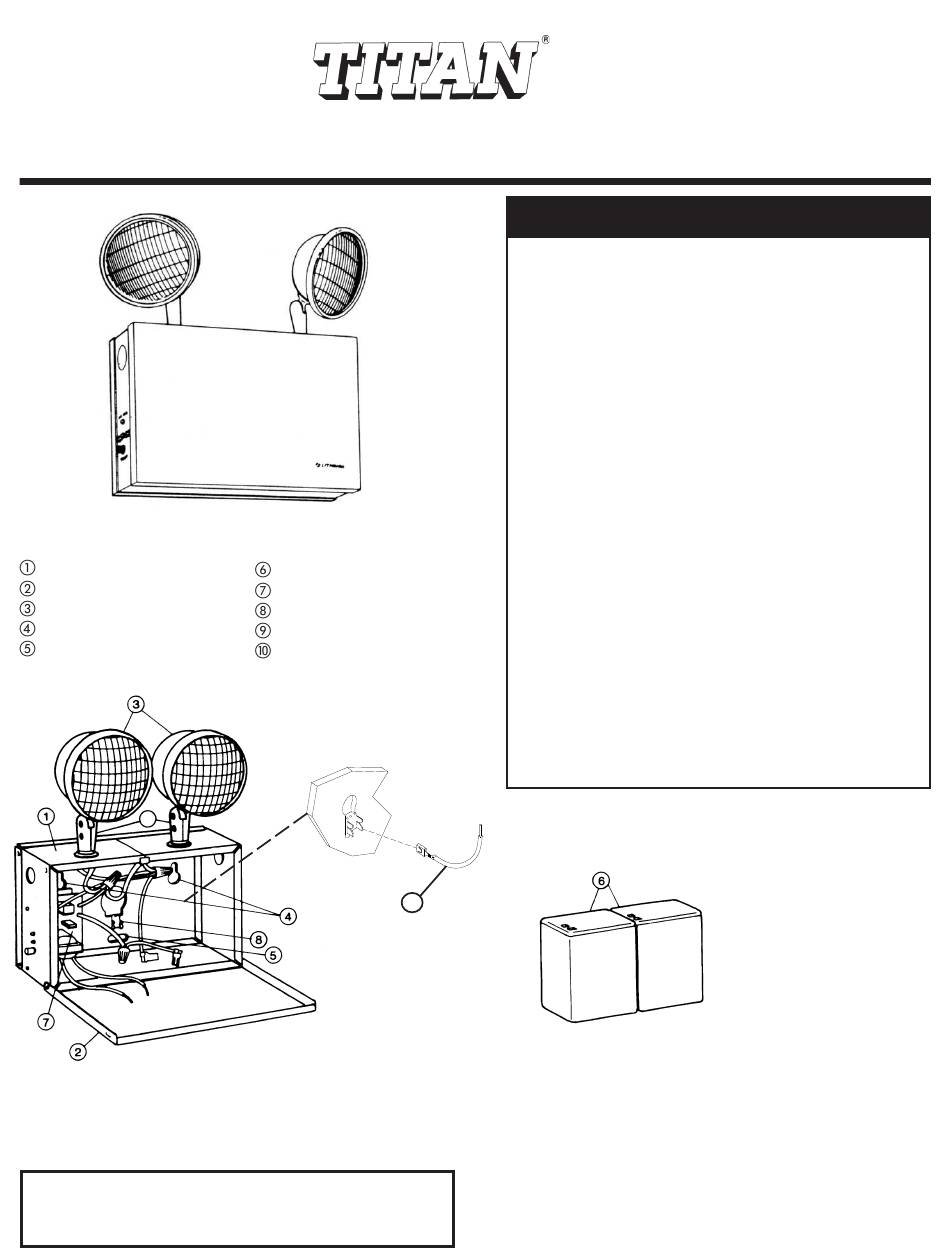

PARTS DESCRIPTION
Housing
Front cover
Lamp Head
Keyhole Mounting Slot
Oblong Mounting Slot
10
NOTE: ELT 24C series 12 has separated charger board
and transformer (See Fig. 4)
CAUTION: Damage to battery will occur if battery
is connected to charger board for a prolonged
period of time without A.C. power provided.
INSTALLATION INSTRUCTIONS
MODEL ELT24C, ELT36C
Battery
Charger Board
Ground Clip
Ground Lead
Adjustable Swivel
9
Figure 1
SERIES
IMPORTANT SAFEGUARDS
1.READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
2. Before wiring to power supply, turn off electricity at fuse or
circuit breaker.
3. Disconnect A.C. power and unplug battery before servicing.
4. All servicing should be performed by qualified personnel.
5. Consult your local building code for approved wiring and
installation.
6. Do not use outdoors
7. Do not let power supply cord touch hot surfaces.
8. Do not mount near gas or electric heater.
9. Use caution when servicing batteries. Battery acid can cause
burns to skin and eyes. If acid is spilled on skin or in eyes, flush
acid with fresh water and contact a physician immediately.
10. Equipment should be mounted in location and at heights where
it will not readily be subjected to tampering by unauthorized
personnel.
11. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
12. Do not use this equipment for other than intended use.
13. Fixture must be grounded to avoid potential electric shock.
14. CAUTION: Halogen cycle lamp(s) may be used in this fixture.
To avoid shattering, do not operate lamp in excess of rated
voltage. Protect lamp against abrasions, scratches and against
liquids when lamp is operating. Dispose of lamps with care.
Halogen lamps operate at high temperatures. Do not store or
place flammable materials near lamps.
SAVE THESE INSTRUCTIONS
BEFORE INSTALLATION
Unit should be located to assure adequate clearance for
front cover and lampheads.
Do not position unit where it will be exposed to direct
sunlight, radiators, or other heat sources. Prolonged
exposure to high temperatures will shorten battery life
and may void warranty.
MODEL ELT24C
(1) BATTERY
MODEL ELT36C
(2) BATTERIES

Advertisement

loading
Need help?

Need help?

Do you have a question about the TITAN Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lithonia Lighting TITAN Series

  • Page 1 INSTALLATION INSTRUCTIONS SERIES MODEL ELT24C, ELT36C CAUTION: For safety and proper operation, read and follow instructions carefully before installation. IMPORTANT SAFEGUARDS 1.READ AND FOLLOW ALL SAFETY INSTRUCTIONS 2. Before wiring to power supply, turn off electricity at fuse or circuit breaker. 3.
  • Page 2 MOUNTING TO WALL USING J-BOX INSPECTION AND MAINTENANCE NOTE: Emergency lighting systems should be tested as often Remove all knockouts from rear of housing . Locate as local codes require, or at least monthly, to ascertain center 7/8" knockout over J-box. that all components are operational.
  • Page 3 OR ORANGE OR ORANGE Figure 3 Wiring Diagram Figure 2 ELT 36C Wiring Diagram ELT 24C Figure 4 Wiring Diagram ELT 24C Series 12 Page 3...
  • Page 4 Important Battery Information: Batteries are perishable items. For best results, it is recommended that the battery receive an initial charge within the first 18 months of the manufacture date of the fixture. The mfg date can be found on the outside of the unit packaging and on the UL label as part of the Date Code/Series.
