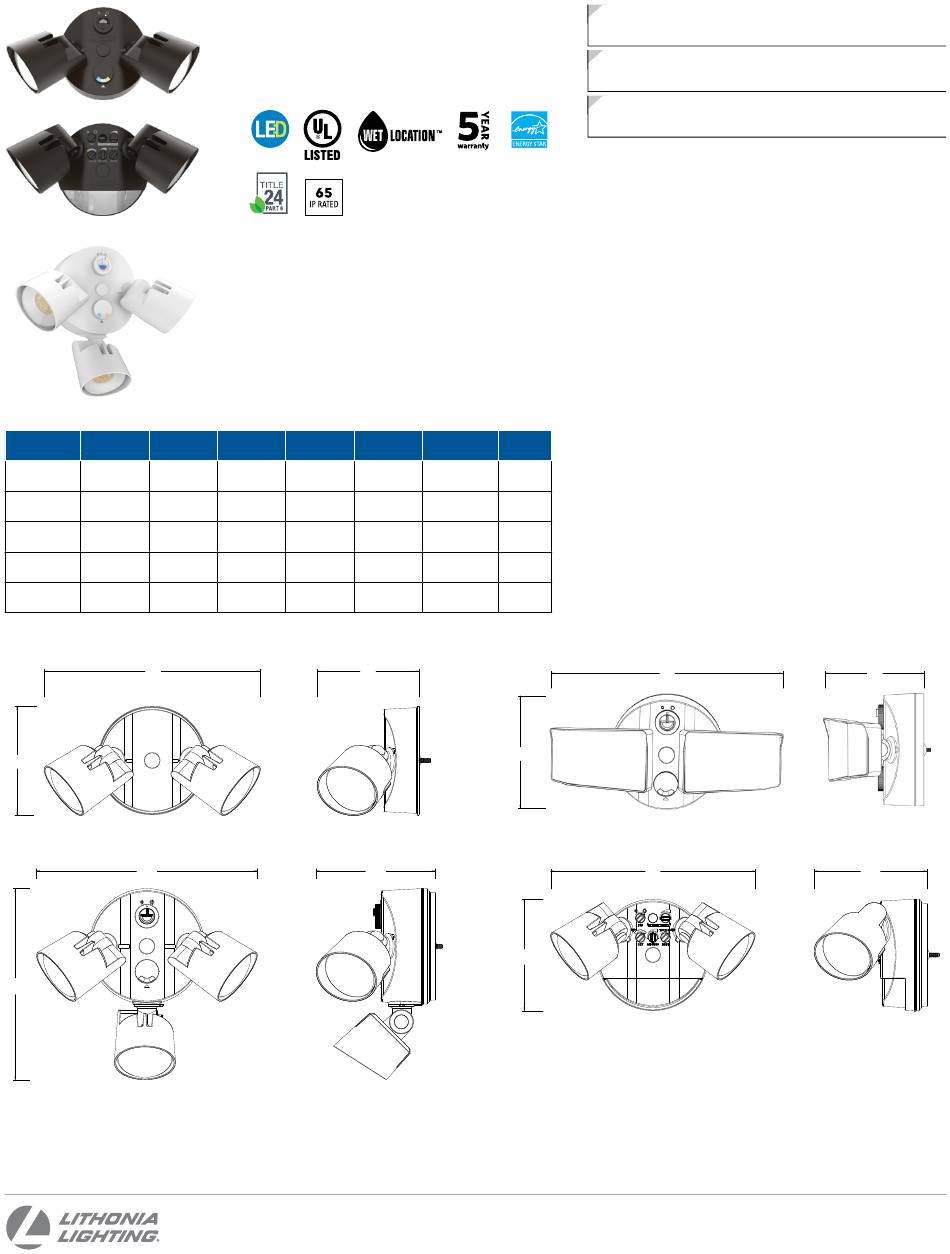

Luminaire
Length (L)
Width (W)
4.41"
7.56"
HGX 2RH
(11.2cm)
(19.2cm)
5.12"
7.72"
HGX 3RH
(13cm)
(19.6cm)
4.53"
7.56"
HGX 2SH
(11.5cm)
(19.2cm)
4.96"
7.52"
HGX 2RH PIR
(12.6cm)
(19.1cm)
4.53"
7.56"
HGX 2RH ALO
(11.51cm)
(19.2cm)
L
H
L
H
COMMERCIAL OUTDOOR

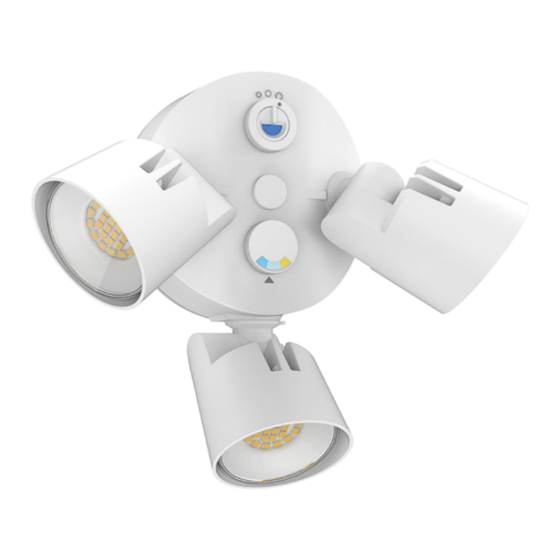

HGX
A complete security
floodlighting solution
TM
CAN BE USED TO
COMPLY WITH 2019
HIGH EFFICACY LED LIGHT
SOURCE REQUIREMENTS
Lamp head
Back plate
Height (H)
dia (A)
dia (B)
4.25"
2.4"
4.25"
(10.8cm)
(6.1cm)
(10.8cm)
4.53"
2.4"
4.53"
(11.5cm)
(6.1cm)
(11.51cm)
4.33"
2.40"
4.33"
(11cm)
(6.1cm)
(11cm)
4.53"
2.40"
4.53"
(11.5cm)
(6.1cm)
(11.5cm)
4.33"
2.40"
4.33"
(11cm)
(6.1cm)
(11cm)
W
W
One Lithonia Way • Conyers, Georgia 30012 • Phone: 1-800-705-SERV (7378) •
© 2021 Acuity Brands Lighting, Inc. All rights reserved.
Catalog
Number
Notes
Type
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The HomeGuard LED family of security flood
lights, built with rugged die cast aluminum
construction, are long lasting, energy efficient
solutions for replacing incandescent PAR lamp
fixtures. Mounted under the eave or on the wall,
these luminaires provide reliable security lighting
in residential and commercial applications.
The HGX family has six configurations both in
bronze and white. Featuring a low cost version for
switched circuits to a fully featured product that
Back plate
Weight
includes an integral photocell for that automatic
thickness (C)
1.38"
1.15 lbs
dusk-to-dawn operation, color tuning, adjustable
(3.5cm)
(0.52 kg)
lumens and a motion sensor. With tool-less easy-
2.13"
1.77 lbs
(5.4cm)
(0.8kg)
to-aim lamps, HGX installs quickly, and delivers a
1.54"
1.31 lbs
lumen range from 1700 to 4100. The HGX family
(3.9cm)
(0.6kg)
1.89"
1.37lbs
provide great flexibility and versatility.
(4.8cm)
(0.62 kg)
1.54"
1.31lbs
(3.9cm)
(0.6kg)
H
H
H
L
L
L
www.lithonia.com
W
W
W
HGX LED
Rev. 06/01/21
