Remote Control - Create WIND CALM PATIO User Manual

1. **Light
2. **Light intensity control
3. Fan intensity control
4. Timer
5. Batteries (2xAAA)
6. **Color temperature control
7. ON/OFF button
8. Reverse function
** Function only available with
the LED plate installed.
• Turn on the fan by pressing the On/Off button.
• Change the direction of the air flow (winter / summer function) by pressing the reverse
function button with the fan on. It doesn't work when the fan is off. The blades will stop
spinning to start again in the opposite direction by simply pressing the button once.
• Turn the light on and off by pressing the light button.
• Press the Fan Intensity Control button to increase the fan speed after power on.

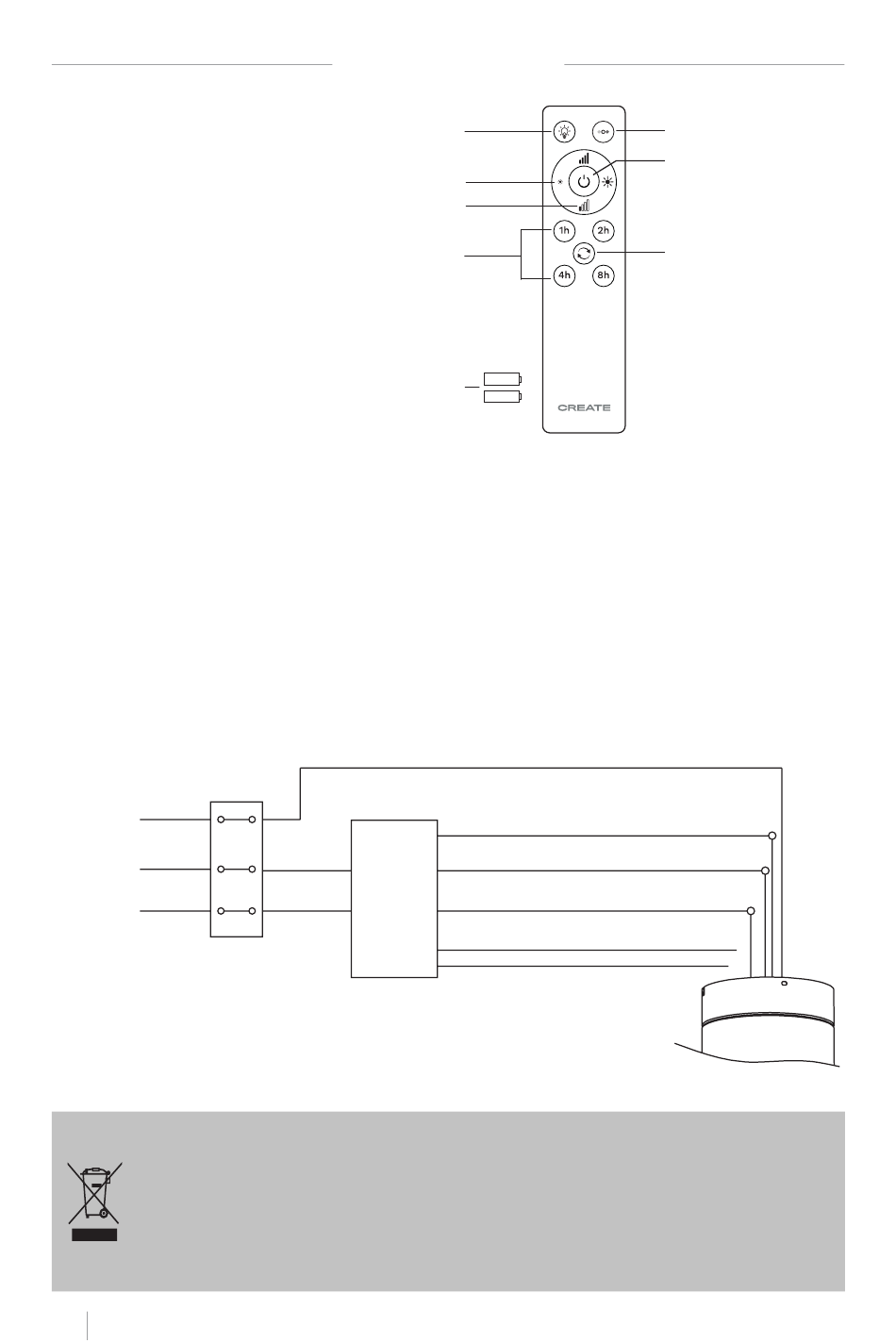

R E MO T E CON TROL CO NNECT IO N
Grounding
DC
L
N
In compliance with the directives: 2012/19/EU and 2015/863/EU on the restriction of the use of hazardous substances in
electrical and electronic equipment, as well as their waste disposal. The crossed bin symbol shown on the packaging indicates
that the product at the end of its useful life will be collected as separate waste. Therefore, any product that has reached the
end of its useful life should be delivered to waste disposal centers specialized in the separate collection of waste electrical
and electronic equipment, or returned to the retailer when purchasing similar new equipment, in one for a base. Proper sepa-
rate collection for subsequent commissioning of equipment sent for recycling, treatment and disposal in an environmentally
compatible manner helps prevent possible negative effects on the environment and health and optimizes recycling and reuse
of waste. the components that make up the device. The abusive disposal of the product by the user implies the application of
administrative sanctions in accordance with the laws.
E NGL I SH
10

REMOTE CONTROL

L (black)
Remote
control
receiver
Input N
(White)
1
2
3
4
5
Grounding
Neutral N (white)
L light (blue)
Gray DC motor L
Pink DC motor L
Red DC motor L
6
7
8
