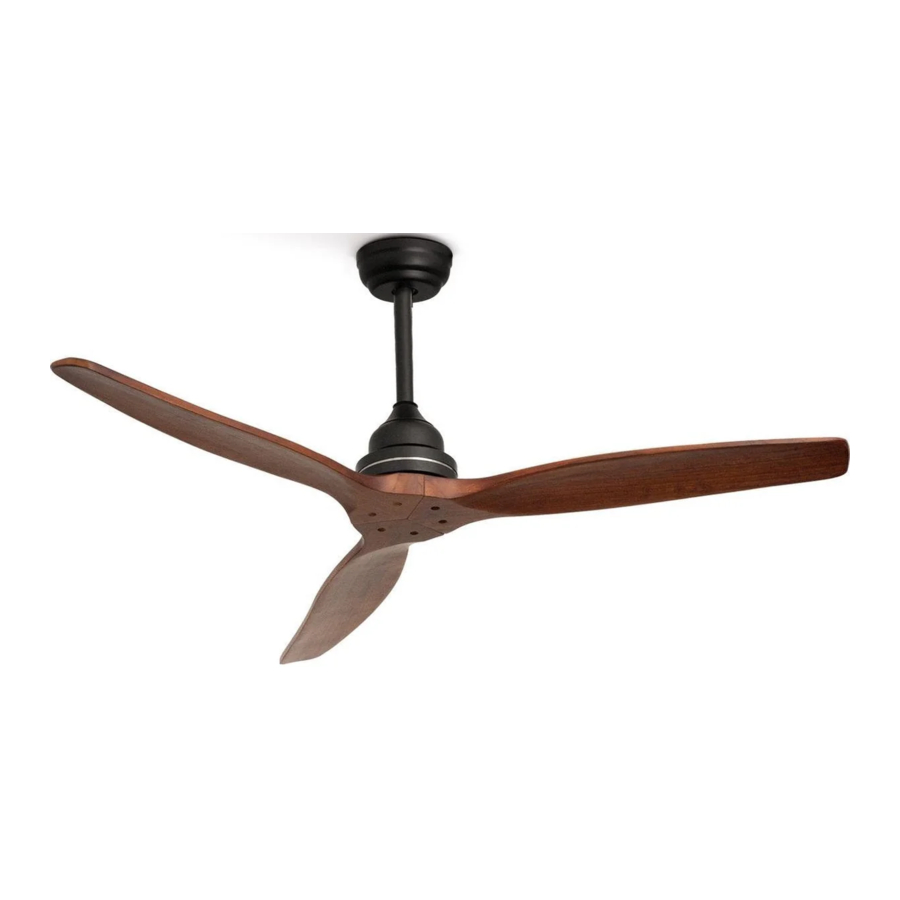

Create Wind Wood - Ceiling Fan Manual

INTRODUCTION

Before using this appliance and to ensure its best use, please read the instructions carefully.

The safety measures listed here reduce the risk of fire, electric shock, and injury when followed correctly. Please keep the manual in a safe place for future reference, as well as the sales receipt and box. If applicable, give these instructions to the future owner of the appliance.

Always follow basic safety instructions and hazard prevention measures when using an electrical appliance. The manufacturer will not be responsible for any damage resulting from the user's failure to follow these instructions.

LOCATION AND INSTALLATION REQUIREMENTS

MECHANIC TIPS

  • According to safety regulations, the lowest point of the fan blade must be at least 2.3m (7 feet) from the floor.
  • Please make sure the chosen location will not allow the rotating fan blades to come into contact with any objects.
  • Ensure ceiling joists are sound and are large and strong enough to support the weight of the fan.
  • To reduce the risk of fire, electric shock or personal injury, ensure that the fan mounting bracket is attached directly to the building structure. Do not mount to an outlet box.
  • The mounting bracket must be firmly screwed to a load bearing structure, e.g. a concrete ceiling, steel structure or timber frame. If a timber frame is added, it must be securely nailed or screwed between two beams.
  • To reduce risk of personal injury and property damage, do not bend or damage the downrod or the fan blades when handling or installing them. If you notice any product imperfections, please contact our after-sales service before proceeding to install the fan.
  • Make sure the ceiling fan is securely fastened to the ceiling. All set screws must be checked and re-tightened where necessary before fan operation.

ELECTRICAL TIPS

  • Turn off the power before performing any work on the ceiling fan and turn off the power breaker. To avoid possible electrical shock, check that the power is turned off at the fuse box or circuit breaker panel before wiring.
  • The fan, mounting bracket and lighting equipment must be connected to a ground. Check that all splices are well insulated.
  • Check and confirm that all connections are correct and secure. Once all electrical connections have been made, store all cables securely.
  • Do not attempt to control this fan from a wall switch or remote control that is not approved by the manufacturer for use with the fan. Do not use a solid state controller. Use of a non-approved wall switch or remote control will void your warranty.
  • Do not connect the ceiling fan to a dimmer switch.

SECURITY INSTRUCTIONS

When using any electrical appliance, the following basic safety precautions should always be observed.

  • To reduce the risk of personal injury, attach the fan directly to the building support structure following these instructions and use only the material provided.
  • To avoid possible electrical shock, before installing your fan, disconnect power by turning off the electrical panel power switches and associated wall switches. If it is not possible to turn off the power switches, use a warning device such as a label on the electrical panel.
  • All cables must meet specifications established by local and national electrical codes and ANSI/NFPA 70. If you are not familiar with electrical installations, consult a qualified electrician.
  • Do not bend the blade attachment system while installing, tilting, or cleaning blades.
  • Do not insert other objects between the fan blades.
  • To reduce the risk of fire, electric shock, or motor damage, do not use a solid-state speed regulator with this fan. Only use the original speed regulators.
  • This appliance can be used by children aged 8 years and older and people with reduced physical, sensory or mental capabilities, or lack of experience or limited knowledge, provided they are supervised by a person responsible for their safety or who has been trained how to use it. the appliance safely.
  • Children should not play with this device. They should also not carry out cleaning and maintenance tasks unless they are over 8 years old and supervised. Children should be closely supervised when using any appliance.

warning NOTE: The instructions and safety precautions in this manual may not cover all possible problems and situations. You should understand that both common sense and caution are essential in the installation and use of the fan.

PARTS LIST

REMOTE CONTROL

REMOTE CONTROL

  1. Speeds
  2. On/Off button
  3. Timer
  4. Batteries
  • Use this product under the correct tension. Too low a voltage will result in failed operation.
  • Remove the batteries from the controller if you are not going to use it for a long time.
    warning Note: For safety reasons and to ensure optimal performance, connect the ground wire correctly.
  • When installing the fan, make sure nothing presses the receiver antenna or other wires to prevent short circuit.

INSTALLATION INSTRUCTIONS

INSTALLATION PREPARATION

INSTALLATION PREPARATION

  • To avoid personal injury and injury, ensure that the fan is hung in a location that allows the blades to be 2.3 m or more from the floor and 76 cm from the nearest wall or obstacle.
  • Make sure the mounting bracket is properly attached to the building structure and can support the full weight of the fan.

INSTALLING THE MOUNTING BRACKET

  • Check that the ceiling where you intend to mount the fan is stable and capable of safely supporting the weight of the fan.
  • Do not fix the mounting bracket directly on ceilings less than 10mm to avoid the risk of the screw loosening and coming out.

Wood roof

Wood roof
Drill the necessary holes and then secure the mounting bracket with the wood screws and washers to the ceiling joints.

Concrete roof

Concrete roof
Drill holes with an 8mm drill bit, according to the length of the expansion screws.
Next, secure the mounting bracket to the ceiling with the expansion screws.

warning NOTE: This fan can also be installed in a false ceiling, for this you must use fixing screws with a spring lever (not included).

  • Mark the correct position of the holes and fix the ceiling support using the screws with metal anchors or screws and washers suitable for the type of ceiling chosen.
  • Verify proper installation of the bracket before hanging the fan. The mounting bracket must support the entire weight of the fan.

HANGER BAR INSTALLATION

Choose the hanger bar that best suits your situation: a 15 cm hanger bar and a 25 cm hanger bar are available.
Remove the bolt from the bar by removing the pin and thread the canopy (roof trim) and motor canopy through the hanger bar. Next, route the fan motor wires through the inside of the hanger bar. Fit the hanger bar to the engine and insert the bolt and cotter pin.
HANGER BAR INSTALLATION

This fan can be installed in either a regular or vaulted ceiling, and you can extend the hanging length with the longer hanging bar (supplied). To install the hanger bar you will need the following tools: a screwdriver, a flathead screwdriver, adjustable pliers or a wrench, a stepladder, wire cutters, and electrical tape.
Route the fan wires from the motor, through the hanger bar, decorative cover, and canopy to the ceiling.
warning Advice: Applying a small piece of electrical tape to the ends of the wires will help hold them together as you run them through the hanger bar.

SUSPENSION BAR INSTALLATION

SUSPENSION BAR INSTALLATION

  • If you want to extend the hanging length of your fan, remove the ball from the hanger rod and use the additional extension rod (included).
  • If you want to use the extension bar, follow the following instructions:.
  1. To remove the ball from the suspension rod, loosen the set screw and remove the cotter pins.
  2. Lower the ball and remove the locking pin.
  3. Take the ball out of the hanger bar and insert it into the longer hanger bar (the top of the bar has a hole for the set screw; use this to secure the bar).
  4. Insert the locking pin into the end of the suspension rod and raise the ball. Make sure the locking pin is aligned with the grooves inside the ball and secure the set screw.
    information Advice: To make it easier to insert the wires into the bar, place some electrical tape around the wires. This will help you keep them together as you insert them into the bar.
  5. Loosen the mounting screws and washer from the top of the motor housing. Remove the bar pins (if you haven't already). Insert the rosette through the bar.
  6. Thread the cables through the bar and pull the excess cables from the top of the bar to tighten them.
  7. Place the bar inside the motor housing and insert the pins you removed earlier. Tighten the set screws and washers.
  8. Lower the canopy towards the motor housing.

WIRING CONNECTION

Make the connection between the receiver wires and the fan motor wires following the color indications. Make sure the connection is tight.
WIRING CONNECTION

MOUNTING THE CEILING ROSE

MOUNTING THE CEILING ROSE

  1. Lift the canopy onto the mounting bracket and align the loosened screws on the mounting bracket with the holes in the canopy.
  2. Turn the finial to adjust it. Reinsert the screws and secure them with a screwdriver.
  3. Once you have the mounting bracket secured to the junction box you can proceed to hang the fan.
  4. Grip the fan firmly with both hands. Pass the bar through the opening in the mounting bracket and allow the ball to rest on the mounting bracket.
  5. Rotate the ball coupling until it lines up with the tab on the mounting bracket.

warning Advice: Another person should help you hold the ladder and hand you the fan once you have climbed the ladder.

BLADE INSTALLATION

Mount the blades on their metal support using the supplied screws and washers.
BLADE INSTALLATION
Align the holes in the blade holder with the holes in the blades and in the motor body and screw them into place, but do not tighten the screws until they are all in place and screwed on.

warning Advice: To save time, you can put the washers on each screw before you install the blades.

CHECK THE INSTALLATION

  • Check the correct operation of the ceiling fan, checking that there is no strange movement or misalignment in any part of the fan.
  • In the event that some type of buzzing/vibration can be seen, you can proceed to adjust the blades with the balancing kit.
  • In this kit you have self-adhesive weights and "u" clips.
  • Turn off the ceiling fan.
  • You can put the clip in the center of any blade and check if the vibration decreases.
  • Turn on the fan and check. If no change is seen, turn off the fan and add another clip on another blade or use the adhesive weights.

PROBLEM RESOLUTION

When the remote control does not work, please check whether:

  • The fan has current.
  • The fan is correctly connected.
  • The battery in the remote control is charged.
  • There are other remote controlled products nearby and in operation. Remote control products with the same frequency that are operating in close proximity will interfere with each other.
